| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | ONO8-17F1 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | IPC Embedded Industrial Computer NVIDIA Jetson Orin NX 16G For DJI UAV M30 M300 900-13767-0000-000 | Keyword: | IPC Embedded Industrial Computer NVIDIA Jetson Orin NX 16G For DJI UAV M30 M300 900-13767-0000-000 |
|---|---|---|---|
| AI Performance: | 100 TOPS | PN: | 900-13767-0000-000 |
| Ethernet: | 5G | System Memory: | 16GB 128-bit LPDDR5 102.4GB/s |
| Storage: | Supports External NVMe | Color: | Grey |
| Mechanical: | 100mm*74mm*47mm | Weight: | 238g |
| High Light: | NVIDIA Jetson Orin NX 16G IPC Embedded,IPC Embedded 900-13767-0000-000,900-13767-0000-000 Ipc Industrial Computer |
||

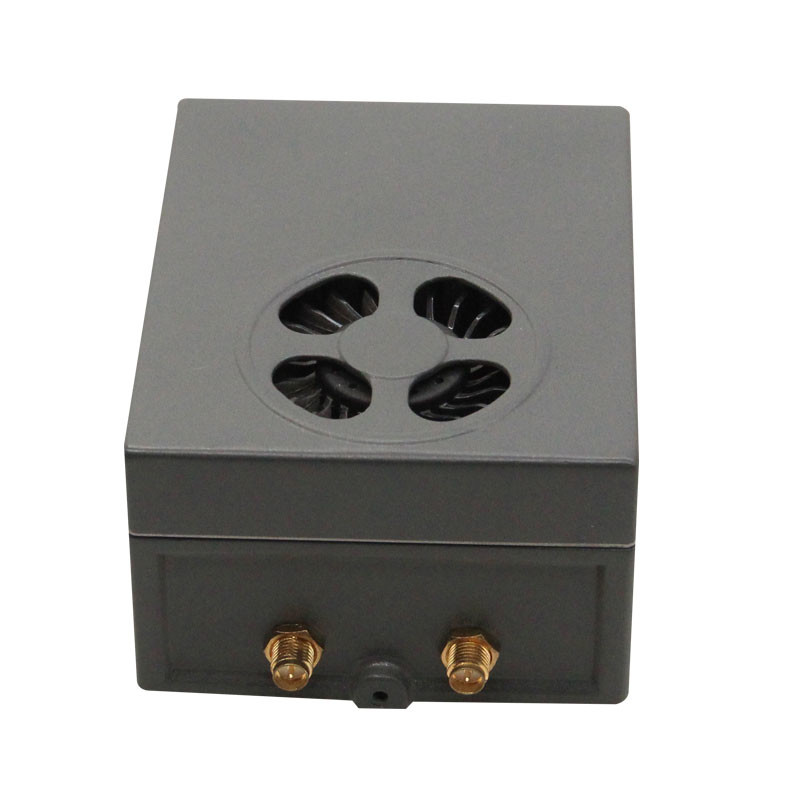

IPC Embedded Industrial Computer NVIDIA Jetson Orin NX 16G for DJI UAV M30 M300 900-13767-0000-000
NVIDIA Jetson Orin NX Module 16G 900-13767-0000-000 Embedded Computer(17F1)

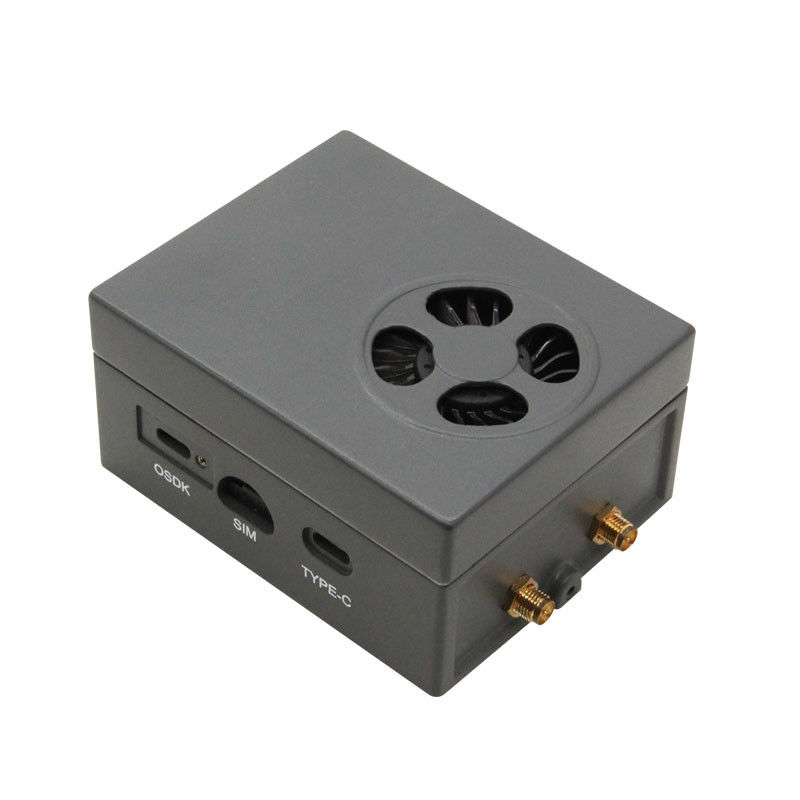

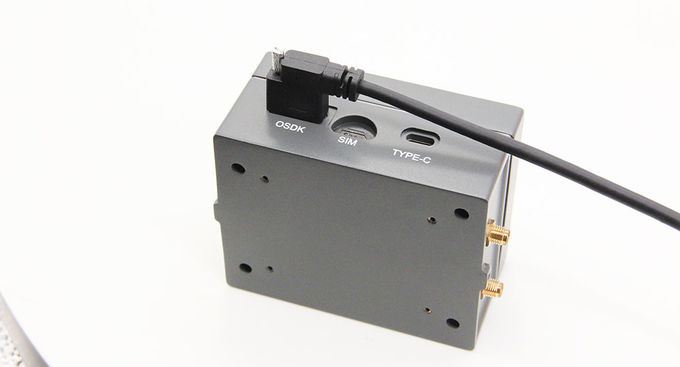

17F1 is an embedded computer based on NVIDIA Jetson Orin NX module 900-13767-0000-000, and equiped with the 5G module,install the SIM card to realize 5G communication function, also you can expand the Wi-Fi 6 module,provides a standard Type-C interface to facilitate system debugging. The standard Type-C port contains USB 2.0, USB 3.0, and Displayport signals. you can connect the standard Type-C HUB or other functional modules as required.The PSDK interface provided by the industrial computer can be used to connect PSDK standard loudspeakers, searchlights and other functional loads.
Jetson Orin NX 900-13767-0000-000 16GB Technical Specifications
| AI Accelerator | NVIDIA Jetson Orin NX 900-13767-0000-000 |
| AI Perf | 100 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| System Memory | 16GB 128-bit LPDDR5 102.4GB/s |
| Storage | Supports external NVMe |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
| Power | 10W - 25W |
| Mechanical | 100mm*74mm*47mm |
| Weight | 238g |
| Order Type | Function | Manufacturer | Standard/Optional |
| 17F1-DJ-Cable | OSDK cable for connecting 17F1 to DJI UAV | PLink-AI | Standard |
| OSDK-Helper-V1-1 | OSDK signal separation board | PLink-AI | Standard |
| 100044187529 | 5-in-1 Type-C docking station | Biaze | Standard |
| SDK
coaxial cable |
17F1 connects OSDK cables to DJI UAV | DJI | Optional |
| M300- Bracket |
|
PLink-AI | Optional |
| M30 Quick-release rack |
17F1 and DJI M30 drone mounting rack | DJI | Optional |
