| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NANO-SYS-2006 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | VGA Jetson NANO 4G 16GB IPC Embedded Computer Box With Face Recognition Module | Keyword: | VGA Jetson NANO 4G 16GB IPC Embedded Computer Box With Face Recognition Module |
|---|---|---|---|
| AI Performance: | 472 GFLOPS | GPU: | 128-core NVIDIA Maxwell™ Architecture GPU |
| CPU: | Quad-core ARM® Cortex®-A57 MPCore Processor | GPU Max Frequency: | 921MHz |
| CPU Max Frequency: | 1.43GHz | Memory: | 4GB 64-bit LPDDR4 25.6GB/s |
| Storage: | 16GB EMMC 5.1 | PCIe*: | 1 X4 (PCIe Gen2) |
| Networking: | 1x GbE | Display: | 2 Multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1 X2 DSI (1.5Gbps/lane) |
| Size: | 160mm × 130mm × 65mm | Weight: | 1078g |
| Power: | DC +9V~+24V | Working Temperature: | -25~+65°C |
| High Light: | VGA NANO IPC Embedded,16GB NANO IPC Embedded,16GB VGA embedded box pc |
||

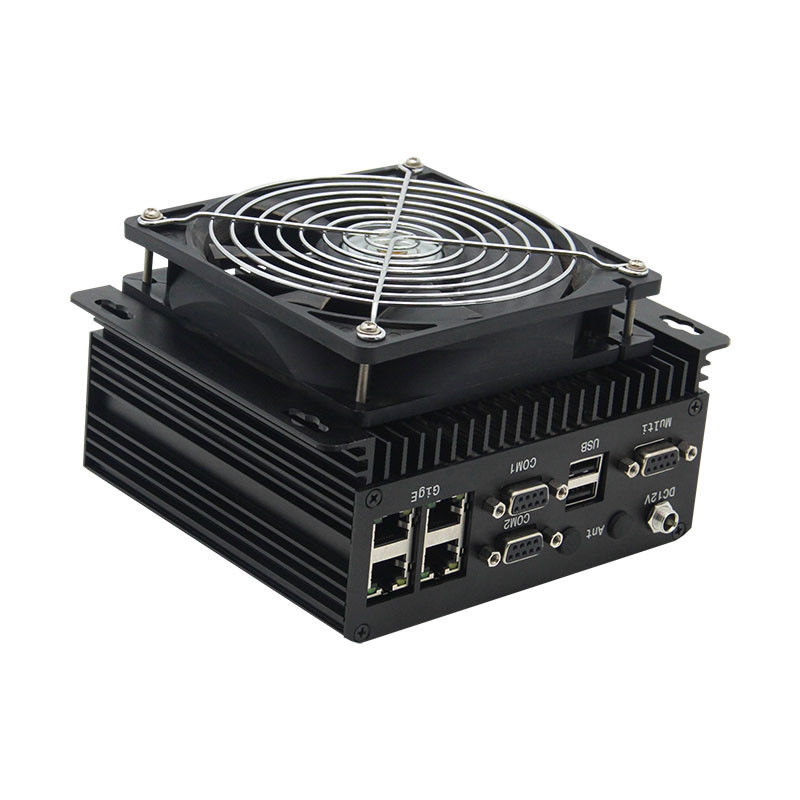

VGA Jetson NANO 4G 16GB IPC Embedded Computer Box With Face Recognition Module
Nano-SYS-2006 is a mini embedded pc with NVIDIA Jetson Nano series core modules. the embedded computer solutions for face recognition, and NVIDIA Jetson Nano Module is a small, powerful computer for embedded applications and AI IoT that delivers the power of modern AI.
NVIDIA Jetson Nano Industrial Embedded Computer Product Features
| Factory pre-installed NVIDIA Jetson NANO core module | |
| Automatically start when power on | |
| Optional 32GB ~ 1TB SSD expansion storage | |
| optional 1/3/5 Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connectors | |
| Onboard Reset and Recovery buttons | |
| USB 2.0 Type-A connector | 2 |
| 1 bit programmable GPO with 3.3V strong drive capability | |
| RS-232 level serial ports | 1 |
| HDMI 2.0 interface (maximum 6Gbps, 24bpp, 4096x2160@60Hz) | 1 |
| Working indicator light | 1 |
| Micro USB connector | 1 |
| CAN bus interface with onboard transceiver | 1 |
| Micro TF card connector | 1 |
| Nano SIM card connector | 1 |
| 3.3V bit programmable GPIO | 3 |
Working temperature: -25~+65℃
Product size: 160mm×130mm×65mm
Power requirements: DC +9V~+24V
The Interface Display

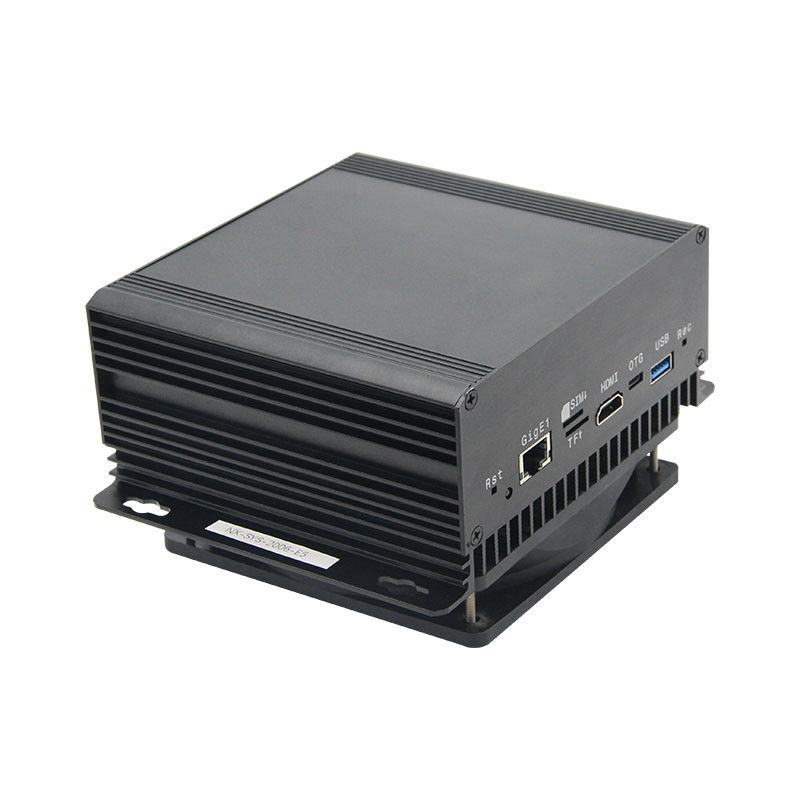

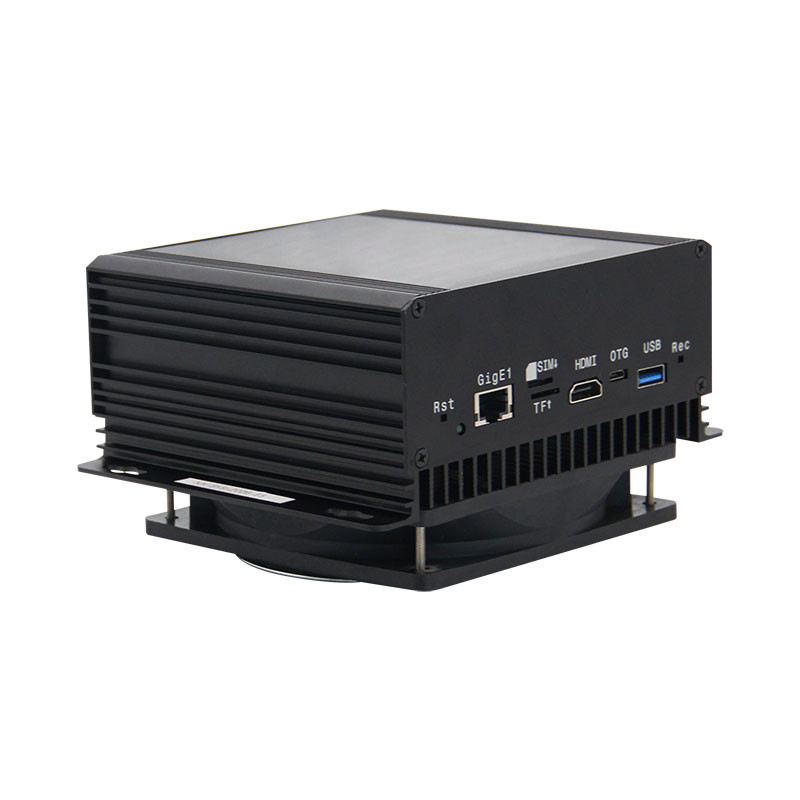

The Interface of Front View

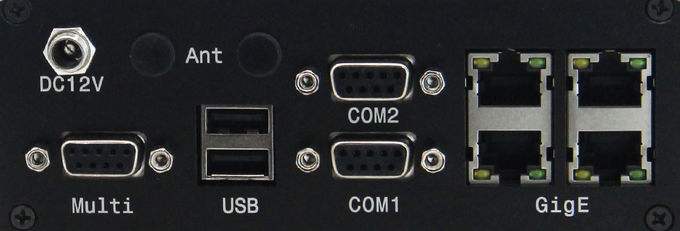

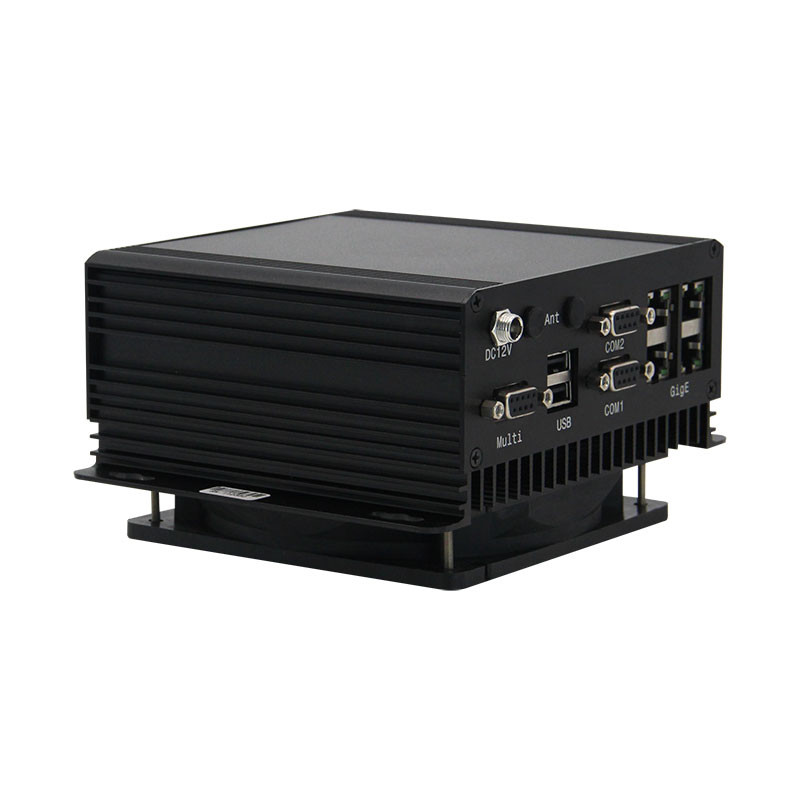

The Interface of Back View
NVIDIA Jetson Nano Module Technical Specifications
| Memory |
4 GB 64-bit LPDDR4
1600MHz - 25.6 GB/s
|
| Storage | 16 GB eMMC 5.1 Flash |
| CPU | Quad-core ARM® Cortex®-A57 MPCore processor |
| GPU |
NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores
0.5 TFLOPs (FP16)
|
| AI Performance | 472 GFLOPS |
| Connectivity | Wi-Fi requires external chip |
| 10/100/1000 BASE-T Ethernet | |
| CSI Camera | Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 (3x4 or 5x2) D-PHY 1.2 (up to 30 Gbps) |
| UPYH | 1 x1/2/4 PCIe, 1x USB 3.0, 3x USB 2.0 |
| Camera | 12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps) |
| Display | HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous |
| Other I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs |
| Size | 69.6 mm x 45 mm |
