| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX16-7F4 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | UAV Module Windows Embedded Computer Fanless Embedded Box PC Jetson Xavier NX 16G | Keyword: | UAV Module Windows Embedded Computer Fanless Embedded Box PC Jetson Xavier NX 16G |
|---|---|---|---|
| AI Performance: | 21 TOPS | GPU: | 384-core NVIDIA Volta™ GPU With 48 Tensor Cores |
| CPU: | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 | DL Accelerator: | 2x NVDLA |
| Vision Accelerator: | 2 X PVA | Memory: | 16GB 128-bit LPDDR4x 59.7GB/s |
| PCIe: | 1 X1 (PCIe Gen3) + 1 X4 (PCIe Gen4) | Networking: | 10/100/1000 BASE-T Ethernet |
| Display: | 2 Multi-mode DP 1.4/eDP 1.4/HDMI 2.0 No DSI Support | Size: | 98mm*76mm*42mm |
| Weight: | 182g | Place Of Origin: | Beijing, China |
| High Light: | UAV Module windows embedded computer,Xavier NX windows embedded computer,UAV Module fanless embedded box pc |
||

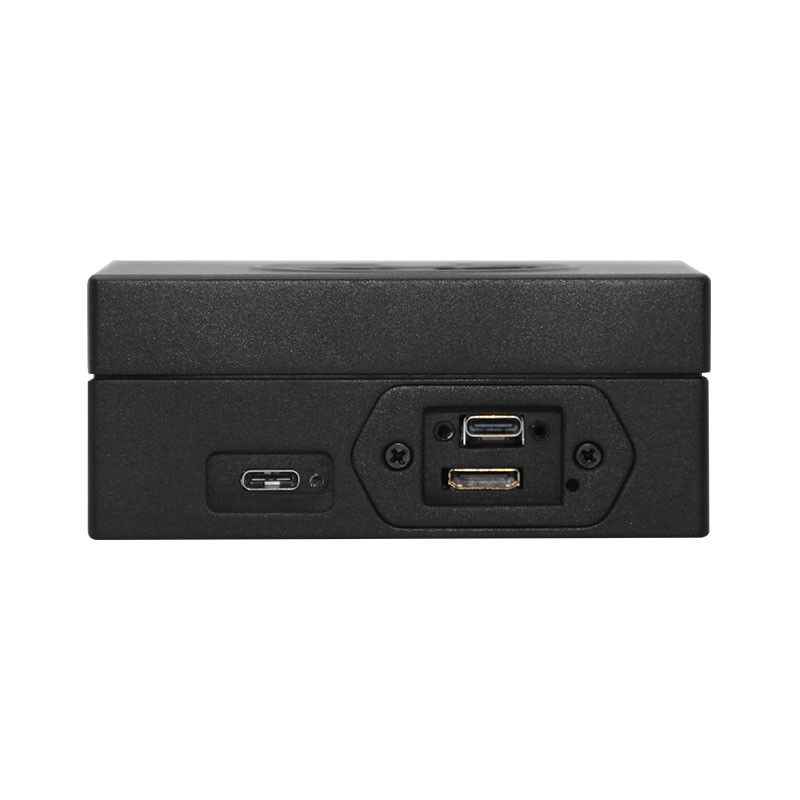

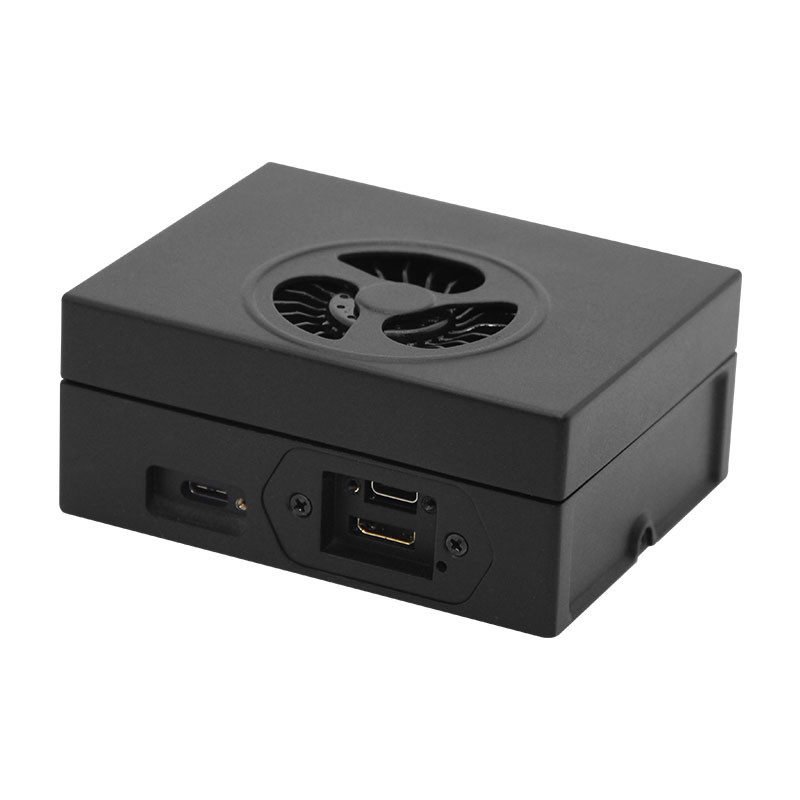

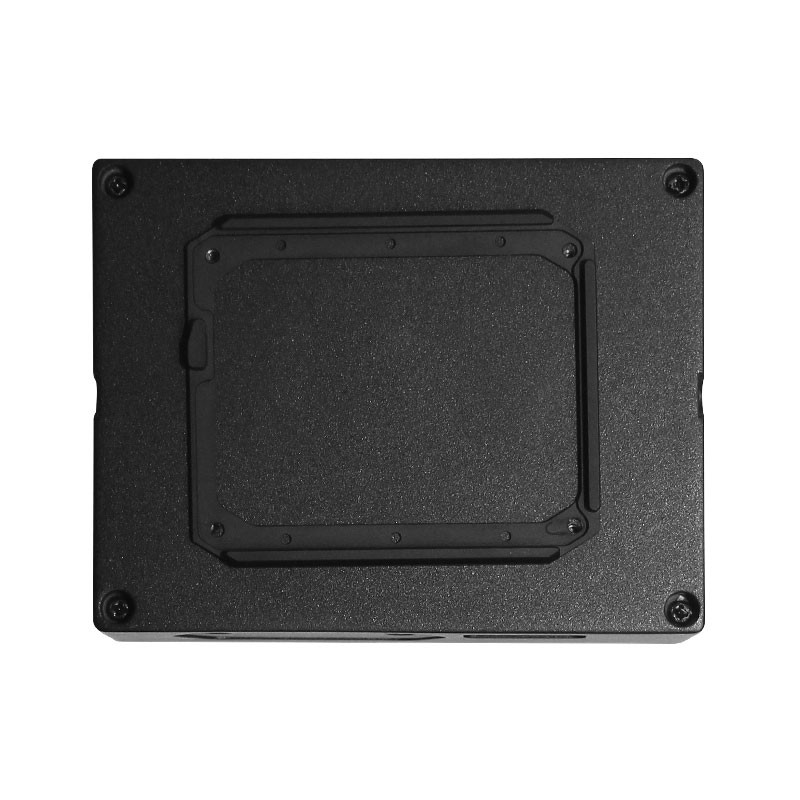

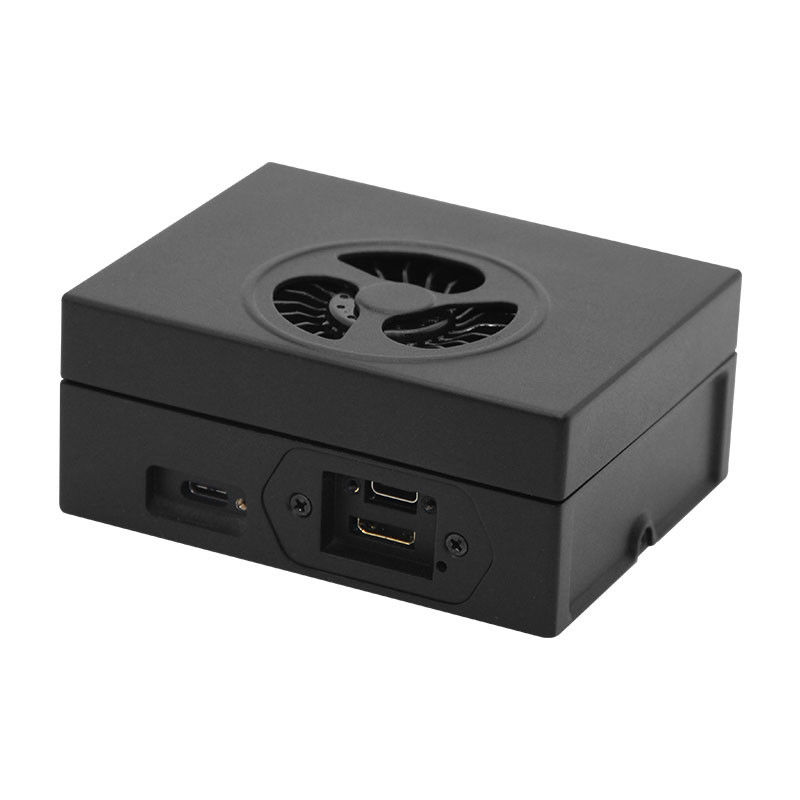

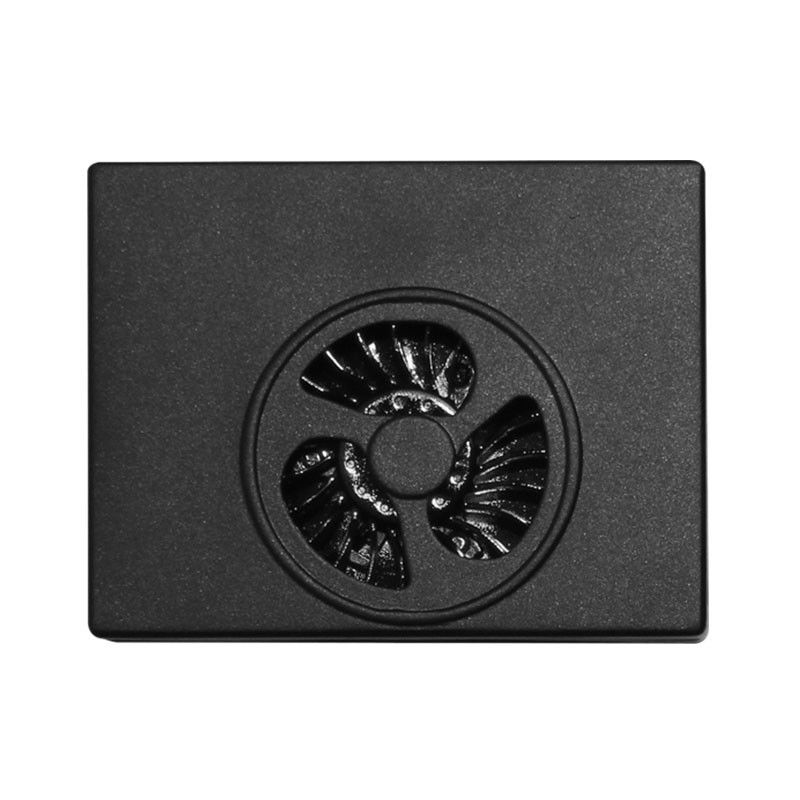

UAV Module Windows Embedded Computer Fanless Embedded Box PC Jetson Xavier NX 16G
NX16-7F4 is a Windows Embedded Computer with NVIDIA Jetson Xavier NX 16G module, NVIDIA Jetson Xavier NX brings up to 21 TOPs of accelerated AI computing to the edge in a small form factor module. and the high performance embedded systems is suitable for UAV and Autopilot, also it can use for industrial.
Built-in wifi5
OSDK Connector
Size : 80mm × 76mm × 42mm
Weight : 180g
Embedded Box Computers NX16-7F4 Product Feature
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| DL Accelerator | 2x NVDLA |
| Vision Accelerator | 2 x PVA |
| Memory | 16GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16GB eMMC 5.1 |
| Camera | Up to 6 cameras (24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| Video Encode | 2x 4K60 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265) |
| Video Decode | 2x 8K30 (H.265) 6x 4K60 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265) |
| PCIe | 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4) |
| Networking | 10/100/1000 BASE-T Ethernet |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 No DSI support |
| Power | 10W | 15W | 20W |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
*Virtual channel related camera information for Jetson Orin modules is not final and subject to change.

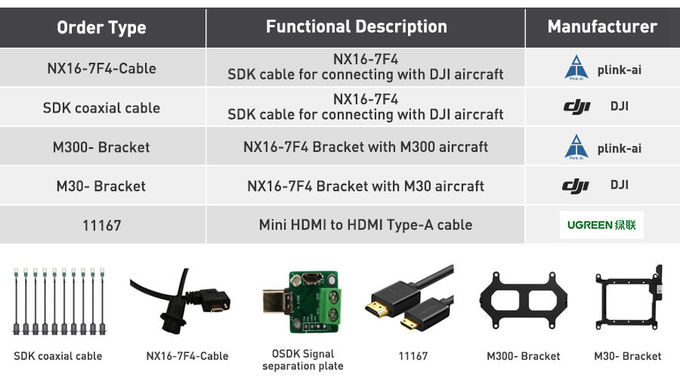

Order Information
| Model | Function |
| NX16-7F4 | NVIDIA Jetson Xavier NX 16G module compact AI embedded industrial computer. |
