| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | AGX32-8F5E2 |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| NAME: | Vehicles V2X Industrial Embedded PC Linux Embedded Computers Nvidia Agx Xavier 32G | Keyword: | Vehicles V2X Industrial Embedded PC Linux Embedded Computers Nvidia Agx Xavier 32G |
|---|---|---|---|
| AI Performance: | 32 TOPS | CPU: | 8-core Arm® Cortex®-A78AE V8.2 64-bit CPU 2MB L2 + 4MB L3 |
| CPU Memory: | 32GB 256-bit LPDDR5 204.8 GB/s | GPU: | 512-core NVIDIA Volta GPU With 64 Tensor Cores |
| USB Micro-B: | 1 X Type B (OTG) | USB Type-A: | 1 X USB 3.1 |
| Other I/O: | 4 X GPIO(3.3V) | 1 X SPI(3.3V) | 2 X I2C(3.3V) | 2 X RS 232 | 1 X Debug(UART) 2 X CAN (with On-board Transceiver) | Networking: | 2 X 10/100/1000 Ethernet/RJ45 |
| Power Supply: | DC + 12V | Temperature: | -20~+65°C |
| Dimensions: | 238 Mm × 222 Mm × 67 Mm | Weight: | 2950g |
| High Light: | 32G V2X embedded pc linux,32 TOPS embedded pc linux,32 TOPS embeddedcomputers |
||

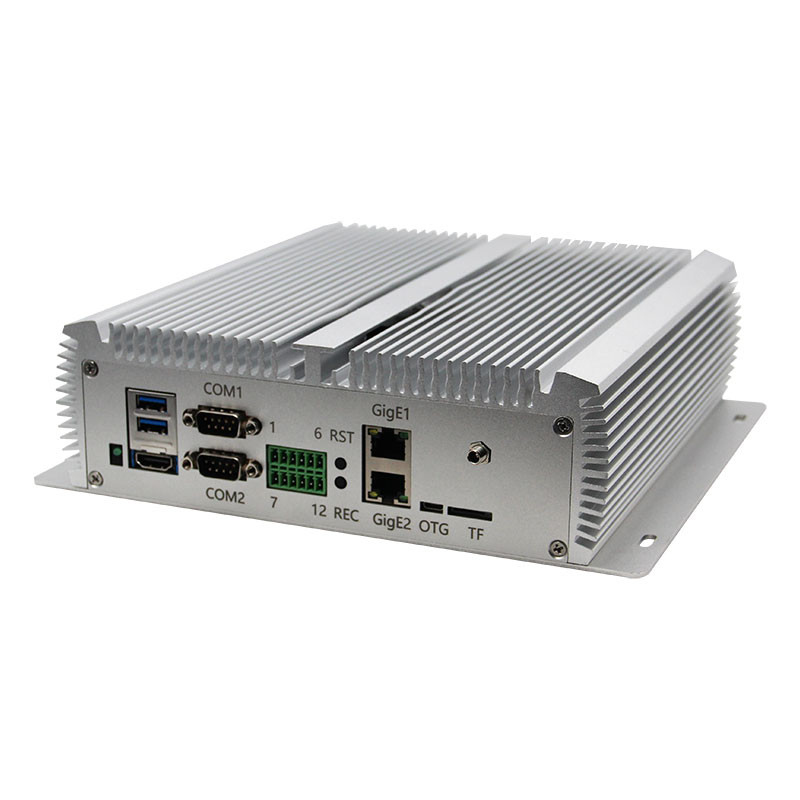

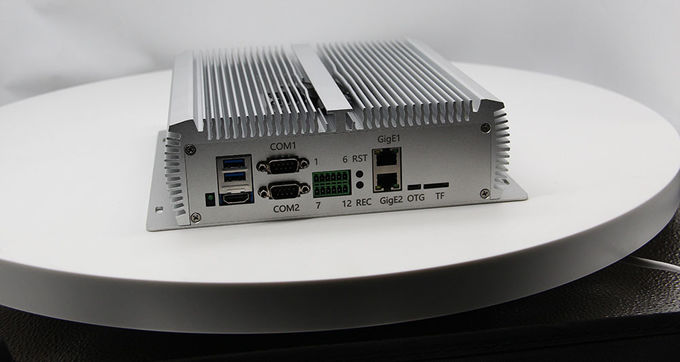

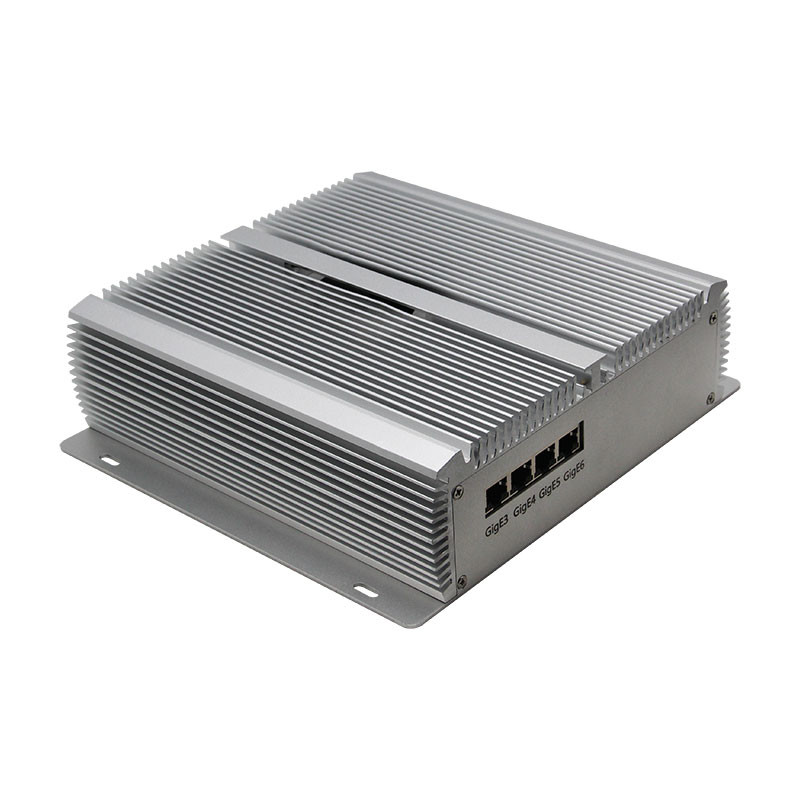

Vehicles V2X Industrial Embedded PC Linux Embedded Computers Nvidia Jetson Agx Xavier 32G
AGX32-8F5E2 is an industrial embedded computer and based on NVIDIA Jetson AGX Xavier 32G module, it for V2X / Autopilot, provides multiple independent Gigabit network ports through internal M.2 ports, miniPCIe ports, which is suitable for multi-network port scenarios.The input power supply has over voltage and reverse polarity protection functions, and has a wealth of external interfaces.8F5E2 industrial PC standard configuration has two RS-232 level serial ports, a 3.3V level Debug serial port (UART), four 3.3V programmable GPIO, a 3.3V level SPI signal, two 3.3V level I2C signals, weight only 2950g, Supports 2280 storage devices. 8F5E2 is automatically powered on by default. The Jetson core module can work in normal mode and Recovery mode. If you need to add other functional modules inside the machine, please contact sales in advance.
| Name | AGX32-8F5E2 |
| Module | NVIDIA Jetson AGX Xavier 900-82888-0040-000 |
| AI Performance | 32 TOPS |
| CPU | 8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3 |
| GPU | NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
|
GPU Max Frequency |
1377 MHz |
|
CPU Max Frequency |
2.2 GHz |
| Storage | 32GB eMMC 5.1 |
| Memory | 32GB 256-bit LPDDR4x 136.5GB/s |
| USB Type-A | 1 x USB 3.1 |
| USB Micro-B | 1 x Type B (OTG) |
| Networking | 2x 10/100/1000 Ethernet/RJ45 |
| Temperature Range | -20℃ ～ 65℃ |
| Input Power | DC +12V |
| Size | 238 mm × 222 mm × 67 mm |
| Weight | 2950g |
| Other I/O | 4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART) 2 x CAN (with on-board transceiver) |
|
DLA Max Frequency |
1.4 GHz |
| DL Accelerator | 2x NVDLA |
