| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | AGX32-8F3E1 |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Name: | Nvidia Jetson Agx Xavier 32G 64G Rugged Mini IPC Embedded Computer For Automation | Keyword: | NVIDIA Jetson Agx Xavier 32G 64G Rugged Mini IPC Embedded Computer For Automation |
|---|---|---|---|
| AI Performance: | 32 TOPS | CPU: | 8-core Arm® Cortex®-A78AE V8.2 64-bit CPU 2MB L2 + 4MB L3 |
| CPU Memory: | 32GB 256-bit LPDDR5 204.8 GB/s | GPU: | 512-core NVIDIA Volta GPU With 64 Tensor Cores |
| USB Micro-B: | 1 X Type B (OTG) | USB Type-A: | 1 X USB 3.1 |
| Other I/O: | 4 X GPIO(3.3V) | 1 X SPI(3.3V) | 2 X I2C(3.3V) | 2 X RS 232 | 1 X Debug(UART) 2 X CAN (with On-board Transceiver) | Networking: | 2 X 10/100/1000 Ethernet/RJ45 |
| Power Supply: | DC + 12V | Temperature: | -20~+65°C |
| Dimensions: | 198 Mm × 197 Mm × 45 Mm | Weight: | 1340g |
| High Light: | 512-core Rugged IPC Embedded,64G Automation IPC Embedded,64G Nvidia rugged embedded |
||

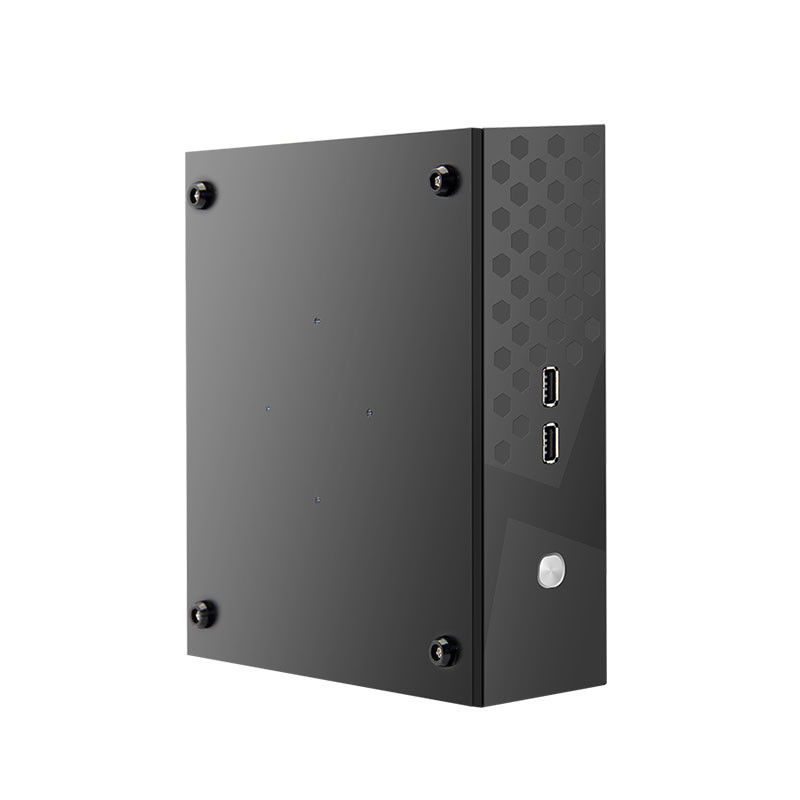

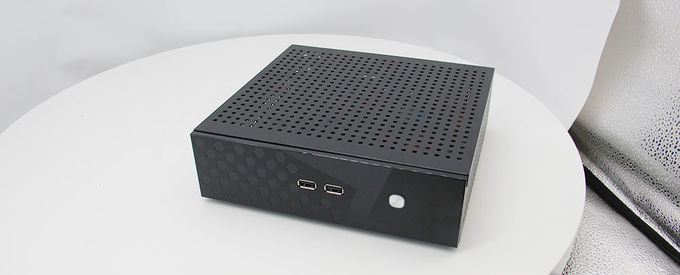

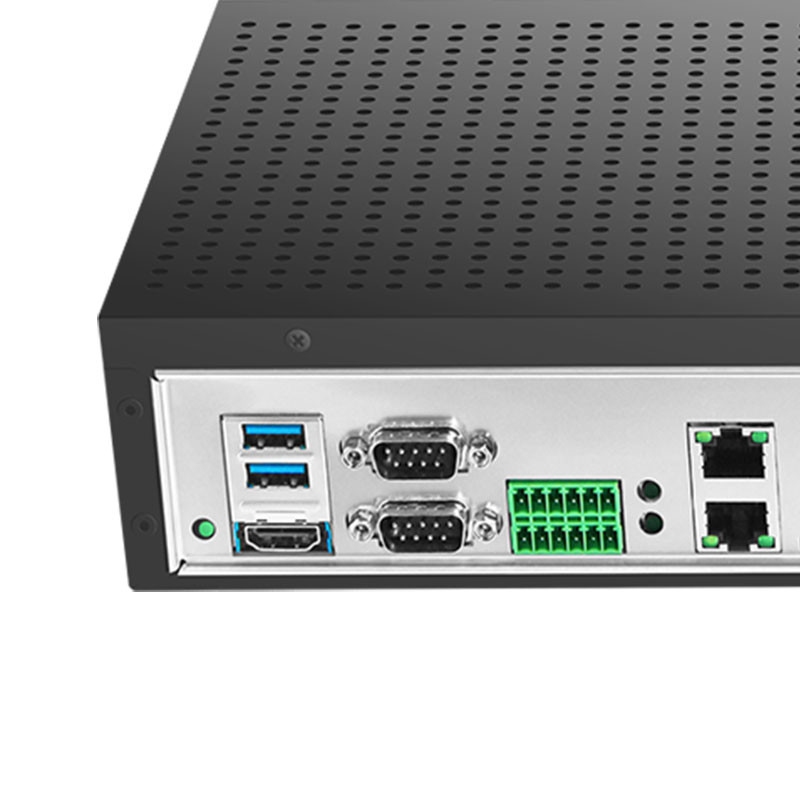

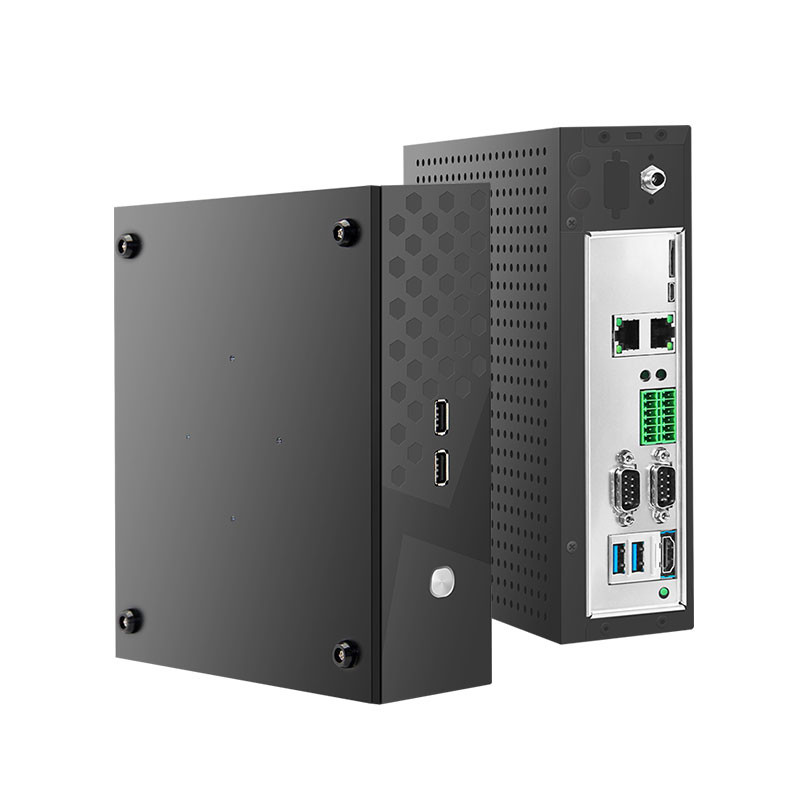

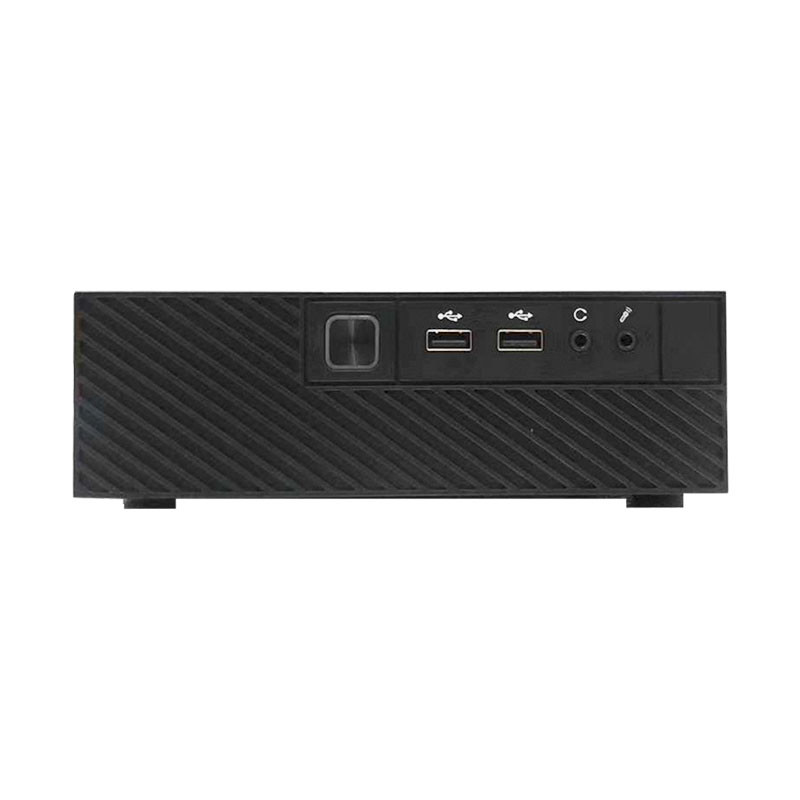

Nvidia Jetson Agx Xavier 32G 64G Rugged Mini IPC Embedded Computer For Automation
The Mini IPC Embedded Computer AGX32-8F3E1 is an ITX type AI industrial computer with NVIDIA Jetson AGX Xavier 32G core module, The NVIDIA Jetson AGX Xavier series system-on-module blends industry leading performance, powerefficiency, integrated deep learning capabilities and rich I/O to enable emerging technologies with computeintensive requirements. Designed for applications converging on artificial intelligence (AI), computer vision (CV)and advanced graphics, the NVIDIA Jetson AGX Xavier series module is ideal for (but not limited to): Automation, Intelligent Video Analytics(IVA), Robotics, Virtual Reality (VR), Augmented Reality (AR) and Portable Medical Devices.
|
Name |
AGX32-8F3E1 |
|
Module |
NVIDIA Jetson AGX Xavier |
|
AI Performance |
32 TOPS |
|
UPHY |
8x PCIe Gen4 | 8x SLVS-EC |
|
CPU |
8-core NVIDIA Carmel Armv8.2 64-bit CPU |
|
GPU |
NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
|
Storage |
32GB eMMC 5.1 |
|
Memory |
32GB 256-bit LPDDR4x |
|
Temperature Range |
-20℃ ～ 65℃ |
|
Input Power |
DC +12V |
|
Size |
198mm*197mm*45mm |
|
Weight |
1340g |
|
Networking |
2x 10/100/1000 Ethernet/RJ45 |
|
Other I/O |
4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART) |
|
USB Micro-B |
1 x Type B (OTG) |
|
USB Type-A |
1 x USB 3.1 |
|
DL Accelerator |
2x NVDLA |
