| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | ONO8-17F1 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson Orin Nano 8G Embedded Computer AI Box With 5G For UAV DJI M30 M300 IP66 900-13767-0030-000 | Keyword: | NVIDIA Jetson Orin Nano 8G Embedded Computer AI Box With 5G For UAV DJI M30 M300 IP66 900-13767-0030-000 |
|---|---|---|---|
| AI Performance: | 40 TOPS | PN: | 900-13767-0030-000 |
| System Memory: | 8GB 128-bit LPDDR5 68 GB/s | Storage: | Supports External NVMe |
| Mechanical: | 100mm*74mm*47mm | Weight: | 238g |
| OSDK: | USB 2.0,UART,PPS,PWM | Temperature: | -25~+65℃ |
| Ethernet: | 5G | Power Supply Of Module: | 7W - 15W |
| High Light: | 40 TOPS IPC Embedded,900-13767-0030-000 IPC Embedded,900-13767-0030-000 Ipc Industrial Pc |
||
NVIDIA Jetson Orin Nano 8G Embedded Computer AI Box with 5G for UAV DJI M30 M300 IP66 900-13767-0030-000
NVIDIA Jetson Orin Nano Module 8G 900-13767-0030-000 Embedded Computer(17F1)

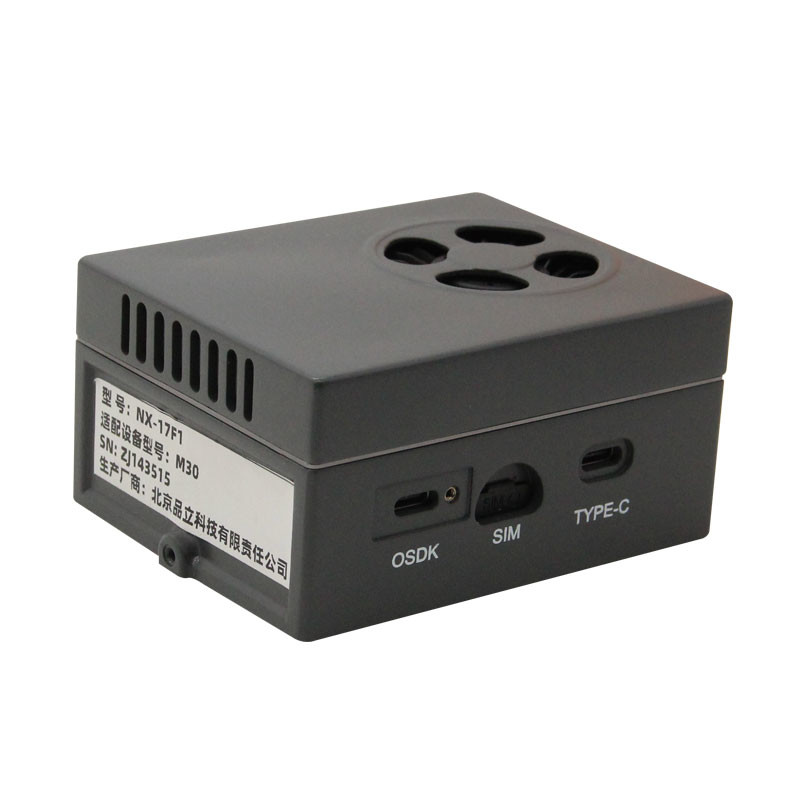

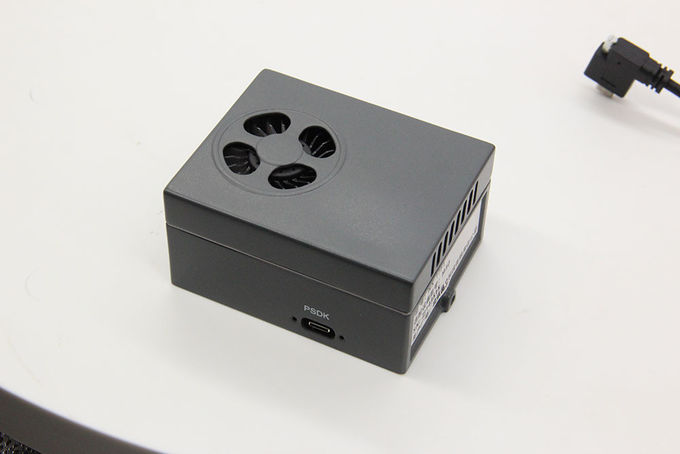

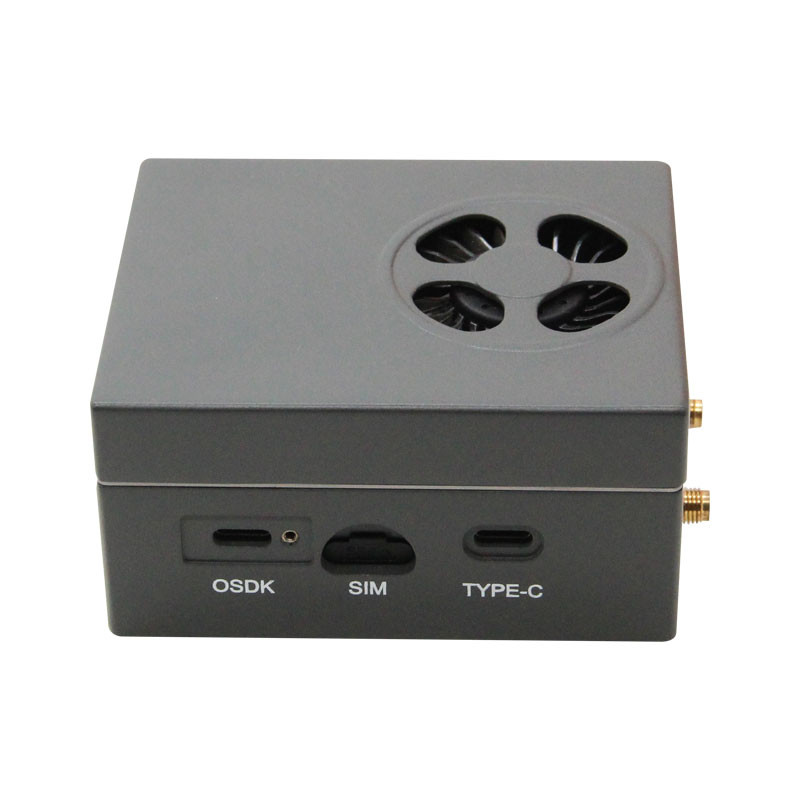

17F1 is an embedded industrial computer for DJI UAV M30 and M300,the industrial embedded box is equipped with NVIDIA Jetson Orin Nano module and 5G module, also you can expand the Wi-Fi 6 module, and provides a Type-C port for system debugging. you can connect to Type-C HUB or other modules according to requirements,External interfaces are waterproof design, and the protection can be IP66,we are NVIDIA’s Elite Partner for selling Jetson Development kits/ Modules with all over the world, and also stock self-developered the carrier boards/developer system/embedded computer etc. if you interested in our products,please contact us.
| Mechanical | 100mm*74mm*47mm |
| Weight | 238g |
Jetson Orin Nano 8GB Technical Specifications
| AI Accelerator | NVIDIA Jetson Orin Nano 900-13767-0030-000 |
| AI Perf | 40 TOPS |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| GPU Max Frequency | 625MHz |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| CPU Max Frequency | 1.5 GHz |
| DL Accelerator | - |
| DLA Max Frequency | - |
| Safety Cluster Engine | - |
| System Memory | 8GB 128-bit LPDDR5 68 GB/s |
| Storage | Supports external NVMe |
| Video Encode | 1080p30 supported by 1-2 CPU cores |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
| CSI Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
| PCIe | 1 x4 + 3 x1 (PCIe Gen3, Root Port, & Endpoint) |
| Power | 7W - 15W |
| Order Type | Function | Manufacturer | Standard/Optional |
| 17F1-DJ-Cable | OSDK cable for connecting 17F1 to DJI UAV | PLink-AI | Standard |
| OSDK-Helper-V1-1 | OSDK signal separation board | PLink-AI | Standard |
| 100044187529 | 5-in-1 Type-C docking station | Biaze | Standard |
| SDK
coaxial cable |
17F1 connects OSDK cables to DJI UAV | DJI | Optional |
| M300- Bracket |
|
PLink-AI | Optional |
| M30 Quick-release rack |
17F1 and DJI M30 drone mounting rack | DJI | Optional |
