| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | ONX8-17F1 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Jetson Orin NX 8G Embedded Computer With 5G And Optional WIFI6 For UAV IP66 | Keyword: | NVIDIA Jetson Orin NX 8G Embedded Computer With 5G And Optional WIFI6 For UAV IP66 |
|---|---|---|---|
| AI Performance: | 70 TOPS | PN: | 900-13767-0010-000 |
| Memory: | 8GB 128-bit LPDDR5 102.4GB/s | Storage: | 128GB NVMe |
| Mechanical: | 100mm*74mm*47mm | Weight: | 235g |
| DL Accelerator: | 1x NVDLA V2 | OSDK: | USB 2.0,UART,PPS,PWM |
| Temperature: | -25~+65℃ | Internet: | 5G |
| High Light: | 70 TOPS Industrial Embedded Pc,IP66 Industrial Embedded Pc,UAV Embedded Pc Industrial |
||

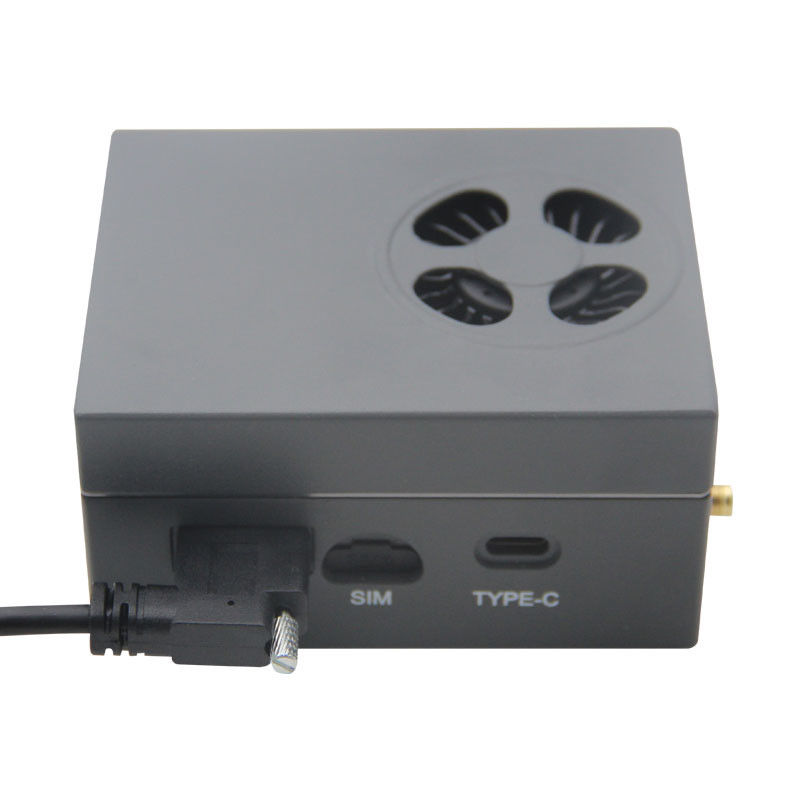

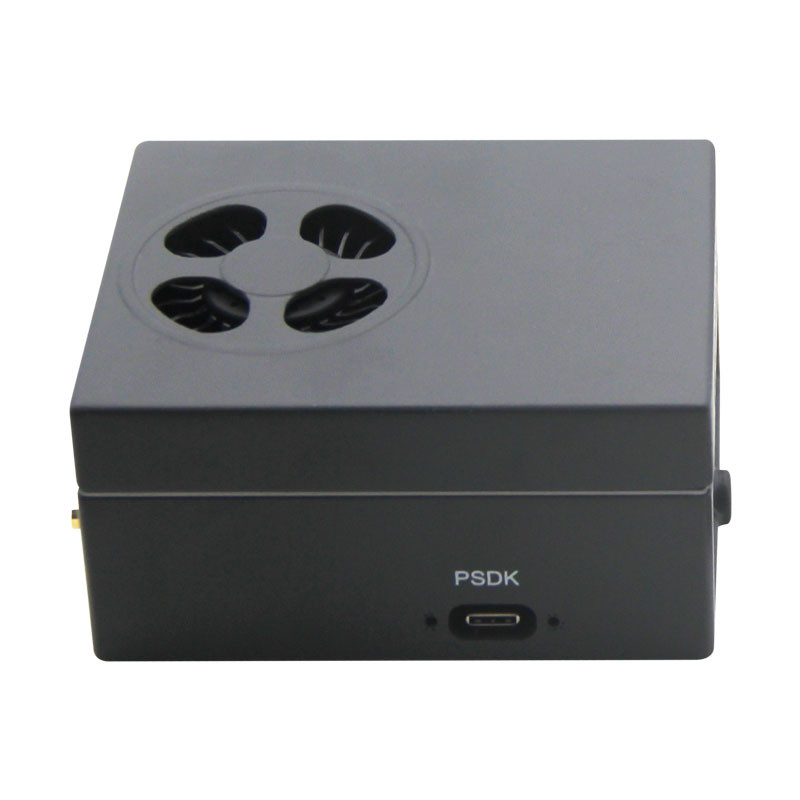

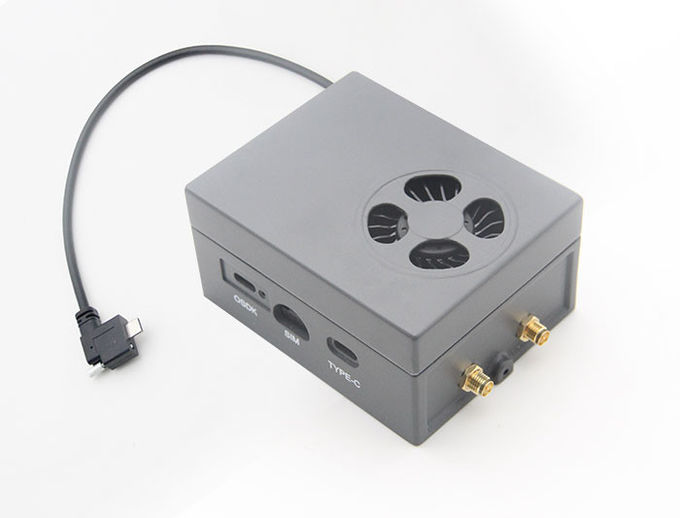

NVIDIA Jetson Orin NX 8G Embedded Computer with 5G and Optional WIFI6 for UAV IP66
NVIDIA Jetson Orin NX Module 8G 900-13767-0010-000 Embedded Computer(17F1)
17F1 is a compact and lightweight embedded industrial computer, designed for DJI UAV M300, M30 and M500 and other models of artificial intelligence computing platform, the industrial computer is equipped with automatic dialing type 5G module, easy to operate, no need to drive and manual dialing, external interface waterproof design, greatly improve the waterproof performance. You can also choose to add Wi-Fi 6 module, which provides a Type-C interface for convenient system debugging. Users can connect to Type-C HUB or other modules according to requirements
Technical Specifications
| Module | NVIDIA Jetson Orin NX 8G |
| PN | 900-13767-0010-000 |
AI Performance | 70 TOPS |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| Memory | 8GB 128-bit LPDDR5 102.4GB/s |
| Storage | 128GB NVMe |
| Size | 98mm*76mm*42mm |
| Weight | 235g |
| Power | DC 12-24V |
| Interface | 1 X USB Type-C |
| USB | OSDK/PSDK |
| OSDK | USB2.0,UART,PPS,PWM |
| Temperature | -25~+65℃ |
| PSDK | USB2.0,UART |
| Order Type | Function | Manufacturer | Standard/Optional |
| 17F1-DJ-Cable | OSDK cable for connecting 17F1 to DJI UAV | PLink-AI | Standard |
| OSDK-Helper-V1-1 | OSDK signal separation board | PLink-AI | Standard |
| 100044187529 | 5-in-1 Type-C docking station | Biaze | Standard |
| SDK coaxial cable | 17F1 connects OSDK cables to DJI UAV | DJI | Optional |
| M300- Bracket | | PLink-AI | Optional |
| M30 Quick-release rack | 17F1 and DJI M30 drone mounting rack | DJI | Optional |
