| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | 17F1 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | UAV 5G Module Embedded Box IPC Nvidia Jetson Orin Nano 8G 900-13767-0030-000 128GB NVMe | Keyword: | UAV 5G Module Embedded Box IPC Nvidia Jetson Orin Nano 8G 900-13767-0030-000 128GB NVMe |
|---|---|---|---|
| Module: | NVIDIA Jetson Orin Nano | AI Performance: | 40 TOPS |
| PN: | 900-13767-0030-000 | Memory: | 8GB 128-bit LPDDR5 68GB/s |
| Storage: | 128GB NVMe | Networking: | USB2.0,UART |
| Power: | 25W(12-24V) | USB Type-C: | USB2.0(480Mbps) , USB3.2(10Gbps), Displayport(2 Lane) |
| Mechanical: | 100mm*74mm*47mm | Weight: | 235g |
| High Light: | 900-13767-0030-000 Ipc Embedded,Nvidia Jetson Orin Nano 8G Ipc Embedded |
||

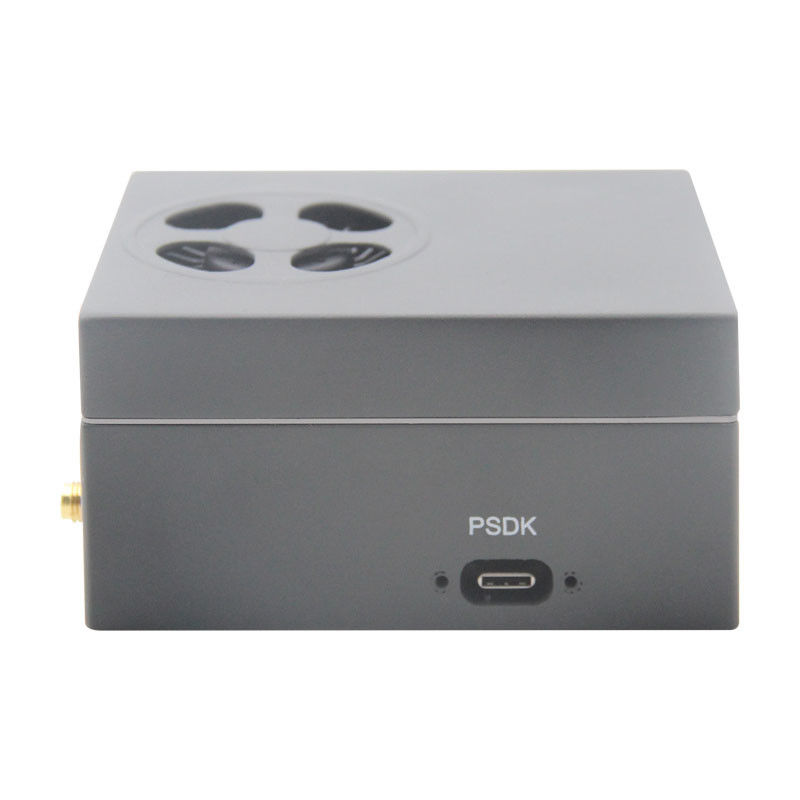

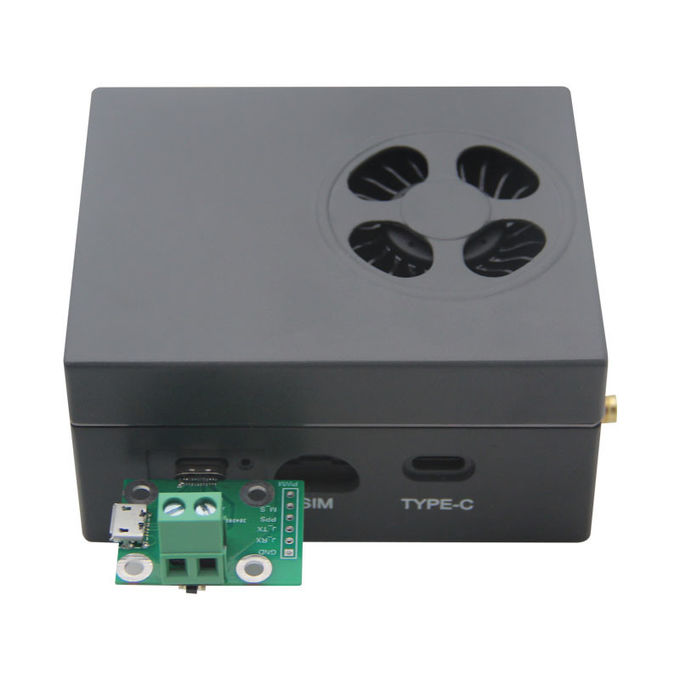

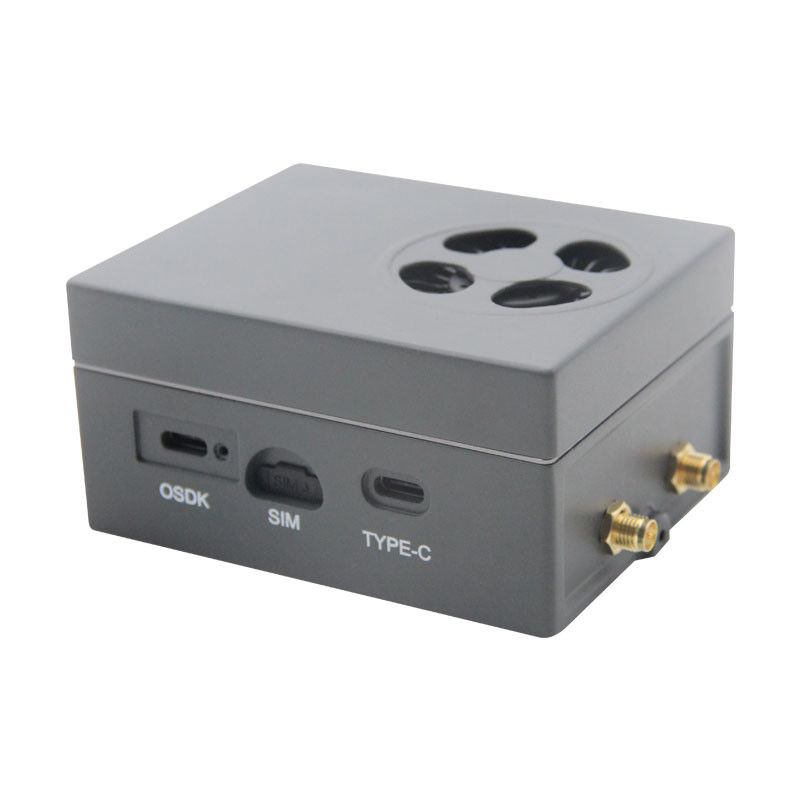

UAV 5G Module Embedded Box IPC Nvidia Jetson Orin Nano 8G 900-13767-0030-000 128GB NVMe
NVIDIA Jeton Orin Nano Module 8G 900-13767-0030-000 128GB NVMe Embedded Computer(ONANO8-17F1)
Technical Specifications
| Name |
ONANO8-17F1 |
| Module | NVIDIA Jetson Orin Nano 8G |
| PN | 900-13767-0030-000 |
| Type | Embedded Computer |
|
AI Performance |
40 TOPS |
| GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| Memory |
8GB 128-bit LPDDR5 |
| Storage |
128GB NVMe |
| Size |
100mm*74mm*47mm |
| Weight | 235g |
| Power |
25W(12-24V) |
|
Video Decode |
1080p30 supported by 1-2 CPU cores |
|
Video Decode |
1x 4K60 (H.265) 11x 1080p30 (H.265) |
| USB Type-C |
USB2.0(480Mbps) , USB3.2(10Gbps), Displayport(2 Lane)
|
| Networking |
5G Sub-6 GHz(5G,LTE,UMTS,GNSS), WiFi6(Optional)
|
| OSDK |
USB2.0,UART,PPS,PWM |
| PSDK |
USB2.0,UART |
