| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | 17F1 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | UAV 5G Module Embedded Computer Embedded Box PC Nvidia Jetson Orin NX 8G 900-13767-0010-000 | Keyword: | UAV 5G Module Embedded Computer Embedded Box PC Nvidia Jetson Orin NX 8G 900-13767-0010-000 |
|---|---|---|---|
| AI Performance: | 70 TOPS | PN: | 900-13767-0010-000 |
| Memory: | 8GB 128-bit LPDDR5 102.4GB/s | Storage: | 128GB NVMe |
| Mechanical: | 100mm*74mm*47mm | Weight: | 235g |
| Networking: | 5G Sub-6 GHz(5G,LTE,UMTS,GNSS), WiFi6(Optional) | Power: | 20W(12-24V) |
| High Light: | Nvidia Jetson Orin NX 8G Embedded Box,Embedded Box 900-13767-0010-000 |
||
UAV 5G Module Embedded Computer Embedded Box PC Nvidia Jetson Orin NX 8G 900-13767-0010-000
NVIDIA Jeton Orin NX Module 8G 900-13767-0010-000 Embedded Computer(17F1)

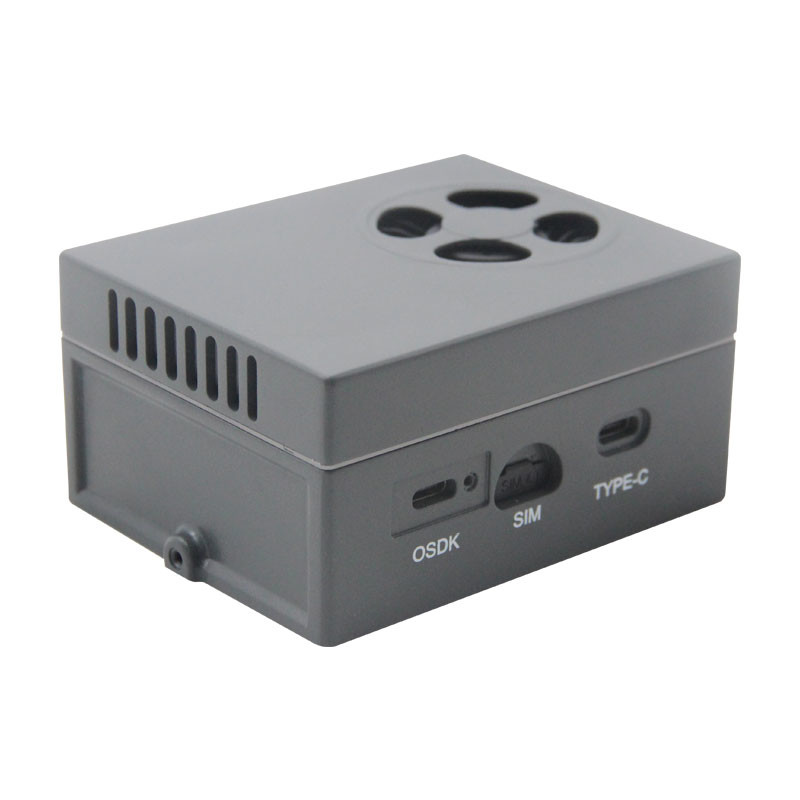

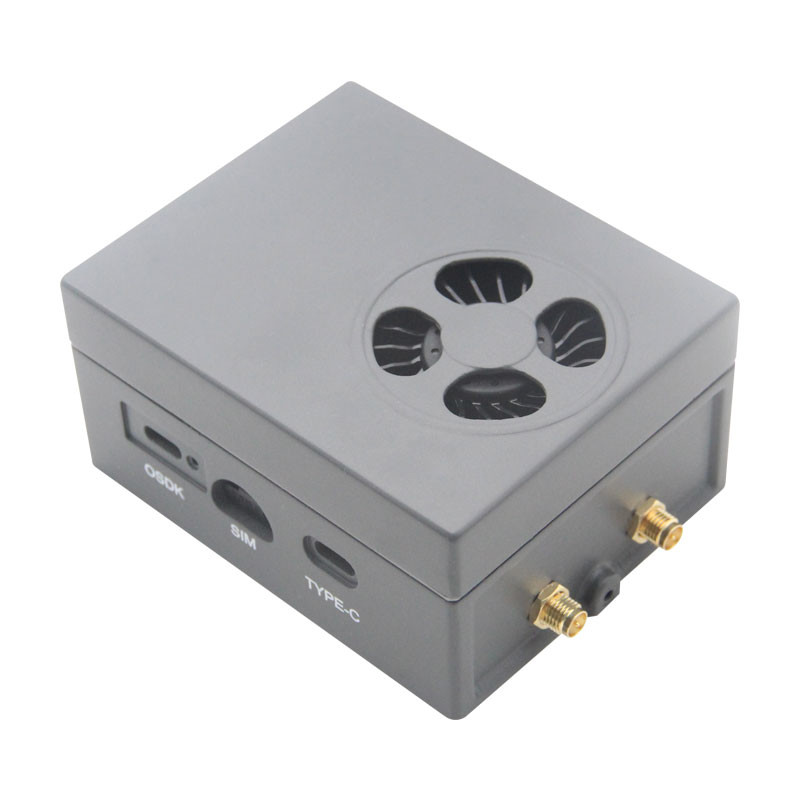

The 17F1 is an AI board computing platform designed for DJI M300, M30 and M350 series UAV and based on NVIDIA Jetson Xavier NX/Orin NX/Orin Nano series core modules. and the 17F1 is equipped with an automatic dialing 5G module, and 5G communication functions can be realized by installing a SIM card, without driving and manual dialing operation. The 5G antenna is designed with two internal and two external, and the antenna allocation can be adjusted according to the frequency band used by 5G. At the same time, the machine can also optionally add WIFI6 function module. then all external interfaces of the machine are feng shui design, and the protection level of the machine can reach IP66.
Technical Specifications
| Name |
ONX8-17F1 |
| Module | NVIDIA Jetson Orin NX 8G |
| PN | 900-13767-0010-000 |
| Type | Embedded Computer |
|
AI Performance |
70 TOPS |
| GPU |
1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| Memory |
8GB 128-bit LPDDR5 102.4GB/s |
| Storage |
128GB NVMe |
| Size |
98mm*76mm*42mm |
| Weight | 235g |
| Power |
20W(12-24V) |
| USB Type-C |
USB2.0(480Mbps) , USB3.2(10Gbps), Displayport(2 Lane)
|
| Networking |
5G Sub-6 GHz(5G,LTE,UMTS,GNSS), WiFi6(Optional)
|
| OSDK |
USB2.0,UART,PPS,PWM |
| PSDK |
USB2.0,UART |
