| Place of Origin: | China |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | 11F1E2 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 20pcs 15-30 work days |
| NAME: | NVIDIA Embedded PC 70 TOPS Jetson Orin NX 8G Module 900-13767-0010-000 128G SSD Ampere GPU | Keyword: | NVIDIA Embedded PC 70 TOPS Jetson Orin NX 8G Module 900-13767-0010-000 128G SSD Ampere GPU |
|---|---|---|---|
| AI Perf: | 70 TOPS | Module: | NVIDIA Jetson ORIN NX 8G |
| Memory: | 8GB 128-bit LPDDR5 102.4GB/s | Storage: | Supports External NVMe |
| Networking: | 1x GbE | Mechanical: | 202 Mm X 162 Mmx 65 Mm |
| High Light: | 70 TOPS embedded pc,Jetson Orin NX 8G embedded pc |
||
NVIDIA Embedded PC 70 TOPS Jetson Orin NX 8G Module 900-13767-0010-000 128G SSD Ampere GPU
NVIDIA Jeton Orin NX 8G 900-13767-0010-000 Embedded PC 11F1E2

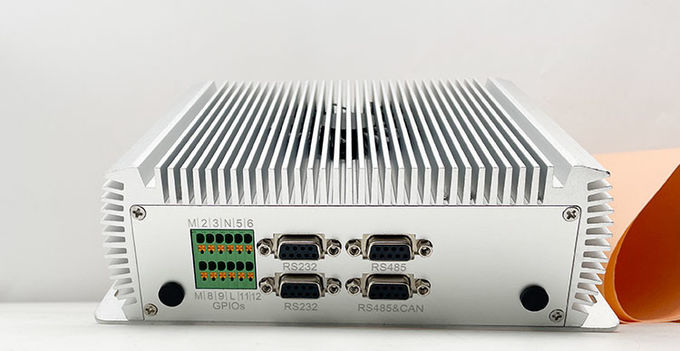

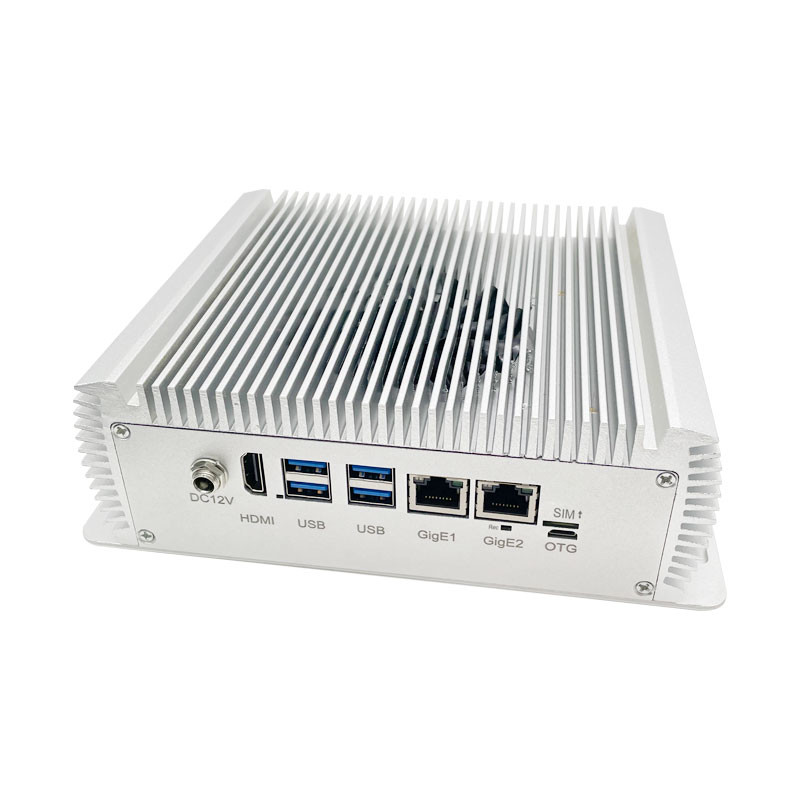

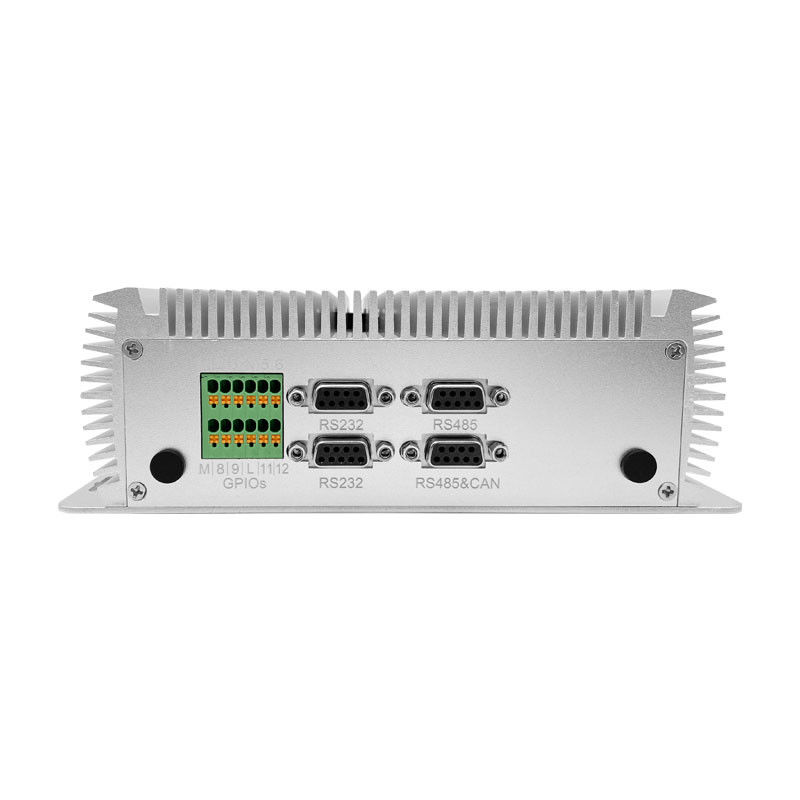

The embedded industrial computer 11F1E2 produced by PLink-AI Technology is based on Nvidia Jetson Orin NX 8G module(900-13767-0010-000). The standard configuration contains 2 network ports, 4 USB ports, 1 HDMI port, 1 Nano SIM card slot,and can be expanded to support PoE Gigabit network. The size is moderate, and the weight is about 1.5kg. At the same time, it can also be adapted to the Jetson Orin Nano module, which is a small embedded industrial computer that can be applied to multiple scenarios
| AI Performance | 70 TOPs |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| DLA Max Frequency | 614MHz |
| Vision Accelerator | 1x PVA v2 |
| Memory | 8GB 128-bit LPDDR5 102.4GB/s |
| Storage | - (Supports external NVMe) |
| CSI Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
| PCIe | 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
