| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Xavier NX 16G |
| Minimum Order Quantity: | 1PCS |
| Price: | USD580-USD600\PCS |
| Packaging Details: | 20X20X4 cm 1kg |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000pcs |

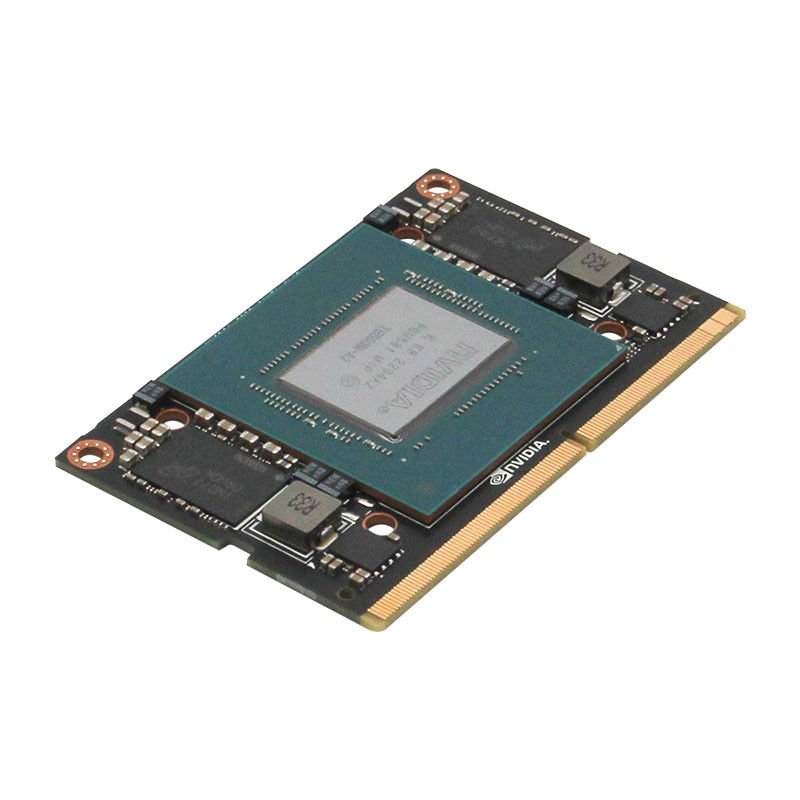

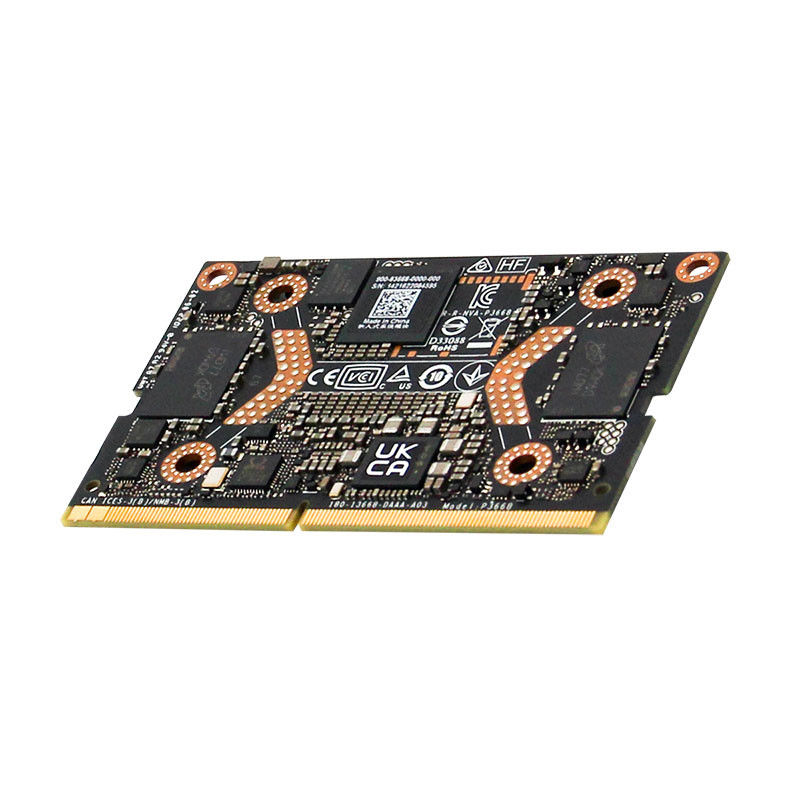

| NAME: | Retail Robotics Board Multi Chip Module Gpu Nvidia Xavier NX 16GB Jetson Module | Keyword: | Retail Robotics Board Multi Chip Module Gpu Nvidia Xavier NX 16GB Jetson Module |
|---|---|---|---|
| Model Number: | Xavier NX 16GB（900-83668-0030-000） | AI Perf: | 21 TOPS |
| Camera: | Up To 6 Cameras (24 Via Virtual Channels) 14 Lanes MIPI CSI-2 D-PHY 1.2 (up To 30 Gbps) | USB: | 1x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
| Display: | 2 Multi-mode DP 1.4/eDP 1.4/HDMI 2.0 | Power: | 10W - 20W |
| Memory: | 16 GB 128-bit LPDDR4x | 59.7GB/s | Storage: | 16 GB EMMC 5.1 |
| High Light: | Jetson Xavier Nx 16gb Multi Chip Module,21 TOPS Multi Chip Module,Xavier Nx 16gb Mcm Multi Chip Module |
||
|
AI Perf
|
21 TOPS
|
|
GPU
|
384-core NVIDIA Volta™ GPU with 48 Tensor Cores
|
|
CPU
|
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU
6MB L2 + 4MB L3 |
|
PCIe
|
1 x4 (PCIe Gen4) + 1 x1 (PCIe Gen3)
|
|
Vision Accelerator
|
2x PVA
|
|
Memory
|
16 GB 128-bit LPDDR4x
59.7GB/s |
|
Storage
|
16 GB eMMC 5.1
|
|
Other I/O
|
3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, PWM, DMIC & DSPK, GPIOs
|
|
Power
|
10W | 15W | 20W
|
|
Display
|
2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
|
|
Camera
|
Up to 6 cameras
(24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
|
Mechanical
|
69.6mm x 45mm
260-pin SO-DIMM connector |
