| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX8G-SYS-2006 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | RS232 PCIe Nvidia Jetson Xavier NX Embedded Linux Development Board 8G | Keyword: | RS232 PCIe Nvidia Jetson Xavier NX Embedded Linux Development Board 8G |
|---|---|---|---|
| AI Performance: | 21 TOPS | CPU: | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| GPU: | 384-core NVIDIA Volta™ GPU With 48 Tensor Cores | Micro USB: | Micro USB*1 |
| HDMI: | HDMI 2.0 Interface (MAX 6Gbps，24bpp，4096x2160@60Hz) | Working Temperature: | -25~+65°C |
| Memory: | 8GB 128-bit LPDDR4x 59.7GB/s | PCIe: | 1 X1 (PCIe Gen3) + 1 X4 (PCIe Gen4), Total 144 GT/s* |
| Type-A: | USB 3.1*1 USB 2.0*2 | Size: | 160mm × 130mm × 65mm |
| Power: | DC +9V~+24V | Display: | 2 Multi-mode DP 1.4/eDP 1.4/HDMI 2.0 No DSI Support |
| Networking: | 10/100/1000 BASE-T Ethernet | Weight: | 1078g |
| High Light: | RS232 Nvidia Jetson Xavier NX,PCIe Nvidia Jetson Xavier NX,RS232 embedded linux development board |
||

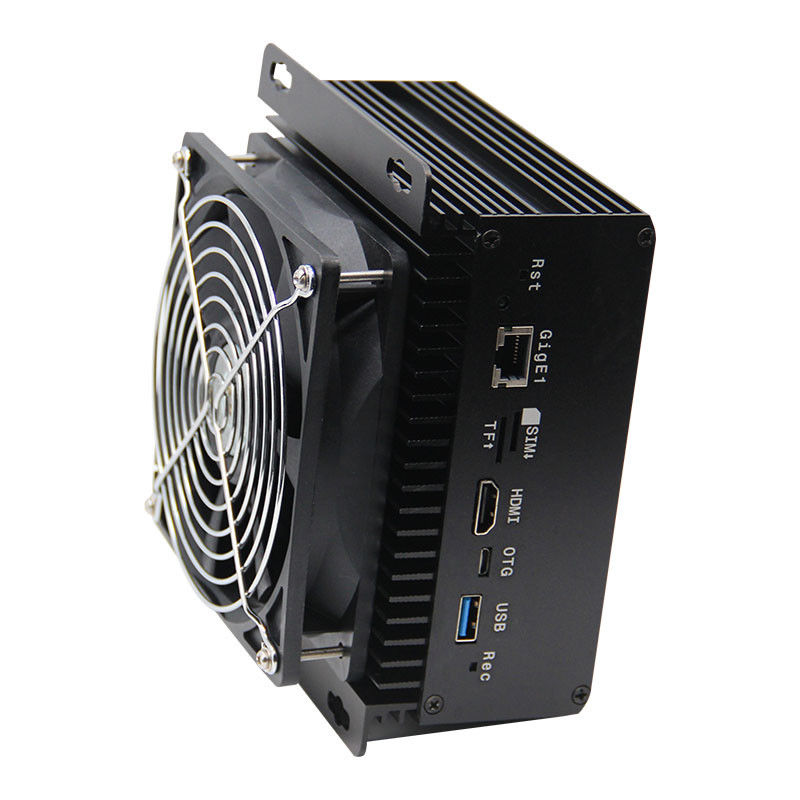

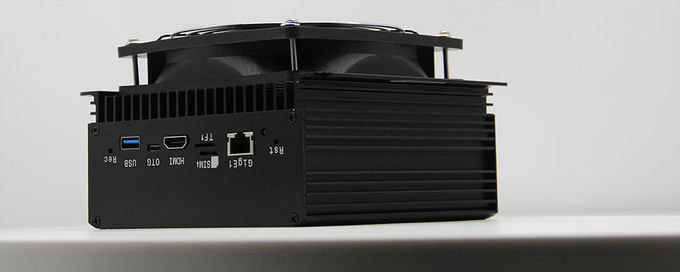

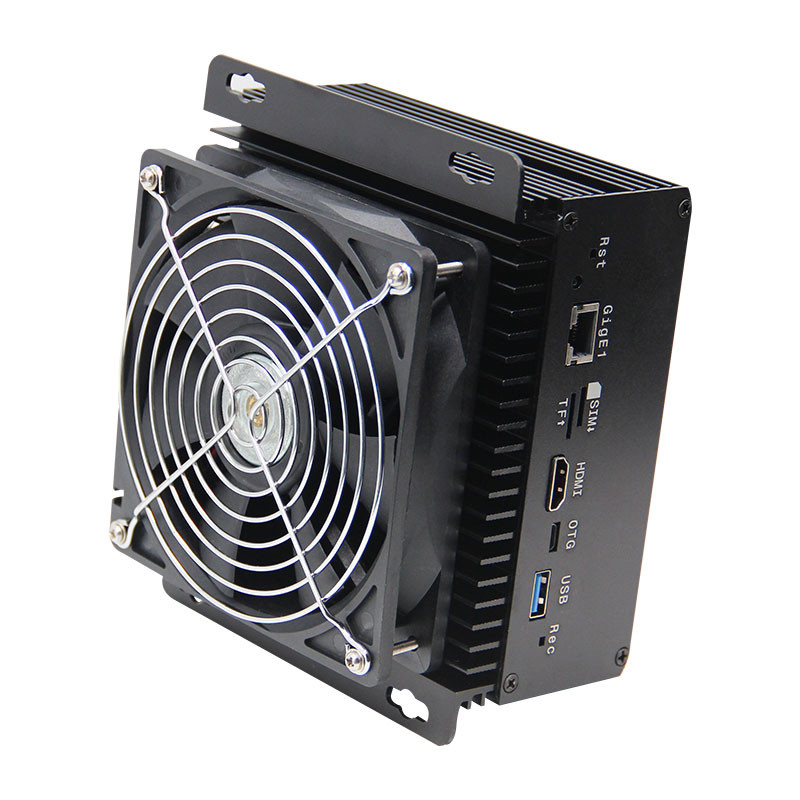

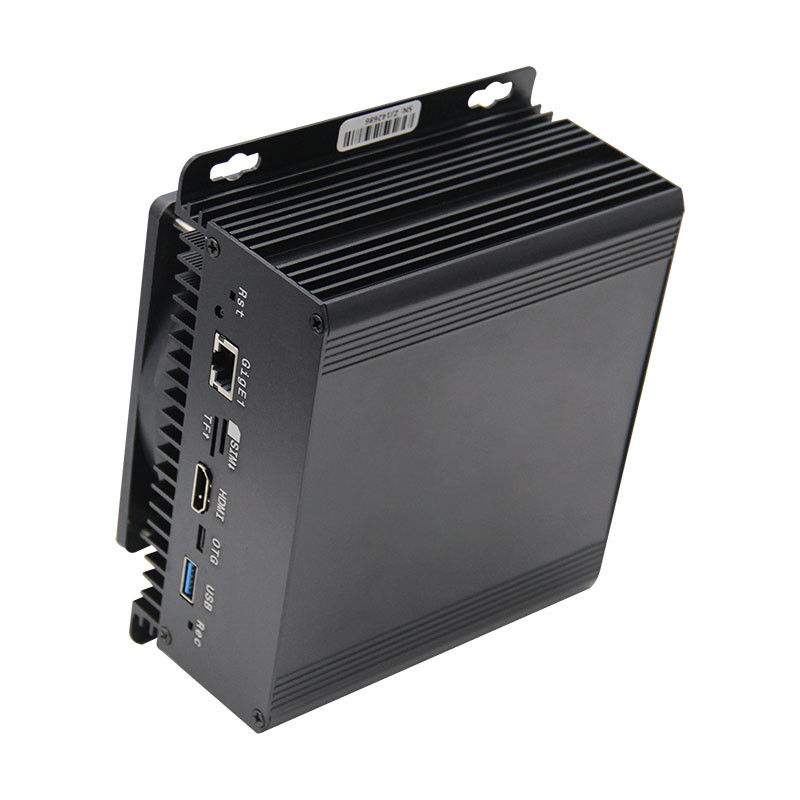

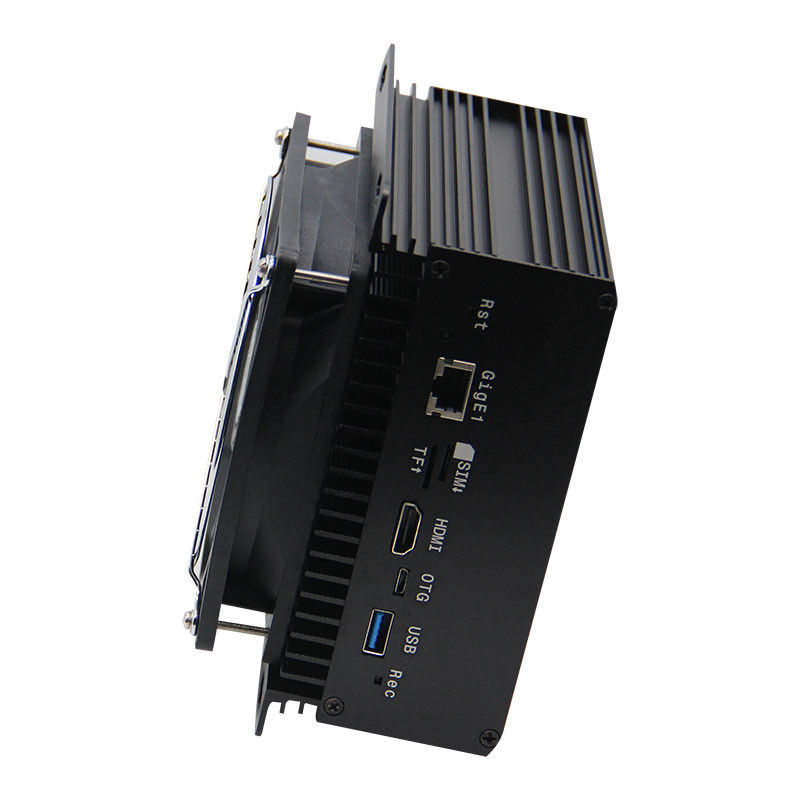

RS232 PCIe Nvidia Jetson Xavier NX Embedded Linux Development Board 8G
NVIDIA Jetson Xavier NX 8G Embedded Computer NX-SYS-2006
Jetson Xavier NX System-on-Module Volta GPU + Carmel ARM + 8GB LPDDR4x + 16GB eMMC 5.1
NX-SYS-2006 is based on NVIDIA Jetson Xavier NX 8G core module, and it’s Up to 21 TOPS of AI performance.
Product Feature
| USB3.1 Type-A | 1 | USB2.0 Type-A | 2 |
| Micro USB | 1 | RJ45 | 1 |
| working indicator | 1 | Micro TF card | 2 |
| Nano SIM card | 1 | CAN | 1 |
| RS-232 | 2 | GPIO(3.3V) | 3 |
| GPO(3.3V) | 1 |
Product size: 160mm×130mm×65mm
Power requirements: DC +9V~+24V
Working temperature: -25~+65℃
Jetson Xavier NX Module Technical Specifications
| GPU | 384-core NVIDIA Volta™architecture GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Storage | 16 GB eMMC 5.1 |
|
Power |
10W - 20W |
| GPU Max Frequency | 1100 MHz |
| AI Performance | 21 TOPS |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
|
PCIe |
1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s* |
| USB | 1x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
|
Size |
69.6mm x 45mm |
| Vision Accelerator | 2x PVA |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
