| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX16G-SYS-2006 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | HDMI Xavier NX Industrial Edge Computer Embedded System Board 21 TOPS 16G | Keyword: | HDMI Xavier NX Industrial Edge Computer Embedded System Board 21 TOPS 16G |
|---|---|---|---|
| AI Performance: | 21 TOPS | CPU: | 6-core NVIDIA Carmel Arm® V8.2 64-bit CPU 6MB L2 + 4MB L3 |
| GPU: | 384-core NVIDIA Volta™ GPU With 48 Tensor Cores | Memory: | 16GB 128-bit LPDDR4x 59.7GB/s |
| Temperature: | -25~+65°C | HDMI: | HDMI 2.0 |
| USB: | Micro USB*1/USB 3.1 Type-A*1/USB 2.0 Type-A*2 | Power: | DC +9V~+24V |
| Size: | 160mm × 130mm × 65mm | Weight: | 1078g |
| High Light: | HDMI embedded system board,Xavier embedded system board,Xavier embedded computer boards |
||

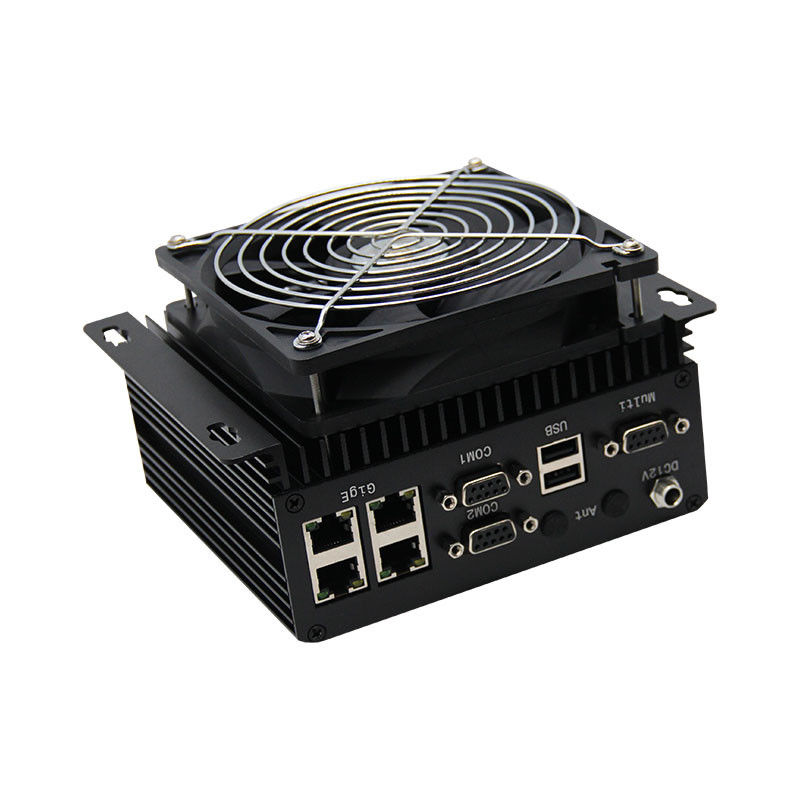

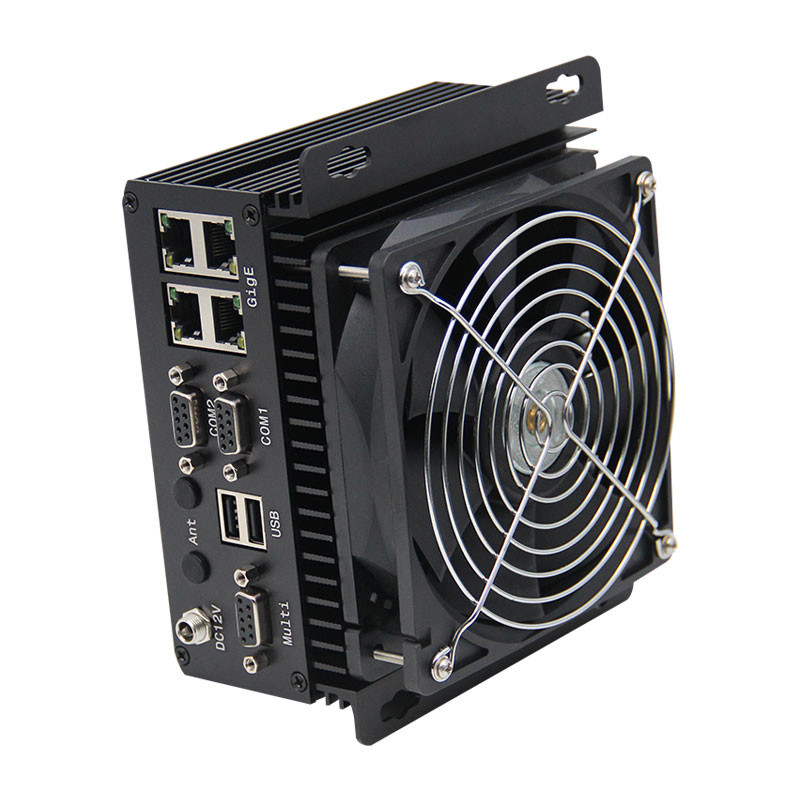

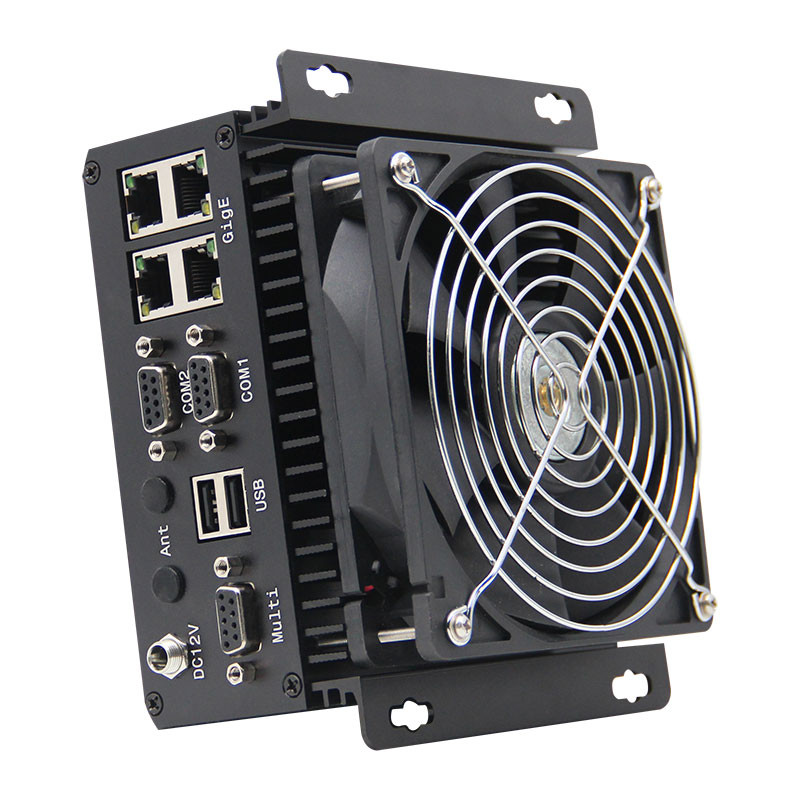

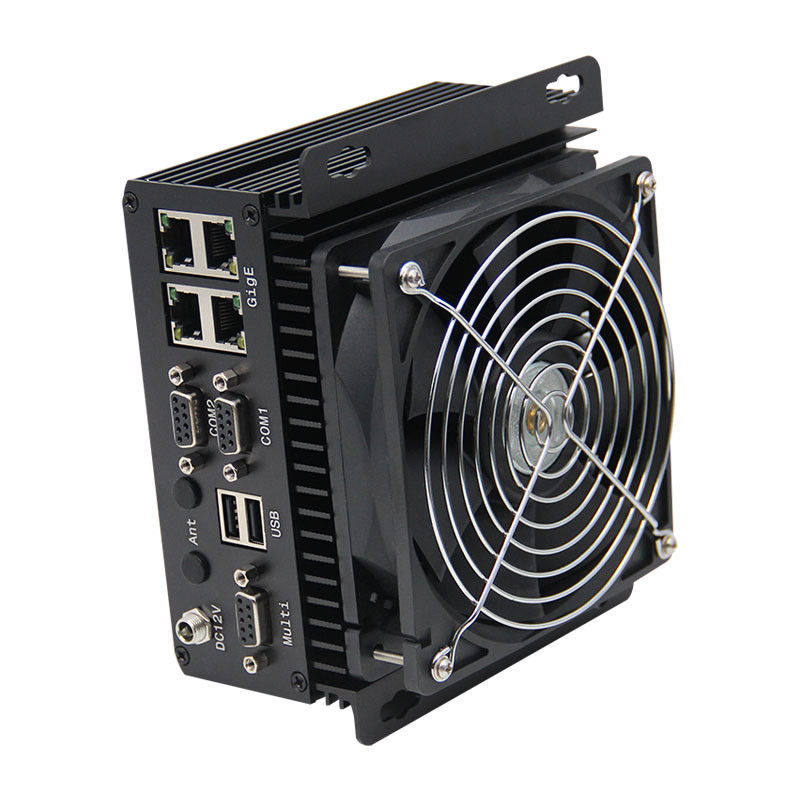

HDMI Xavier NX Industrial Edge Computer Embedded System Board 21 TOPS 16G
NVIDIA Jetson Xavier NX 16G Embedded Computer Model:NX16-SYS-2006
Whether you’re creating breakthrough products like Autonomous Mobile Robots (AMRs), AI-powered Network Video Recorders (NVRs), or Automated Optical Inspection (AOI) devices for high-precision manufacturing, we all glad to have a solution to meet performance and budget needs across a broad range of applications.
Pre-installed NVIDIA Jetson Xavier NX core module
7-Way VLIW Vision Processor
NX-SYS-2006 is based on NVIDIA Jetson Xavier NX 16G core module, and it’s Up to 21 TOPS of AI performance. and 384-core NVIDIA Volta™ GPU with 48 Tensor Cores, it has 16 GB 128-bit LPDDR4x 59.7GB/s memory,
Jetson Xavier NX Module Technical Specifications
| GPU | 384-core NVIDIA Volta™architecture GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| AI Performance | 21 TOPS |
| Memory | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 |
| GPU Max Frequency | 1100 MHz |
| USB | 1x USB 3.2 Gen2 (10 Gbps) |
| 3x USB 2.0 | |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| PCIe | 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s* |
| Power | 10W - 20W |
| Size | 69.6mm x 45mm |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |

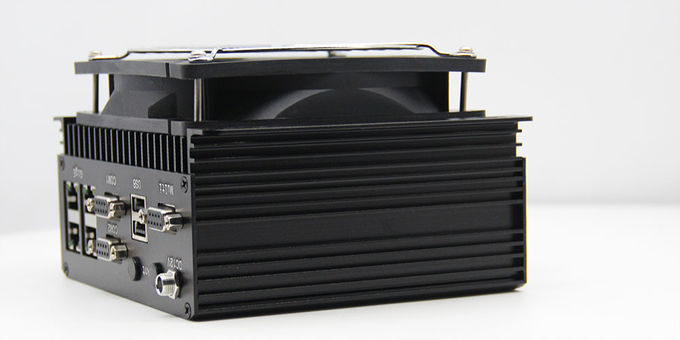

NX16-SYS-2006 Industrial Edge Computer Product Feature
Industrial Edge Computer Product size: 160mm×130mm×65mm
Power requirements: DC +9V~+24V
Working temperature: -25~+65℃
| USB3.1 Type-A | 1 | USB2.0 Type-A | 2 |
| Micro USB | 1 | RJ45 | 1 |
| working indicator | 1 | Micro TF card | 2 |
| Nano SIM card | 1 | CAN | 1 |
| RS-232 | 2 | GPIO(3.3V) | 3 |
| GPO(3.3V) | 1 |
