| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C6-DEV-NX8G |
| Minimum Order Quantity: | 1 |
| Price: | USD 625-USD650\SET |
| Packaging Details: | 35X28X24cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| NAME: | VAG Robotic Healthcare Nvidia Jetson Xavier NX Module Developer Kit | Keyword: | VAG Robotic Healthcare Nvidia Jetson Xavier NX Module Developer Kit |
|---|---|---|---|
| Module: | NVIDIA Jetson Xavier NX | Memory: | 8 GB 128-bit LPDDR4x 59.7GB/s |
| AI Performance: | 21 TOPS | Power Adapter: | DC +12V 5A |
| Storage: | 16 GB EMMC 5.1 | RJ45: | *1 |
| Working Temperature: | -25~+80℃ | Single Package Size: | 120mm×80mm×35mm |
| High Light: | Robotic Nvidia Jetson Xavier NX,Nvidia Jetson Xavier NX Module,VAG jetson xavier module |
||

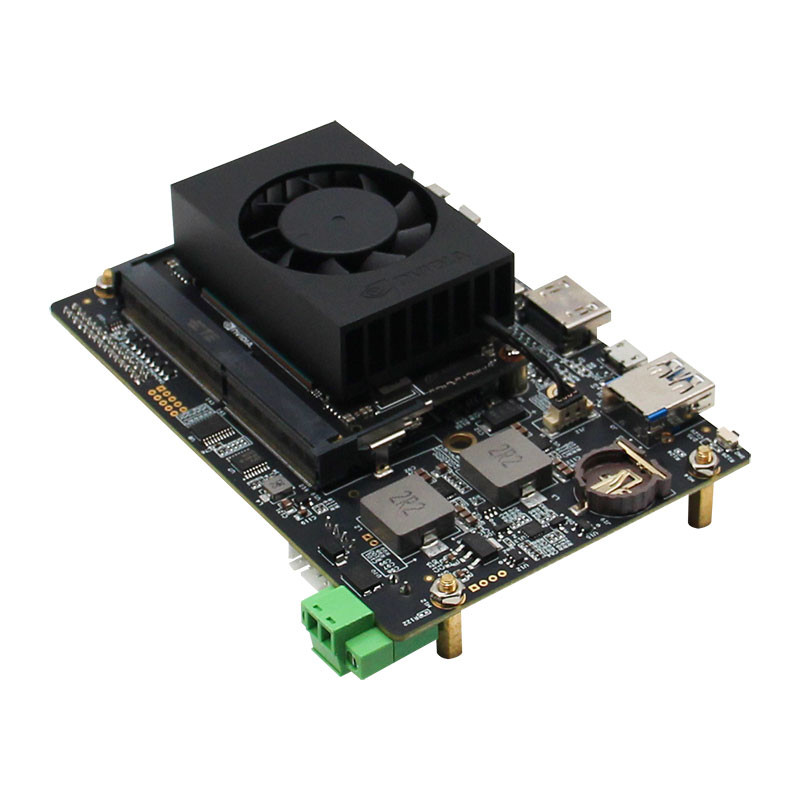

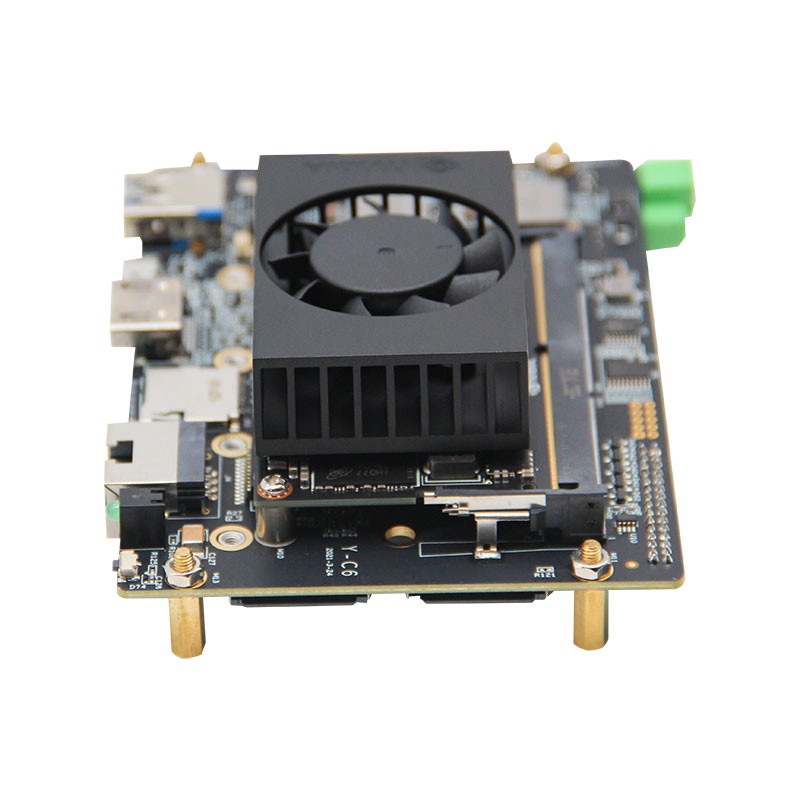

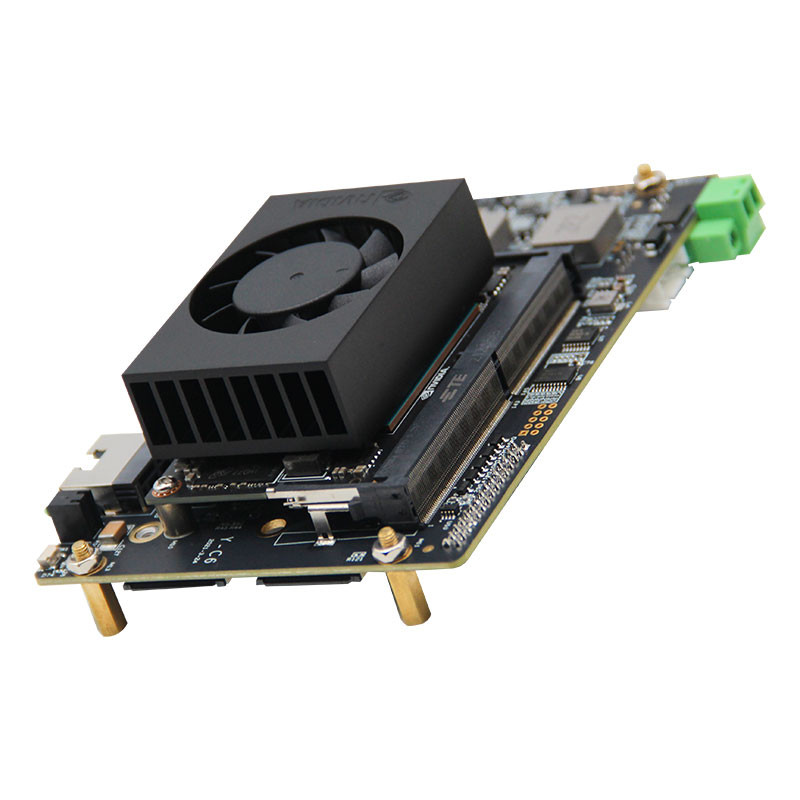

VAG Robotic Healthcare Nvidia Jetson Xavier NX Module Developer Kit
PLINK Jetson Xavier NX developer kit Y-C6-DEV-NX8G
The Y-C6-DEV-NX8G Nvidia Jetson Xavier Nx Module delivers up to 21 TOPS, You get the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, 16 GB eMMC 5.1 Flash Storage,8 GB 128-bit LPDDR4x DRAM,and 2 NVIDIA Deep Learning Accelerators (NVDLA) engines.
the Nvidia Jetson Xavier Nx Module size: 69.6 mm x 45 mm | 260 pin SO-DIMM Connector
Nvidia Jetson Xavier Nx Module parameter
| Support native system | |
| 3.3V SPI | 1 |
| Adapter | AC~ DC /220V to +12V 5A |
| CAN | 1 |
| 3.3V GPO | 1 |
| 2 Lane MIPI | 2 |
| 3.3V Debug(UART) | 1 |
| micro SD | 1 |
| 3.3V GPIO | 3 |
| USB 3.1 Type-A | 1 |
| 3.3V I2C | 2 |
| MiniPCIe | 2 |
| Micro USB | 1 |
| Temperature | -25~+80°C |
| RS-232 | 2 |
| Nano SIM | 1 |
| CR1220 RTC Battery | 1 |
| HDMI 2.0 | 1 |
| Size | 120mm*80mm*35mm |
| (10/100/1000BASE-T) RJ45 | 1 |
| 30-pin2.0mm Multifunctional interface design | 1 |
|
Anti falling off interface design |
|
| Power onself start | |
Support the official system without changing the kernel
