| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX-03-nx |
| Minimum Order Quantity: | 1PCS |
| Price: | USD80-USD90\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | 16GB EMMC SOM Embedded Nvidia Jetson Xavier NX Carrier Board | Key Word: | 16GB EMMC SOM Embedded Nvidia Jetson Xavier NX Carrier Board |
|---|---|---|---|
| Module: | Jetson Xavier NX | Storage: | 16 GB EMMC 5.1 |
| Camera: | 2x MIPI CSI-2 DPHY Lanes | Temperature: | -0~+50℃ |
| Module Memory: | 16 GB 128-bit LPDDR4x 59.7GB/s | Display: | HDMI/DP |
| Power Supply: | DC + 9V | Mechanical: | 91 Mm X 104 Mm X 35 Mm |
| High Light: | SOM Nvidia Jetson Xavier NX,Embedded Nvidia Jetson Xavier NX,Embedded nvidia jetson nx xavier |
||

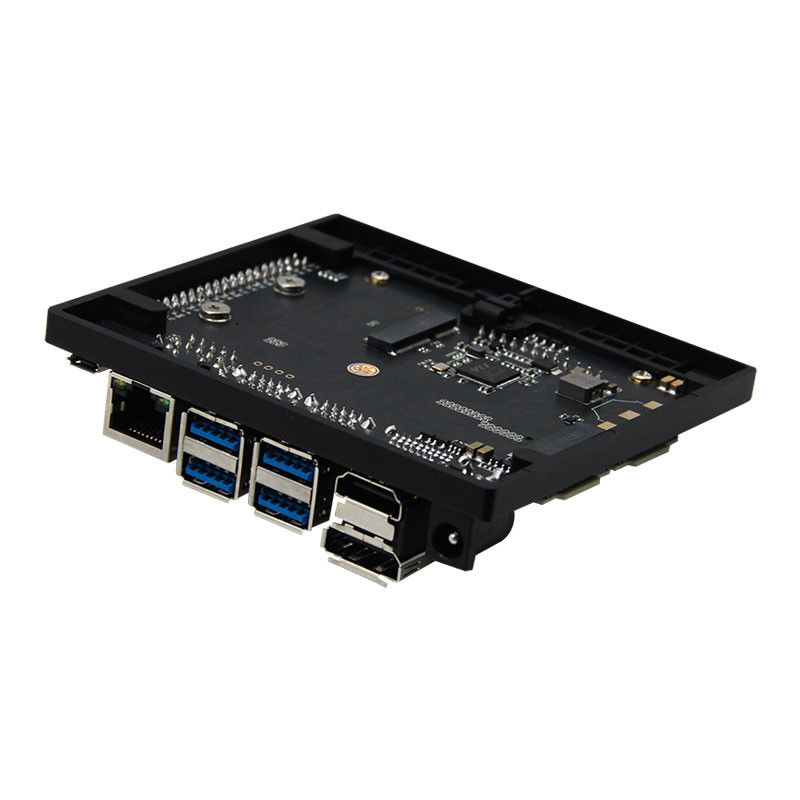

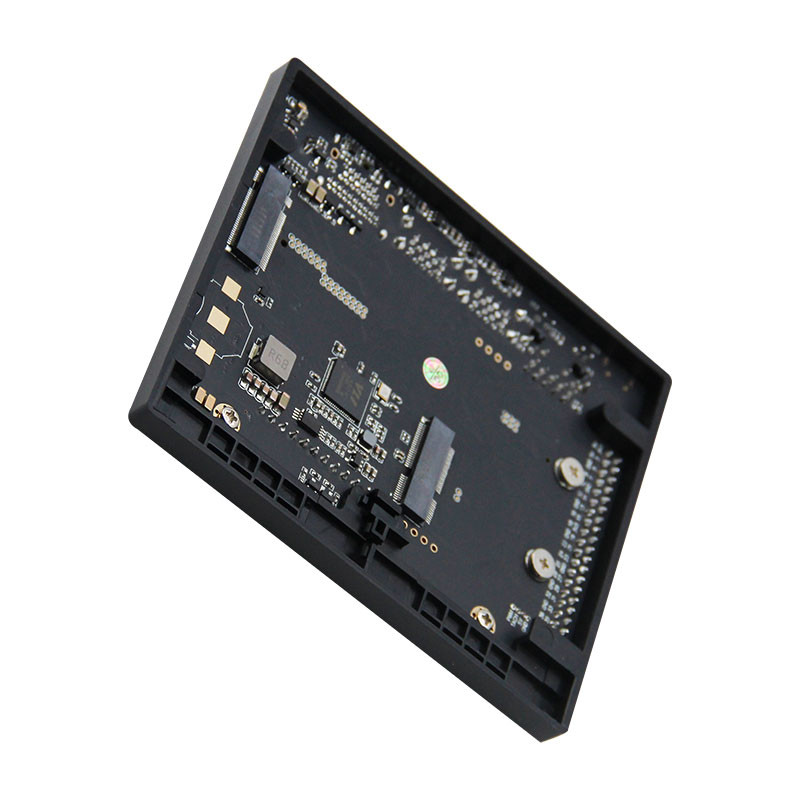

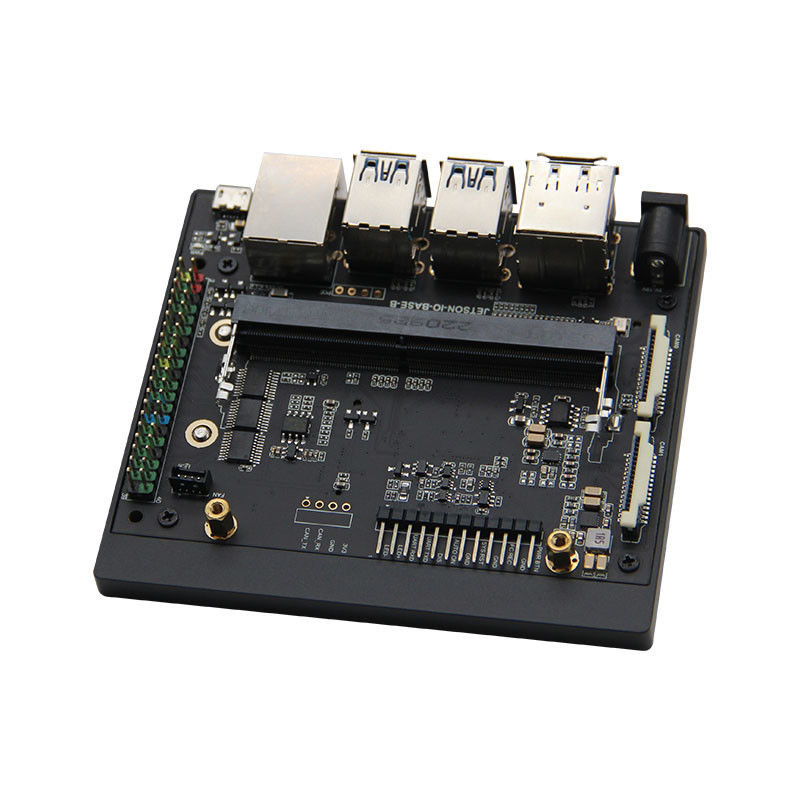

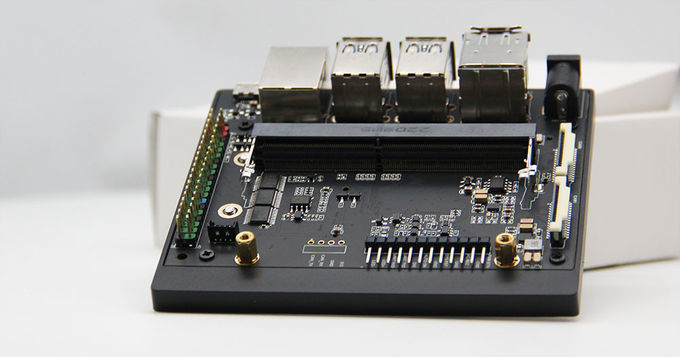

16GB EMMC SOM Embedded Nvidia Jetson Xavier NX Carrier Board
NVIDIA Jetson Xavier NX Original Factory Replacement Carrier Board
The NVIDIA Jetson portfolio includes a variety of small modules to meet power, performance, and form-factor requirements across use cases and industries. Each Jetson is a complete System on Module (SOM) that includes a GPU, CPU, memory, power management, high-speed interfaces, and more. Jetson ecosystem partners provide software, hardware design services, and off-the-shelf compatible products from carrier boards to full systems, so you can get to market faster with AI embedded and edge devices.
You can accelerate all modern AI networks, easily roll out new features, and leverage the same software for different products and applications.Intelligent machine OEMs and AI application developers create breakthrough products with Jetson in the fields of manufacturing, logistics, retail, service, agriculture, smart city, and healthcare and life sciences.
Product Feature
NVIDIA Jetson Xavier NX module
The Micro USB port can be used for 5V power input / USB data transfer
6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3
384-core NVIDIA Volta GPU with 48 Tensor Cores
FAN Header (GPIO,I2C,I2S,SPI,UART)
DC power port used for 12V~21V
MIPI CSI cameras Interface Function
Technical Specifications
| Module | NVIDIA Jetson Xavier NX 16GB/Jetson Xavier NX |
| AI Performance | 21 TOPS |
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s |
| 16 GB 128-bit LPDDR4x 59.7GB/s | |
| Storage | 16 GB eMMC 5.1 |
| Power supply | DC + 9V |
| USB | 4x USB 3.0 |
| 1x USB 2.0 OTG | |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264/H.265) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| Other I/O | 40-PIN GPIO |
| FAN Header (GPIO,I2C,I2S,SPI,UART) | |
| Temperature | -0~+50℃ |
| Size | 104 mm x 90 mm x 26 mm |
NVIDIA Jetson Xavier NX
Diffrent between the official board with the board of original factory replacement
| Jetson Xavier NX domestic Board | Jetson Xavier NX official Board | |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores | |
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 | |
| Storage |
16GB eMMC
Expandable M.2 hard disk
|
No storage medium
Expandable M.2 hard disk
|
