| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX-03-nx |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | 2x MIPI CSI-2 Nvidia Jetson Xavier NX Carrier Board For Embedded AI Product | Key Word: | 2x MIPI CSI-2 Nvidia Jetson Xavier NX Carrier Board For Embedded AI Product |
|---|---|---|---|
| Module: | Jetson Xavier NX | Module Memory: | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage: | 16 GB EMMC 5.1 | Camera: | 2x MIPI CSI-2 DPHY Lanes |
| Temperature: | -0~+50℃ | Display: | HDMI/DP |
| Power Supply: | DC + 9V | Mechanical: | 91 Mm X 104 Mm X 35 Mm |
| High Light: | Nvidia Jetson Xavier NX Board,CSI-2 Nvidia Jetson Xavier NX,Embedded jetson xavier nx |
||

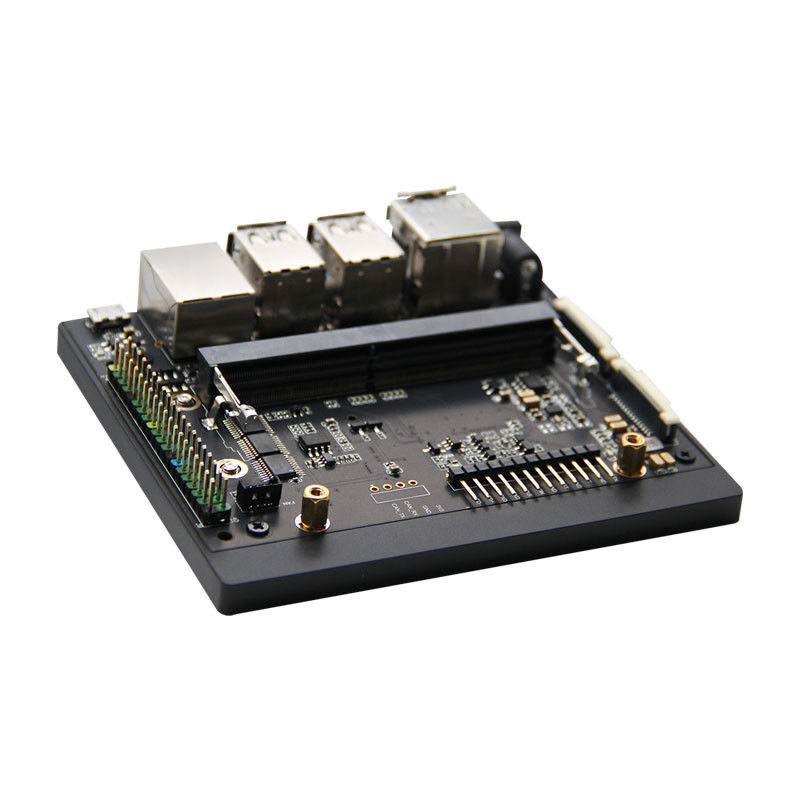

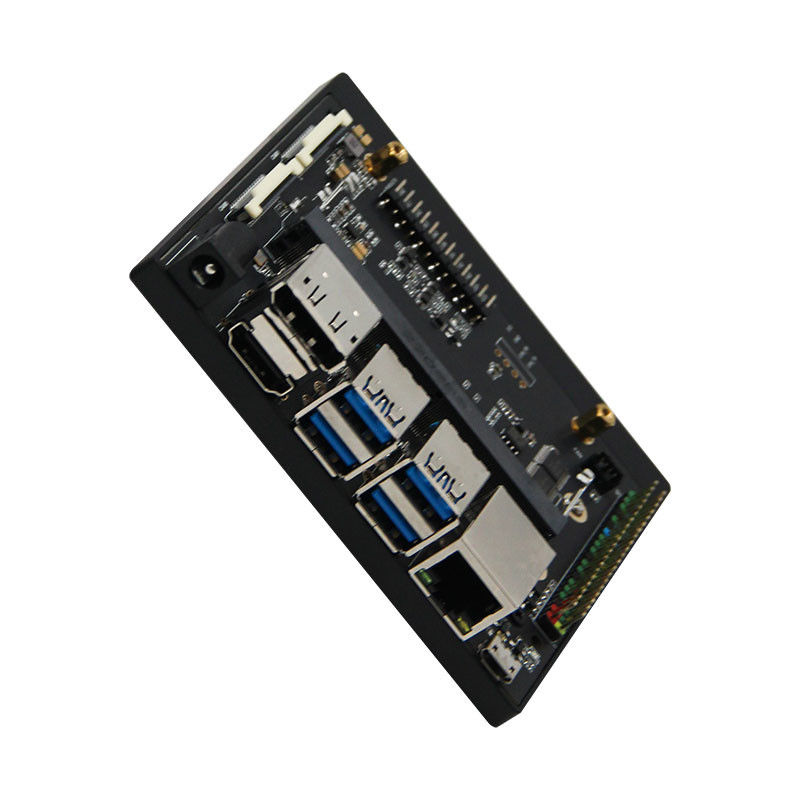

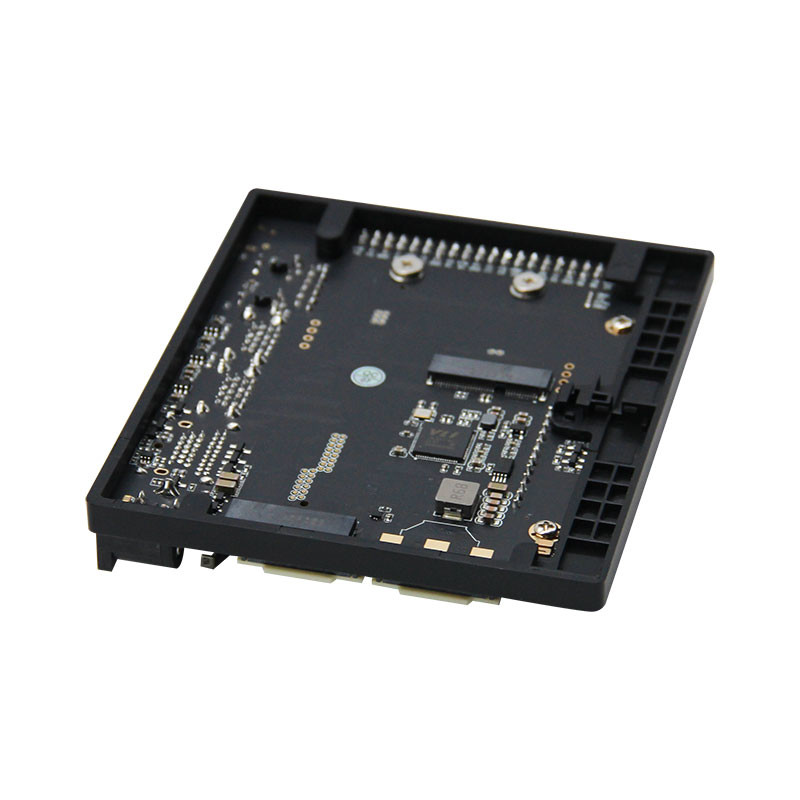

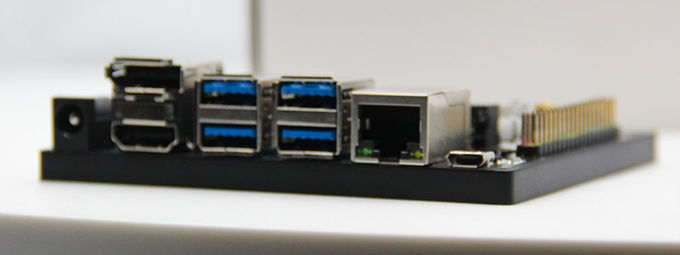

2x MIPI CSI-2 Nvidia Jetson Xavier NX Carrier Board For Embedded AI Product
Original Factory Replacement
Jetson Xavier NX Domestic Carrier Board
The rapid evolution of artificial intelligence (AI) and the proliferation of billions of IoT devices are transforming almost every industry. AI at the edge now enables use cases that we could only imagine until recently. Today, the NVIDIA Jetson™ platform brings incredible new capabilities to the edge, accelerating product development and deployment at scale.
NVIDIA Jetson Xavier NX
Diffrent between the official board with the board of original factory replacement
| NVIDIA Jetson Xavier NX domestic Board | NVIDIA Jetson Xavier NX official Board | |
| Storage |
16GB eMMC
Expandable M.2 hard disk
|
No storage medium
Expandable M.2 hard disk
|
Product Feature
NVIDIA Jetson Xavier NX 16GB module
384-core NVIDIA Volta GPU with 48 Tensor Cores
6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3
MIPI CSI cameras Interface Function
The Micro USB port can be used for 5V power input / USB data transfer
DC power port used for 12V~21V
FAN Header (GPIO,I2C,I2S,SPI,UART)
Technical Specifications
| Module | NVIDIA Jetson Xavier NX 16GB/Jetson Xavier NX |
| AI Performance | 21 TOPS |
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s |
| 16 GB 128-bit LPDDR4x 59.7GB/s | |
| Storage | 16 GB eMMC 5.1 |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264/H.265) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| USB | 1x USB 2.0 OTG |
| 4x USB 3.0 | |
| Power supply | DC + 9V |
|
Display |
HDMI and DP |
| Temperature | -0~+50℃ |
| Other I/O | 40-PIN GPIO |
| FAN Header (GPIO,I2C,I2S,SPI,UART) | |
| Size | 104 mm x 90 mm x 26 mm |
