| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C6-DEV-NX16G |
| Minimum Order Quantity: | 1 |
| Price: | USD 625-USD650\SET |
| Packaging Details: | 35X28X24cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| NAME: | MiniPCIe CAN Nvidia Jetson Xavier NX 16GB Developer Kit 21 TOPS EMMC 5.1 | Keyword: | MiniPCIe CAN Nvidia Jetson Xavier NX 16GB Developer Kit 21 TOPS EMMC 5.1 |
|---|---|---|---|
| Power Adapter: | DC +12V 5A | AI Performance: | 21 TOPS |
| Memory: | 16 GB 128-bit LPDDR4x 59.7GB/s | Storage: | 16 GB EMMC 5.1 |
| RJ45: | *1 | Module: | NVIDIA Jetson Xavier NX |
| Working Temperature: | -25~+80℃ | Single Package Size: | 120mm×80mm×35mm |
| High Light: | MiniPCIe Nvidia Jetson Xavier NX,16GB Nvidia Jetson Xavier NX,16GB nvidia jetson nx |
||

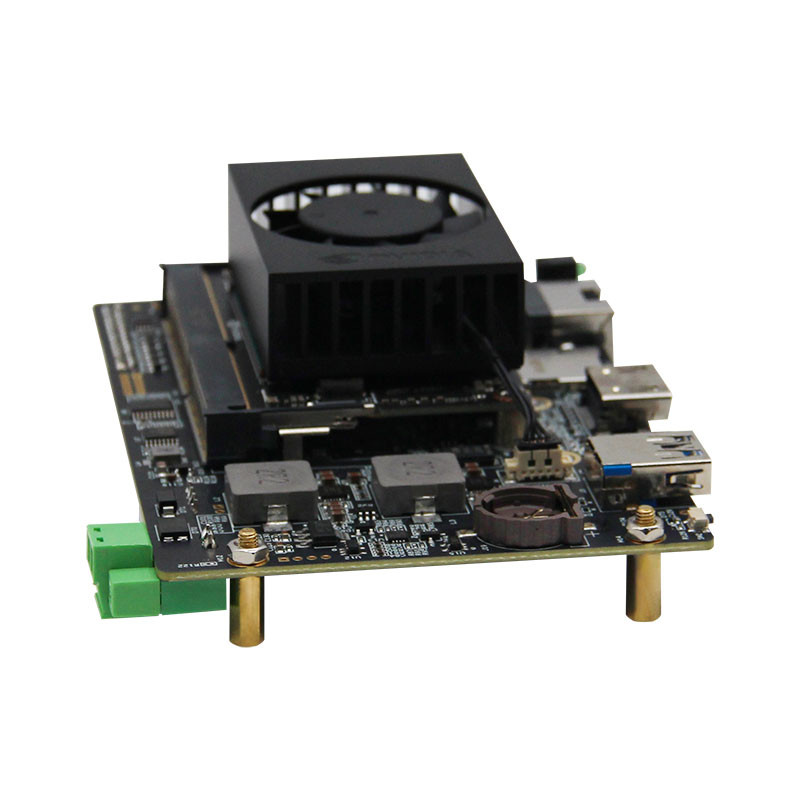

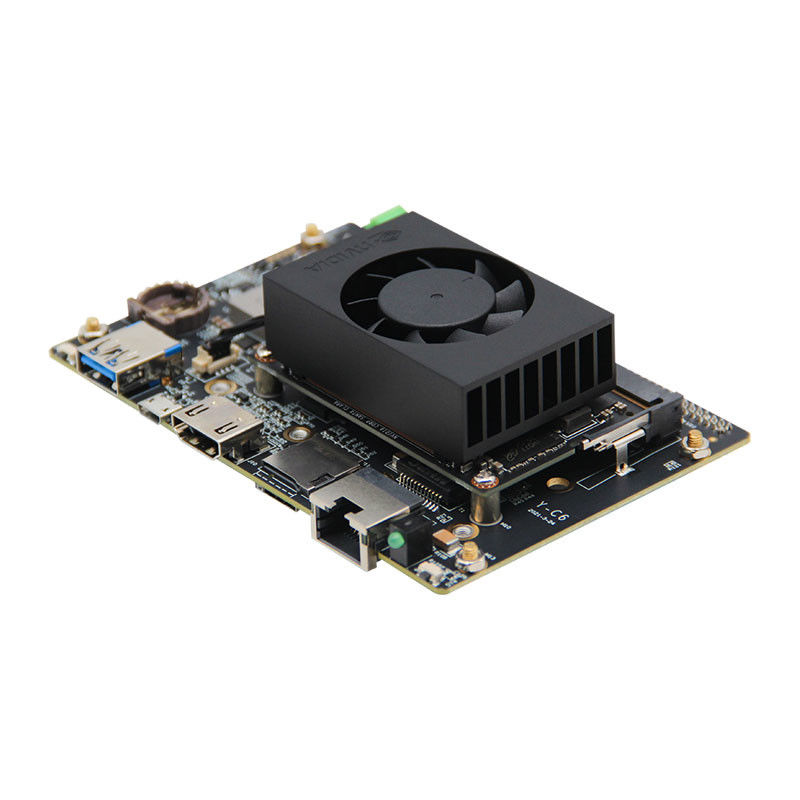

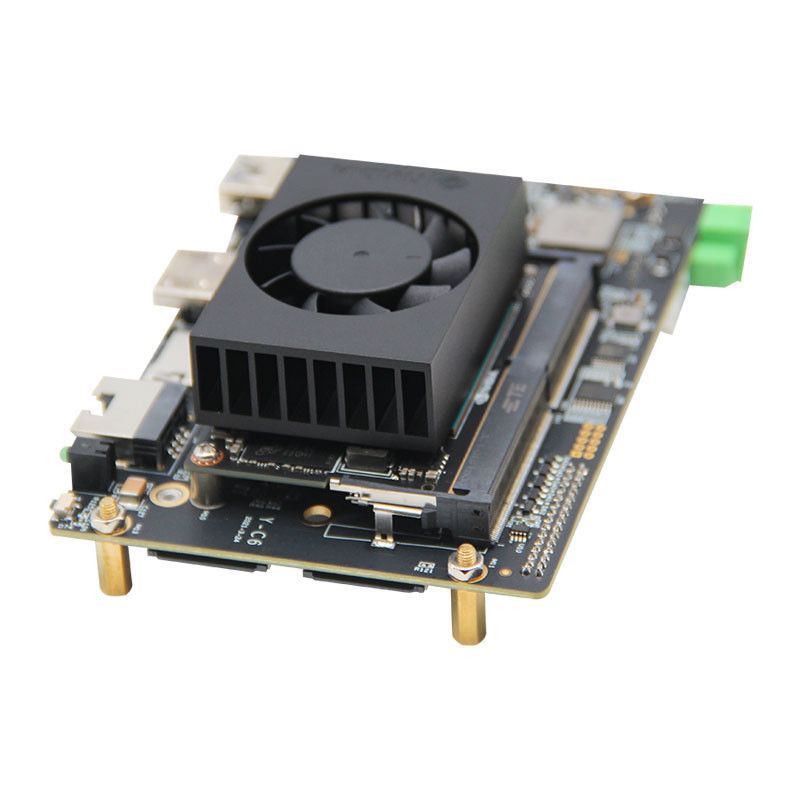

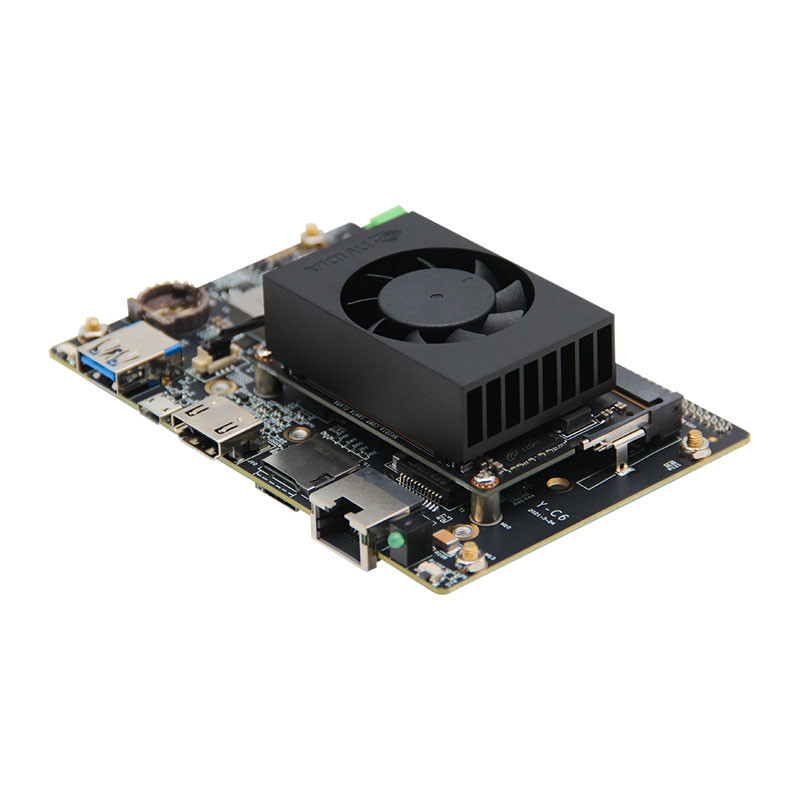

MiniPCIe CAN Nvidia Jetson Xavier NX 16GB Developer Kit 21 TOPS EMMC 5.1
PLINK Jetson Xavier NX 16GB developer kit Y-C6-DEV-NX16G
Jetson Xavier NX module
AI Performance
Up to 21 TOPS (INT8)
Operating Requirements
Temperature Range (TJ)*: -25°C – 90°C | Supported Power Modes: 10W – 15W | Power Input: 5V
Memory
16 GB 128-bit LPDDR4x DRAM | Secure External Memory Access Using TrustZone® Technology | System MMU | Maximum Operating Frequency: 1600 MHz
Storage
16 GB eMMC 5.1 Flash Storage | Bus Width: 8-bit | Maximum Bus Frequency: 200 MHz (HS400)
Networking
10/100/1000 Gigabit Ethernet | Media Access Controller (MAC)
Support native system
Anti falling off interface design
Power onself start
Size: 120mm*80mm*35mm
Adapter: AC to DC /220V to +12V 5A
Temperature: -25~+80°C
Support the officia lsystem without changing the kernel
| USB 3.1 Type-A | 1 |
| 2 Lane MIPI | 2 |
| RS-232 | 2 |
| 3.3V GPO | 1 |
| 3.3V GPIO | 3 |
| micro SD | 1 |
| 3.3V I2C | 2 |
| MiniPCIe | 2 |
| Micro USB | 1 |
| CAN | 1 |
| 3.3V Debug(UART) | 1 |
| (10/100/1000BASE-T) RJ45 | 1 |
| CR1220 RTC Battery | 1 |
| HDMI 2.0 | 1 |
| 3.3V SPI | 1 |
| Nano SIM | 1 |
| 30-pin2.0mm Multifunctional interface design | 1 |
