| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX-03-nx |
| Minimum Order Quantity: | 1PCS |
| Price: | USD80-USD90\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | 16GB EMMC 5.1 Jetson Xavier Nx GPU Developer Kit Carrier Board | Module: | 16GB EMMC 5.1 Jetson Xavier Nx GPU Developer Kit Carrier Board |
|---|---|---|---|
| Key Word: | Embedded Carrier Board Original Factory Replacement Jetson Xavier Nx Development Board | Module Memory: | 16/8 GB 128-bit LPDDR4x 59.7GB/s |
| Storage: | 16 GB EMMC 5.1 | Temperature: | -0~+50℃ |
| Camera: | 2x MIPI CSI-2 DPHY Lanes | USB: | USB 3.0 × 4、USB 2.0 OTG × 1 |
| Power Supply: | DC + 9V | Display: | HDMI/DP |
| Other I/O: | 40-PIN GPIO，FAN Header (GPIO，I2C，I2S，SPI，UART) | Mechanical: | 91 Mm X 104 Mm X 35 Mm |
| High Light: | EMMC jetson xavier nx gpu,16GB jetson xavier nx gpu,16GB xavier developer kit |
||

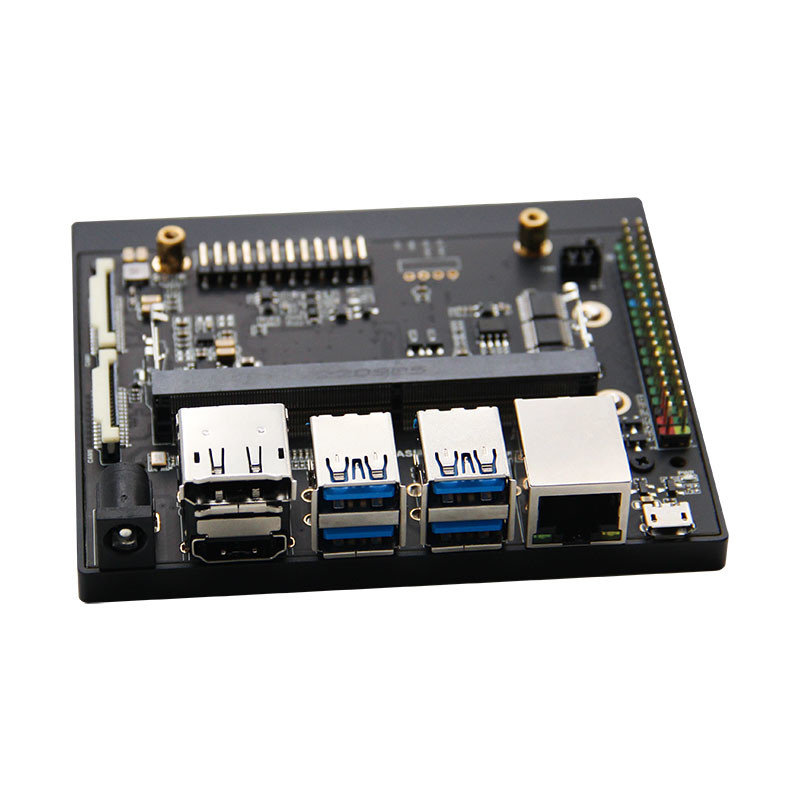

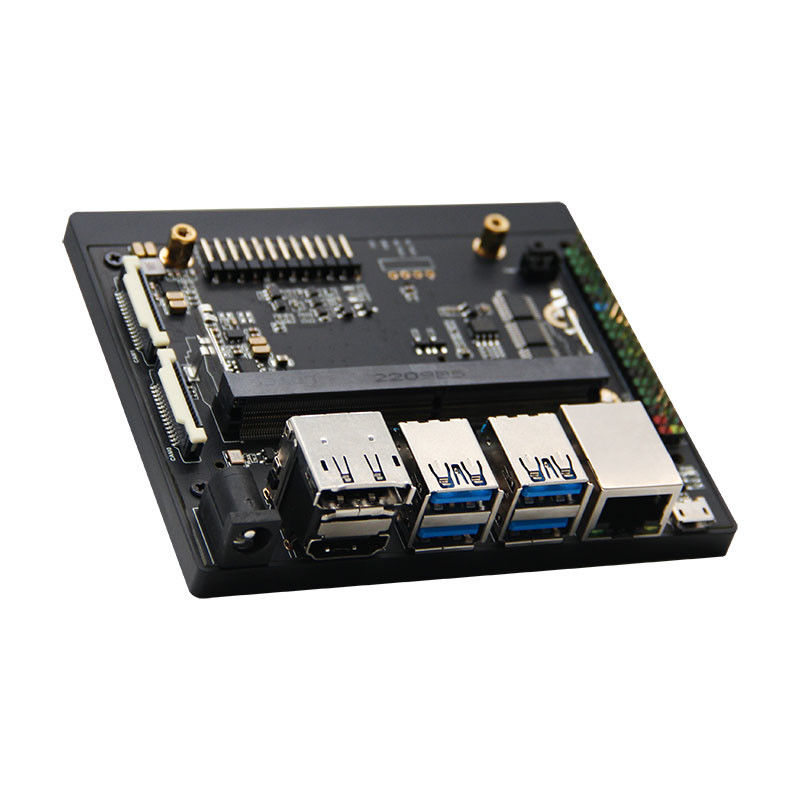

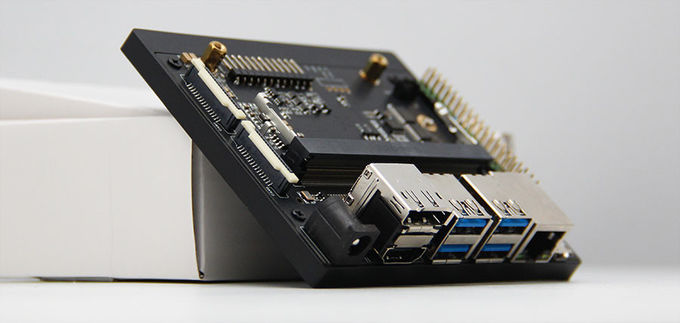

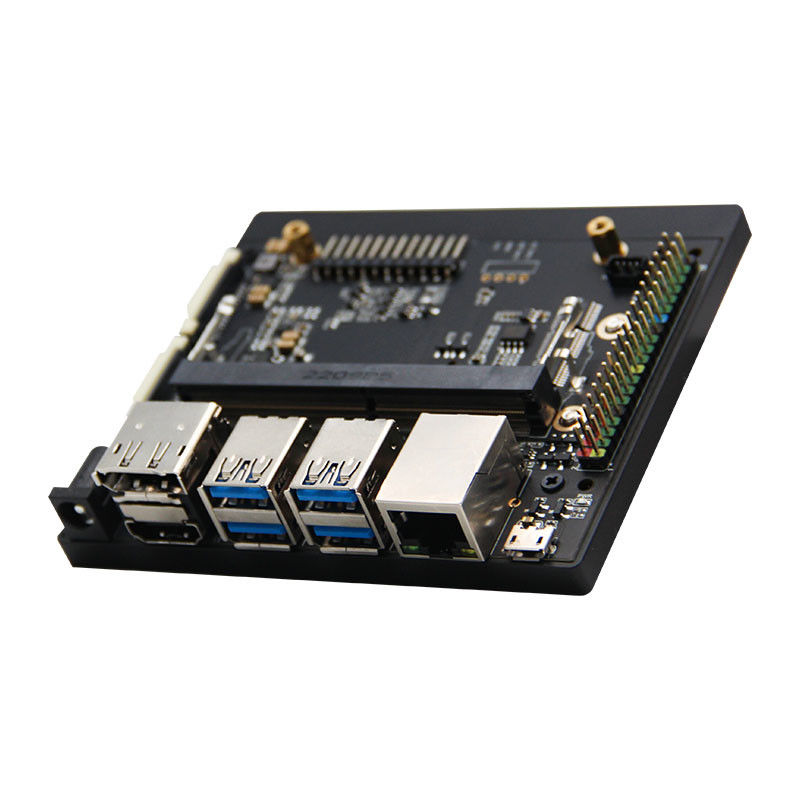

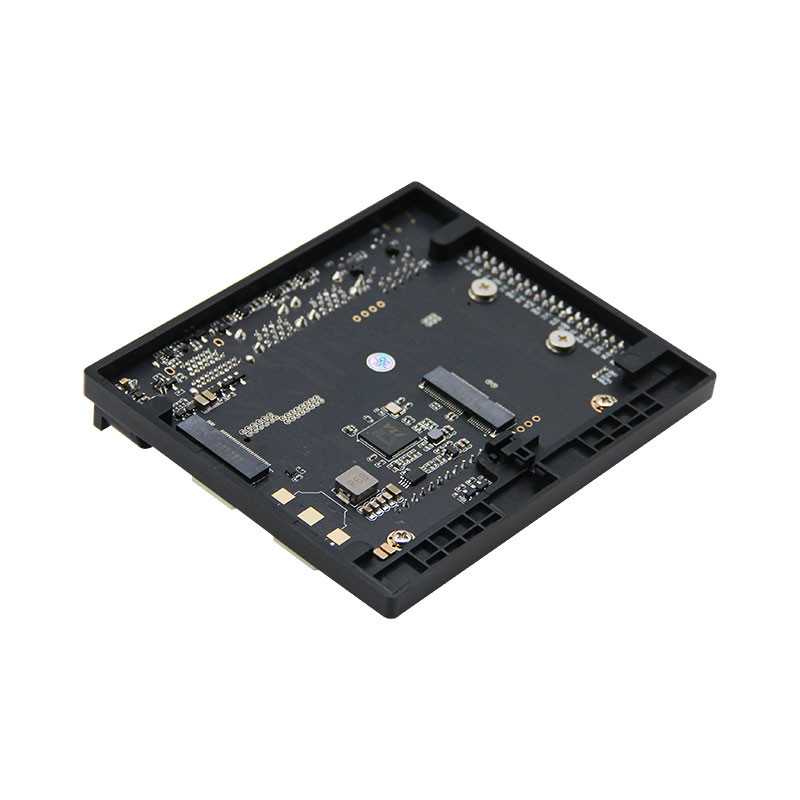

16GB EMMC 5.1 Jetson Xavier Nx GPU Developer Kit Carrier Board
Jetson Xavier NX Original Factory Replacement Carrier Board
AI and edge computing are transforming every industry, including manufacturing, healthcare, retail, logistics, transportation, construction, agriculture, robotics, and more. Forward-looking companies are using NVIDIA Jetson to improve and accelerate their product development, proving every day how innovative technologies can help drive new levels of success.
With billions of IoT edge devices that can easily run on a battery in the fields for many years, constant upkeep and frequent updates for rapidly improving AI capabilities are imperative. The NVIDIA Jetson platform supports cloud-native technologies and workflows such as containerization and orchestration. This support speeds up AI edge products development to the market and enables agile deployment and management at scale throughout the device lifecycle.
The interface display
NVIDIA Jetson Xavier NX module
The Micro USB port can be used for 5V power input / USB data transfer
DC power port used for 12V~21V
MIPI CSI cameras Interface Function
Technical Specifications
| AI Performance | 21 TOPS |
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s |
| 16 GB 128-bit LPDDR4x 59.7GB/s | |
| Storage | 16 GB eMMC 5.1 |
| Power supply | DC + 9V |
| USB | 4x USB 3.0 |
| 1x USB 2.0 OTG | |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264/H.265) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| Other I/O | 40-PIN GPIO |
| FAN Header (GPIO,I2C,I2S,SPI,UART) | |
| Temperature | -0~+50℃ |
| Size | 104 mm x 90 mm x 26 mm |
NVIDIA Jetson Xavier NX
Diffrent between the official board with the board of original factory replacement
| Jetson Xavier NX domestic Board | Jetson Xavier NX official Board | |
| Memory | 16/8 GB 128-bit LPDDR4x 59.7GB/s | |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores | |
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 | |
| Storage |
16GB eMMC
Expandable M.2 hard disk
|
No storage medium
Expandable M.2 hard disk
|
