| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C7-DEV-ONX16G |
| Minimum Order Quantity: | 1 set |
| Price: | To be discussed |
| Packaging Details: | 28X24X15cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |
| NAME: | NVIDIA Jetson Orin NX 16GB Developer Kit Ampere 8 Lanes MIPI CSI-2 Embedded System | Keyword: | NVIDIA Jetson Orin NX 16GB Developer Kit Ampere 8 Lanes MIPI CSI-2 Embedded System |
|---|---|---|---|
| Module: | NVIDIA Jetson Orin NX 16GB | Memory: | 16GB 128-bit LPDDR5 102.4GB/s |
| AI Perf: | 100 TOPS | Temperature: | -40~+85℃ |
| Size: | 120mm×80mm×35mm | Weight: | 120g |
| High Light: | NVIDIA JETSON ORIN NX 16GB,16GB Nvidia Jetson Developer Kit,16GB Jetson Xavier Nx Developer Kit |
||

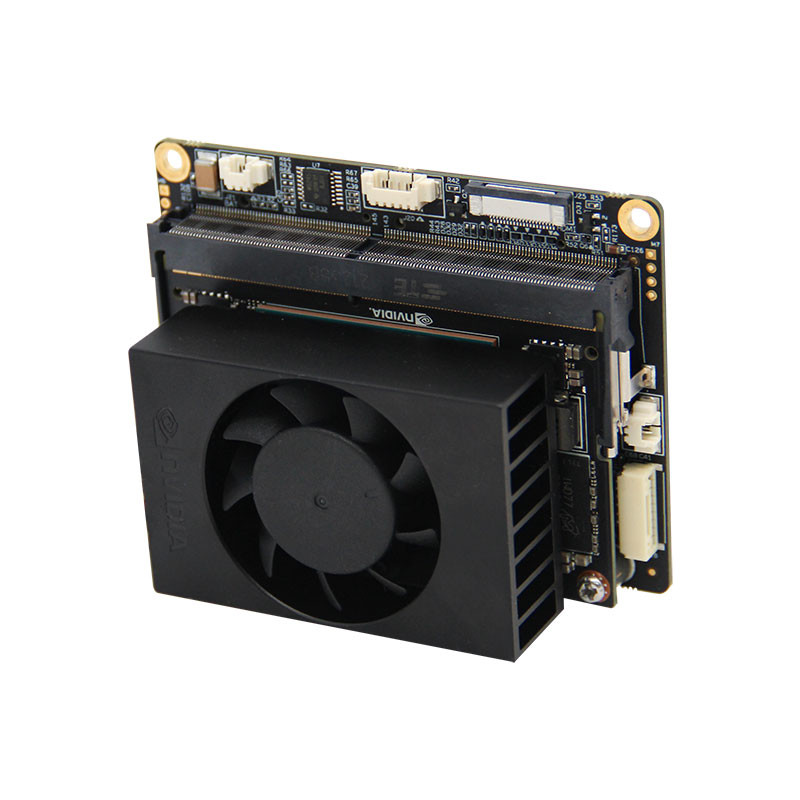

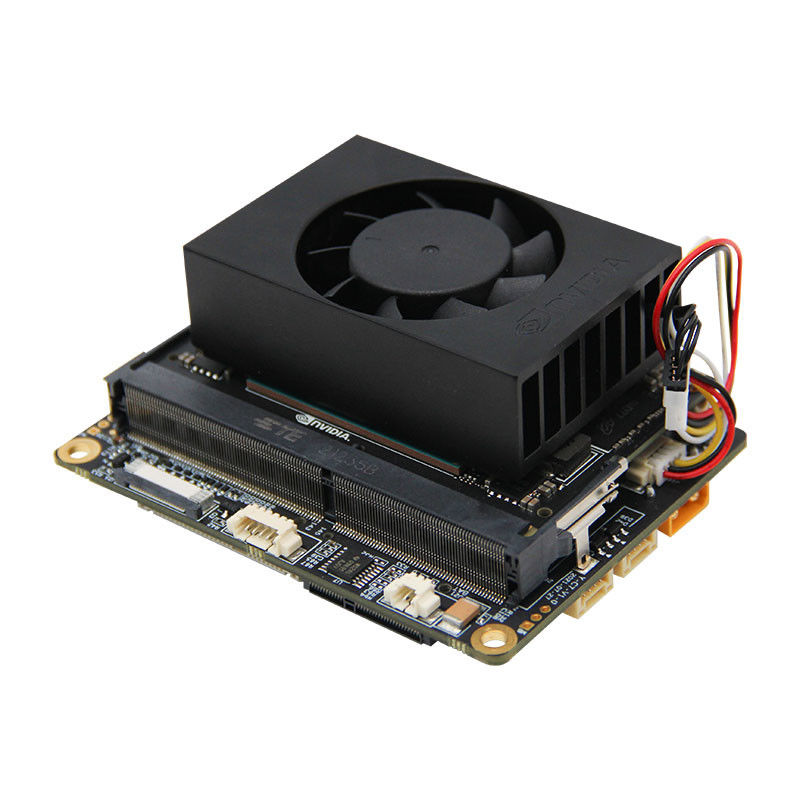

NVIDIA Jetson Orin NX Embedded SBC Developer Kit 100 TOPS 16GB 128-bit LPDDR5

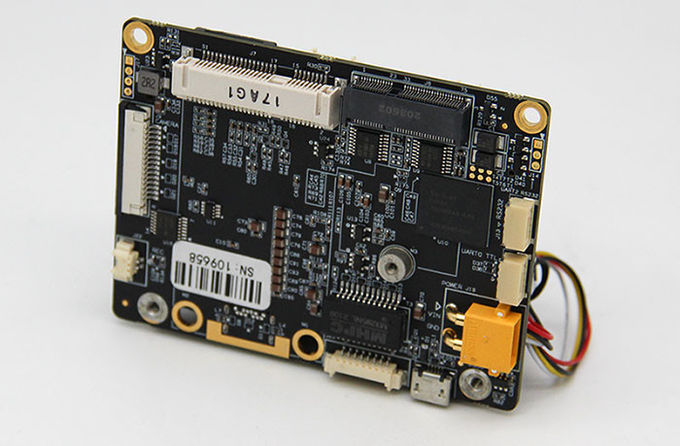

The NVIDIA AI development kit:Jetson Orin NX 16G+FAN+Y-C6 Carrier Board
Based on NVIDIA Jetson Orin NX module, and the module deliver up to 100 TOPS of AI performance in the smallest Jetson form factor
Video Encode:1x 4K60 (H.265) I 3x 4K30 (H.265) I 6x 1,080p60 (H.265) I 12x 1,080p30 (H.265)
Video Decode:1x 8K30 (H.265) I 2x 4K60 (H.265) I 4x 4K30 (H.265) I 9x 1,080p60 (H.265) I 18x 1,080p30 (H.265)
Camera:Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
| 3.3V I2C | 3 |
| MiniPCIe | 1 |
|
HDMI |
1 |
| M.2 Key E | 1 |
| RJ45 | 1 |
| CAN | 1 |
| AI Perf | 100 TOPS |
| GPU | 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| PCIe | 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) |
| Memory | 16GB 128-bit LPDDR5 102.4GB/s |
| CSI Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
| USB | 3x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
| Networking | 1x GbE |
| Display | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
