| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PLINK |
| Model Number: | xavier nx module cooling Fan |
| Minimum Order Quantity: | 1PCS |
| Price: | $20-$25/pcs |
| Packaging Details: | 57.8mm x 39mm x 18mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| NAME: | OEM Original Nvidia Jetson Xavier NX Module Heatsink FAN 5V | Keyword: | OEM Original Nvidia Jetson Xavier NX Module Heatsink FAN 5V |
|---|---|---|---|
| Support Equipment: | Jetson Xavier NX Module | Size: | 57.8mm X 39mm X 18mm |
| Structure: | Built-in Fan, Aluminum Alloy Heat Dissipation Frame | Power: | DC 5V |
| High Light: | OEM Nvidia Jetson Xavier NX,Nvidia Jetson Xavier NX Heatsink,Nvidia heatsink fan |
||

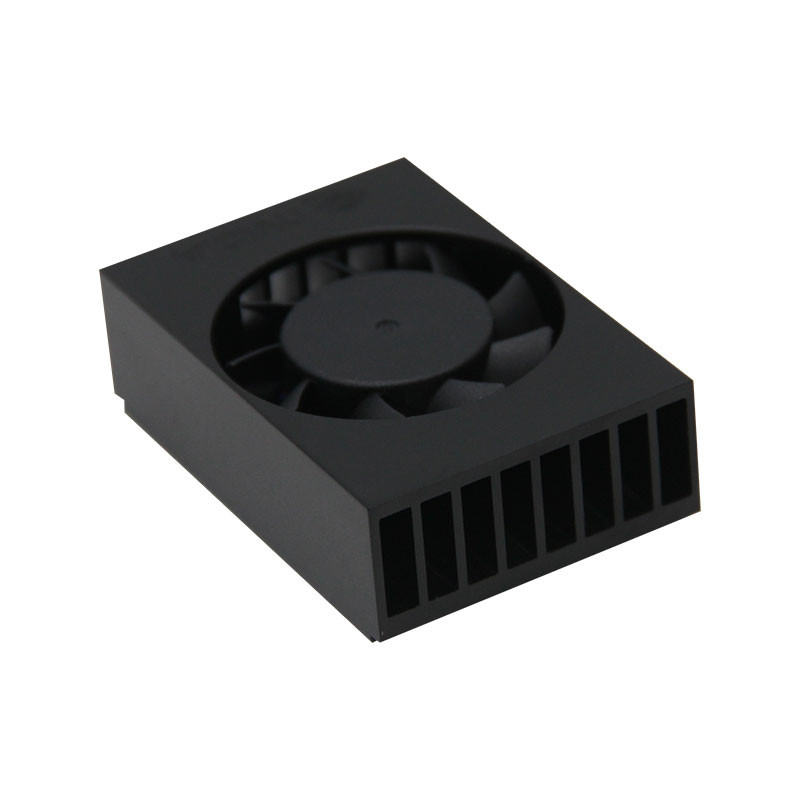

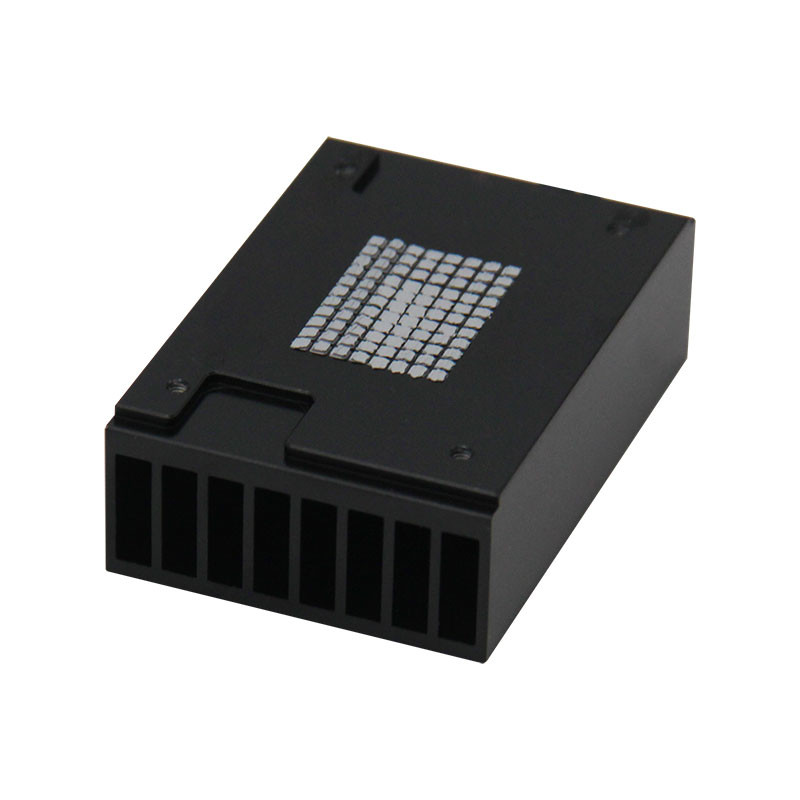

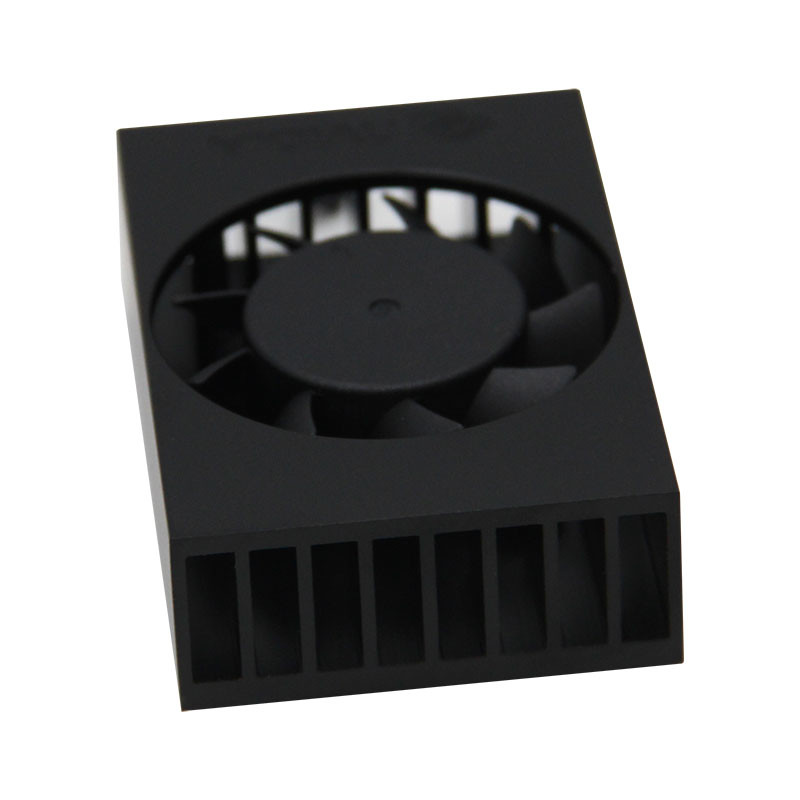

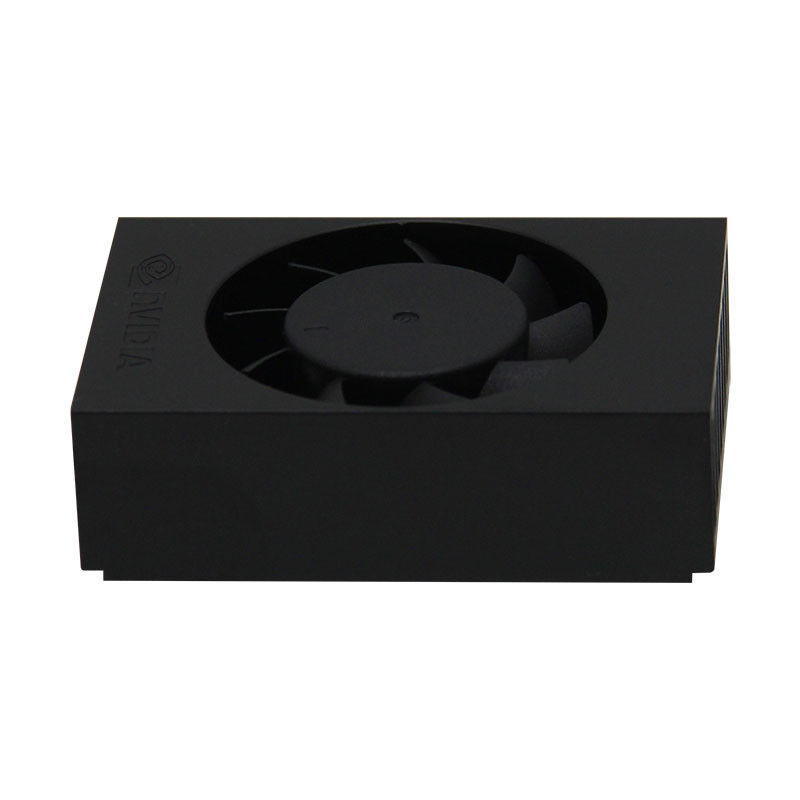

OEM Original Nvidia Jetson Xavier NX Module Heatsink FAN 5V
Product parameters
| Support equipment | NVIDIA Jetson Xavier NX Module |
| Power Supply | DC 5V |
| Line length | 37+3mm |
| Size | 57.8mm x 39mm x 18mm |
| Structure | Built-in fan, aluminum alloy heat sink |
| Fan | PWM Speed fan,5500±10%RPM |
| Electrical parameters | 0.65W(5V/0.13A) |
Packing List
Jetson Xavier NX Cooling Fan
Bracket shrapnel and screws
Reserved Heat conducting silicone grease
When you open the packing , Please do not touch the Heat conducting silicone grease
Hardware Installation

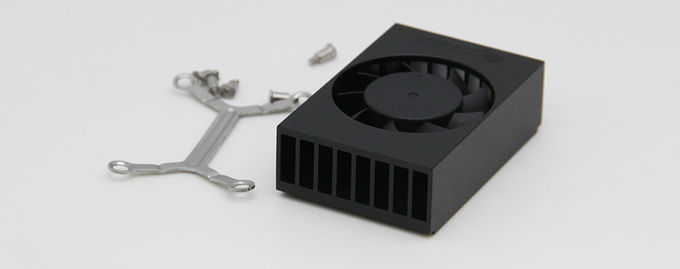

1. Prepare 1 radiator fan + 1 shrapnel + 4 screws + 1 core plate
2. It is easier to apply heat conduction paste. Apply heat conduction paste side down and align the four screw holes
3, put on the shrapnel, pay attention to the positive and negative shrapnel, screw on the screw
4. Assembly is completed
