| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PLINK |
| Model Number: | xavier nx module cooling Fan |
| Minimum Order Quantity: | 1PCS |
| Price: | $20-$25/pcs |
| Packaging Details: | 57.8mm x 39mm x 18mm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| NAME: | Silicone Grease PWM Jetson Xavier Nx Heatsink Module Cooling Fan | Keyword: | Silicone Grease PWM Jetson Xavier Nx Heatsink Module Cooling Fan |
|---|---|---|---|
| Support Equipment: | Jetson Xavier NX Module | Size: | 57.8mm X 39mm X 18mm |
| Power: | DC 5V | Structure: | Built-in Fan, Aluminum Alloy Heat Dissipation Frame |
| High Light: | Silicone Grease PWM jetson xavier nx heatsink,jetson xavier nx heatsink Module,Silicone Grease xavier nx heatsink |
||

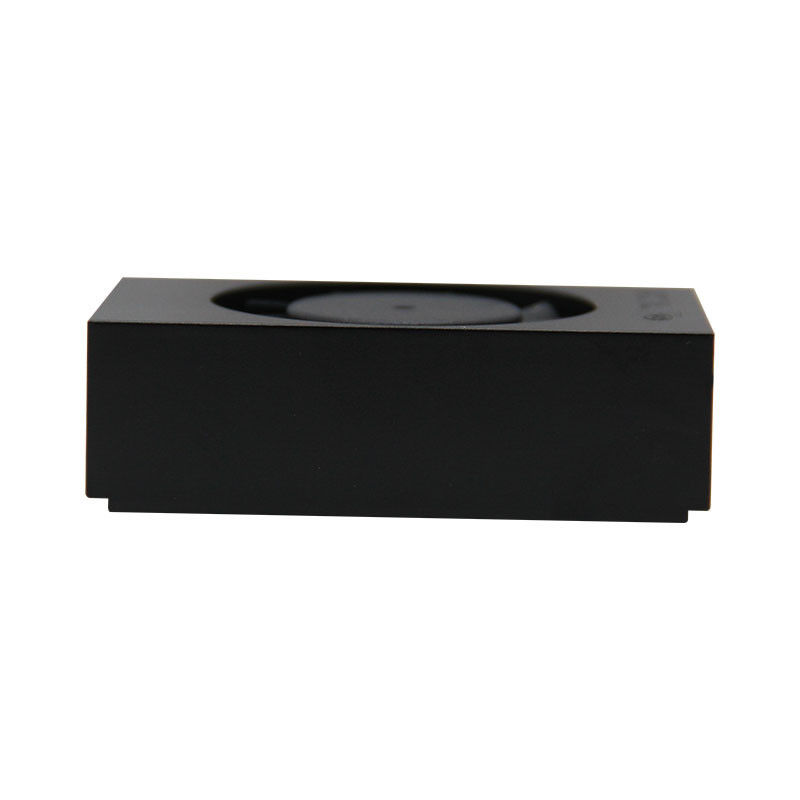

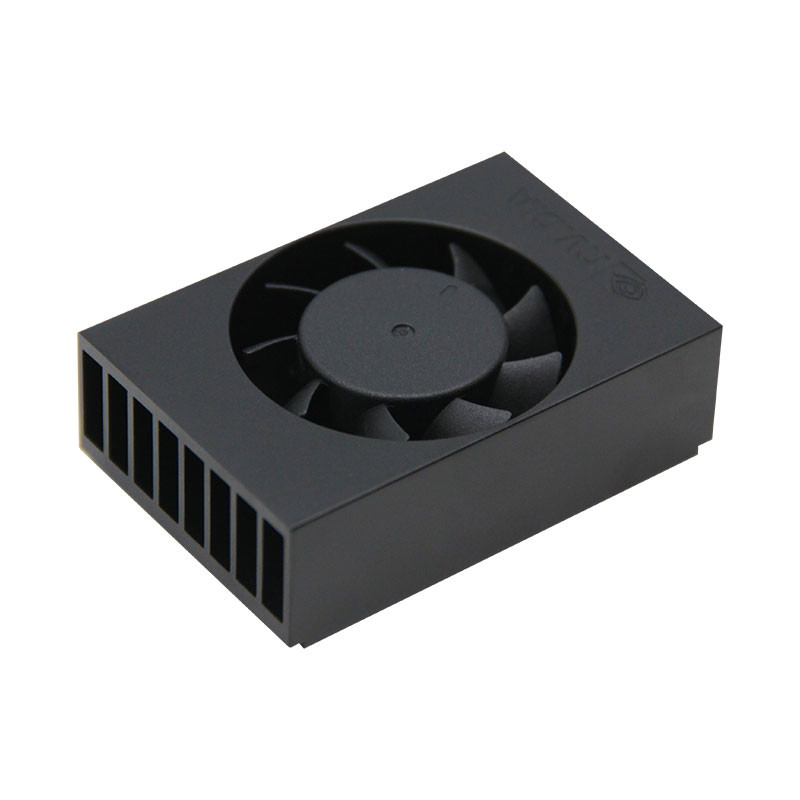

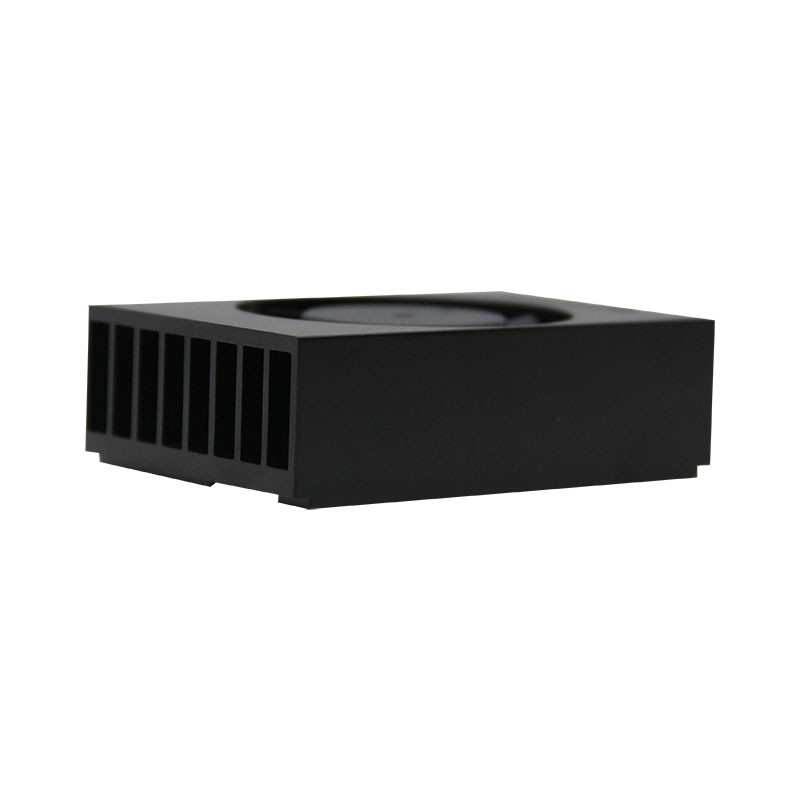

Silicone Grease PWM Jetson Xavier Nx Heatsink Module Cooling Fan

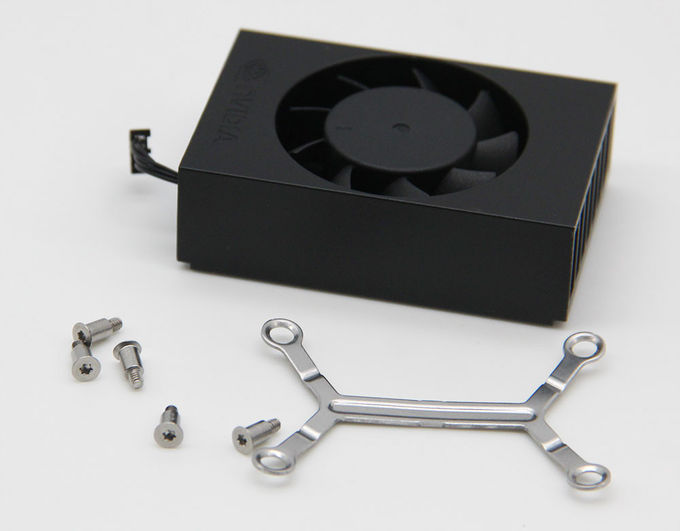

Packing List
NVIDIA Jetson Xavier NX Cooling Fan
Bracket shrapnel and screws
Hardware Installation
1. Prepare 1 radiator fan + 1 shrapnel + 4 screws + 1 core plate
2. It is easier to apply heat conduction paste. Apply heat conduction paste side down and align the four screw holes
3, put on the shrapnel, pay attention to the positive and negative shrapnel, screw on the screw
4. Assembly is completed
Reserved Heat conducting silicone grease
When you open the packing , Please do not touch the Heat conducting silicone grease
Product parameters
| Support equipment | NVIDIA Jetson Xavier NX Module |
| Fan | PWM Speed fan,5500±10%RPM |
| Line length | 37+3mm |
| Electrical parameters | 0.65W(5V/0.13A) |
| Structure | Built-in fan, aluminum alloy heat sink |
| Power Supply | DC 5V |
|
Size |
57.8mm x 39mm x 18mm |
