| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C7-NX |
| Minimum Order Quantity: | 1 |
| Price: | USD199 |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | SBC Nvidia Jetson Xavier NX Mini Carrier Board Dev Kit | Key Word: | SBC Nvidia Jetson Xavier NX Mini Carrier Board Dev Kit |
|---|---|---|---|
| USB Type-C: | 1x Micro USB 1x USB Type-C 1x USB 2.0 | Board Storage: | 64GB EMMC |
| MiniPCIE: | X1 | M.2 Key M: | X1 |
| HDMI 2.0: | X1 | CAN: | X1 |
| RS-232: | X1 | 2 Lane MOPI Camera Interface FPC: | X1 |
| Temperature: | -40~+85℃ | Weight: | 40g |
| Board Size: | 80mm×60mm×8 Mm | Power Supply: | DC +9V~+24V |
| High Light: | SBC Nvidia Jetson Xavier NX,Nvidia Jetson Xavier NX Dev Kit,SBC jetson xavier dev kit |
||
SBC Nvidia Jetson Xavier NX Mini Carrier Board Dev Kit
Embedded Linux Development Board

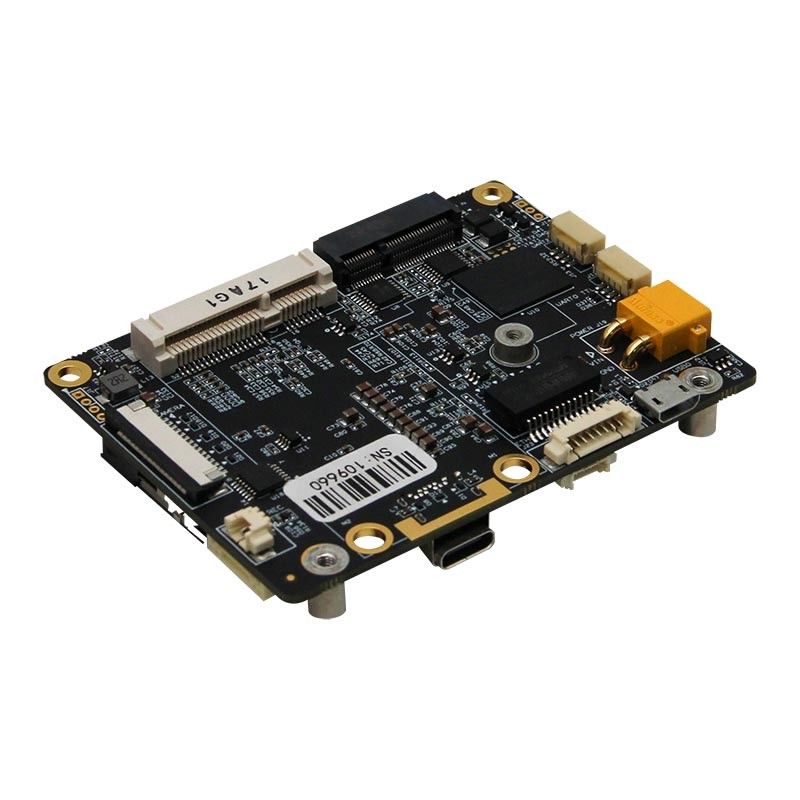

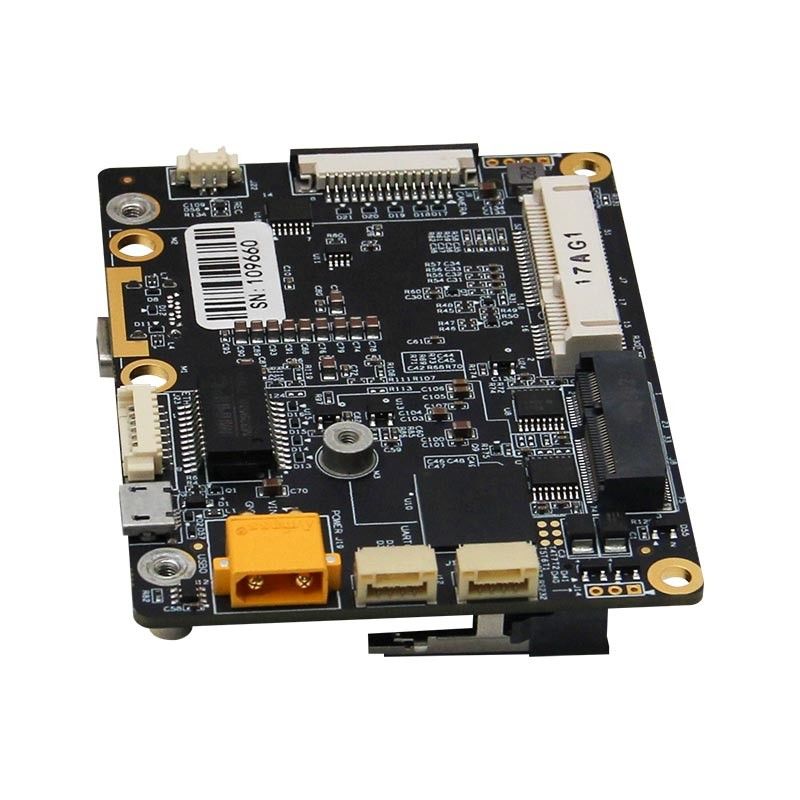

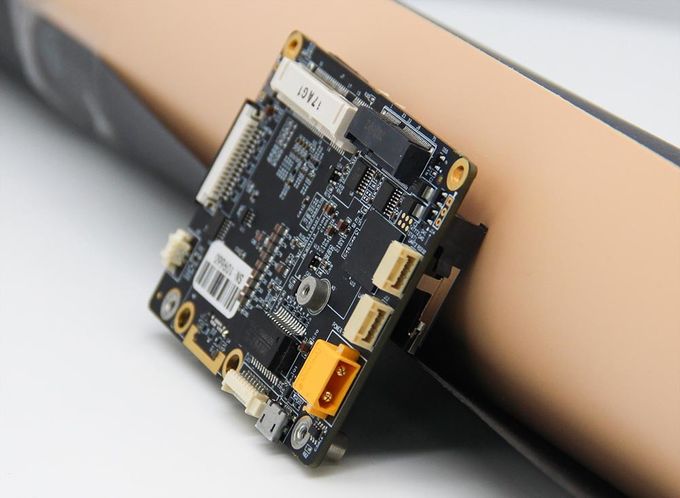

NVIDIA Jetson Xavier NX Carrier Board Y-C7-NX
The Y-C7 carrier board is an industrial mini development board, it can carry hundreds of functional modules through 1 miniPCIe connector and 1 M.2 E Key connector]. 4 full speed usb3 0 signal, 2 gigabit network signals, 2 full speed SATA signals. It can also be equipped with 4G/WiFi communication module, various formats of video acquisition / output card, AD acquisition card, multi serial port card, sound acquisition / output card and multi-functional IO card
| MiniPCIe | 1 |
| GPO(3.3V) | 1 |
| RS-232 | 1 |
| HDMI 2.0 | 1 |
| USB3.1 Type-C | 1 |
| USB 2.0 | 1 |
| CAN | 1 |
| M.2 Key M | 1 |
| Micro USB | 1 |
| Fan Control Interface | 1 |
| I2C(3.3V) | 1 |
| UART | 1 |
| GPIO(3.3V) | 3 |
| RJ45 | 1 |
| Temperature | -40~ + 85°C |
| Power | DC + 9V~ + 24V |
| Size | 80mm * 60mm * 16.8mm |
| Weight | 40g |
