| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | Xavier nx 16G |
| Minimum Order Quantity: | 1PCS |
| Price: | USD580-USD600\PCS |
| Packaging Details: | 20X20X4 cm 1kg |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| NAME: | AI Supercomputer Jetson Xavier NX Linux Kit Module For Edge Computing | Keyword: | AI Supercomputer Jetson Xavier NX Linux Kit Module For Edge Computing |
|---|---|---|---|
| Model Number: | Xavier NX 16G（900-83668-0030-000） | Brand Name: | NVIDIA |
| AI Performance: | 21 TOPS | CPU: | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU | 6MB L2 + 4MB L3 |
| GPU: | 384-core NVIDIA Volta™ GPU With 48 Tensor Cores | DL Accelerator: | 2x NVDLA |
| CPU Max Frequency: | 1.9 GHz | GPU Max Frequency: | 1100 MHz |
| Storage: | 16 GB EMMC 5.1 | Memory: | 16 GB 128-bit LPDDR4x | 59.7GB/s |
| High Light: | AI jetson xavier nx linux,Supercomputer jetson xavier nx linux,Supercomputer jetson xavier nx kit |
||
AI Supercomputer Jetson Xavier NX Linux Kit Module For Edge Computing
Networking
10/100/1000 Gigabit Ethernet | Media Access Controller (MAC)
Display Controller
Two multi-mode (eDP/DP/HDMI) Serial Output Resources (SOR) eDP 1.4a | DP 1.4 | HDMI 2.0a/b
Maximum Resolution (eDP/DP/HDMI): (up to) 3840x2160 at 60 Hz (up to 36 bpp)
Peripheral Interfaces
xHCI host controller with integrated PHY (up to) 1x USB 3.1, 3x USB 2.0 | 1x1 + 1x1/2/4 PCIe (Gen3) | SD/MMC controller (supporting eMMC 5.1, SD 4.0, SDHOST 4.0 and SDIO 3.0) | 3x UART | 2x SPI | 4x I2C | 1x CAN | 2x I2S | GPIOs

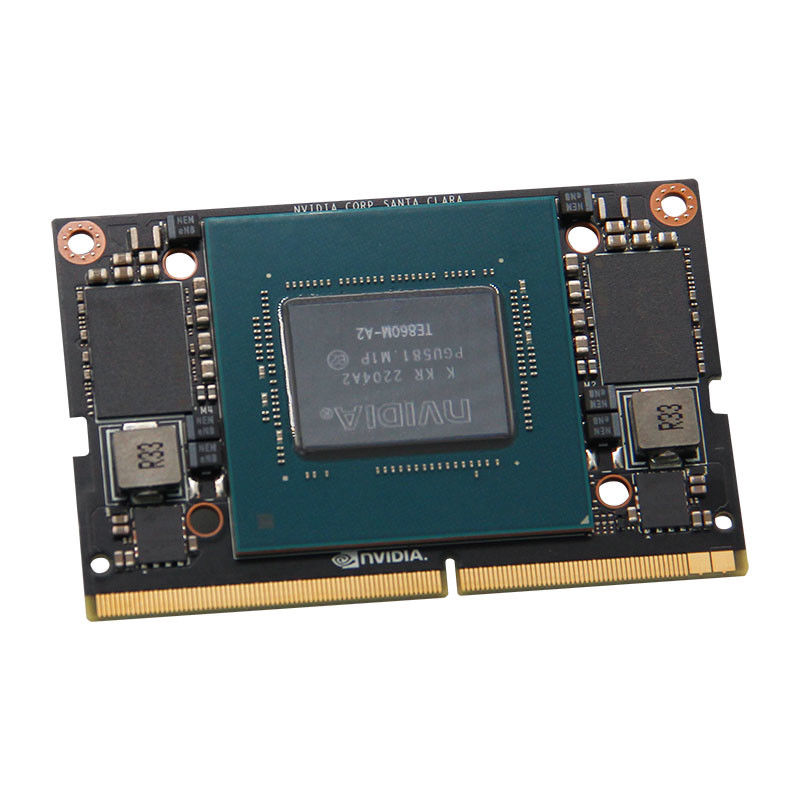

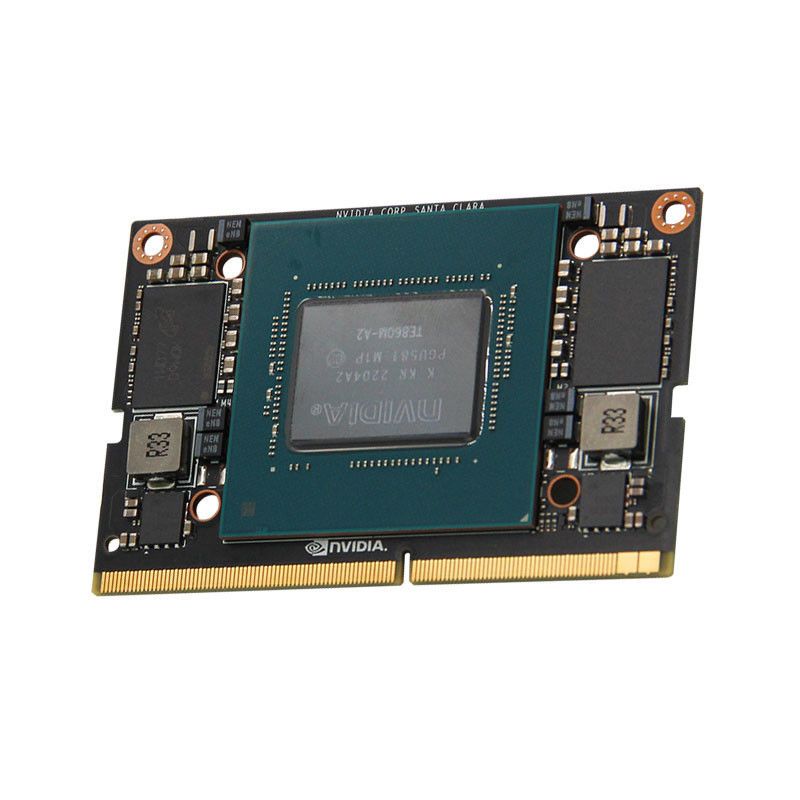

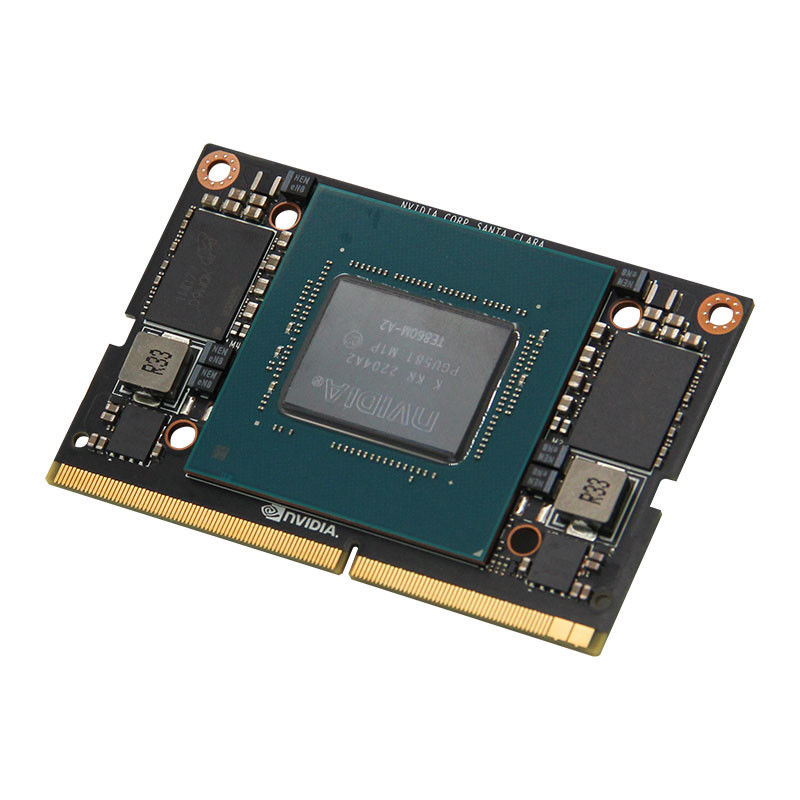

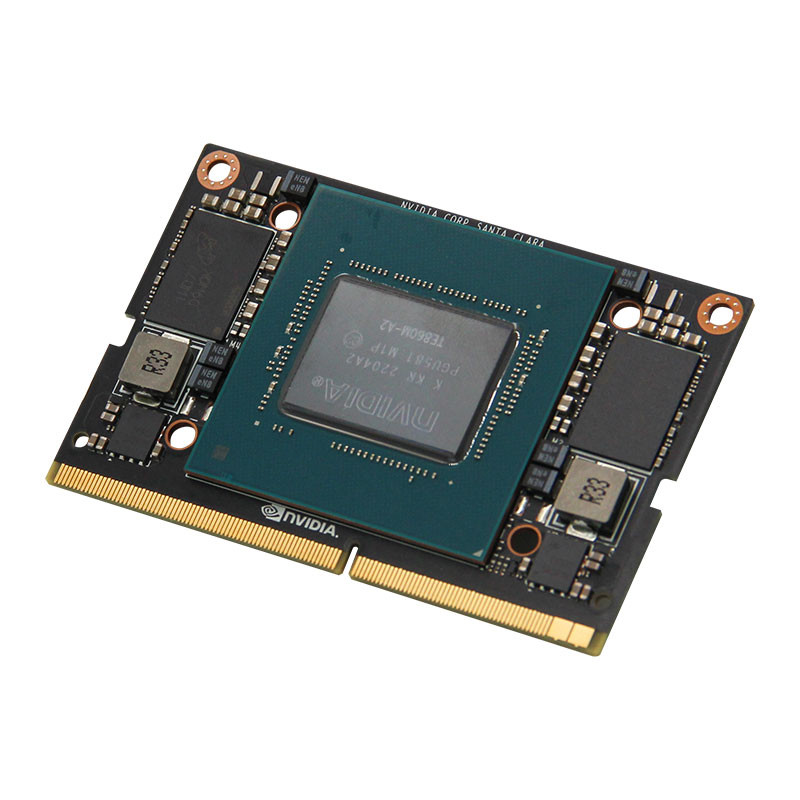

NVIDIA Jetson Xavier NX 16G module
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| GPU Max Frequency | 1100 MHz |
| CPU Max Frequenc | 1.9 GHz |
| Memory | 16 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 |
| Power | 10W | 15W | 20W |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| PCIe | 1 x4 (PCIe Gen4) + 1 x1 (PCIe Gen3) |
| USB* | 1x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
| Other I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, PWM, DMIC & DSPK, GPIOs |
