AI Nvidia Jetson Xavier NX Developer Kit Module 16GB for Agriculture Construction

Basic Information
Place of Origin: USA
Brand Name: NVIDIA
Model Number: Xavier nx 16G
Minimum Order Quantity: 1PCS
Price: USD580-USD600\PCS
Packaging Details: 20X20X4 cm 1kg
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000pcs
Detail Information
NAME: AI Nvidia Jetson Xavier NX Developer Kit Module 16GB For Agriculture Construction Keword: AI Nvidia Jetson Xavier NX Developer Kit Module 16GB For Agriculture Construction
Model Number: Jetson Xavier NX 16G (900-83668-0030-000) AI Performance: 21 TOPS
GPU: 384-core NVIDIA Volta™ GPU With 48 Tensor Cores CPU: 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU | 6MB L2 + 4MB L3
Memory: 16 GB 128-bit LPDDR4x | 59.7GB/s Storage: 16 GB EMMC 5.1
CPU Max Frequency: 1.9 GHz Vision Accelerator: 2x PVA
High Light:

AI Nvidia Jetson Xavier NX

,

Agriculture Nvidia Jetson Xavier NX

,

Nvidia nx developer kit


Product Description



AI Nvidia Jetson Xavier NX Developer Kit Module 16GB for Agriculture Construction



NVIDIA Jetson Xavier NX Module 16GB


AI Performance

Up to 21 TOPS (INT8)



Volta GPU

384 NVIDIA® CUDA® cores

48 Tensor cores

End-to-end lossless compression

Tile Caching

OpenGL® 4.6

OpenGL ES 3.2

VulkanTM 1.1

CUDA 10

Maximum Operating Frequency: 1100 MHz



Memory

8 GB 128-bit LPDDR4x DRAM

Secure External Memory Access Using TrustZone® Technology

System MMU

Maximum Operating Frequency: 1600 MHz

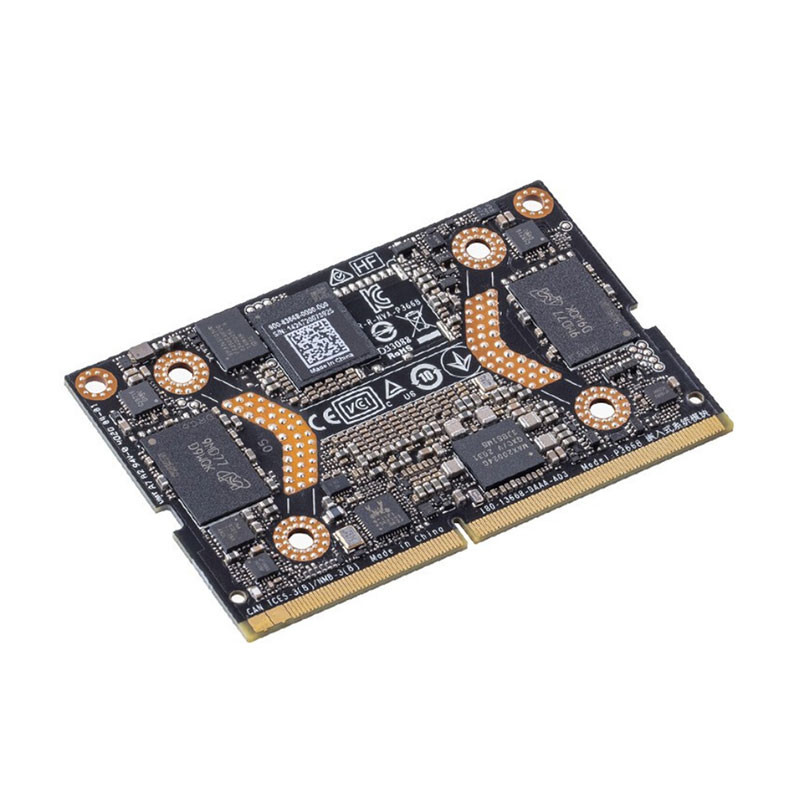

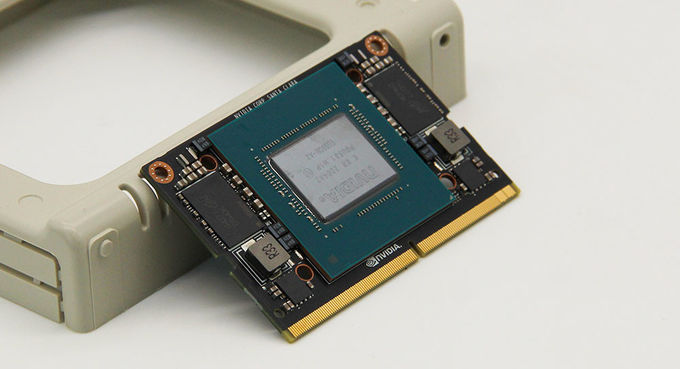

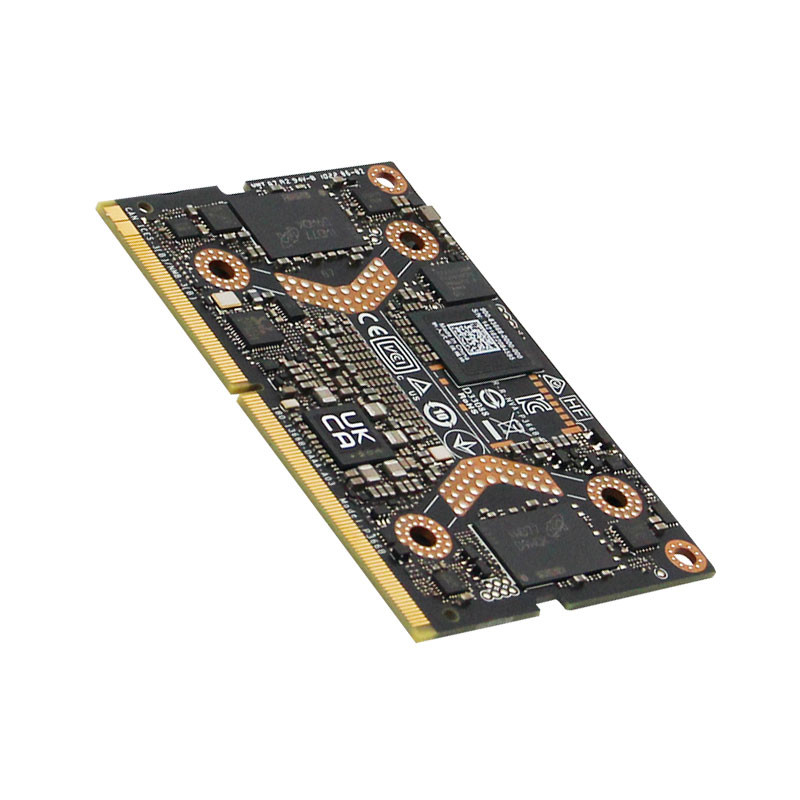

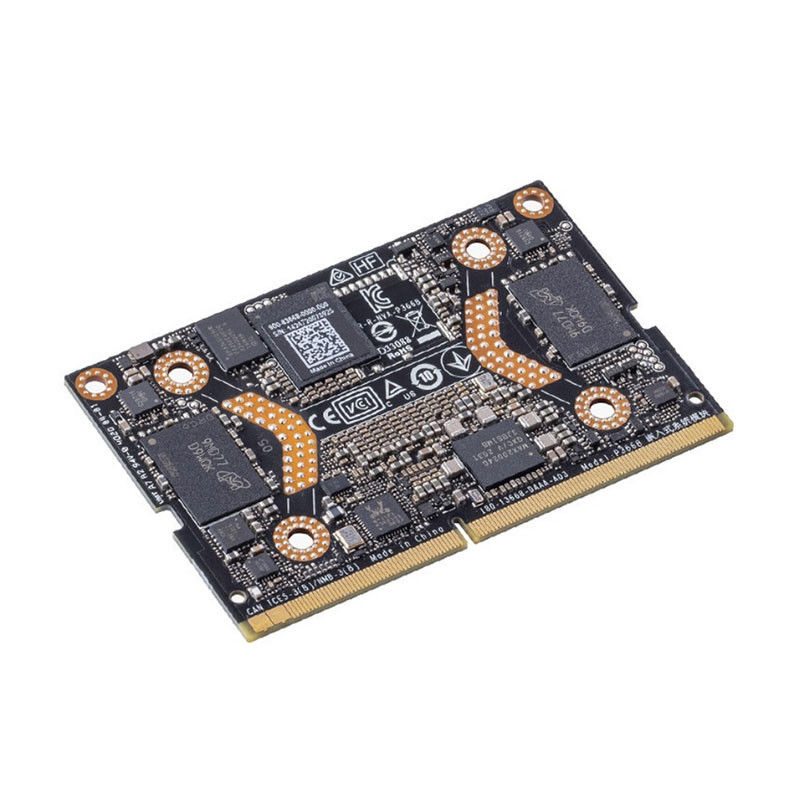

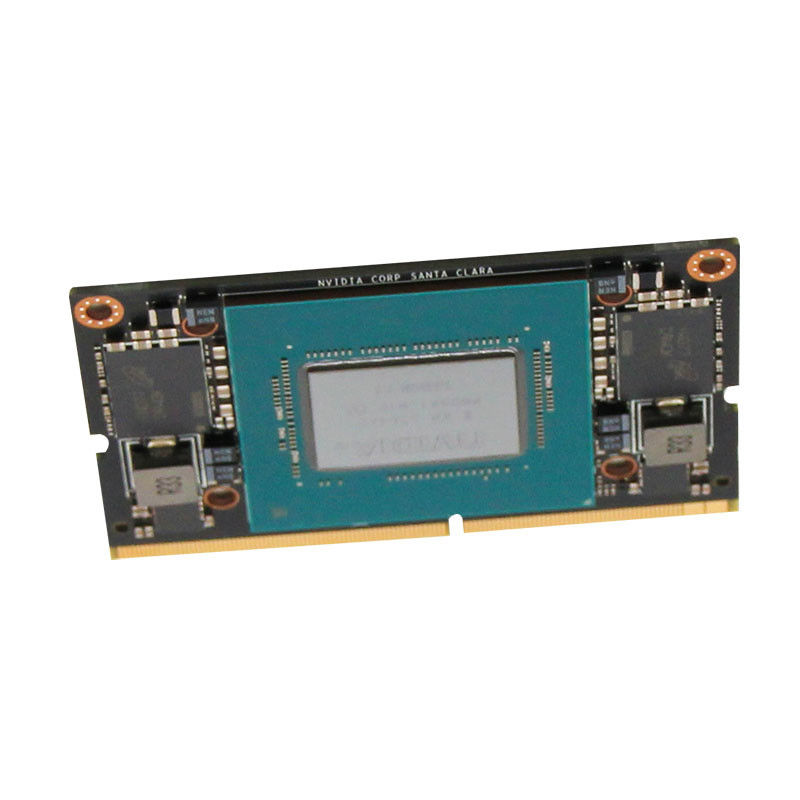

NVIDIA Jetson Xavier NX 16G module



AI Performance 21 TOPS
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU
6MB L2 + 4MB L3
DL Accelerator  2x NVDLA
DLA Max Frequency 1.1 GHz
Memory 8 GB 128-bit LPDDR4x
59.7GB/s
Networking 1x GbE
Storage 16 GB eMMC 5.1
PCIe 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*
Power 10W | 15W | 20W
CSI Camera Up to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4) MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
DL Accelerator 2x NVDLA Engines
Video Encode 2x 4K60 (H.265)
4x 4K30 (H.265)
10x 1080p60 (H.265)
22x 1080p30 (H.265)
Video Decode 2x 8K30 (H.265)
6x 4K60 (H.265)
12x 4K30 (H.265)
22x 1080p60 (H.265)
44x 1080p30 (H.265)
Display 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
Mechanical 69.6mm x 45mm
260-pin SO-DIMM connector

































































AI Nvidia Jetson Xavier NX Developer Kit Module 16GB for Agriculture Construction 0
