| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | xavier nx 8G (900-83668-0000-000) |
| Minimum Order Quantity: | 1PCS |
| Price: | USD450-USD480\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| NAME: | 8G Intelligent Jetson Xavier NX Module Development Kit | Keyword: | 8G Intelligent Jetson Xavier NX Module Development Kit |
|---|---|---|---|
| Model Number: | (900-83668-0000-000) | Brand Name: | NVIDIA |
| AI Performance: | 21 TOPS | GPU: | 384-core NVIDIA Volta™ GPU With 48 Tensor Cores |
| CPU: | 6-core NVIDIA Carmel ARM® V8.2 64-bit CPU 6MB L2 + 4MB L3 | Storage: | 16 GB EMMC 5.1 |
| Memory: | 8 GB 128-bit LPDDR4x 59.7GB/s | Power: | 10W | 15W | 20W |
| Single Package Size: | 69.6mm X 45mm | Display: | 2 Multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| High Light: | jetson xavier kit GPU,8G jetson xavier kit,Jetson nx gpu |
||
8G Intelligent Jetson Xavier NX Module Development Kit
Module Size: 69.6 mm x 45 mm | 260 pin SO-DIMM Connector
NVIDIA Jetson Xavier NX brings AI supercomputer performance to the edge in a compact system-on-module (SOM) that’s smaller than a credit card. Jetson Xavier NX is built around a low-power version of the NVIDIA Xavier SoC, combining the NVIDIA VoltaTM GPU architecture with 64-bit operating capability, integrated advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.
Operating Requirements
Temperature Range (TJ)*: -25°C – 90°C | Supported Power Modes: 10W – 15W | Power Input: 5V

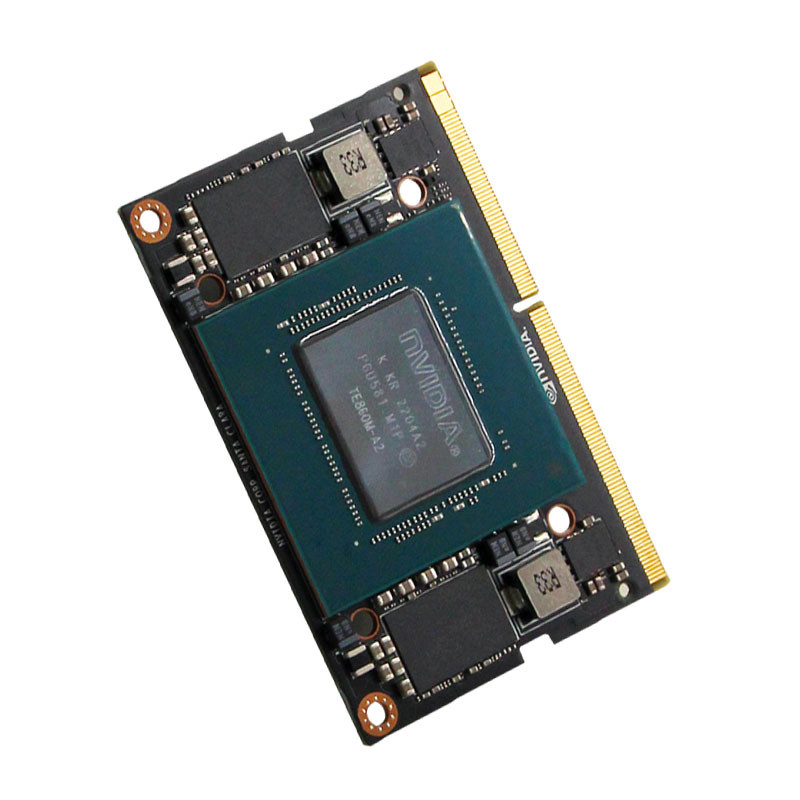

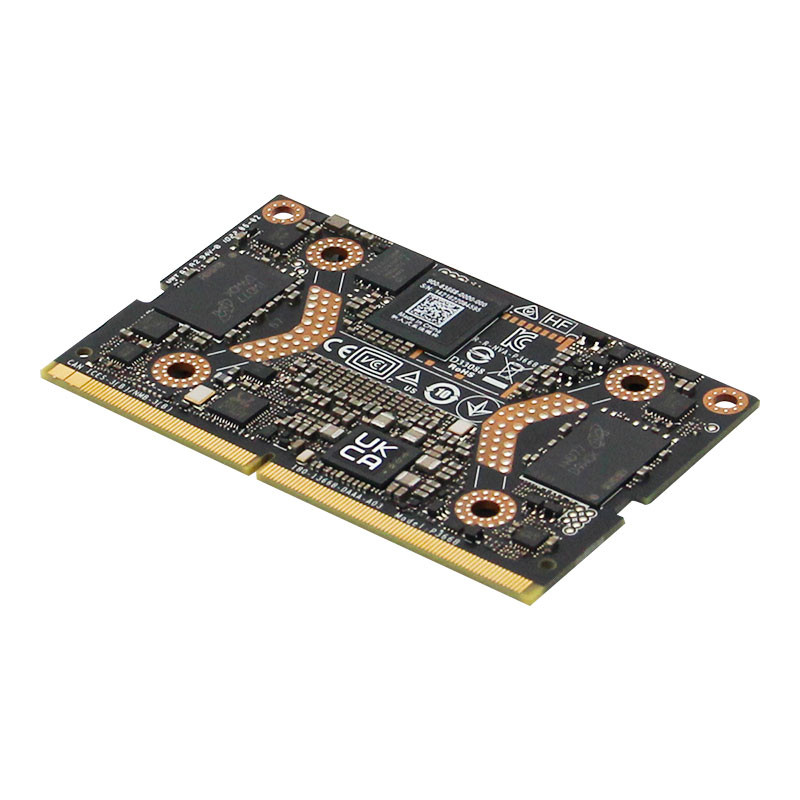

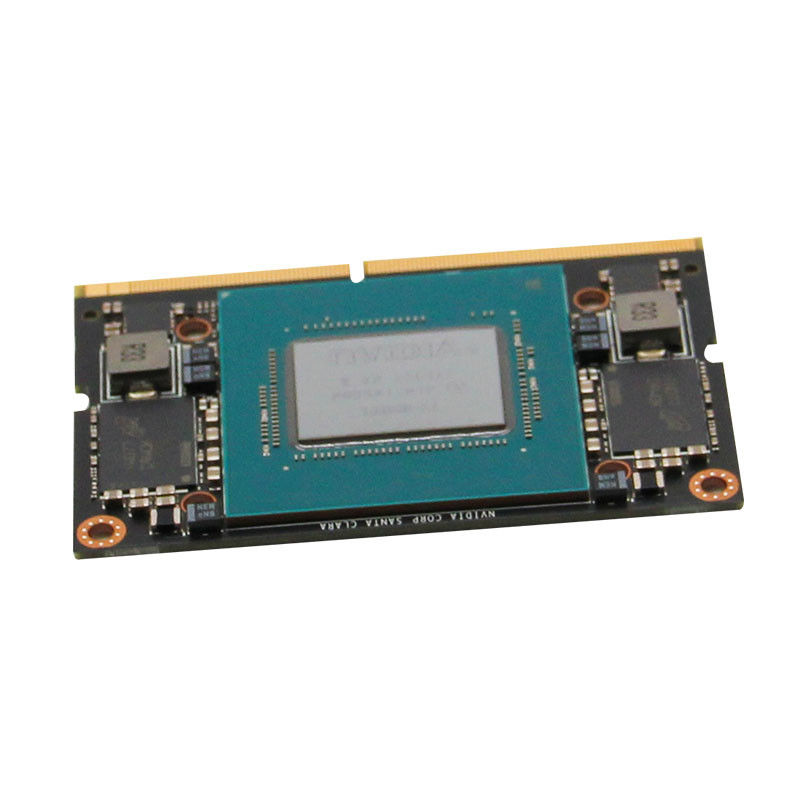

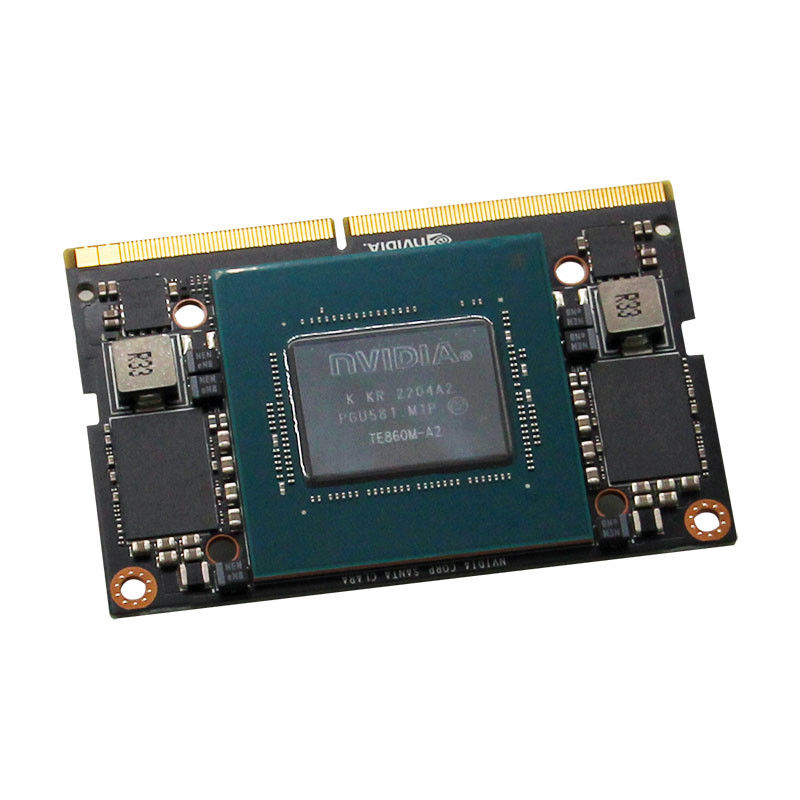

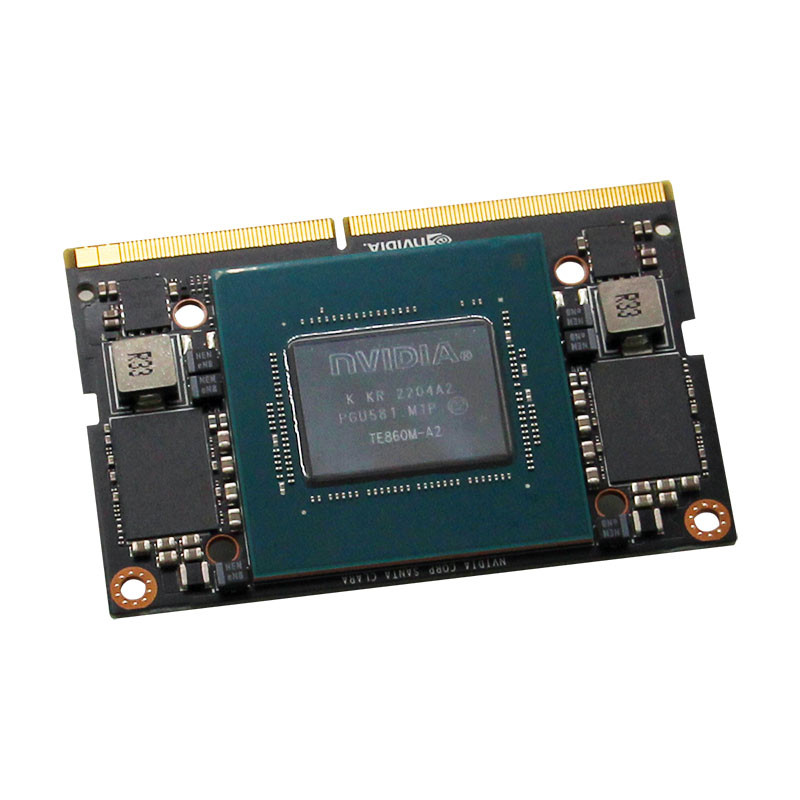

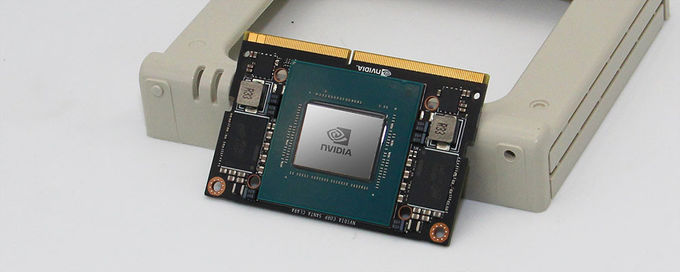

NVIDIA Jetson Xavier NX 8G module
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 |
| PCIe | 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s* |
| Power | 10W | 15W | 20W |
| CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| DL Accelerator | 2x NVDLA Engines |
| Networking | 10/100/1000 BASE-T Ethernet |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
* Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features
| Jetson Xavier NX 16GB | Jetson Xavier NX 8GB | |
| Memory |
16 GB 128-bit LPDDR4x
59.7GB/s
|
8 GB 128-bit LPDDR4x
59.7GB/s
|
