| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | ORIN64-8F1E1 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | Education Industrial Embedded Computer PC NVIDIA Jetson AGX Orin 64G | Keyword: | Education Industrial Embedded Computer PC NVIDIA Jetson AGX Orin 64G |
|---|---|---|---|
| AI Performance: | 275TOPS | GPU: | 2048-core NVIDIA Ampere Architecture GPU With 64 Tensor Cores |
| GPU Max Frequency: | 1.3 GHz | CPU: | 12-core Arm® Cortex® A78AE V8.2 64-bit CPU 3MB L2 + 6MB L3 |
| CPU Max Frequency: | 2.2 GHz | DL Accelerator: | 2x NVDLA V2 |
| DLA Max Frequency: | 1.6 GHz | Memory: | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage: | 64GB EMMC 5.1 | Display: | 1x 8K60 Multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| USB Micro-B: | 1 X Micro-B | USB Type-A: | 1 X USB 3.1 |
| Other I/O: | 4 X GPIO(3.3V) | 1 X SPI(3.3V) | 2 X I2C(3.3V) | 2 X RS 232 | 1 X Debug(UART) 2 X CAN (with On-board Transceiver) | Networking: | 2 X 10/100/1000 Ethernet/RJ45 |
| Power Supply: | AC 220V | Temperature: | -20~+65°C |
| Size: | 391mm × 303mm × 185mm | Weight: | 7700g |
| High Light: | Jetson Industrial Embedded Computer,NVIDIA Industrial Embedded Computer,NVIDIA Jetson embedded pc |
||

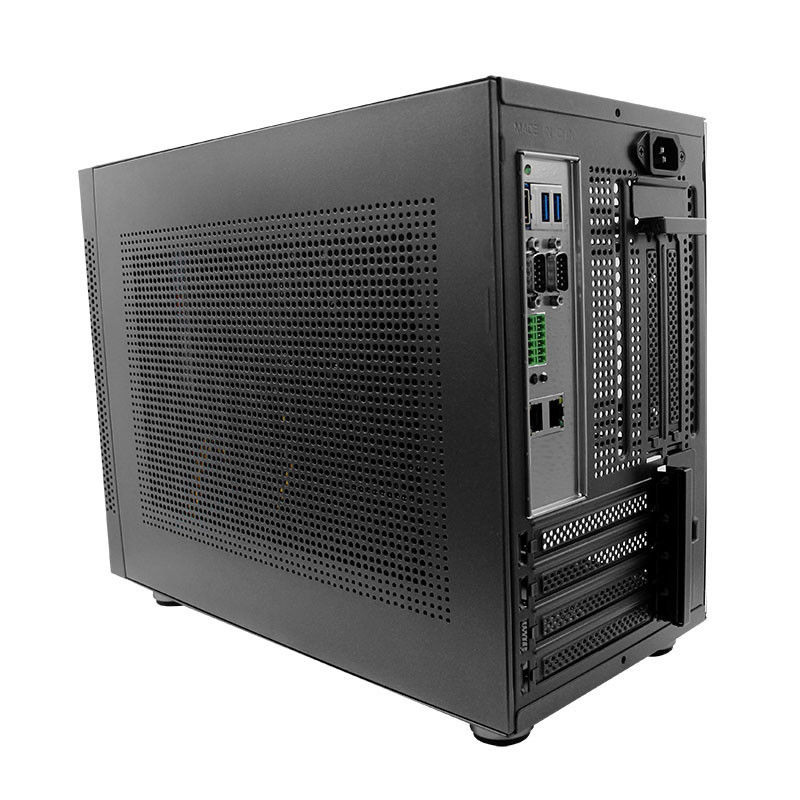

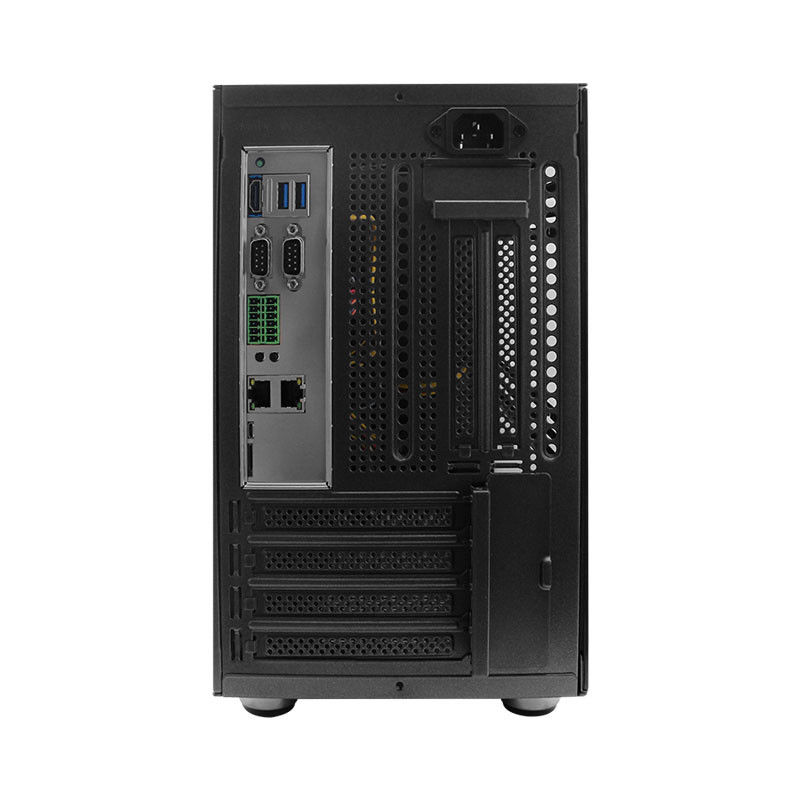

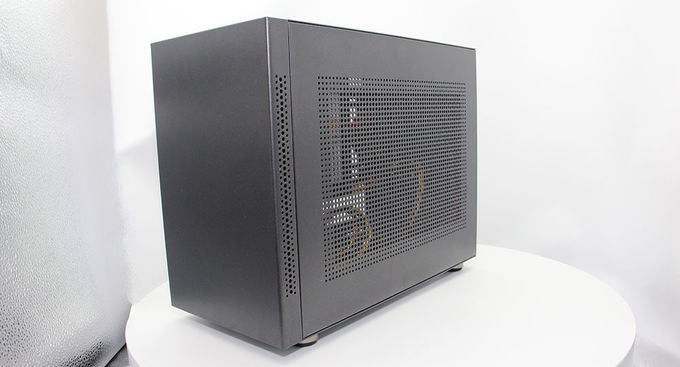

Education Industrial Embedded Computer PC NVIDIA Jetson AGX Orin 64G
Industrial Embedded Computer Introduction
ORIN64-8F1E1 is an Industrial Embedded Computer with NVIDIA Jetson AGX Orin 64GB core modules which is for educaton and V2X. is the edge IPC with high performance embedded computing, The Industrial Embedded Computer main interface is designed for electrostatic safety protection, and ahigh-reliability power supply application scheme is adopted. The Industrial Embedded Computer input power supplyhas over voltage and reverse polarity protection functions, and has a wealth of external interfaces. The Industrial Embedded Computer internal interface devices are all wide-temperature models.
Industrial Embedded PC ORIN64-8F1E1 Features and Specifications
|
Product size |
391mm×303mm×185 mm |
|
Power requirements |
220V |
|
Working temperature |
-20~+65℃ |
|
Weight |
7700g |
|
Optional expansion |
32GB ~ 1TB SSD storage |
|
The initial setting can be reset and restored |
|
|
Maximum scalability 512g TF card memory |
|
|
4G and WIFI module can be extended |
|
NVIDIA Jetson AGX Orin 64GB Industrial Embedded Computer Specifications
|
GPU Max Frequency |
1.3 GHz |
|
GPU |
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores |
|
CPU Max Frequency |
2.2 GHz |
|
CPU |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
|
AI Performance |
275 TOPS |
|
Storage |
64GB eMMC 5.1 |
|
Memory |
64GB 256-bit LPDDR5 |
|
Power |
15W - 60W |
|
Other I/O |
4x UART, PWM, 4x I2S, 8x I2C,GPIOs, 2x CAN, DMIC & DSPK, 3x SPI |
|
USB |
4x USB 2.0 3x USB 3.2 Gen2 (10 Gbps) |
|
Camera |
Up to 6 cameras (16 via virtual channels) |
|
Mechanical |
100mm x 87mm |
