| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | ORIN64-8F3E1 |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| NAME: | 64G Nvidia Agx Orin Industrial Edge IPC Embedded Computing For AI Automatic Driving Autopilot | Keyword: | 64G Nvidia Agx Orin Industrial Edge IPC Embedded Computing For AI Automatic Driving Autopilot |
|---|---|---|---|
| AI Performance: | 275 TOPS | CPU: | 12-core Arm® Cortex® A78AE V8.2 64-bit CPU 3MB L2 + 6MB L3 |
| CPU Memory: | 64GB 256-bit LPDDR5 204.8 GB/s | GPU: | 2048-core NVIDIA Ampere Architecture GPU With 64 Tensor Cores |
| USB Micro-B: | 1 X Type B (OTG) | USB Type-A: | 2 X USB 3.1 |
| Other I/O: | 4 X GPIO(3.3V) | 1 X SPI(3.3V) | 2 X I2C(3.3V) | 2 X RS 232 | 1 X Debug(UART) 2 X CAN (with On-board Transceiver) | Networking: | 2 X 10/100/1000 Ethernet/RJ45 |
| Power Supply: | DC + 12V | Temperature: | -20~+65°C |
| Dimensions: | 198 Mm × 197 Mm × 45 Mm | Weight: | 1340g |
| High Light: | 64G IPC Embedded,Industrial IPC Embedded,Nvidia edge ipc |
||

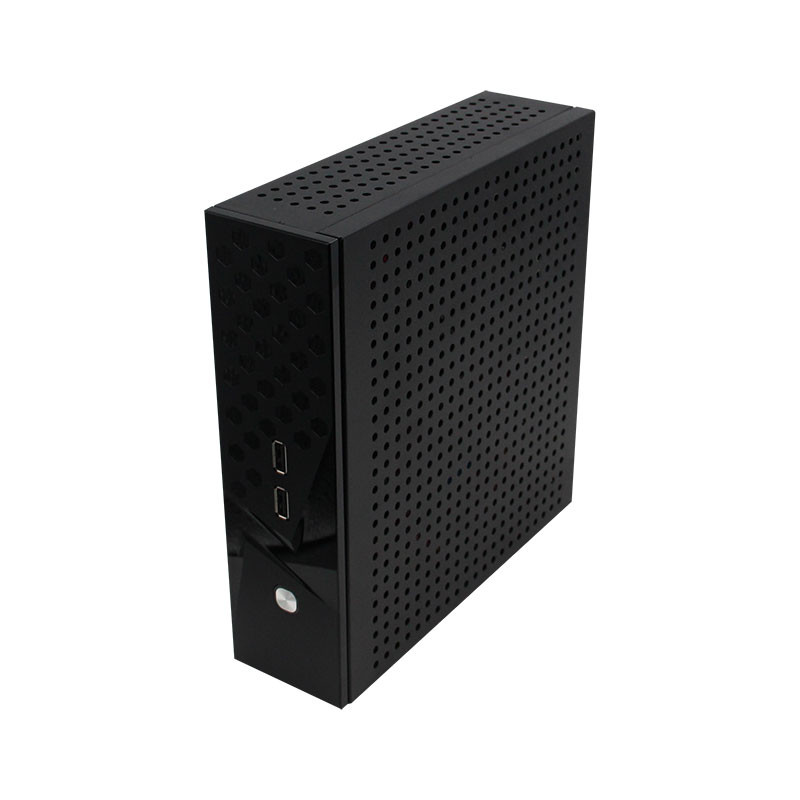

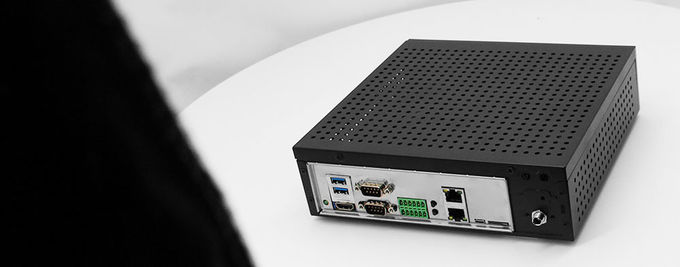

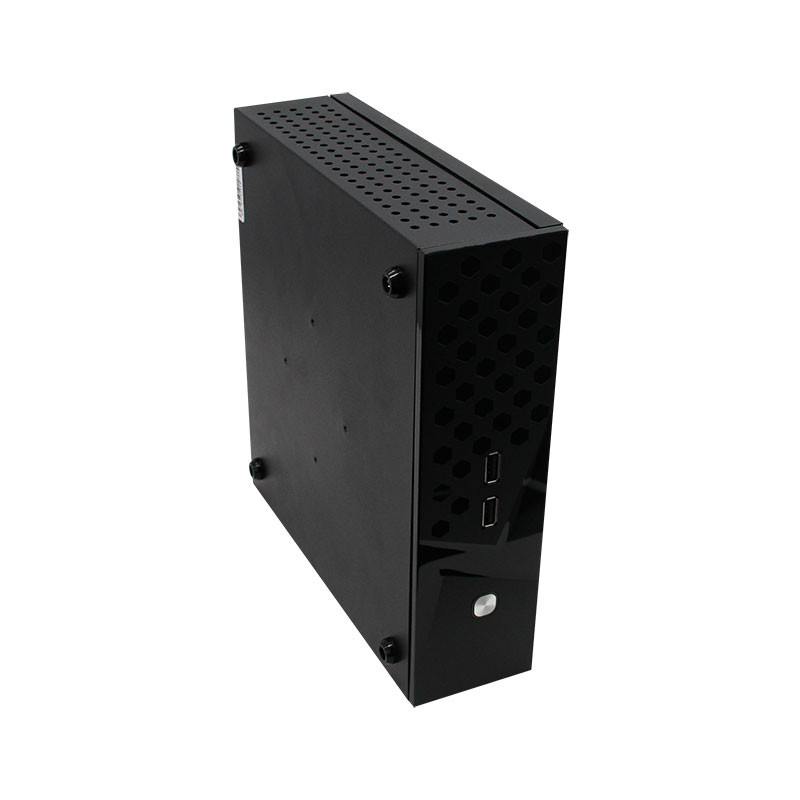

64G Nvidia Agx Orin Industrial Edge IPC Embedded Computing for AI Automatic Driving Autopilot
ORIN64-8F3E1 is an edge ipc with NVIDIA Jetson AGX ORIN 64GB core modules, also it is an embedded mini pc, The NVIDIA Jetson AGX Orin modules deliver up to 275 TOPS of AI performance with power configurable between 15W and 60W. the high performance embedded computing is suitable for automatic driving autopilot etc,.
NVIDIA Jetson AGX ORIN 64G Edge IPC
Power : DC +12V
Weight : 1340g
Size : 198mm × 197mm ×45mm
Temperature Range : -20℃ to 65℃
NVIDIA Jetson AGX ORIN 64GB core module
275 TOPS
138 Dense INT8 TOPS
15W to 60W
NVIDIA Jetson AGX Orin 64G Industrial Embedded PC
Features and Specifications
| Brand | PLink | |
| Product Name | ORIN64-8F3E1 | |
| Type | Embedded Computer | |
| AI Performance | 275 TOPS | |
| Memory | 64GB 256-bit LPDDR5 204.8 GB/s | |
| USB Micro-B | 1 x Type B (OTG) | |
| USB Type-A | 2 x USB 3.1 | |
|
CPU |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 | |
| GPU | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores | |
| Product size | 198mm×197mm×45mm | |
| Power | +12V | |
| Temperature | -20~+65℃ | |
| Weight | 1340g | |
| Storage | 64GB eMMC 5.1 | |
| Maximum scalability | 512g TF card memory | |
| Other I/O | 4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART) 2 x CAN (with on-board transceiver) |
|
| PCIe | Up to 2 x8 + 1 x4 + 2 x1 (PCIe Gen4, Root Port, & Endpoint) |
|
| Networking | 2 x 10/100/1000 Ethernet/RJ45 | |
| Application Scenarios |
Smart Cities |
|
Healthcare |
||
Agriculture |
||
Construction |
||
Industrial |
||
Retail |
||
Energy & Mining |
||
Robotics & Logistics |
||
| 4G and WIFI module can be extended | ||
| The initial setting can be reset and restored | ||
