| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | TX2 8G-SYS-1901 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | 8G High Performance Embedded Computing PC System Nvidia Jetson TX2 For Industrial | Keyword: | 8G High Performance Embedded Computing PC System Nvidia Jetson TX2 For Industrial |
|---|---|---|---|
| AI Performance: | 1.33 TFLOPS | GPU: | 256-core NVIDIA Pascal™ Architecture GPU |
| CPU: | Dual-core NVIDIA Denver™ 2 64-bit CPU And Quad-core Arm® Cortex®-A57 MPCore Processor | GPU Max Frequency: | 1.12GHz |
| CPU Max Frequency: | Denver 2: 2 GHz Cortex-A57: 2 GHz | Memory: | 8GB 128-bit LPDDR4 59.7GB/s |
| Storage: | 32GB EMMC 5.1 | PCIe*: | 1 X1 + 1 X2 (PCIe Gen2) |
| Networking: | 1x GbE, WLAN | Display: | 2 Multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 X4 DSI (1.5Gbps/lane) |
| Size: | 160mm × 130mm × 65mm | Weight: | 1078g |
| Power: | DC +9V~+24V | Working Temperature: | -25~+65°C |
| High Light: | 8G high performance embedded computing,Jetson TX2 high performance embedded computing,Jetson TX2 pc embedded system |
||

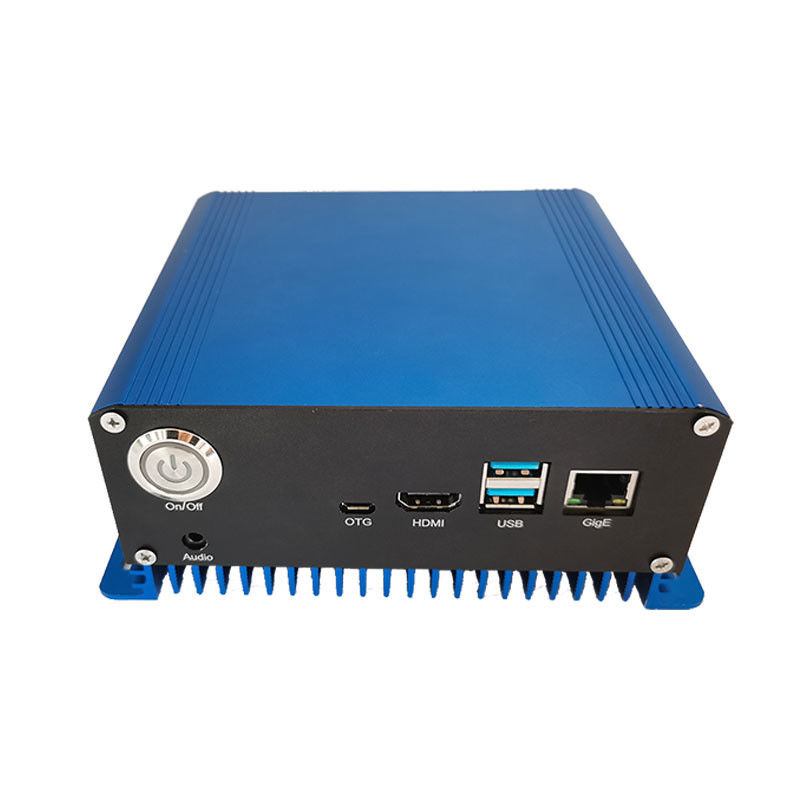

TX2 8G-SYS-1901 8G High Performance Embedded Computing PC System Nvidia Jetson TX2 For Industrial
The industrial embedded computer (TX2-SYS-1901) is based on NVIDIA Jetson TX2 series core modules, and it is the embedded mini pc with high performance,the Ai performance of this embedded box pc (TX2 SYS-1901) is 1.33 TFLOPS
Computing Unit: Integrated NVIDIA Jetson™ TX2 8GB / TX2i (TX2 industrial) / TX2 4GB
GPU: 256-core NVIDIA Pascal™ Architecture
CPU: 6-core 64-bit CPU (NVIDIA Jetson TX2)
Operating System: Linux pre-installed
2 Gigabit Ethernet
2ch USB 3.0
1ch VGA video interface
2 RS232 interface, 1 RS48
Jetson TX2 pc embedded system TX2 8G-SYS-1901
|
AI Performance |
1.33 TFLOPS |
|
GPU |
256-core NVIDIA Pascal™ GPU |
|
CPU |
Dual-core Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor |
|
Video Encode |
1x 4K60 (H.265) |
|
Video Decode |
2x 4K60 (H.265) |
|
CSI Camera |
Up to 6 cameras |
|
Memory |
8 GB 128-bit LPDDR4 |
|
Storage |
32 GB eMMC 5.1 |
|
Power |
+7V~+19V |
|
Working temperature |
-10~+70℃/-40~+80℃ |
|
Weight |
930g |
|
USB 3.0 |
2 |
CAN |
2 |
|
RS232 |
2 |
Debug |
1 |
|
RS485 |
1 |
10/100/1000 BASE-T Ethernet |
1 |
|
GPIO(3.3V) |
4 |
HDMI 2.0 |
1 |
