| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX8G-SYS-2006 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | UAV Module Jetson Xavier NX 8G IPC Embedded Windows 10 Mechanical Arm | Keyword: | UAV Module Jetson Xavier NX 8G IPC Embedded Windows 10 Mechanical Arm |
|---|---|---|---|
| AI Performance: | 21 TOPS | GPU: | 384-core NVIDIA Volta™ GPU With 48 Tensor Cores |
| CPU: | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 | Type-A: | USB 3.1*1 USB 2.0*2 |
| Micro USB: | Micro USB*1 | Memory: | 8GB 128-bit LPDDR4x 59.7GB/s |
| PCIe: | 1 X1 (PCIe Gen3) + 1 X4 (PCIe Gen4), Total 144 GT/s* | HDMI: | HDMI 2.0 Interface (MAX 6Gbps，24bpp，4096x2160@60Hz) |
| Networking: | 10/100/1000 BASE-T Ethernet | Display: | 2 Multi-mode DP 1.4/eDP 1.4/HDMI 2.0 No DSI Support |
| Size: | 160mm × 130mm × 65mm | Weight: | 1078g |
| Power: | DC +9V~+24V | Working Temperature: | -25~+65°C |
| High Light: | 8G IPC Embedded,Xavier NX IPC Embedded,UAV Module embedded pc windows 10 |
||

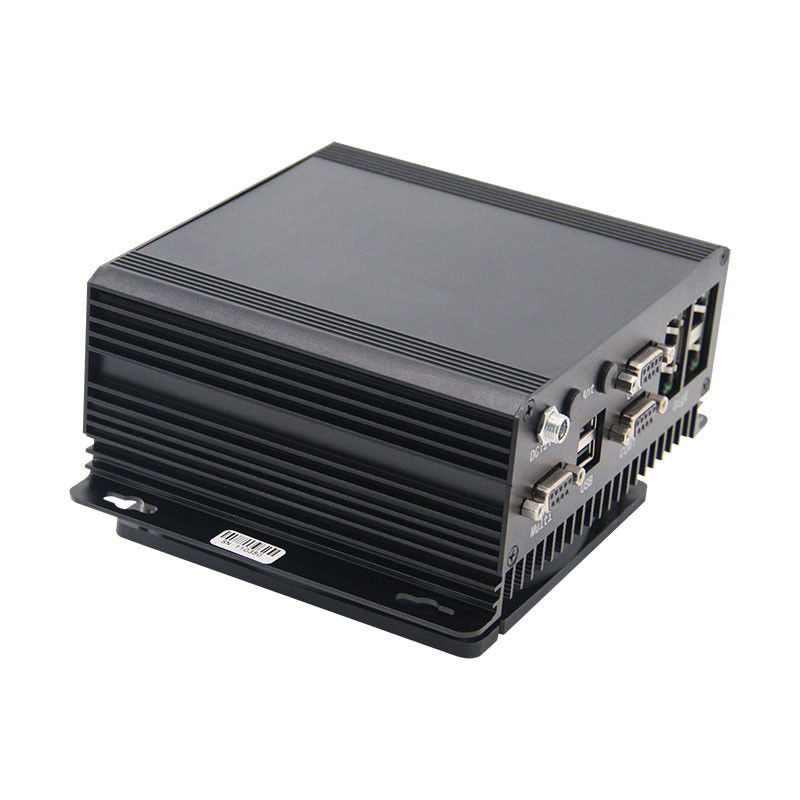

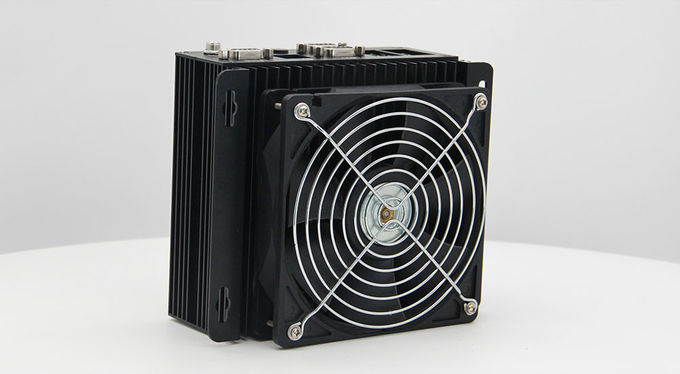

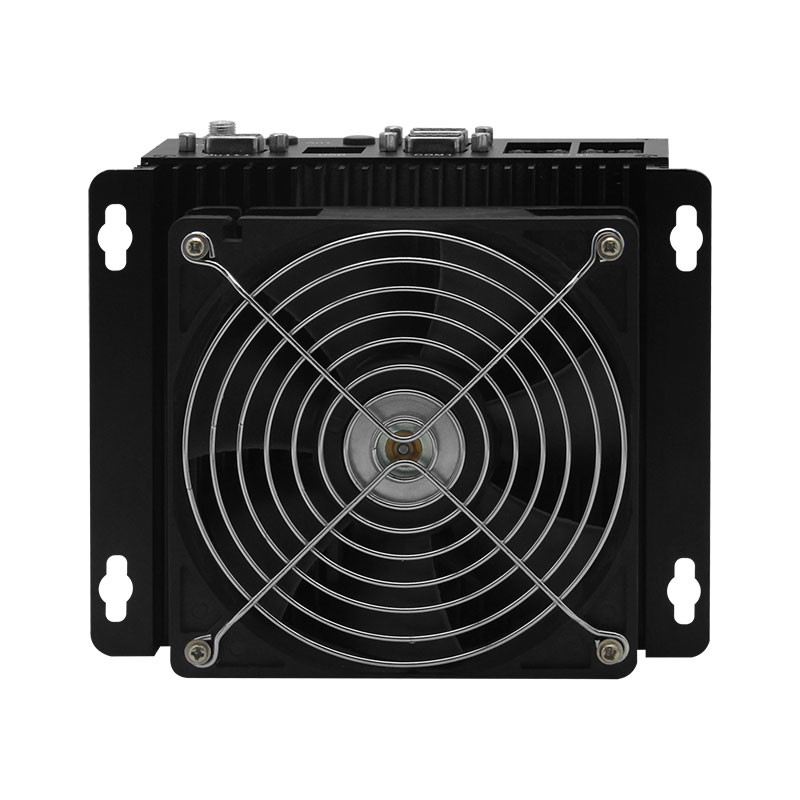

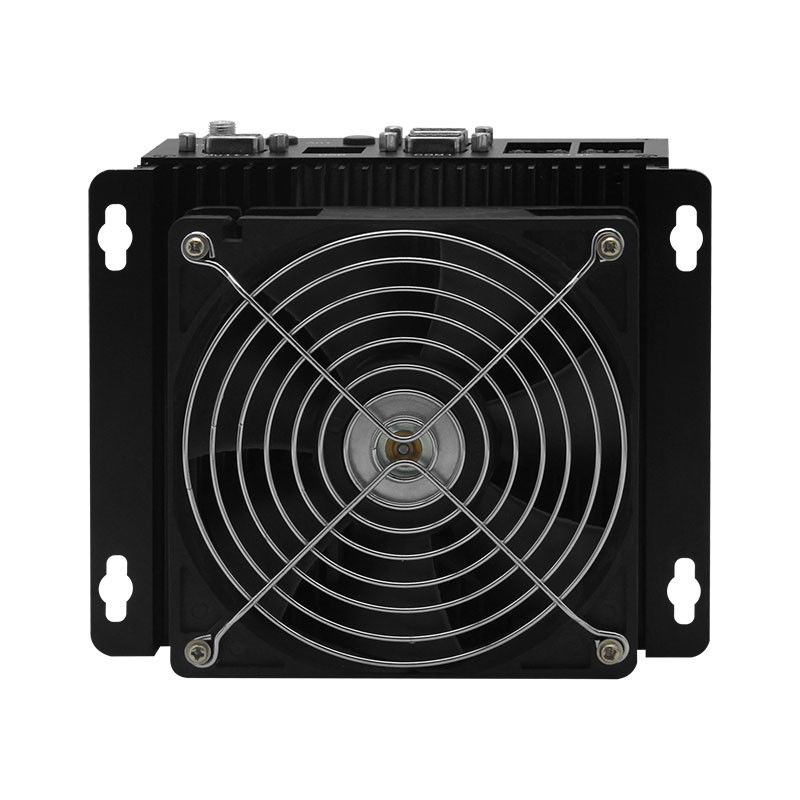

UAV Module Jetson Xavier NX 8G IPC Embedded Windows 10 Mechanical Arm
Embedded PC Windows 10 NX8G-SYS-2006
The industrial pc computer is based on NVIDIA Jetson Xavier NX 8G module, it has high performance with 21 TOPS in 15W power mode, with 384 CUDA Cores, 48 Tensor Cores, 2 NVDLA engines, 6 ARM CPU cores, 8 GB 128-bit LPDDR4x 51.2 GB/s memory, it can run multiple network models at the same time. is the windows embedded computer which is for the Mechanical Arm and UAV etc;
The NX-SYS-2006 standard type can support 1/3/5 full-speed Gigabit Ethernet, if you need to expand USB 3.0 signal, SSD memory card, SATA signal, 4G communication module, various video capture/output cards, AD capture card, multi-serial port card, sound acquisition/output card, multi-function IO card, etc., is an edge IPC with NVIDIA Jetson Xavier NX series modules in industrial area.
Product size: 160mm×130mm×65mm
Power requirements: DC +9V~+24V
Working temperature: -25~+65℃

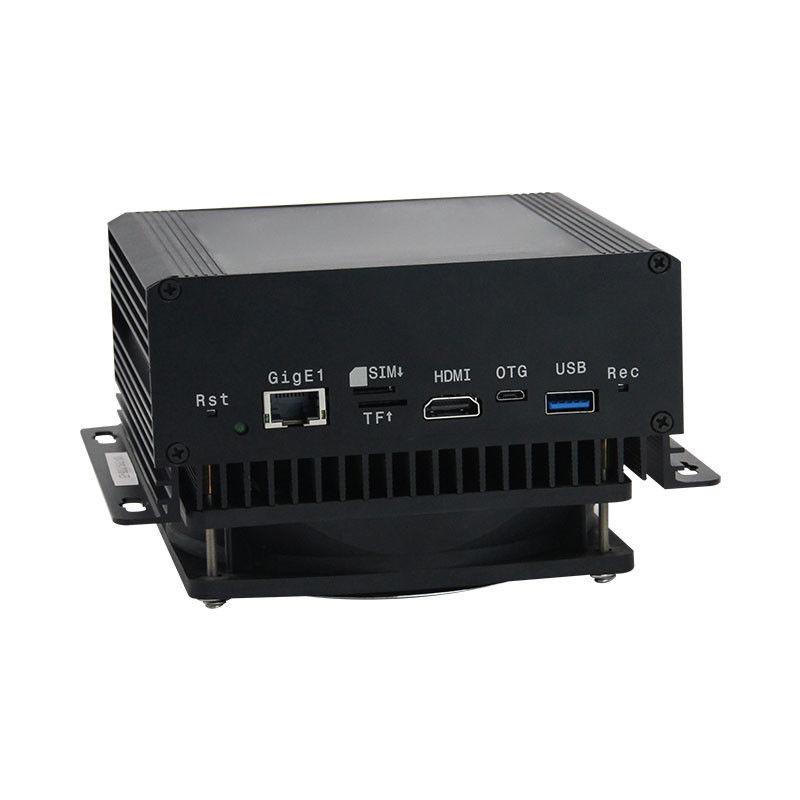

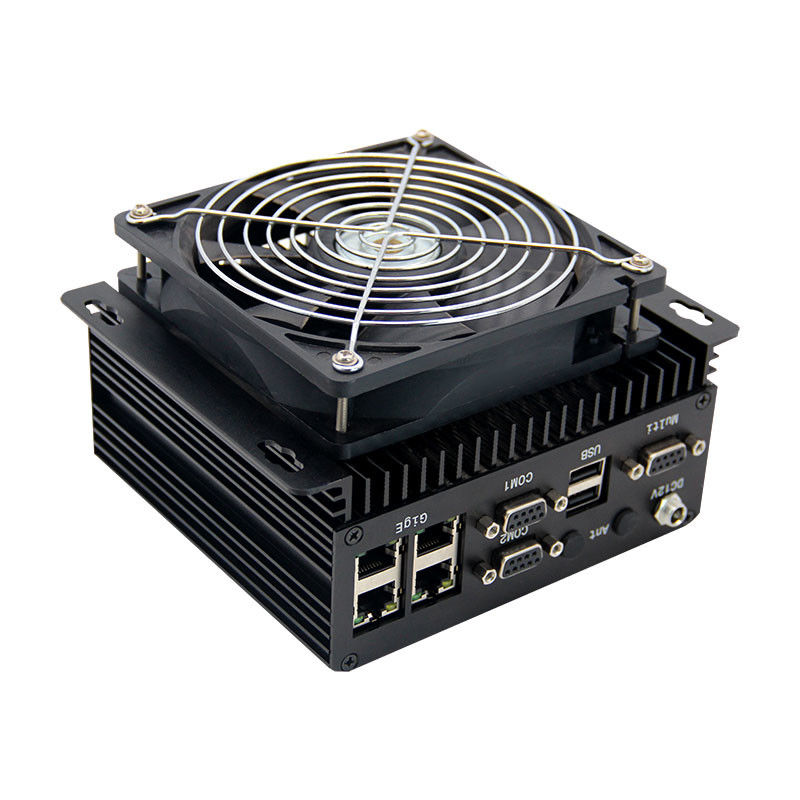

NVIDIA Jetson Xavier NX industrial pc computer Product Feature
1* USB3.1 TypeA connector
2* USB2.0 TypeA connectors
1* Micro USB connector
Optional 1/3/5 Gigabit Ethernet (10/100/1000 BASE-T) RJ45 connectors
1* HDMI 2.0 interface (maximum 6Gbps, 24bpp, 4096x2160@60Hz)
Optional 32GB ~ 1TB SSD expansion storage
1* working indicator light
1* micro TF card connector
1* Nano SIM card connector
Automatically start when power on
Onboard Reset and Recovery buttons
1* CAN bus interface with onboard transceiver
2* RS-232 level serial ports
3* 3.3V bit programmable GPIO, 1 bit programmable GPO with 3.3V strong drive capability
Factory pre-installed NVIDIA Jetson Xavier NX core module
NVIDIA Jetson Xavier NX Module Technical Specifications
| Power | 10W | 15W | 20W |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 |
|
GPU |
384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| GPU Max Frequency | 1100 MHz |
| AI Performance | 21 TOPS |
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
|
PCIe |
1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s* |
| Vision Accelerator | 7-Way VLIW Vision Processor |
|
Size |
69.6mm x 45mm |
| USB | 1x USB 3.2 Gen2 (10 Gbps) 3x USB 2.0 |
| Vision Accelerator | 2x PVA |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
NVIDIA's embedded Jetson products have been accelerating the research, development, and deployment of embedded AI solutions on Lockheed Martin's platforms. With Jetson Xavier NX's exceptional performance, small form factor & low power, we will be able to do more processing in real-time at the edge than ever before.
NVIDIA Jetson Xavier NX is perfect for high-performance AI systems like commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other AIoT embedded systems.
