| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX8G-SYS-2016 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | Mechanical Arm IPC Embedded Computer Fanless Jetson Xavier NX 8G Customizable | Keyword: | Mechanical Arm IPC Embedded Computer Fanless Jetson Xavier NX 8G Customizable |
|---|---|---|---|
| AI Performance: | 21 TOPS | GPU: | 384-core NVIDIA Volta™ GPU With 48 Tensor Cores |
| CPU: | 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU 6MB L2 + 4MB L3 | Type-A: | USB 3.1*1 USB 2.0*2 |
| Micro USB: | Micro USB*1 | Memory: | 8GB 128-bit LPDDR4x 59.7GB/s |
| PCIe: | 1 X1 (PCIe Gen3) + 1 X4 (PCIe Gen4), Total 144 GT/s* | HDMI: | HDMI 2.0 Interface (MAX 6Gbps，24bpp，4096x2160@60Hz) |
| Networking: | 10/100/1000 BASE-T Ethernet | Display: | 2 Multi-mode DP 1.4/eDP 1.4/HDMI 2.0 No DSI Support |
| Size: | 190mm × 160mm × 76.3mm | Weight: | 1499g |
| Power: | DC +9V~+24V | Working Temperature: | -25~+65°C |
| High Light: | 1499g IPC Embedded,Jetson Xavier NX IPC Embedded,1499g pc embedded fanless |
||

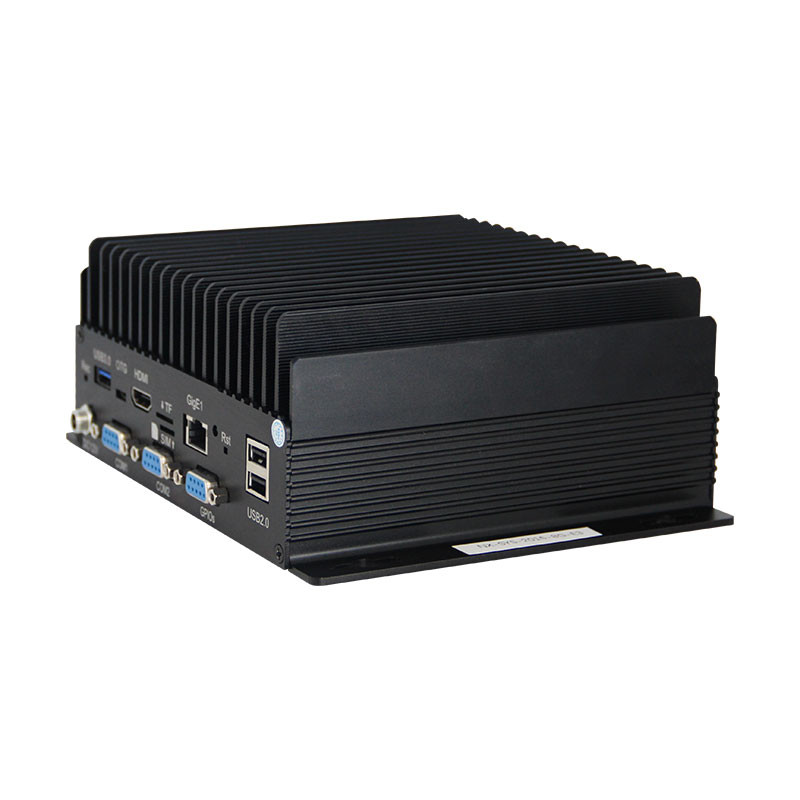

Mechanical Arm IPC Embedded Computer Fanless Jetson Xavier NX 8G Customizable
The Industrial Embedded Computer (NX-SYS-2016) is based on NVIDIA Jetson Xavier NX 8GB module. is the fanless embedded pc which is for mechanical arm, NVIDIA Jetson Xavier NX module, On 20W power provide 21 TOPS , 384 CUDA Cores, 48 Tensor Cores, 2 NVDLA engines, 6 ARM CPU core,8 GB 128-bit LPDDR4x 51.2GB/s Memory,can run multiple network models at the same time.
The industrial pc computer (NX-SYS-2016) Standard type can chose 1/3/5 Gigabit Ethernet, If need to increase USB 3.0, SSD storage card, SATA, 4Gcommunication module, Video capture/output card, ADAC acquisition card, Multi serial card,Sound acquisitionoutput card, multi- function IO card ETC.

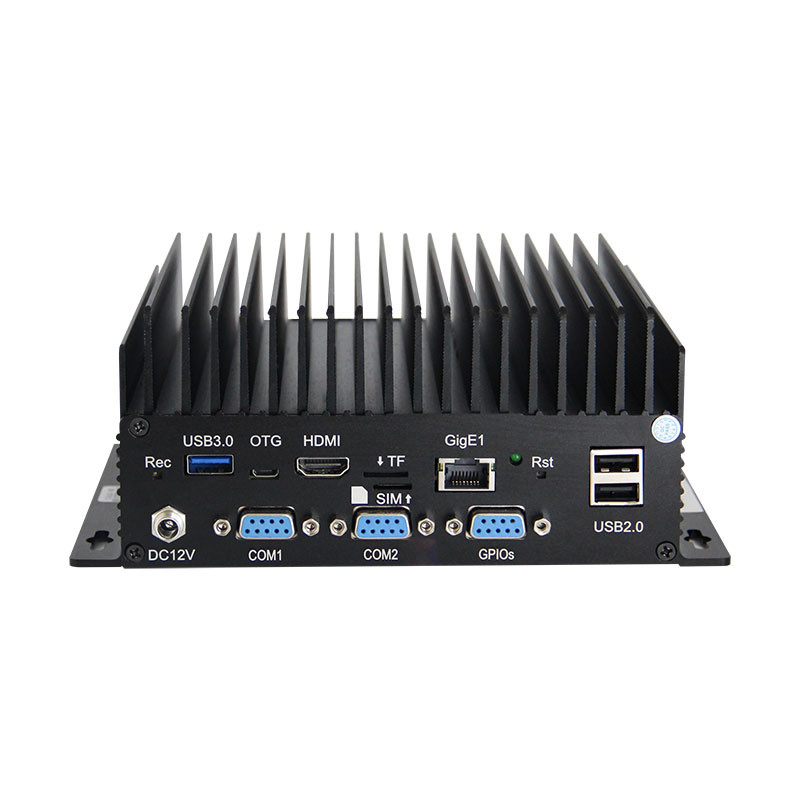

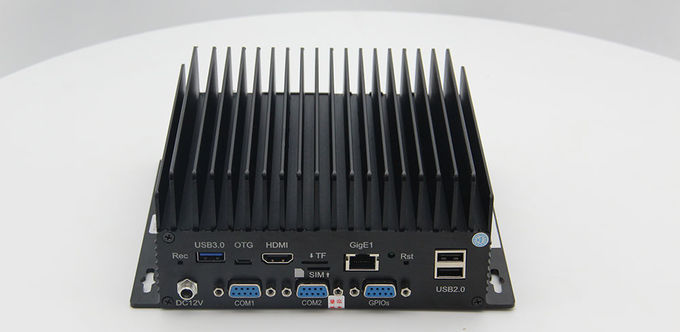

USB 2.0 Type-A Connector | 2 |
USB 3.1 Type-A Connector | 1 |
Micro TF Card Slot | 1 |
Nano SIM Card Slot | 1 |
Micro USB Connector | 1 |
HDMI 2.0 Interface (MAX 6Gbps,24bpp,4096x2160@60Hz) | 1 |
RS-232 | 2 |
GPIO(3.3V) | 3 |
GPO(3.3V) | 1 |
Optional expansion | 32GB 1TB SSD storage |
Factory pre-installed Xavier NX module | |

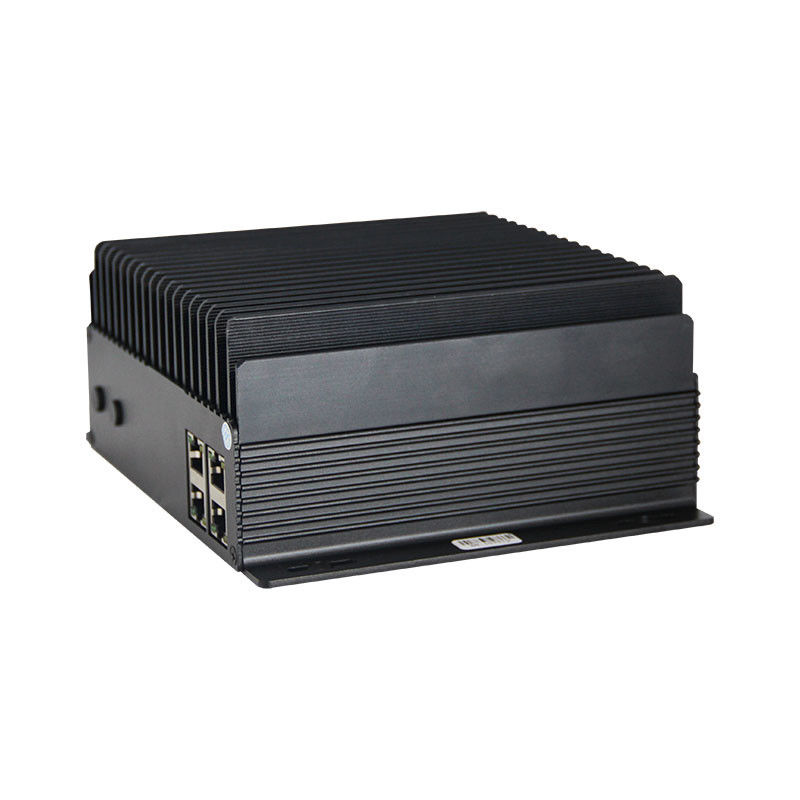

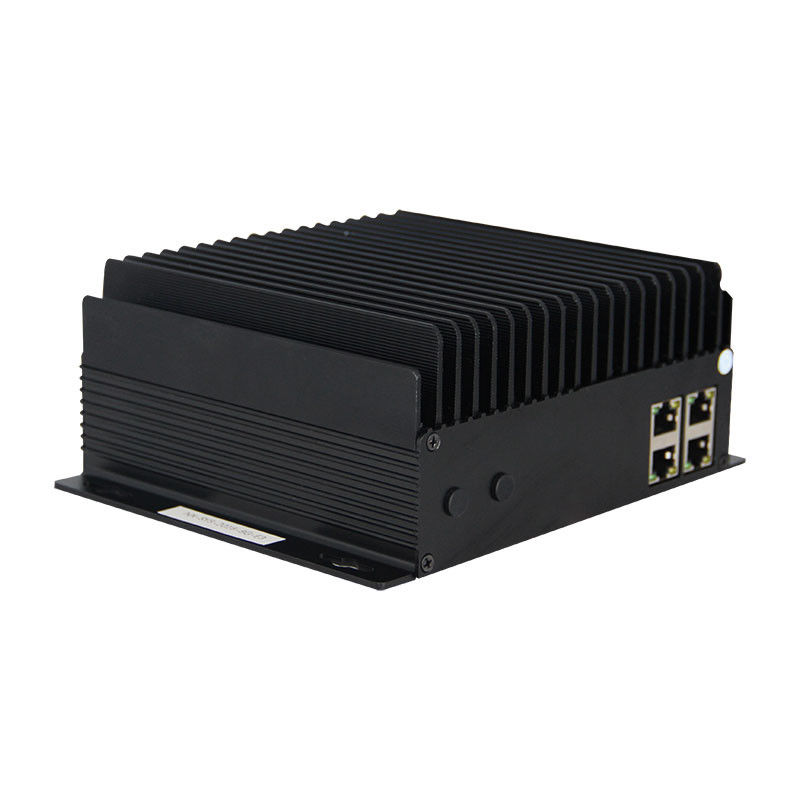

Chose 1/3/5 Gigabit Ethernet(10/100/1000 BASE-T)RJ45 Connector | |
Board Reset, Recovery button | |
One Board Receiving transmitter CAN bus interface | |
Size | 190mm×160mm×76.3mm |
Power | DC +9V~+24V |
Working temperature | -25~+65°C |
NVIDIA Jetson Xavier NX Technical Specifications
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volt GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 |
| PCIe | 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s* |
| Power | 10W | 15W | 20W |
| DL Accelerator | 2x NVDLA |
| Networking | 10/100/1000 BASE-T Ethernet |
| CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
