| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | AGX32-8F4E1 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | Medical Industrial Embedded Komputer Rugged Embedded Systems NVIDIA Jetson AGX Xavier 32G | Keyword: | Medical Industrial Embedded Komputer Rugged Embedded Systems NVIDIA Jetson AGX Xavier 32G |
|---|---|---|---|
| AI Performance: | 32TOPS | GPU: | 512-core NVIDIA Volta GPU With 64 Tensor Cores |
| CPU: | 8-core NVIDIA Carmel Arm® V8.2 64-bit CPU 8MB L2 + 4MB L3 | DL Accelerator: | 2x NVDLA |
| DLA Max Frequency: | 1.4 GHz | Memory: | 32GB 256-bit LPDDR5 204.8GB/s |
| Storage: | 32GB EMMC 5.1 | Display: | 1x 8K60 Multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| USB Micro-B: | 1 X Type B (OTG) | USB Type-A: | 2 X USB 3.1 |
| Other I/O: | 4 X GPIO(3.3V) | 1 X SPI(3.3V) | 2 X I2C(3.3V) | 2 X RS-232 1 X Debug(UART) 2 X CAN (with On-board Transceiver) | Networking: | 1x GbE 1x 10GbE |
| Power Supply: | AC 220 V | Temperature: | -20~+65°C |
| Size: | 335mm*257mm*146mm | Weight: | 5500g |
| High Light: | 32G embedded komputer,Industrial embedded komputer,NVIDIA rugged embedded systems |
||

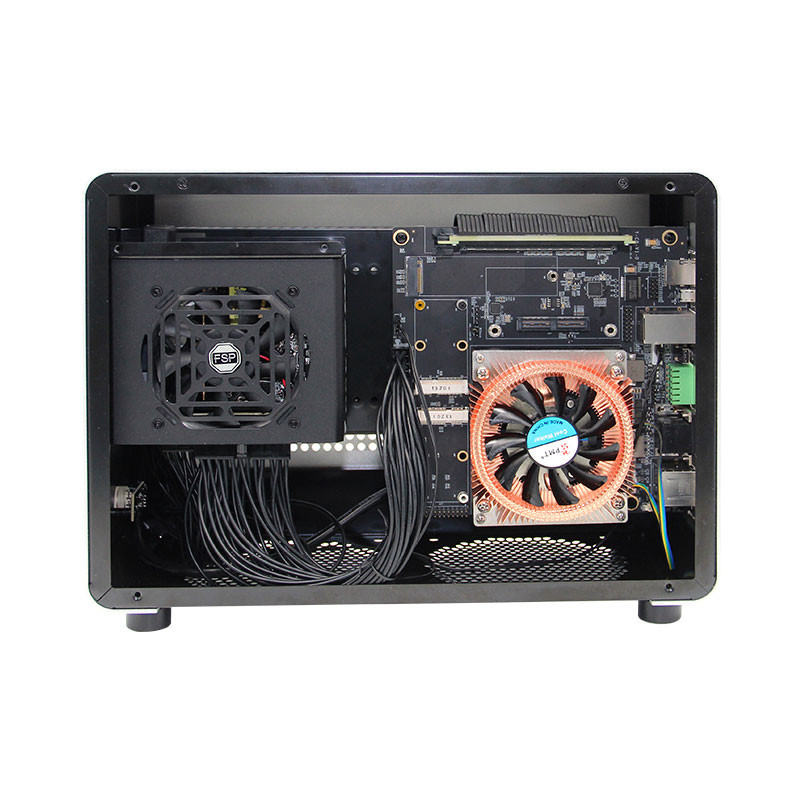

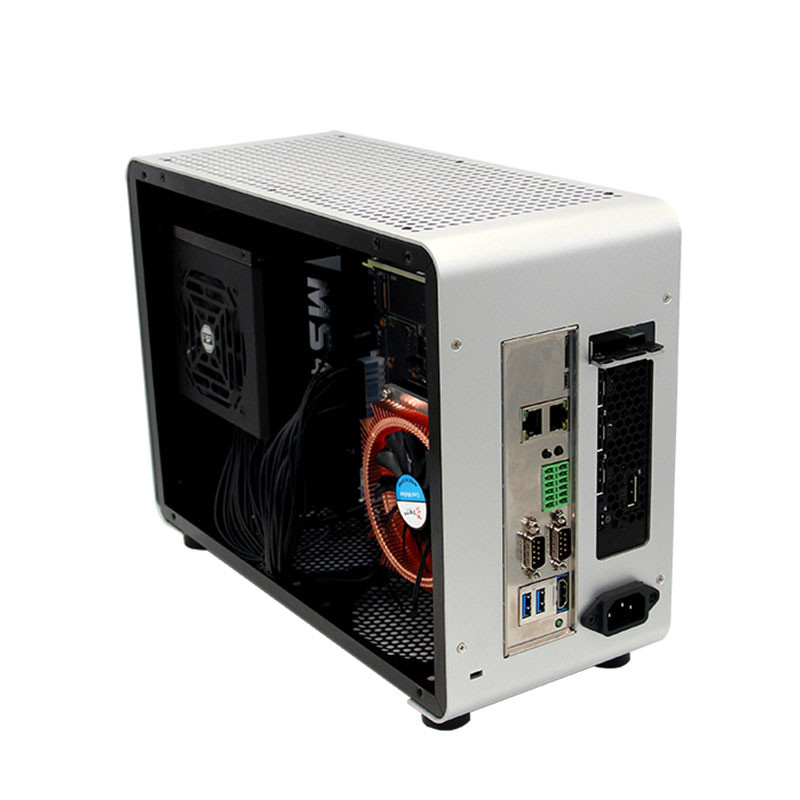

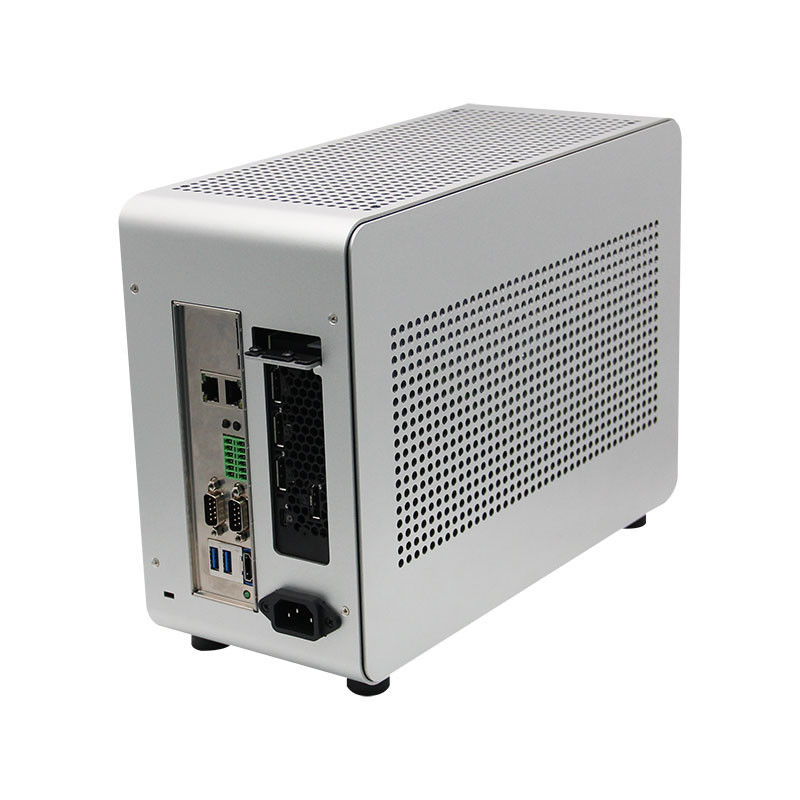

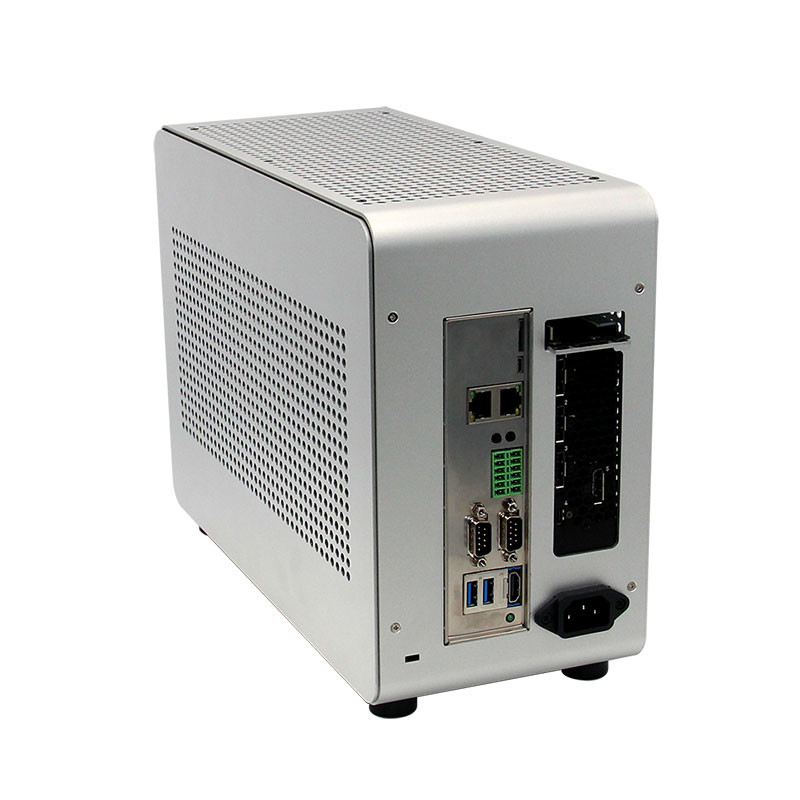

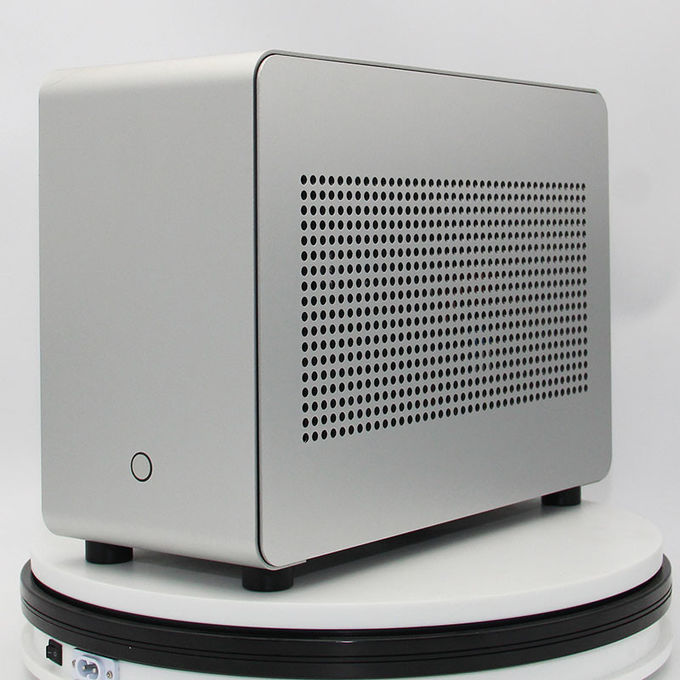

Medical Industrial Embedded Komputer Rugged Embedded Systems NVIDIA Jetson AGX Xavier 32G
NVIDIA Jetson AGX Xavier 32G Embedded Komputer
NVIDIA Jetson AGX Xavier Series System-on-Module
Volta GPU + Carmel CPU + 8/32GB LPDDR4x + 32GB eMMC
The AGX32-8F4E1 is an industrial pc computer, it combines NVIDIA Jetson AGX Xavier core module and the AI-enabled NVIDIA RTX 6000/A6000 GPU. for Medical Industrial, The NVIDIA Clara AGX Holoscan development kit comes with end-to-end reference applications for sensor processing, image reconstruction, AI and visualization, Each reference application utilizes the necessary I/O components and drivers to move data and feed it into the processing pipeline on the RTX 6000 /A6000 GPU, providing a functionally tested data path setup.
The industrial embedded computer AGX32-8F4E1 with the high performance, also for face recognition and V2X(vehicle to everything) etc.
NVIDIA Jetson AGX Xavier Industrial Embedded Computer Product Features and Specifications
|
Optional expansion |
32GB ~ 1TB SSD storage |
|
Power requirements |
220V |
|
Weight |
5050g |
|
Working temperature |
-20~+65°C |
|
Product size |
146mm×335mm×257 mm |
|
4G and WIFI module can be extended |
|
|
Maximum scalability 512g TF card memory |
|
|
The initial setting can be reset and restored |
|
NVIDIA Jetson AGX Xavier 32G Module Specifications
| Shock | Non-operational: 340G, 2 ms, half sine, 6 shocks/axis, 3 axes |
| Vibration | Non-operational: 10-500 Hz, 5G RMS, 8 hours/axis |
| Temperature | Operational: -25°C to 80°C at TTP |
| Humidity | Non-operational: 95% RH, -10°C to 65°C, 10cycl/240 hours |
| Operating Lifetime | 5 Years |
| AI Performance | 32 TOPS |
| Memory | 32GB 256-bit LPDDR4x 136.5GB/s |
| GPU | NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
| CPU | 8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3 |
| Other I/O | USB 2.0 UART, SPI, CAN, I2C, I2S, DMIC & DSPK, GPIOs |
RTX 6000 /A6000 Specifications
|
RTX 6000 |
RTX A6000 |
|
|
GPU Memory |
24GB GDDR6 |
48GB GDDR6 |
|
NVIDIA CUDA Cores |
4608 |
10752 |
|
NVIDIA Tensor Cores |
576 |
336 |
|
NVIDIA RT cores |
72 |
84 |
|
NVIDIA NVLink bandwidth |
100GB/s (bidirectional) |
112.5GB/s (bidirectional) |
|
Error-correcting code (ECC) |
Yes | Yes |
|
Single-Precision Performance |
16.3 TFLOPS |
38.7 TFLOPS |
|
Tensor Performance |
130.5 TFLOPS |
309.7 TFLOPS |
|
System Interface |
PCI Express 3.0 x 16 |
PCI Express 4.0 x 16 |
