| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | ORIN64-8F2E1 |
| Minimum Order Quantity: | 1set |
| Price: | To be negotiated |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| Supply Ability: | Batch purchase price negotiation |
| NAME: | Nvidia Jetson AGX Orin Industrial PC Computer Host 2U Rackmount Computer 64G | Keyword: | Nvidia Jetson AGX Orin Industrial PC Computer Host 2U Rackmount Computer 64G |
|---|---|---|---|
| AI Performance: | 275 TOPS | GPU: | 2048-core NVIDIA Ampere Architecture GPU With 64 Tensor Cores |
| GPU Max Frequency: | 1.3 GHz | CPU: | 12-core Arm® Cortex® A78AE V8.2 64-bit CPU 3MB L2 + 6MB L3 |
| CPU Max Frequency: | 2.2 GHz | DL Accelerator: | 2x NVDLA V2 |
| DLA Max Frequency: | 1.6 GHz | Memory: | 32GB 256-bit LPDDR5 204.8GB/s |
| Storage: | 64GB EMMC 5.1 | Display: | 1x 8K60 Multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 |
| USB Micro-B: | 1 X Micro-B | USB Type-A: | 1 X USB 3.1 |

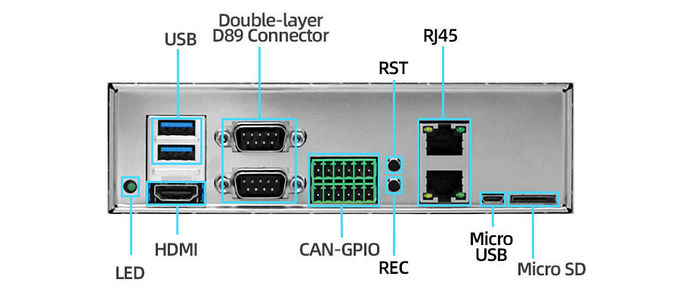

| Other I/O: | 4 X 3.3V GPIO 1 X 3.3V SPI 2 X 3.3V I2C 2 X RS 232 1x3.3V Debug 1 X MiniPCIe | Networking: | 2 X 10/100/1000 Ethernet/RJ45 |
| Power Supply: | 220V | Temperature: | -20~+65°C |
| Size: | 430 Mm × 360 Mm × 88 Mm | Weight: | 6050g |
| High Light: | 275 TOPS AGX industrial pc computer,Host 2U industrial pc computer,275 TOPS 2u rackmount computer |
||

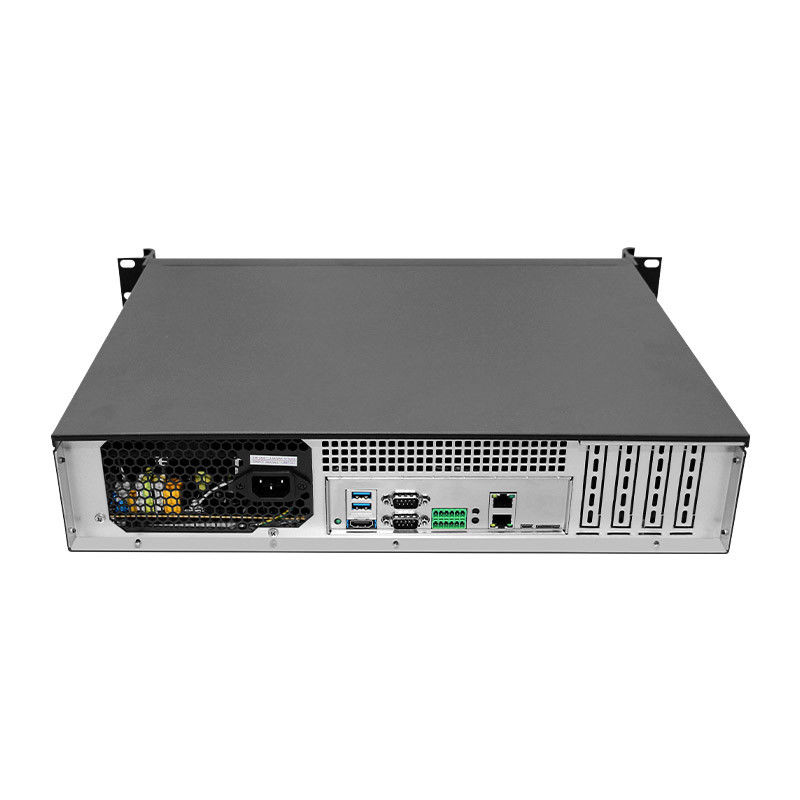

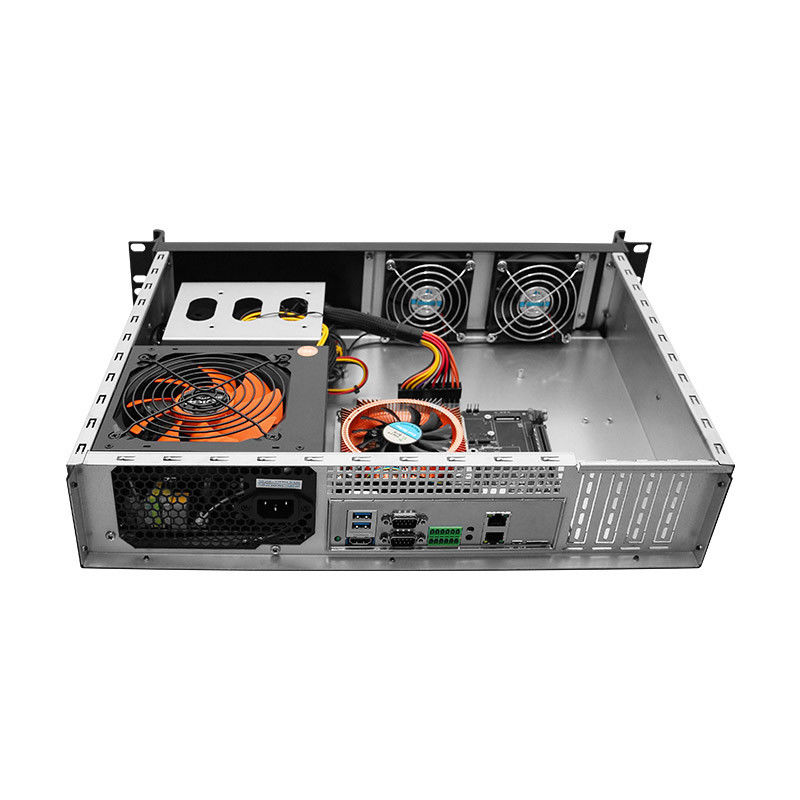

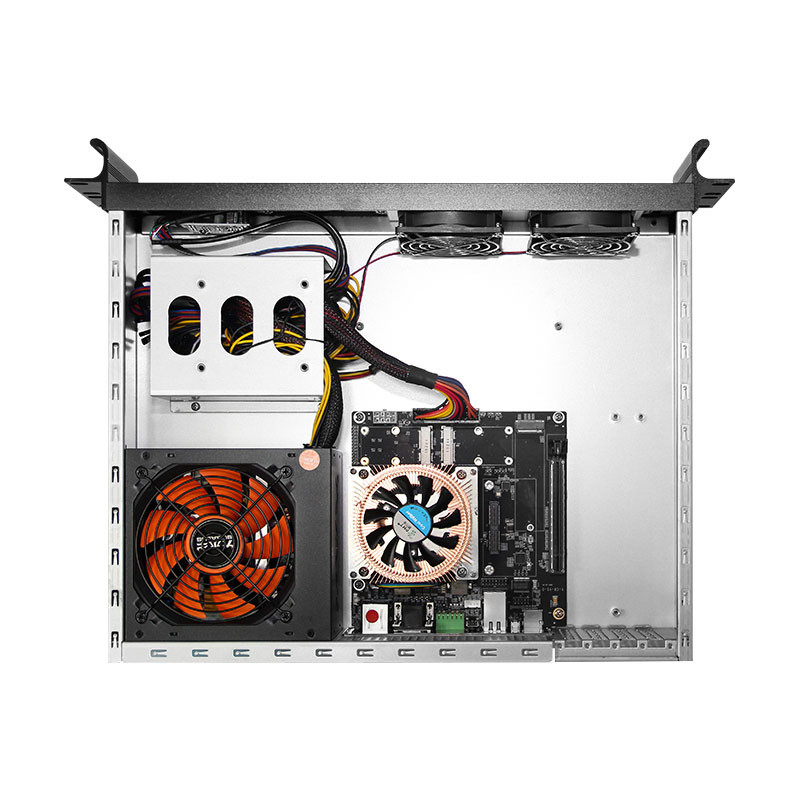

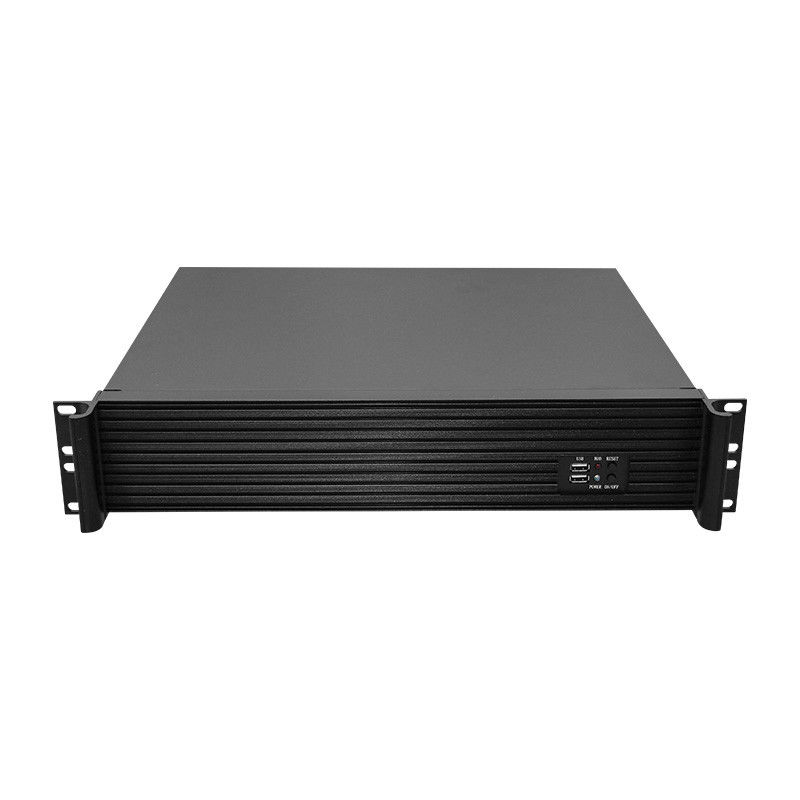

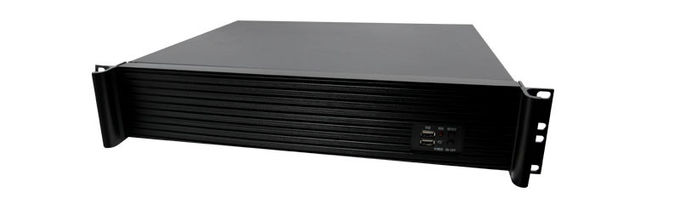

Nvidia Jetson AGX Orin Industrial PC Computer Host 2U Rackmount Computer 64G
The ORIN64-8F2E1 is a 2u rackmount computer with NVIDIA Jetson AGX Orin 64GB core modules. NVIDIA Jetson AGX Orin module, Which has 8X the performance of the last generation, 275 TOPS for multiple concurrent AI inference pipelines, and the high performance embedded computing, The 2u rackmount computer main interface is designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has over voltage and reverse polarity protection functions, and has a wealth of external interfaces. The internal interface devices are all wide-temperature models.
|
Product size |
430mm×360mm×88mm |
|
Power requirements |
220V |
|
Working temperature |
-20~+65°C |
|
Weight |
6560g |
|
Optional expansion |
32GB 1TB SSD storage |
|
Maximum scalability 512g TF card memory |
|
|
4G and WIFI module can be extended |
|
|
The initial setting can be reset and restored |
|
Compare NVIDIA Jetson AGX Orin and Jetson AGX Xavier Specifications
| Modules |
Jetson AGX Xavier |
Jetson AGX Orin 32GB |
Jetson AGX Orin 64GB |
|
AI Performance |
32 TOPS | 200 TOPS | 275 TOPS |
| GPU |
512-core NVIDIA Volta architecture GPU with 64 Tensor Cores |
1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores |
|
GPU Max Frequency |
1377 MHz |
939 MHz |
1.3 GHz |
| CPU |
8-core NVIDIA Carmel Arm®v8.2 64-bit CPU 8MB L2 + 4MB L3 |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
|
CPU Max Frequency |
2.2 GHz |
||
|
DL Accelerator |
2x NVDLA |
2x NVDLA v2 |
|
|
DLA Max Frequency |
1.4 GHz |
1.4 GHz |
1.6 GHz |
|
Vision Accelerator |
2x PVA |
1 x PVA v2 |
|
|
Memory |
32GB 256-bit LPDDR4x 136.5GB/s |
32GB 256-bit LPDDR5 204.8GB/s |
64GB 256-bit LPDDR5 204.8GB/s |
|
Storage |
32GB eMMC 5.1 |
64GB eMMC 5.1 |
|
|
Video Encode |
4x 4K60 (H.265) |
1x 4K60 (H.265) |
2x 4K60 (H.265) |
|
Video Decode |
2x 8K30 (H.265) |
1x 8K30 (H.265) |
1x 8K30 (H.265) |
|
Power |
10W - 30W |
15W - 40W |
15W - 60W |
Typical Installation
- Ensure power off of all external system
- Install the necessary external cables.(e.g. display cable connected to HDMI monitor, power input cable supplying power to the system, USB cable connecting keyboard and mouse...)
- Connect the power cord to the power supply
- 8F2E1 could be set as default automatic power on or switch on. Please consult the sales and technical staff of our company for specific methods.
