| Place of Origin: | USA |
|---|---|
| Brand Name: | NVIDIA |
| Model Number: | xavier nx 8G (900-83668-0000-000) |
| Minimum Order Quantity: | 1pcs |
| Price: | USD480-USD500\PCS |
| Delivery Time: | 15-30 work days |
| Supply Ability: | 1000pcs |
| NAME: | 8GB 128Bit LPDDR4 Jetson NX Dev Kit Module Xavier NX GPU | Keyword: | 8GB 128Bit LPDDR4 Jetson NX Dev Kit Module Xavier NX GPU |
|---|---|---|---|
| Model Number: | (900-83668-0000-000) | AI Performance: | 21 TOPS |
| GPU: | 384-core NVIDIA Volta™ GPU With 48 Tensor Cores | CPU: | 6-core NVIDIA Carmel ARM® V8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Memory: | 8 GB 128-bit LPDDR4x 59.7GB/s | Storage: | 16 GB EMMC 5.1 |
| Power: | 10W | 15W | 20W | Mechanical: | 69.6mm X 45mm 260-pin SO-DIMM Connector |
| High Light: | 128Bit jetson nx dev kit,LPDDR4 jetson nx dev kit,900 83668 0000 000 |
||
8GB 128Bit LPDDR4 Jetson NX Dev Kit Module Xavier NX GPU

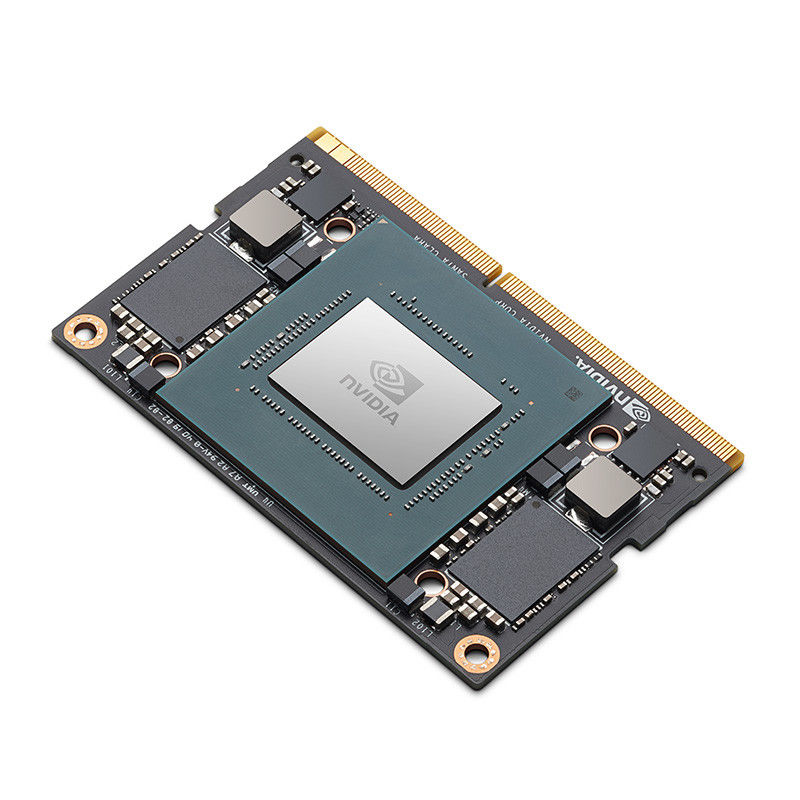

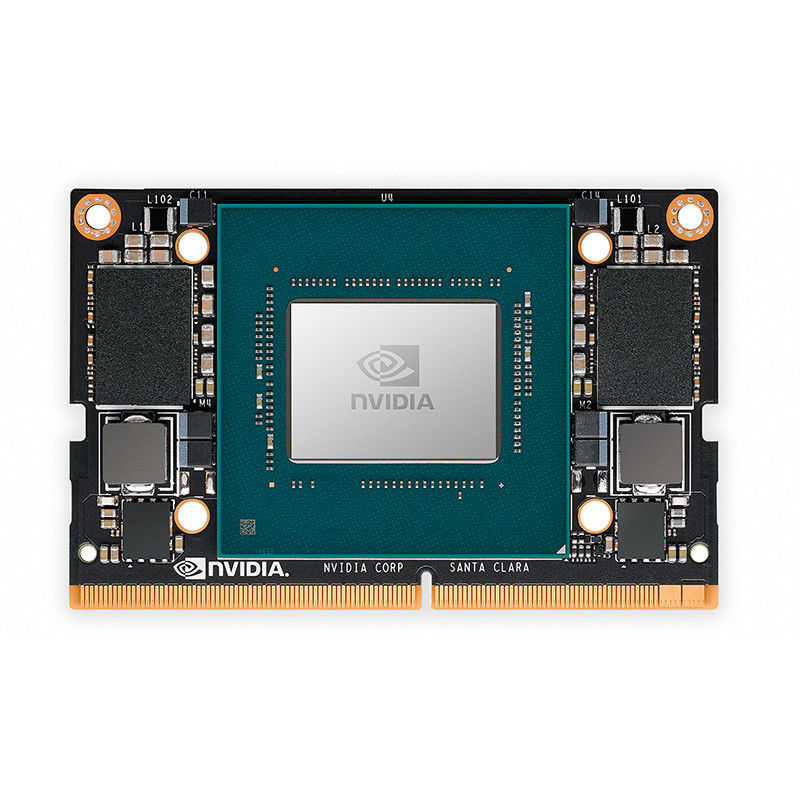

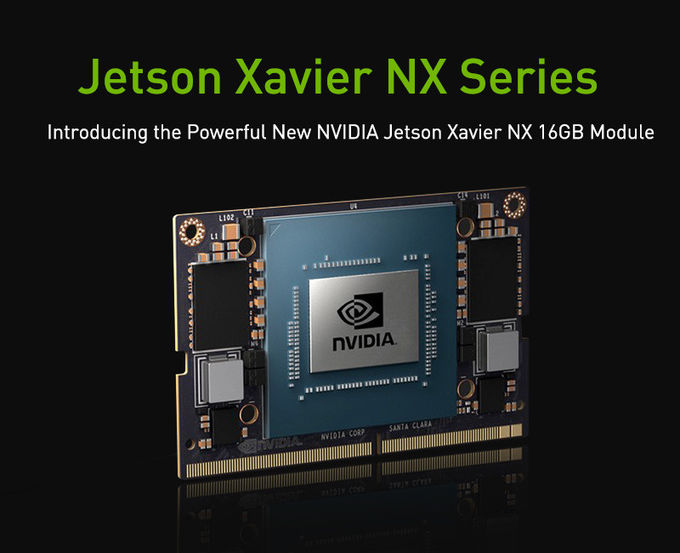

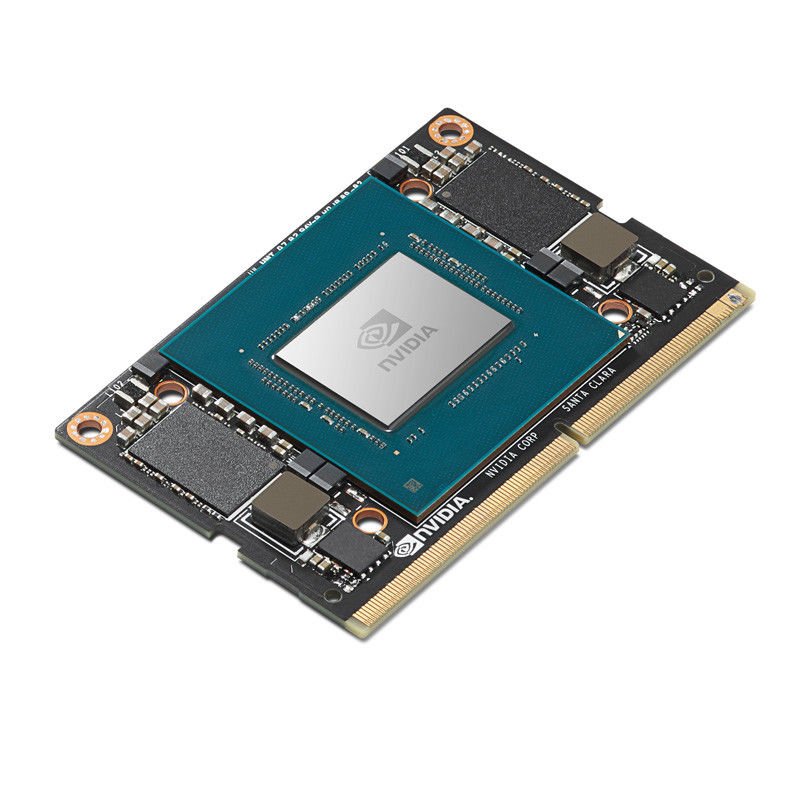

NVIDIA Jetson Xavier NX Module
NVIDIA Jetson Xavier NX brings supercomputer performance to the edge in a small form factor system-on-module (SOM). Up to 21 TOPS of accelerated computing delivers the horsepower to run modern neural networks in parallel and process data from multiple high-resolution sensors—a requirement for full AI systems.
Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance compute and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 59.7GB/s of memory bandwidth, video encoded, and decode, these features make Jetson Xavier NX the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.
NVIDIA Jetson Xavier NX 8G module
| AI Performance | 21 TOPS |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores |
| CPU | 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 |
| Power | 10W | 15W | 20W |
| PCIe | 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s* |
| CSI Camera | Up to 6 cameras (24 via virtual channels) 14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4) MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
| Video Encode | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265) 2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264) |
| Video Decode | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
| DL Accelerator | 2x NVDLA |
| Vision Accelerator | 2x PVA |
| Networking | 10/100/1000 BASE-T Ethernet |
| Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
* Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features
Compare Modules
| NVIDIA Jetson Xavier NX 16GB | NVIDIA Jetson Xavier NX 8GB | |
| AI Performance | 21 TOPS | |
| GPU | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores | |
| CPU |
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6MB L2 + 4MB L3
|
|
| Memory |
16 GB 128-bit LPDDR4x
59.7GB/s
|
8 GB 128-bit LPDDR4x
59.7GB/s
|
| Storage | 16 GB eMMC 5.1 | |
| Power | 10 W | 15 W | 20 W | |
| PCIe | 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s* | |
| CSI Camera |
Up to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2) MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
|
|
| Video Encode |
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)
|
|
| Video Decode |
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
|
|
| Display | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 | |
| DL Accelerator | 2x NVDLA Engines | |
| Vision Accelerator | 7-Way VLIW Vision Processor | |
| Networking | 10/100/1000 BASE-T Ethernet | |
| Mechanical |
69.6 mm x 45 mm
260-pin SO-DIMM connector
|
|
