| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | ORIN32-8F3E1 |
| Minimum Order Quantity: | 1set |
| Price: | $1700-1800 |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T, D/P, D/A, L/C |
| NAME: | Nvidia Agx Orin 32G MINI Industrial Automation IPC Embedded Systems High Performance | Keyword: | Nvidia Agx Orin 32G MINI Industrial Automation IPC Embedded Systems High Performance |
|---|---|---|---|
| CPU: | 8-core Arm® Cortex®-A78AE V8.2 64-bit CPU 2MB L2 + 4MB L3 | CPU Memory: | 32GB 256-bit LPDDR5 204.8 GB/s |
| GPU: | 512-core NVIDIA Volta GPU With 64 Tensor Cores | USB Micro-B: | 1 X Type B (OTG) |

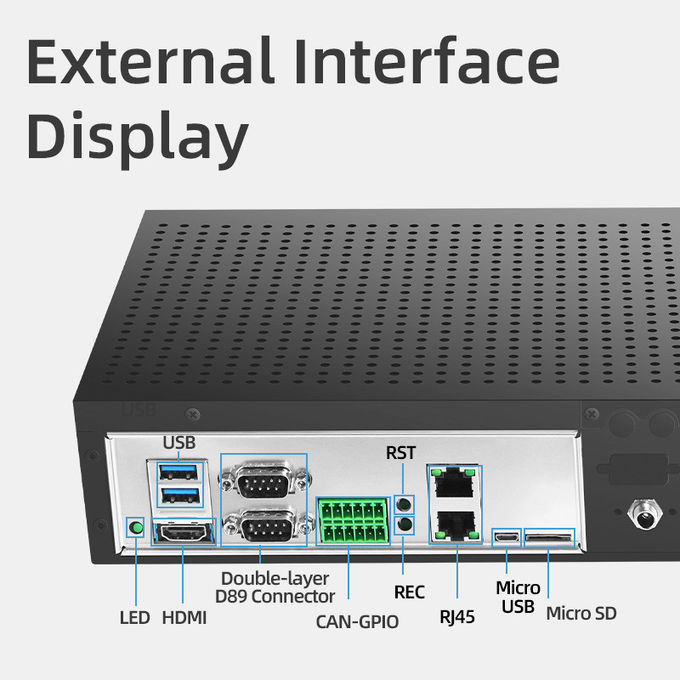

| USB Type-A: | 2 X USB 3.1 | Other I/O: | 4 X GPIO(3.3V) | 1 X SPI(3.3V) | 2 X I2C(3.3V) | 2 X RS 232 | 1 X Debug(UART) 2 X CAN (with On-board Transceiver) |
| Networking: | 2 X 10/100/1000 Ethernet/RJ45 | Power Supply: | DC + 12V |
| Temperature: | -20~+65°C | Dimensions: | 198 Mm × 197 Mm × 45 Mm |
| Weight: | 1340g | ||
| High Light: | IPC Embedded systems,high performance IPC Embedded,IPC high performance embedded systems |
||

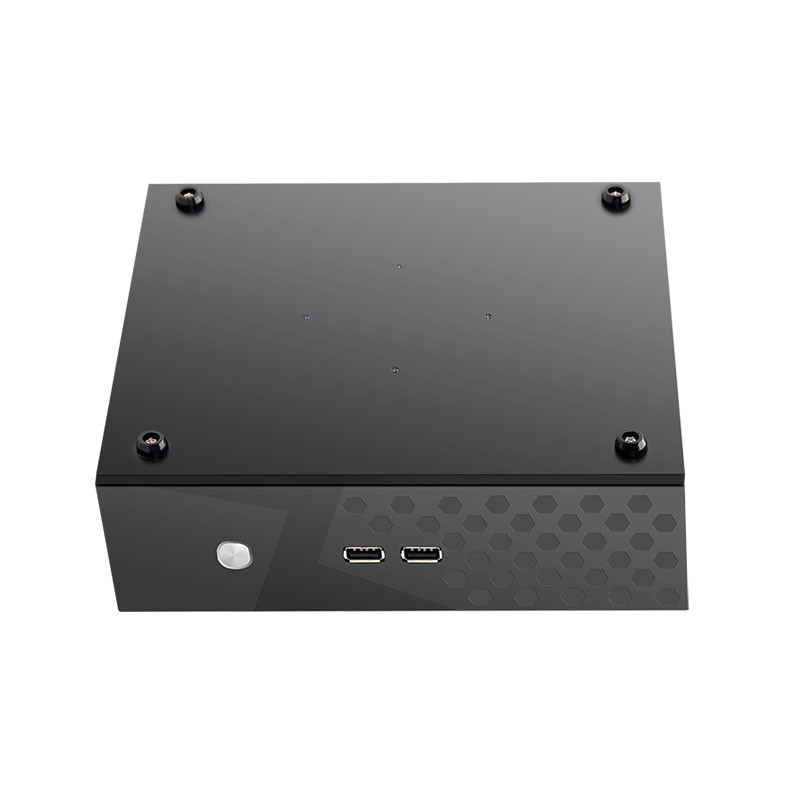

Nvidia Agx Orin 32G MINI Industrial Automation IPC Embedded Systems High Performance
Mini Industrial Automation embedded computer system

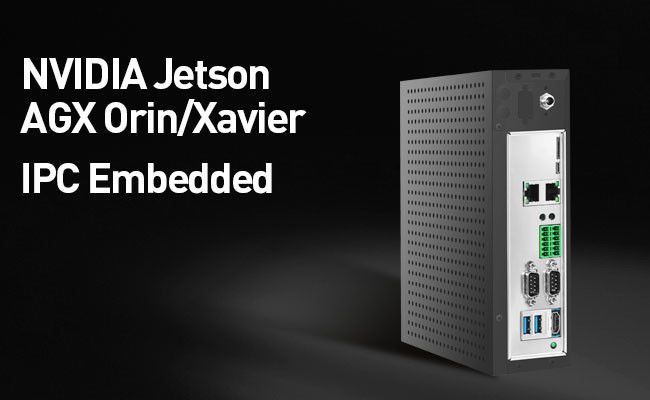

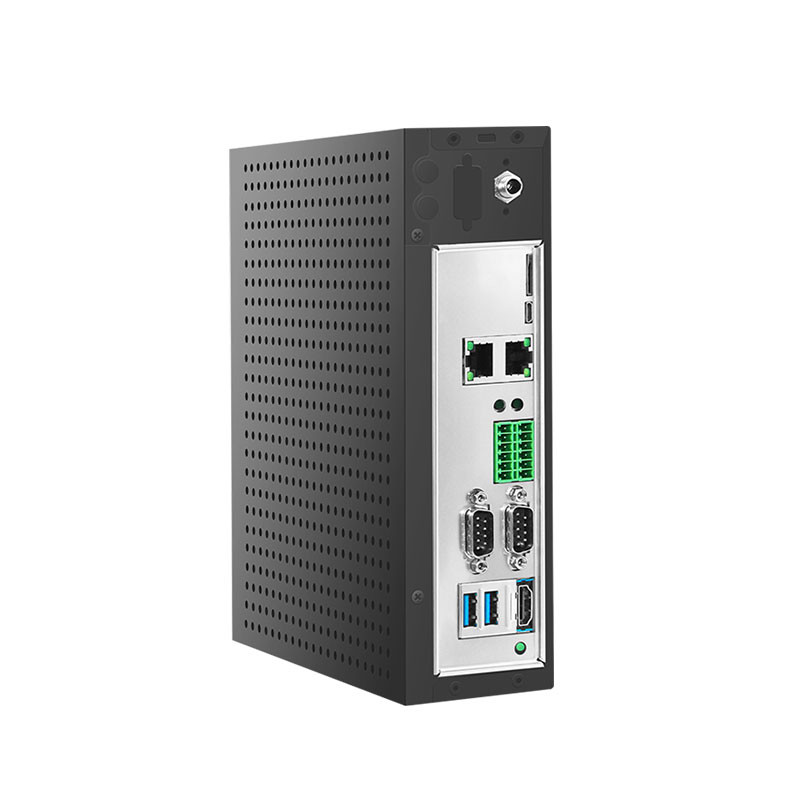

The Orin32-8F3E1 is an ITX type AI industrial computer (mini embedded pc) with high performance IPC embedded computing and NVIDIA Jetson AGX Xavier / AGX Orin core module. For industrial deployment applications, the main interfaces are designed for electrostatic safety protection, and a high-reliability power supply application scheme is adopted. The input power supply has overvoltage and reverse polarity protection functions, and has rich external interfaces. The internal interface devices are all wide-temperature models.
8F3E1 standard type can support multiple full-speed Gigabit Ethernet, if you need to expand USB3.0 signal, SSD memory card, SATA signal, 4G communication module, various video capture/output cards, AD capture card, multi-serial card, sound capture /output card, multi-function IO card, etc.,
Input Power : DC +12V
Temperature Range : -20℃ to 65℃
Size : 198mm × 197mm ×45mm
Weight : 1340g
Compare Jetson AGX Orin and Jetson AGX Xavier Technical Specifications
Module |
NVIDIA Jetson AGX Xavier 32G |
NVIDIA Jetson AGX Orin 32G |
NVIDIA Jetson AGX Orin 64G |
|
AI Performance |
32 TOPS |
200 TOPS |
275 TOPS |
|
GPU |
512-core NVIDIA Volta architecture |
1792-core NVIDIA Ampere |
2048-core NVIDIA Ampere |
|
GPU Max Frequency |
1377 MHz |
939 MHz |
1.3 GHz |
|
CPU |
8-core NVIDIA Carmel Arm®v8.2 |
8-core Arm® Cortex®-A78AE |
12-core Arm® Cortex®-A78AE |
|
CPU Max Frequency |
2.2 GHz |
||
|
DL Accelerator |
2x NVDLA |
2x NVDLA v2 |
|
|
Memory |
32GB 256-bit LPDDR4x 136.5GB/s |
32GB 256-bit LPDDR5 204.8GB/s |
64GB 256-bit LPDDR5 204.8GB/s |
|
USB Micro-B |
1 x Type B (OTG) |
||
|
USB Type-A |
1 x USB 3.1 |
2 x USB 3.1 |
|
|
Other I/O |
4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART) |
||
|
Networking |
2 x 10/100/1000 Ethernet/RJ45 |
||
|
Power Supply |
DC + 12V |
||
|
Temperature |
-20~+65°C |
||
|
Dimensions |
198 mm × 197 mm × 45 mm |
||
|
Weight |
1340g |
||
