| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | 7F5 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |

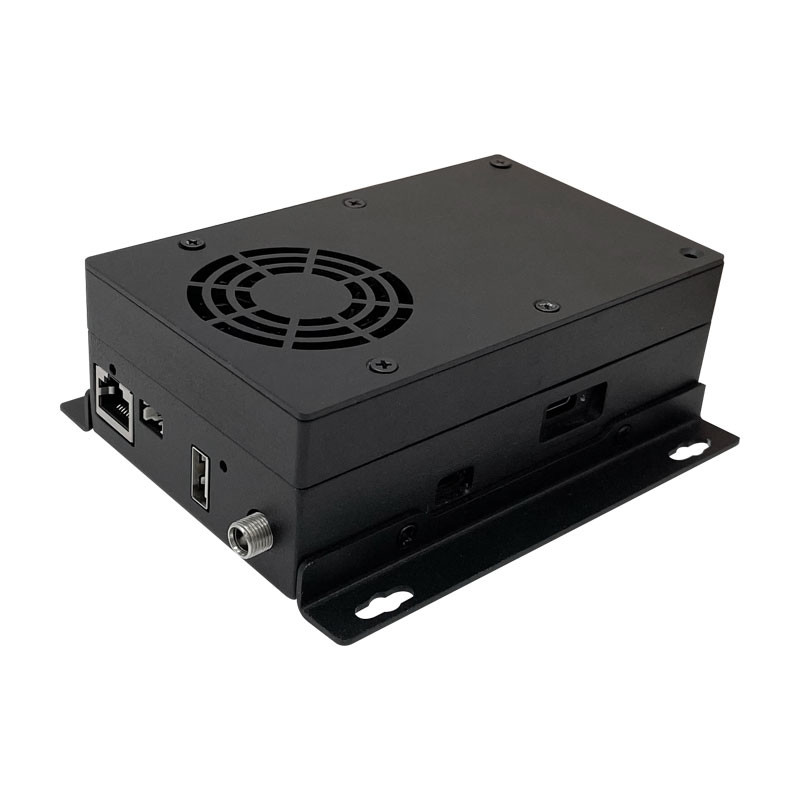

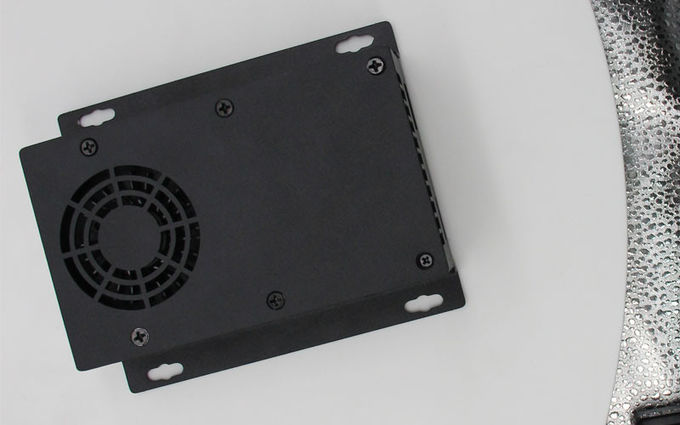

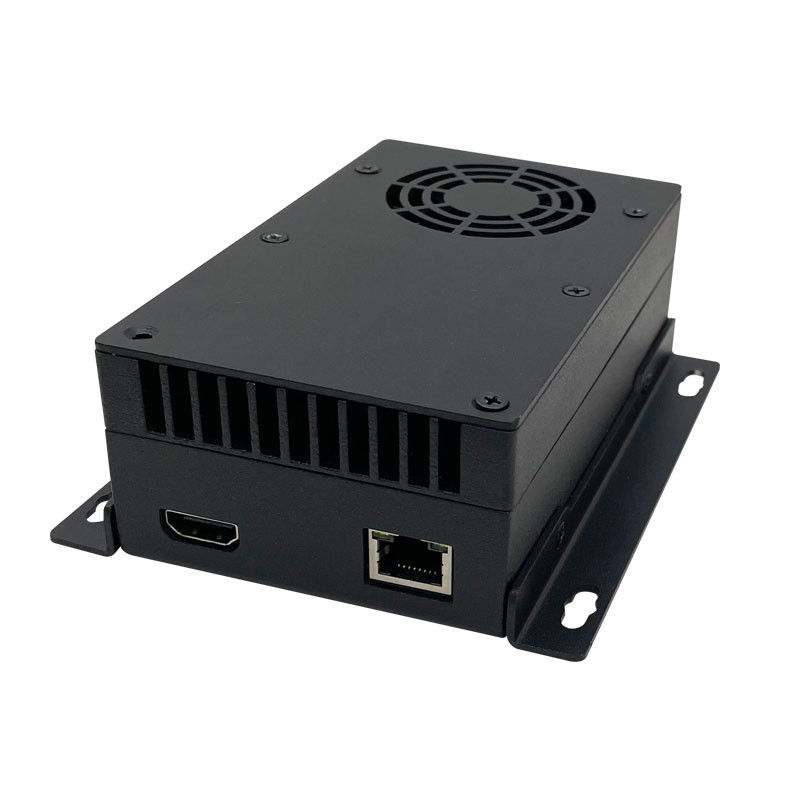

| NAME: | NVIDIA Jetson Orin NX 8G Module 900-13767-0010-000 Rugged Embedded Computer NVMe | Keyword: | NVIDIA Jetson Orin NX 8G Module 900-13767-0010-000 Rugged Embedded Computer NVMe |
|---|---|---|---|
| Module: | Jetson Orin NX 8G | PN: | 900-13767-0010-000 |
| Maximum Operating Freq: | 3200 MHz | AI Perf: | 70 (Sparse) INT8 TOPs |
| Memory: | 8GB 128-bit LPDDR5 DRAM | Storage: | Supports External Storage (NVMe) Via X1 PCIe |
| CPU Cores: | 8 | CPU Maximum Frequency: | 2 GHz |
| High Light: | 900-13767-0010-000 rugged embedded computer,3200 mhz rugged embedded computer,900-13767-0010-000 rugged embedded systems |
||
|
AI Perf |
70 (Sparse) INT8 TOPs |
| Ampere GPU | 1024 NVIDIA® CUDA® cores | 32 Tensor cores | End-to-end lossless compression | Tile Caching | OpenGL® 4.6 | OpenGL ES 3.2 | Vulkan™ 1.1 ◊ | CUDA 10 |
| ARM Cortex-A78AE CPU | Eight-core (ONX 16GB) or six-core (ONX 8GB) Cortex A78AE ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | 2x clusters (4x 256KB L2 +2MB L3) + 4MB LLC | L3 Cache: 4 MB (shared across all clusters) |
| Audio | Dedicated programmable audio processor | ARM Cortex A9 with NEON | PDM in/out | Industry-standard High-Definition Audio (HDA) controller provides a multi-channel audio path to the HDMI® interface |
| Memory | 8 GB 128-bit LPDDR5 DRAM |
| Storage | Supports External Storage (NVMe) via x1 PCIe |
| Standard | Profile(s) | Resolution (Maximum Number of Streams) | Throughput (Up to) |
| H.264 | Baseline, Main, High | 4K60 (1) | 4K30 (2) | 1080p60 (5) | 1080p30 (11) | 720 MP/S |
| High 444, High 444 Predictive, MVC (per view considering two views)* | 4K30 (1) | 1080p60 (2) | 1080p30 (5) | 360 MP/s | |
| H.265 (HEVC) | Main, Main10 | 8K30 (1) | 4K60 (2) | 4K30 (4) | 1080p60 (9) | 1080p30 (18) | 1100 MP/s |
| Main 444, Main 444 10, MV (per view) | 4K60 (1) | 4K30 (2) | 1080p60 (4) | 1080p30 (9) | 550 MP/S | |
| AVI | Main Profile | 8K30 (1) | 4K60 (2) | 4K30 (4) | 1080p60 (10) | 1080p30 (20) | 1000 MP/S |
| VP9 | Profile 0, Profile 2 | 4K60 (1) | 4K30 (3) | 1080p60 (7) | 1080p30 (15) | 1000 MP/S |
• * Maximum throughput half for YUV444 – as compared to YUV420
• AV1 Dec: Maximum aggregate Mbps should be <120
Supported Video Encode Streams(NVIDIA Jetson Orin NX module 900-13767-0010-000)
| Standard | Profile(s) | Resolution (Maximum Number of Streams) | Throughput (Up to) |
| H.264 | UHP | 4K60 (1) | 4K30 (2) | 1080p60 (5) | 1080p30 (11) | 680 MP/s |
| HP | 4K30 (1) | 1080p60 (3) | 1080p30 (7) | 470 MP/s | |
| HQ | 1080p60 (1) | 1080p30 (3) | 220 MP/s | |
| H.265 (HEVC) | UHP | 4K60 (1) | 4K30 (3) | 1080p60 (6) | 1080p30 (12) | 800 MP/S |
| HP | 4K30 (1) | 1080p60 (3) | 1080p30 (6) | 400 MP/S | |
| HQ | 1080p60 (1) | 1080p30 (2) | 140 MP/S | |
| AVI | UHP | 4K60 (1) | 4K30 (3) | 1080p60 (6) | 1080p30 (12) | 750 MP/S |
| HQ | 4K30 (1) | 1080p60 (3) | 1080p30 (6) | 380 MP/S |
Features:
• Timestamp for Audio/Video Sync
• CBR and VBR rate control (supported in firmware)
• Programmable intra-refresh for error resiliency
• Macro-block based and bit based packetization (multiple slice)
• Motion estimation (ME) only mode
