| Place of Origin: | China |
|---|---|
| Brand Name: | HuaWei |
| Model Number: | Ascend Atlas 200I DK A2 |
| Minimum Order Quantity: | 1 |
| Price: | To be discussed |
| Packaging Details: | 35X28X24cm |
| Delivery Time: | 15-30 work days |
| Payment Terms: | D/A, D/P, T/T |
| Supply Ability: | 1+set+4weeks |

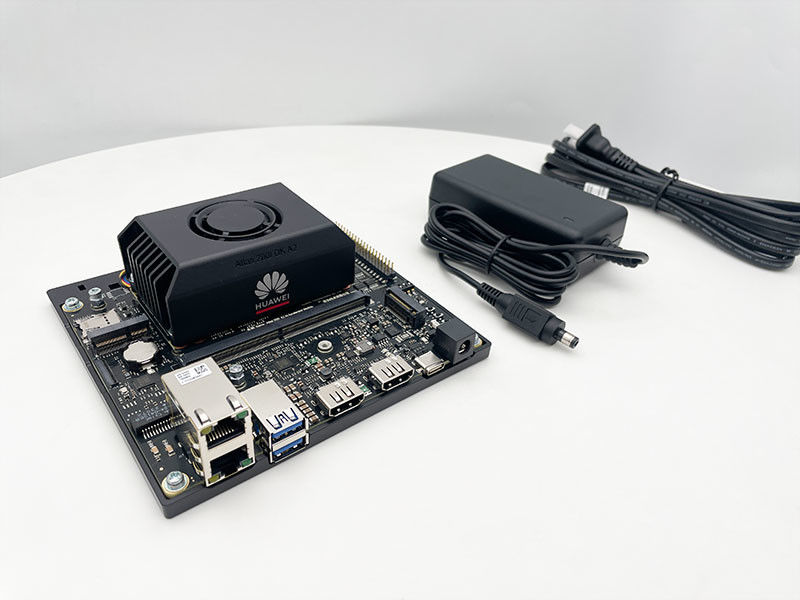

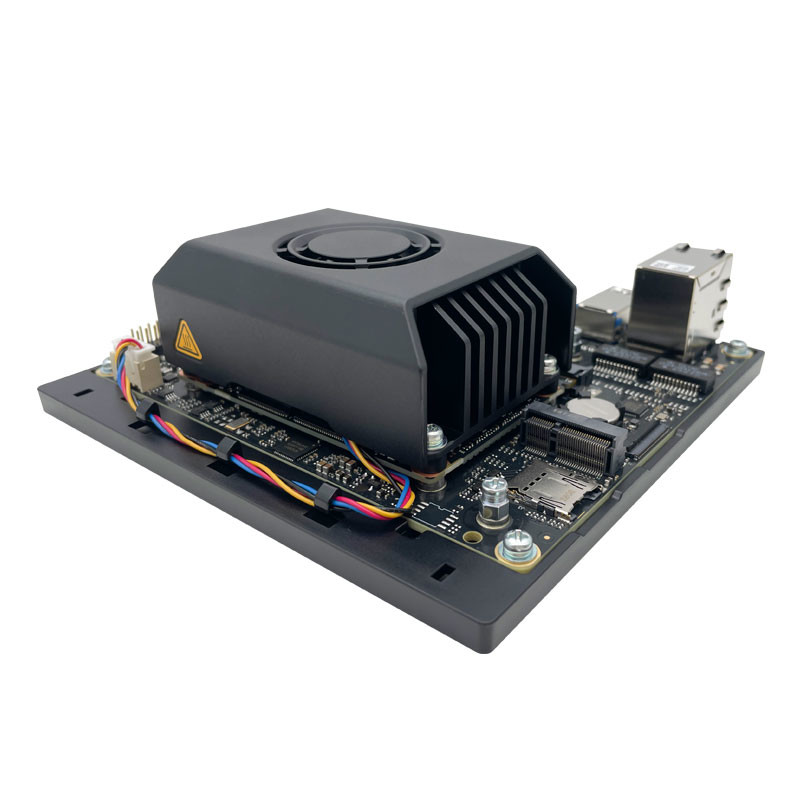

| NAME: | Rugged Embedded Computer: Hua Wei Ascend Atlas 200I DK A2 4G With 8 TOPS INT8 | Keyword: | Rugged Embedded Computer: Hua Wei Ascend Atlas 200I DK A2 4G With 8 TOPS INT8 |
|---|---|---|---|
| AI Perf: | 8 TOPS | Memory: | 4GB LPDDR4X，support ECC |
| 40-pin Expansion Connectors: | 1* | Power: | 24W |
| HDMI: | 2* | Size: | 135mm * 120mm * 44mm |
| USB 3.0 Type-C Port: | 1* | RJ45: | 2* |
| High Light: | 8 tops rugged embedded computer,24w rugged embedded computer,8 tops rugged embedded systems |
||
MindX for Ascend Application Enablement,MindX helps quickly develop AI applications designed for various industry scenarios. It comprises MindX DL for deep learning enablement, MindX Edge for intelligent edge enablement, the ModelZoo pre-trained model library, and multiple industry SDKs.Unified management and scheduling of data center computing resources, enabling partners to quickly develop deep learning systems,Lightweight edge computing resource management and O&M, enabling industry customers to quickly build an edge-cloud collaborative inference platform
| AI Perf | 8 TOPS |
| Memory | 4GB LPDDR4X,support ECC |
| CPU | 4 core * 1.0 GHz |
| Encoding/Decoding | H.264 / H.265 hardware decoding,20-channel 1080p 30 FPS, 2-channel 4K 75FPS JPEG decoding: 1080p 768 FPS; encoding: 1080P 256FPS; Max. resolution: 16384 x 16384 |
| Expansion Interface | 2x MIPI-CSI 51-pin connector, it can connect the camera module
1x MIPI-DSI 51-pin connector
2x RJ45 network ports, supporting adaptive 100/1000M
2x HDMI ports
2x USB 3.0 Type-A ports, compatible with USB 2.0
1x USB 3.0 Type-C port
1x 40-pin expansion connectors
|
| Power | 24W |
| Dimentions | 135mm*120mm*44mm |
