| NAME: | Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI 32GB EMMC FLASH 4x ARM CORTEX-A53 | Keyword: | Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI 32GB EMMC FLASH 4x ARM CORTEX-A53 |
|---|---|---|---|
| Chip CPU: | Mali™-400 MP2 GPU | Chip Working Temperature: | -40℃~85℃ |
| Dimension: | 80 X 80 X 11.8 Mm | Height: | 3.0mm |
| Voltage Input: | Board To Board Connector, +12V DC | Number Of Layers: | 16-Layer Core Board PCB |
| High Light: | ai xilinx fpga development board,32gb xilinx fpga development board |
||

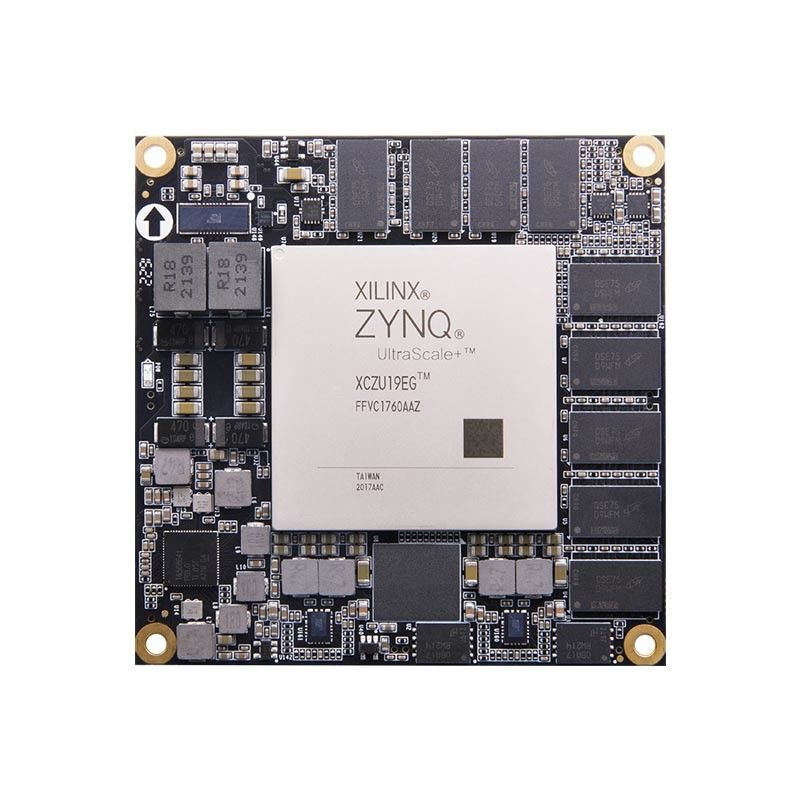

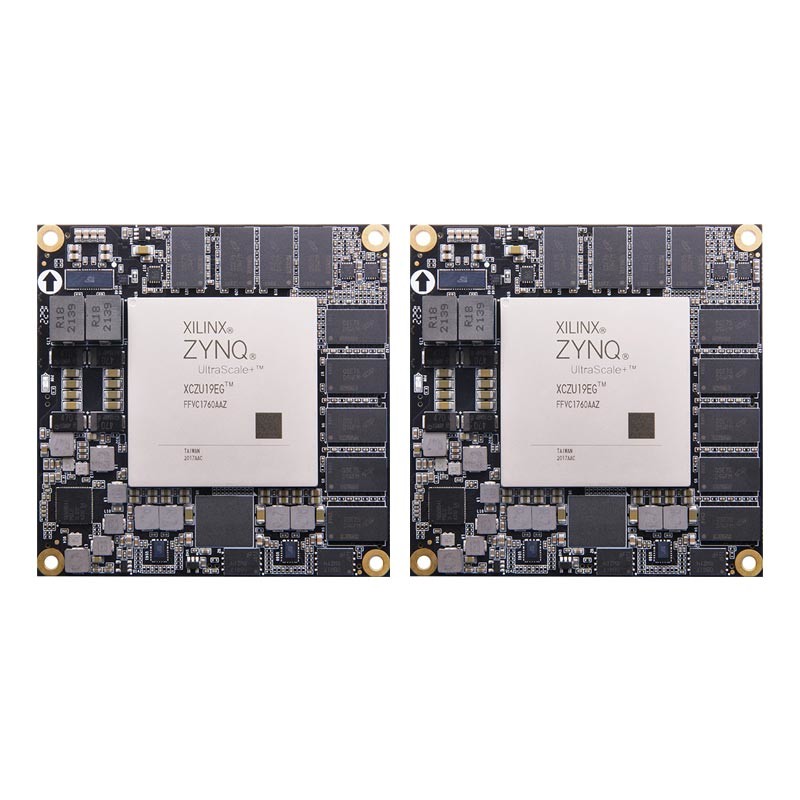

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core board AI 32GB eMMC FLASH 4x ARM CORTEX-A53
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core board AI XCZU19EG

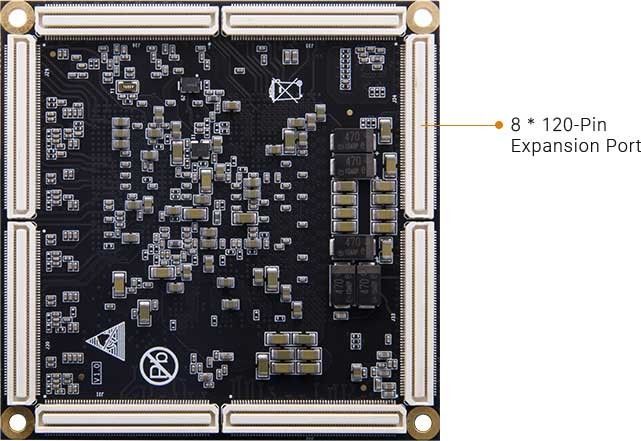

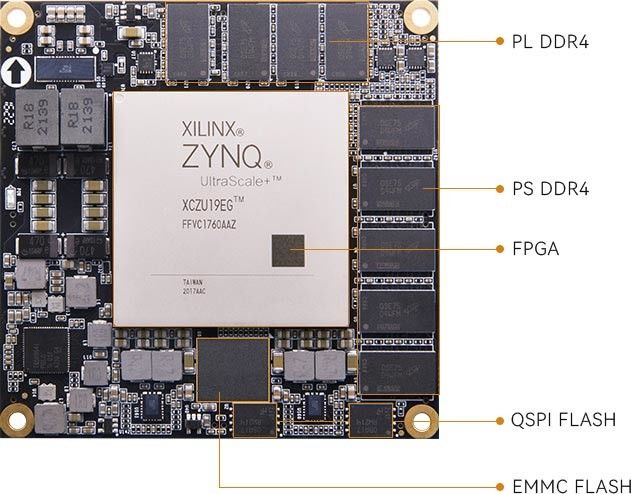

ACU19EG (core board model name) FPGA core board, ZYNQchipset is basedonXCZU19EG-2FFVC1760I of XILINX company Zynq UltraScale+ MPSoCs EGFamily. This core board uses 9 Micron DDR4 chips MT40A512M16GE, 5 pcs DDR4isonthe PS side to form a 72-bit data bus bandwidth and 8GB capacity. 4 DDR4chipisonthe PL side, which is a 64-bit data bus width and a capacity of 8GB. Thehigh-testspeed of DDR4 SDRAM on the PS side and PL side is 1200MHz (data rate2400Mbps).In addition, two 512MBit QSPI FLASH and an 32GB eMMC FLASHchiparealsointegrated on the core board. Eight board-to-board connectors expand the IOs of USB2.0,Gigabit Ethernet, SDcard and other MIOs in PS side; also expand 4 pairs of PS MGT, 48GTH/GTYtransceivers and almost all IO ports on the PL side (HP I/O:240,HDI/O:96). Thecoreboard size is 80*80 (mm), which is very suitable for secondary development.
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core board
| SoM Module | ACU19EG |
| FPGA Chip | XCZU19EG-2FFVC1760I |
| Chip CPU | 4x ARM Cortex™-A53, 1.333GHz, Cortex™-R5 x2, 533MHz |
| Chip GPU | Mali™-400 MP2 |
| RAM | PS DDR4 4GB, 72bit, 2400Mbps, Support ECC PL DDR4 4GB, 64bit, 2400Mbps |
| PS side High-Speed Connection | PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet |
| PS side General Connection | 2x USB 2.0, 2 x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO |
| Chip Level | Industrial grade, -40°c~85°c |
| Logic Cells | 1,143K |
| Flip-Flops | 1,045K |
| eMMC FLASH | 32GB |
| QSPI FLASH | 128MB |
| Expansion port | 8-way 120-pin 0.5mm spacing extension connector with Panasonic high-speed industrial grade board-to-board connector |
| Crystal oscillator | A RTC real-time clock provides 32.768 KHz , real-time clock source for PS system A single-ended 33.333MHz, crystal vibration is supplied to the PS system clock input A Differential 200MHz crystal oscillation supplied to PL logic, DDR4 reference clock |
Power Supply Parameters
| Voltage Input | Board to Board Connector, +12V DC |
| Size | 80 x 80 x 11.8 mm |
| Height | 3.0mm |
