| NAME: | Xilinx Zynq UltraScale+ MPSoC XCZU9EG FPGA Development Board Developer Kit ARM CPU | Keyword: | Xilinx Zynq UltraScale+ MPSoC XCZU9EG FPGA Development Board Developer Kit ARM CPU |
|---|---|---|---|
| Core Board SOM: | ACU9EG | Chip CPU: | Mali™-400 MP2 GPU |
| FLASH Storage: | 8GB EMMC FLASH, 64MB QSPI FLASH | QSPI FLASH: | 64MB |
| Chip Working Temperature: | -40℃~85℃ | Global Clock: | 4 |
| High Light: | ruggedized fpga board,acu9eg fpga board |
||

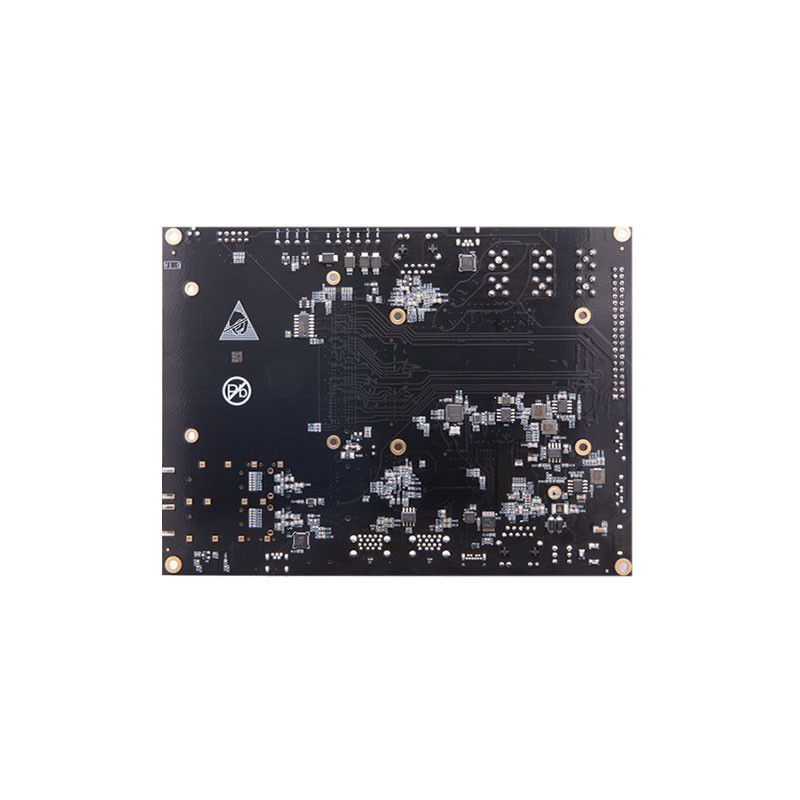

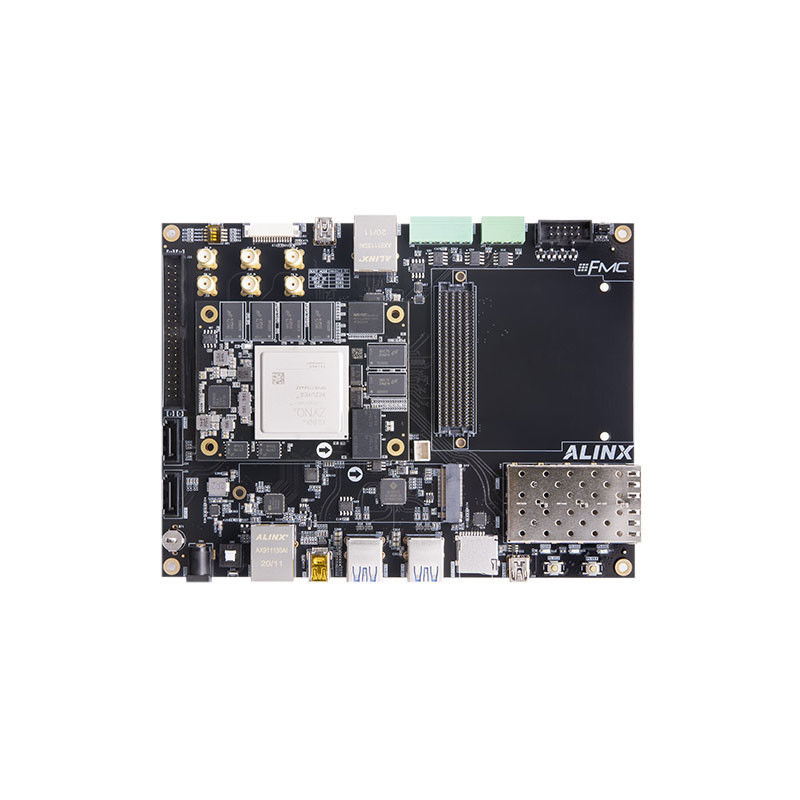

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU9EG 8GB eMMC FLASH 64MB QSPI FLASH ARM CPU
Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board
Quad-core ARM Cortex-A53 and Dual-core Cortex-R5 Real-time Processors,Apply to 5G Wireless Infrastructure, High-Speed Data Exchange and Storage Industrial Control, AI intelligence, Cloud computing 4K Video Transmission Processing, and Aerospace,Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring, traffic safety, smart construction site, smart hotel, smart agriculture, Internet of things,Super Combination with Mali™-400 MP2 GPU, 64bit DDR4 RAM
Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board
| Core Board SOM | ACU9EG |
| FPGA Chip | XCZU9EG-2FFVB1156I |
| Chip CPU | 4x ARM Cortex-A53, 1.333GHz,2x Cortex™-R5, 533MHz |
| Chip GPU | Mali™-400 MP2 |
| Core Board RAM | 4GB PS DDR4, 64bit, 2400Mbps 2GB PL DDR4, 32bit, 2400Mbps |
| PS end High Speed Connector | PCIe Gen2 x4, 2x USB3.0, SATA 3.1,DisplayPort, 4x Tri-mode Gigabit Ether net |
| PS end General Connector | 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO |
| HP I/O | 96 |
| HD I/O | 66 |
| Chip Working Temperature | -40℃~85℃ |
| Speed Grades | -2 |
| Logic Cells | 600k |
| CLB Flip-Flops | 548K |
| EMMC FLASH | 8GB |
Interface and Function
| QSPI Flash | 2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage |
| EMMC Flash | 8GB, Used as Large-Capacity Storage System |
| 40-120 Pin Expansion Ports | Panasonic Industrial Grade High-Speed Inter-Board Connectors |
| Crystal Oscillator | 33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic |
Power Supply Parameters
| Voltage Input | Board to Board Connector, +12V DC |
