| Place of Origin: | China |
|---|---|
| Brand Name: | ALINX |
| Model Number: | XCZU9EG |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | To be discussed |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |
| NAME: | Xilinx Zynq UltraScale+ MPSoC FPGA HP/HD I/O 96/66 With 8GB EMMC FLASH & 64MB QSPI FLASH | Keyword: | Xilinx Zynq UltraScale+ MPSoC FPGA HP/HD I/O 96/66 With 8GB EMMC FLASH & 64MB QSPI FLASH |
|---|---|---|---|
| Voltage Input: | +12V DC | Chip CPU: | Mali™-400 MP2 GPU |
| FLASH Storage: | 8GB EMMC FLASH, 64MB QSPI FLASH | QSPI FLASH: | 64MB |
| Chip Working Temperature: | -40℃~85℃ | Dimension: | 3.15 Inch X 2.36 Inch |
| Height: | 0.12 Inch | Number Of Layers: | 16-Layer Core Board PCB |
| High Light: | 12v fpga kit,ruggedized fpga kit |
||
Xilinx Zynq UltraScale+ MPSoC FPGA HP/HD I/O 96/66 with 8GB eMMC FLASH & 64MB QSPI FLASH

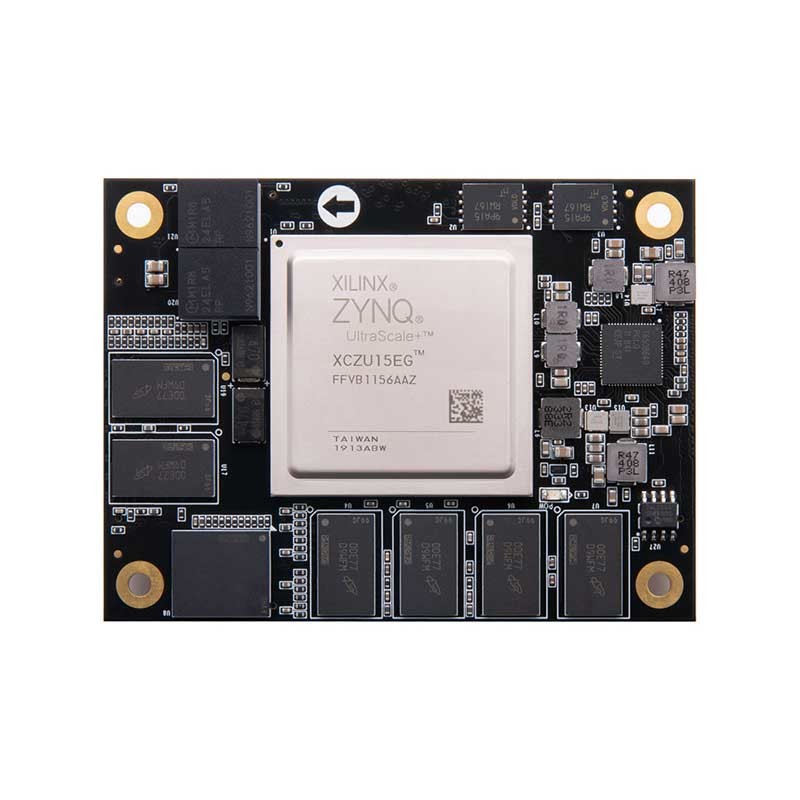

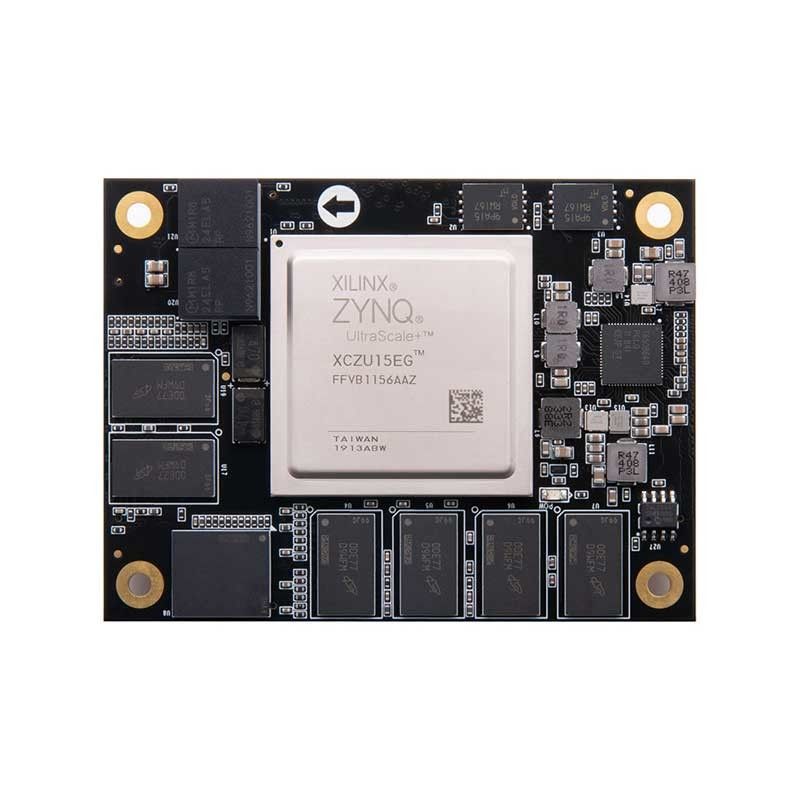

Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board

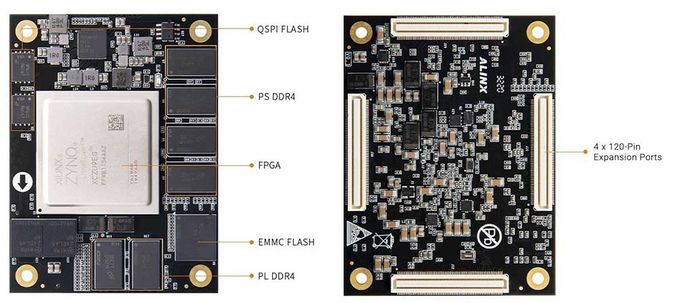

ACU9EG (core board model, the same below) FPGAcoreboard, ZYNQchip is based on XCZU9EG-2FFVB1156I of XILINX company ZynqUltraScale+MPSoCs EG Family. This core board uses 6 Micron DDR4 chips MT40A512M16GE, of which4DDR4 chips are mounted on the PS side to form a 64-bit databusbandwidthand 4GB capacity. 2 DDR4 chip is mounted on the PL end, whichisa32-bitdata bus width and a capacity of 2GB. The highest operating speedof DDR4SDRAM on the PS side can reach 1200MHz (data rate 2400Mbps), andthehighest operating speed of DDR4 SDRAM on the PL side can reach1200MHz(data rate 2400Mbps). In addition, two 256MBit QSPI FLASHandan8GBeMMC FLASH chip are also integrated on the core board tostart storageconfiguration and system files
Xilinx Zynq UltraScale+ MPSoC FPGA High-end FPGA Board
| Core Board SOM | ACU9EG |
| FPGA Chip | XCZU9EG-2FFVB1156I |
| Chip CPU | 4x ARM Cortex-A53, 1.333GHz,2x Cortex™-R5, 533MHz |
| Chip GPU | Mali™-400 MP2 |
| Core Board RAM | 4GB PS DDR4, 64bit, 2400Mbps 2GB PL DDR4, 32bit, 2400Mbps |
| PS end High Speed Connector | PCIe Gen2 x4, 2x USB3.0, SATA 3.1,DisplayPort, 4x Tri-mode Gigabit Ether net |
| PS end General Connector | 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO |
| HP I/O | 96 |
| HD I/O | 66 |
| Chip Working Temperature | -40℃~85℃ |
| Speed Grades | -2 |
| Look-up-tables (LUTs) | 274k |
| DSP Slices | 2520 |
| EMMC FLASH | 8GB |
Interface and Function
| QSPI Flash | 2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage |
| EMMC Flash | 8GB, Used as Large-Capacity Storage System |

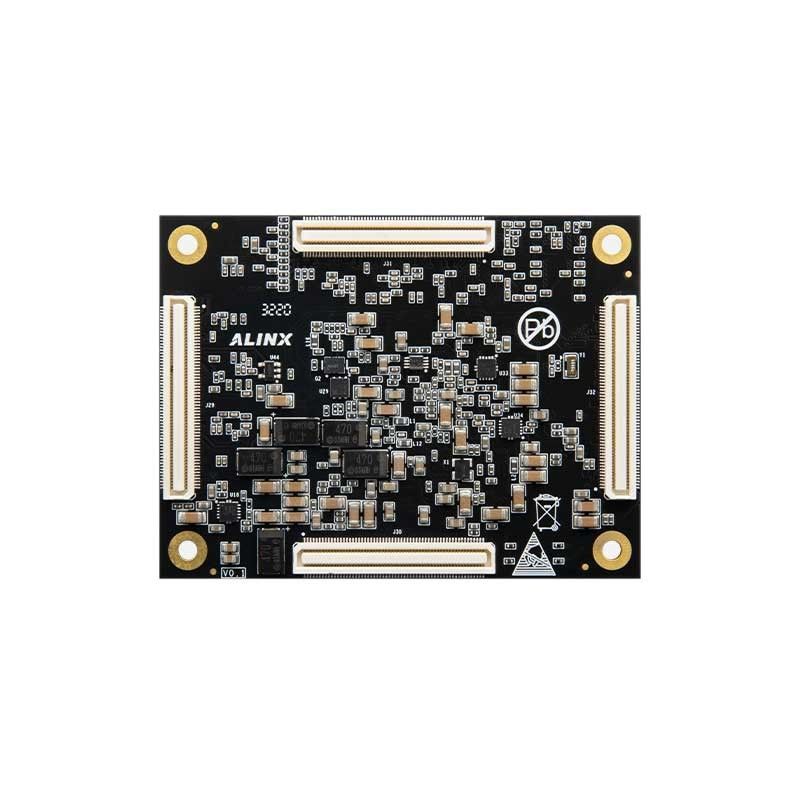

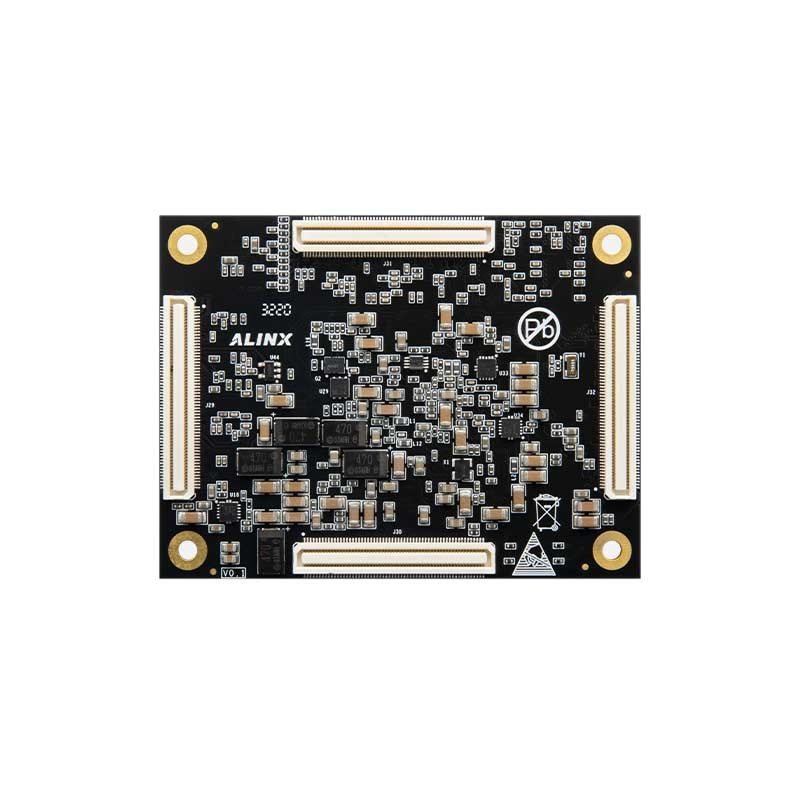

| 40-120 Pin Expansion Ports | Panasonic Industrial Grade High-Speed Inter-Board Connectors |
| Crystal Oscillator | 33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic |
Power Supply Parameters
| Voltage Input | Board to Board Connector, +12V DC |
