| Place of Origin: | China |
|---|---|
| Brand Name: | PLink-AI |
| Model Number: | 7F5 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |

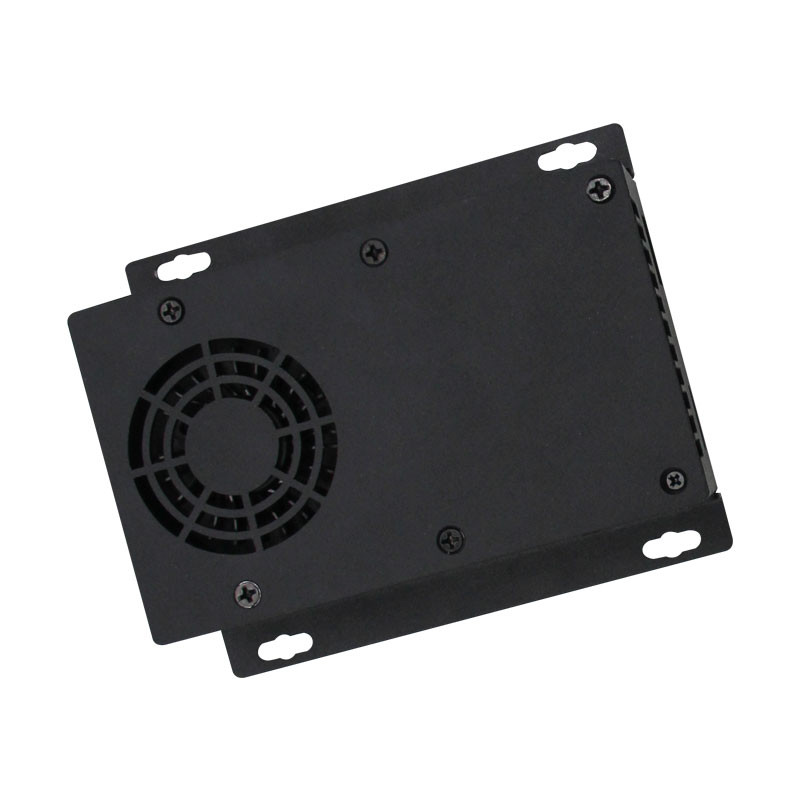

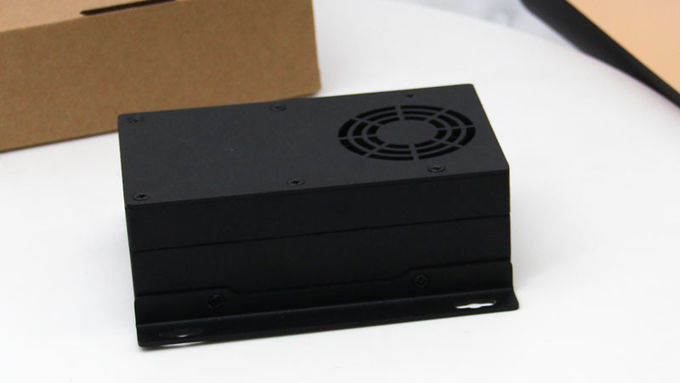

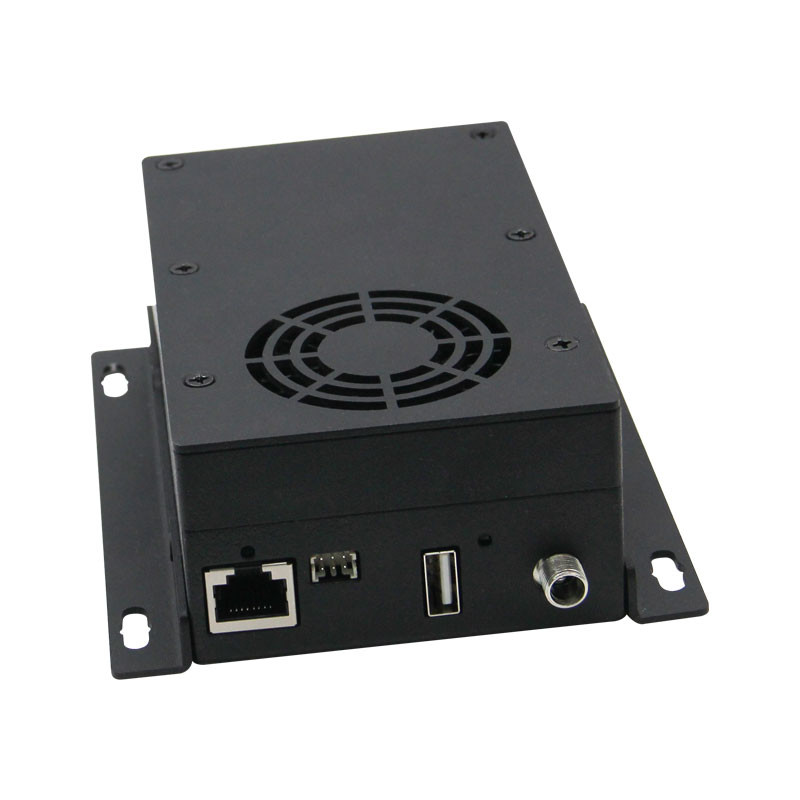

| NAME: | Industrial Embedded IPC Jetson Orin NX 16G For V2X UAV Module Vehicles Rugged Embedded Computer | Keyword: | Industrial Embedded IPC Jetson Orin NX 16G For V2X UAV Module Vehicles Rugged Embedded Computer |
|---|---|---|---|
| Module: | Jetson Orin NX 16G | Warranty: | 3 Years |
| AI Perf: | Up To 100 (Sparse) INT8 TOPs And 50 (Dense) INT8 TOPs | Memory: | 16GB 128-bit LPDDR5 |
| Storage: | Supports External Storage (NVMe) Via X1 PCIe | Imaging: | Eight Lanes MIPI CSI-2 | D-PHY 2.1 (20 Gbps) |
| Video Decode: | 18x 1080p30 (H.265) | ||
| High Light: | jetson orin nx rugged embedded computer,v2x uav rugged embedded computer,jetson orin nx rugged embedded systems |
||
|
AI Performance |
Up to 100 (Sparse) INT8 TOPs and 50 (Dense) INT8 TOPs |
| Ampere GPU | 1024 NVIDIA® CUDA® cores | 32 Tensor cores | End-to-end lossless compression | Tile Caching | OpenGL® 4.6 | OpenGL ES 3.2 | Vulkan™ 1.1 ◊ | CUDA 10 |
| Deep Learning Accelerator | 2x NVDLA |
| Maximum Operating Frequency | 614 MHz | 20 TOPS each (Sparse INT8) |
| ARM Cortex-A78AE CPU | Eight-core (ONX 16GB) or six-core (ONX 8GB) Cortex A78AE ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | 2x clusters (4x 256KB L2 +2MB L3) + 4MB LLC | L3 Cache: 4 MB (shared across all clusters) |
| Audio | Dedicated programmable audio processor | ARM Cortex A9 with NEON | PDM in/out | Industry-standard High-Definition Audio (HDA) controller provides a multi-channel audio path to the HDMI® interface |
| Memory | 16 GB 128-bit LPDDR5 DRAM |
| Networking | 10/100/1000 BASE-T Ethernet | Media Access Controller (MAC) |
| Imaging | Eight lanes MIPI CSI-2 | D-PHY 2.1 (20 Gbps) |
| Display Controller | 1x shared HDMI 2.1, eDP 1.4, VESA DisplayPort 1.4a HBR3 |
| Maximum Resolution (eDP/DP/HDMI) | up to 3840x2160 at 60 Hz (up to 36 bpp) | up to four displays can be supported over DP interface with MST and compatible serializer |
| Storage | Supports External Storage (NVMe) via x1 PCIe |
