Detail Information

NAME:	NVIDIA Jetson Orin Nano 4G Module 900-13767-0040-000 Rugged Embedded Computer 20 TOPS	Keyword:	NVIDIA Jetson Orin Nano 4G Module 900-13767-0040-000 Rugged Embedded Computer 20 TOPS
Module:	Jetson Orin Nano 4G	PN:	900-13767-0040-000
Warranty:	3 Years	AI Perf:	Up To 20 (Sparse) INT8 TOPs And 10 (Dense) INT8 TOPs
Memory:	4GB 64-bit LPDDR5 DRAM	Storage:	Supports External Storage (NVMe)
Operating Requirements:	5W I 10W
High Light:	5w rugged embedded computer , 20 tops rugged embedded computer , 20 tops rugged embedded systems

Product Description

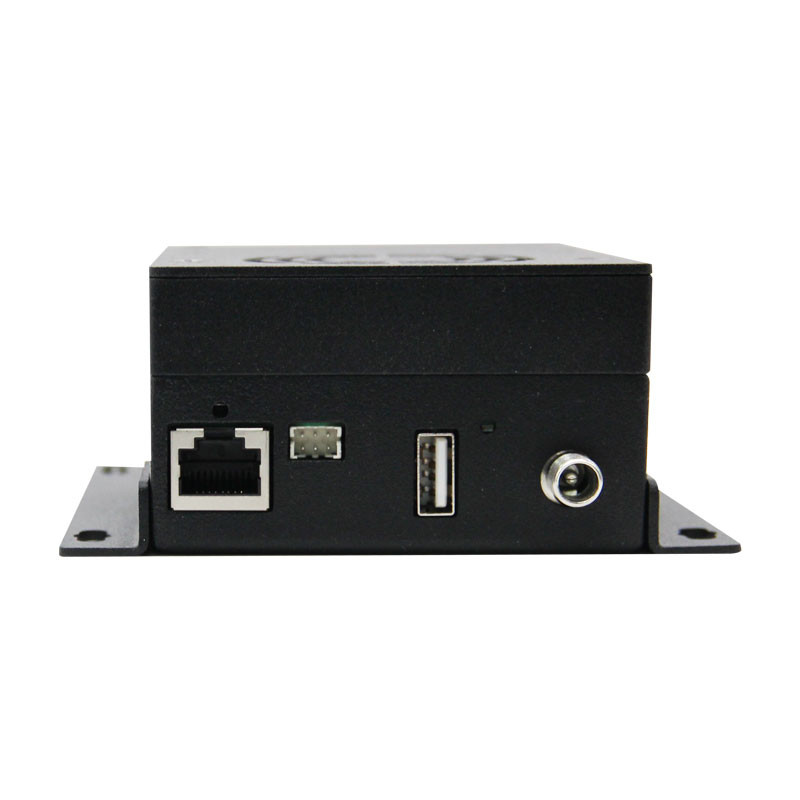

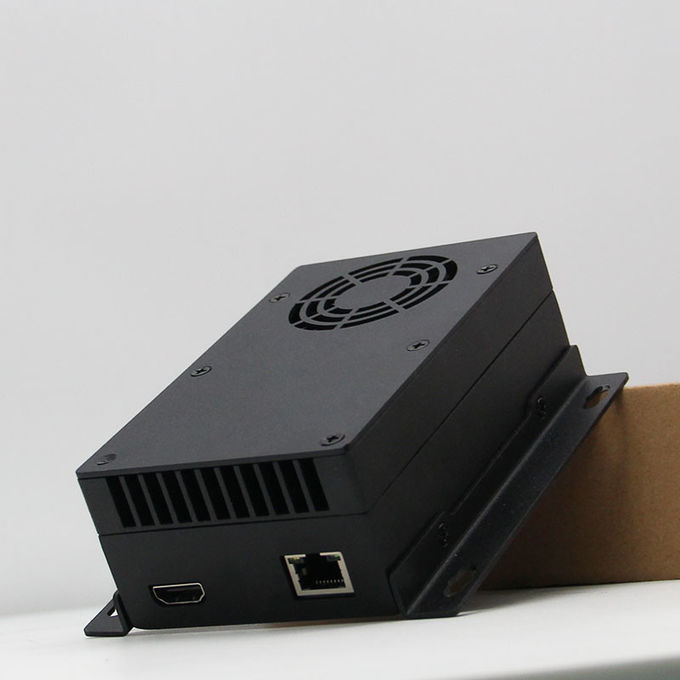

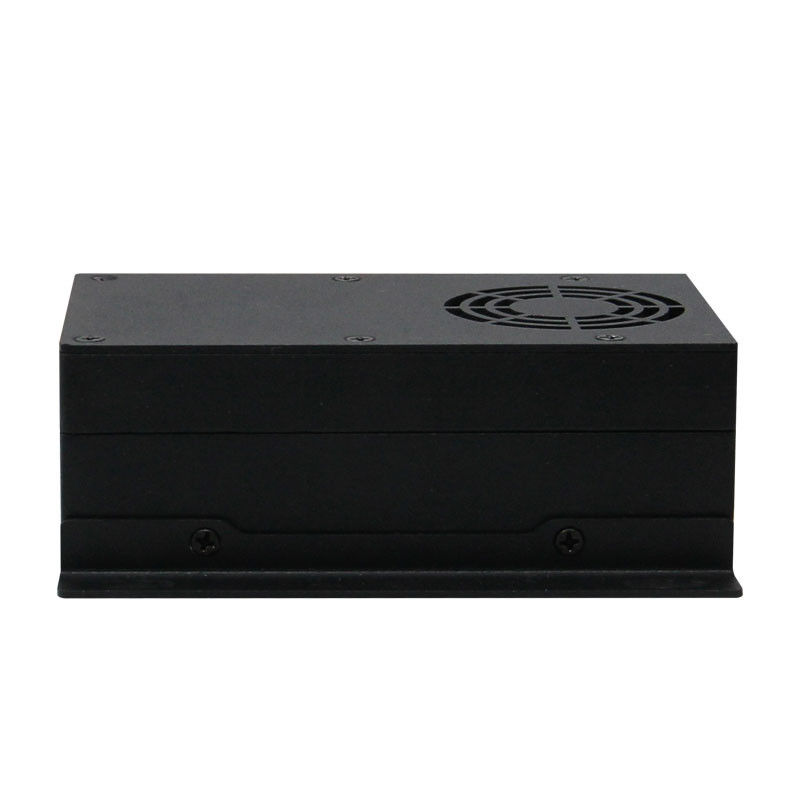

NVIDIA Jetson Orin Nano 4G Module 900-13767-0040-000 Rugged Embedded Computer 20 TOPS

Rugged Embedded Computer Jetson Orin Nano 4G 900-13767-0040-000

The Jetson Orin Nano 8GB integrates 8GB 128-bit LPDDR5 DRAM, and Jetson Orin Nano 4GB integrates 4GB 64-bit LPDDR5 DRAM. Maximum frequency of Jetson Orin Nano Memory is 2133 MHz. The theoretical peak memory bandwidth on Orin Nano 8GB is 68 GB/s, and on Orin Nano 4GB is 34 GB/s. The Memory Controller (MC) maximizes memory utilization while providing minimum latency access for critical CPU requests. An arbiter is used to prioritize requests, optimizing memory access efficiency and utilization and minimizing system power consumption. The MC provides access to main memory for all internal devices. It provides an abstract view of memory to its clients via standardized interfaces, allowing the clients to ignore details of the memory hierarchy. It optimizes access to shared memory resources, balancing latency and efficiency to provide best system performance, based on programmable parameters.

GPU Operation of the NVIDIA Jetson Orin Nano 4G module 900-13767-0040-000

Module	CUDA Cores	Tensor Cores	Operating Frequency per Core (up to)
Jetson Orin Nano 8GB	1024	32	625 MHz
Jetson Orin Nano 4GB	512	16	625 MHz

CPU Operation of the NVIDIA Jetson Orin Nano 4G module 900-13767-0040-000

Module	CPU Cores	CPU Maximum Frequency
Jetson Orin Nano 8GB	6	1.5 GHz
Jetson Orin Nano 4GB	6	1.5 GHz

NVIDIA Jetson Orin Nano 4GB 900-13767-0040-000 Technical Specification

AI Perf	Up to 20 (Sparse) INT8 TOPs and 10 (Dense) INT8 TOPs
Ampere GPU	512 NVIDIA® CUDA® cores \| 16 Tensor cores
DARM Cortex-A78AE CPU	Six-core (ON 8GB and ON 4GB) Cortex A78AE ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture \| 2x clusters (1x 4-core cluster + 128 KB L1 + 256KB L2 per core + 2MB L3) + 1x 2- core cluster (128 KB L1 + 256KB L2 per core + 2MB L3) \| System Cache: 4 MB (shared across all clusters)
Temp. Range	-25°C – 90°C
Supported Power Input	5V-20V
Module Size	69.6 mm x 45 mm \| 260 pin SO-DIMM Connector
Memory	4GB 64-bit LPDDR5 DRAM
Networking	10/100/1000 BASE-T Ethernet \| Media Access Controller (MAC)
Storage	Supports External Storage (NVMe)

Nvidia Jetson Orin Nano 4g Module Rugged Embedded Computer 20 Tops 0

Tag:

Place of Origin:	China
Brand Name:	PLink
Model Number:	7F5

Minimum Order Quantity:	1PCS
Price:	To be discussed
Delivery Time:	15-30 work days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	To be discussed
