Detail Information

NAME:	NVIDIA Jetson Orin NX 8G Module 900-13767-0010-000 Rugged Embedded Computer 70 TOPS Ampere GPU	Keyword:	NVIDIA Jetson Orin NX 8G Module 900-13767-0010-000 Rugged Embedded Computer 70 TOPS Ampere GPU
Module:	Jetson Orin Nano 8G	PN:	900-13767-0030-000
Warranty:	3 Years	AI Perf:	Up To 40 (Sparse) INT8 TOPs And 20 (Dense) INT8 TOPs
Memory:	8GB 128-bit LPDDR5 DRAM	Storage:	Supports External Storage (NVMe)
Display Controller:	1x4K30 DP 1.2 (+MST For 2x 1080p60), HDMI 1.4, EDP 1.4
High Light:	900-13767-0030-000 rugged embedded computer , 40 tops rugged embedded computer , 900-13767-0030-000 rugged embedded systems

Product Description

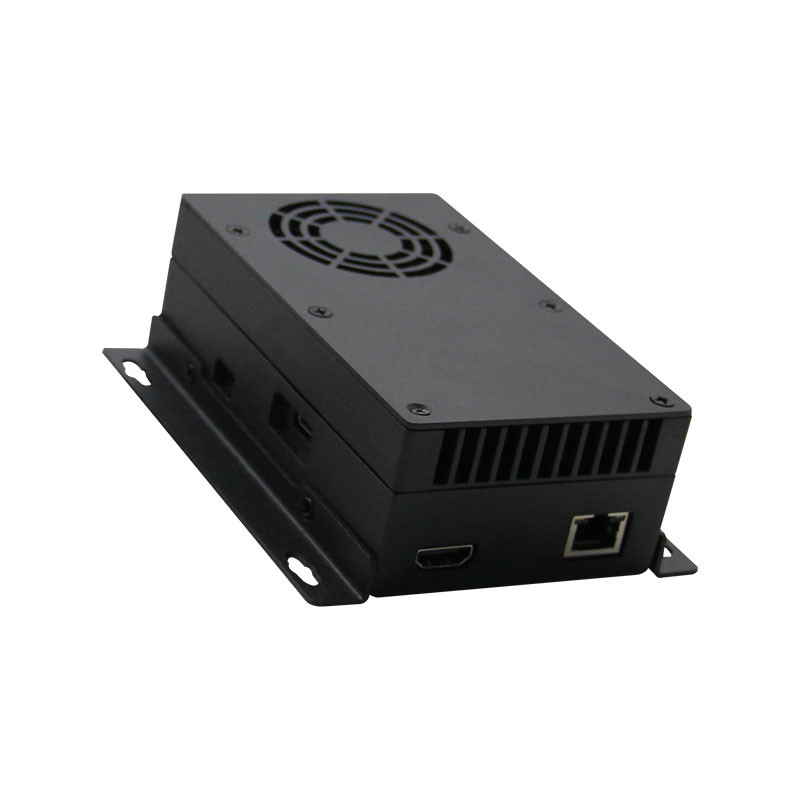

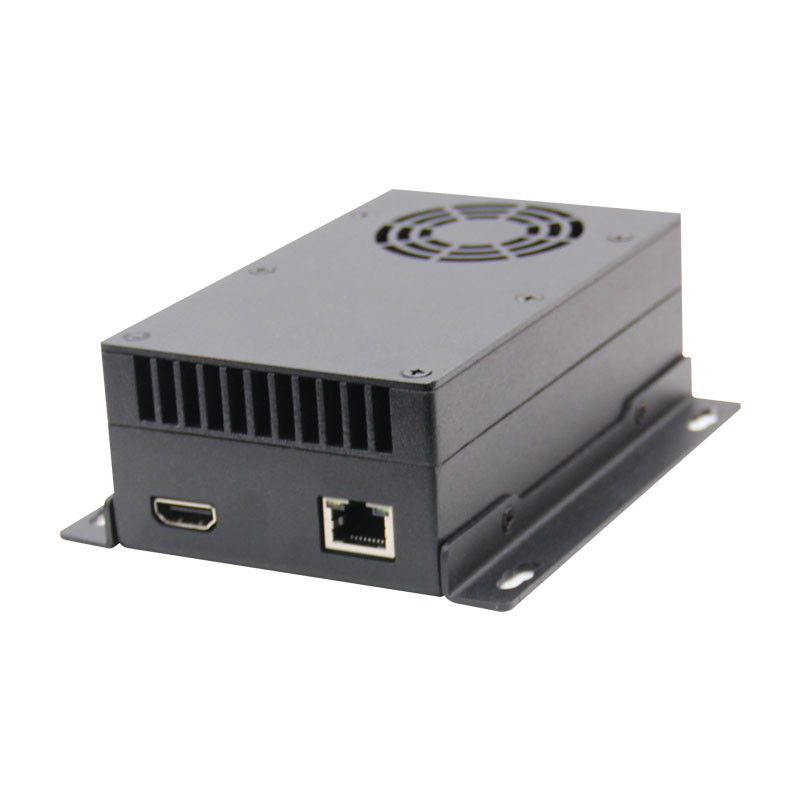

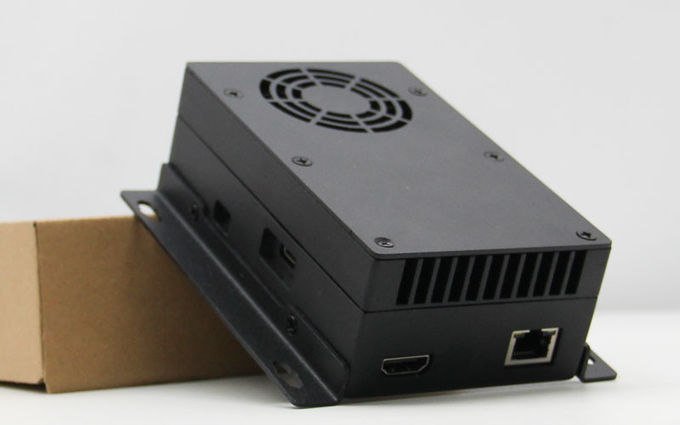

NVIDIA Jetson Orin Nano 8G Module 900-13767-0030-000 Rugged Embedded Computer 40 TOPS

Rugged Embedded Computer Jetson Orin Nano 8G 900-13767-0030-000

Ampere introduces third-generation NVIDIA Tensor Cores which offer a wider range of precisions including TensorFloat-32 (TF32), bfloat16, FP16, and INT8 all of which provide unmatched versatility and performance. TensorFloat-32 (TF32) is a new format that uses the same 10-bit Mantissa as half-precision (FP16) math and is shown to have more than sufficient margin for the precision requirements of AI workloads. In addition, since the TF32 adopts the same 8-bit exponent as FP32 it can support the same numeric range. Ampere adds support for structured sparsity. Not all the parameters of modern AI networks are needed for accurate predictions and inference, and some can be converted to zeros to make the models “sparse” without compromising accuracy. The Tensor Cores in Ampere can provide up to 2x higher performance for inference of sparse models. Ampere supports Compute Data Compression which can accelerate unstructured sparsity and other compressible data patterns. Compression in L2 provides up to a 4x improvement in DRAM read/write bandwidth, up to 4x improvement in L2 read bandwidth, and up to a 2x improvement in L2 capacity. Ampere also supports many other enhancements for higher compute throughput

GPU Operation of the NVIDIA Jetson Orin Nano 8G module 900-13767-0030-000

Module	CUDA Cores	Tensor Cores	Operating Frequency per Core (up to)
Jetson Orin Nano 8GB	1024	32	625 MHz
Jetson Orin Nano 4GB	512	16	625 MHz

NVIDIA Jetson Orin Nano 8GB 900-13767-0030-000 Technical Specification

AI Performance	Up to 40 (Sparse) INT8 TOPs and 20 (Dense) INT8 TOPs
Ampere GPU	1024 NVIDIA® CUDA® cores \| 32 Tensor cores
DARM Cortex-A78AE CPU	Six-core (ON 8GB and ON 4GB) Cortex A78AE ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture \| 2x clusters (1x 4-core cluster + 128 KB L1 + 256KB L2 per core + 2MB L3) + 1x 2- core cluster (128 KB L1 + 256KB L2 per core + 2MB L3) \| System Cache: 4 MB (shared across all clusters)
Peripheral Interfaces	xHCI host controller with integrated PHY (up to) 3x USB 3.2, 3x USB 2.0 \| 3 x1 (or 1 x2 + 1 x1) + 1 x4 (GEN3) PCIe \| 3x UART \| 2x SPI \| 4x I 2C \| 1x CAN \| DMIC \| DSPK \| 2x I2S \| 15x GPIOs
Video Decode	Standards supported: H.265 (HEVC), H.264, VP9, AV1 o 1x4K60 (H.265) o 2x4K30 (H.265) o 5x1080p60 (H.265) o 11x1080p30 (H.265)
Video Encode	1080p30 Supported via CPU Cores with Software
Memory	8 GB 128-bit LPDDR5 DRAM
Networking	10/100/1000 BASE-T Ethernet \| Media Access Controller (MAC)
Storage	Supports External Storage (NVMe)

Nvidia Jetson Orin Nano 8g Module Rugged Embedded Computer 900-13767-0030-000 40 Tops 0

Tag:

Place of Origin:	China
Brand Name:	PLink
Model Number:	7F5

Minimum Order Quantity:	1PCS
Price:	To be discussed
Delivery Time:	15-30 work days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	To be discussed

Nvidia Jetson Orin Nano 8g Module Rugged Embedded Computer 900-13767-0030-000 40 Tops
