| Place of Origin: | China |
|---|---|
| Brand Name: | ALINX |
| Model Number: | XCZU19EG |
| Minimum Order Quantity: | 1set |
| Price: | To be discussed |
| Delivery Time: | To be discussed |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |
| NAME: | Xilinx Zynq UltraScale MPSoC FPGA AI High-end FPGA Board 32GB EMMC FLASH 512Mbit QSPI FLASH | Keyword: | Xilinx Zynq UltraScale MPSoC FPGA AI High-end FPGA Board 32GB EMMC FLASH 512Mbit QSPI FLASH |
|---|---|---|---|
| FLASH Storage: | 32GB EMMC FLASH, 512Mbit QSPI FLASH | Chip Working Temperature: | -40℃~85℃ |
| Dimension: | 165mm X 113.94mm | PCIE Gen 3x16: | 5 |
| Voltage Input: | Board To Board Connector, +12V DC | 100G Ethernet: | 4 |
| High Light: | 32gb fpga board,alinx fpga board |
||

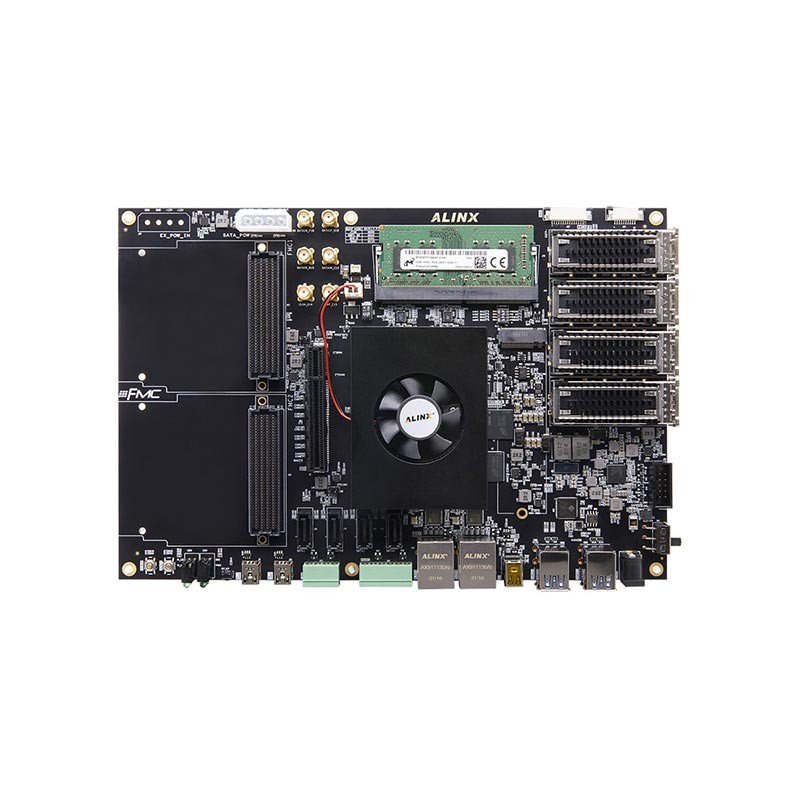

Xilinx Zynq UltraScale MPSoC FPGA AI High-end FPGA Board 32GB eMMC FLASH 512Mbit QSPI FLASH
Xilinx Zynq UltraScale+ MPSoC AI 100G Optical fiber HPC FPGA Core Board XCZU19EG
Development software version: vitis2020.1, Linux version: petalinux5.4.0-xilinx-v2020.1 all supporting materials of the development board are provided through Baidu online disk. After purchase, please contact customer service to obtain,High speed optical fiber network communication, high-speed data exchange and storage, industrial control, deep learning, AI intelligence, cloud computing, 4K video transmission and processing,support XILINX Vitis-AI DPU; 100 Gb/s optical fiber,32GB eMMC FLASH, 512Mbit QSPI FLASH,PS 8GB DDR4, Expansion port is reserved at the PL end, which can expand 32GB DDR4,4x 100G optical fiber interface,4x ARM CORTEX-A53 + 2x ARM CORTEX-R5

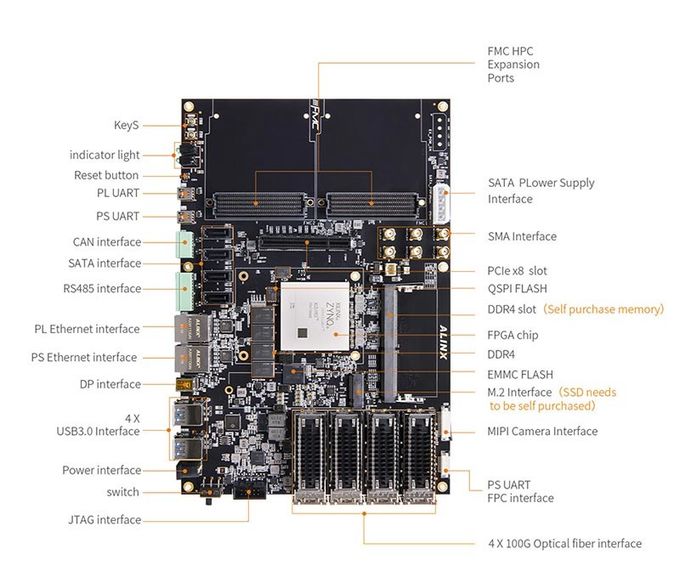

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core board
| FPGA Chip |
XCZU19EG--2FFVC1760I
|
| Chip CPU | 4x ARM Cortex-A53, 1.333GHz; Dual Core Cortex™-R5, 533MHz |
| Chip GPU | Mali™-400 MP2 |
| Chip level | Speed grade -2, industrial grade, working temperature -40°C~85°C |
| PS-end High Speed Connection | PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet |
| Logic Cells | 1,143K |
| Flip-Flops | 1,045K |
| eMMC FLASH | 32GB eMMC FLASH memory chip, users store operating system files or other user data |
| Voltage Input | +12V DC |
| Current Input | Max. Current 3A |
| Size | 165mm x 113.94mm |
Package List
| FPGA Board | 1 | DC Fan (Fixed on the Board) | 1 |
| Mini USB Cable | 1 | USB Downloader Cable | 1 Set |

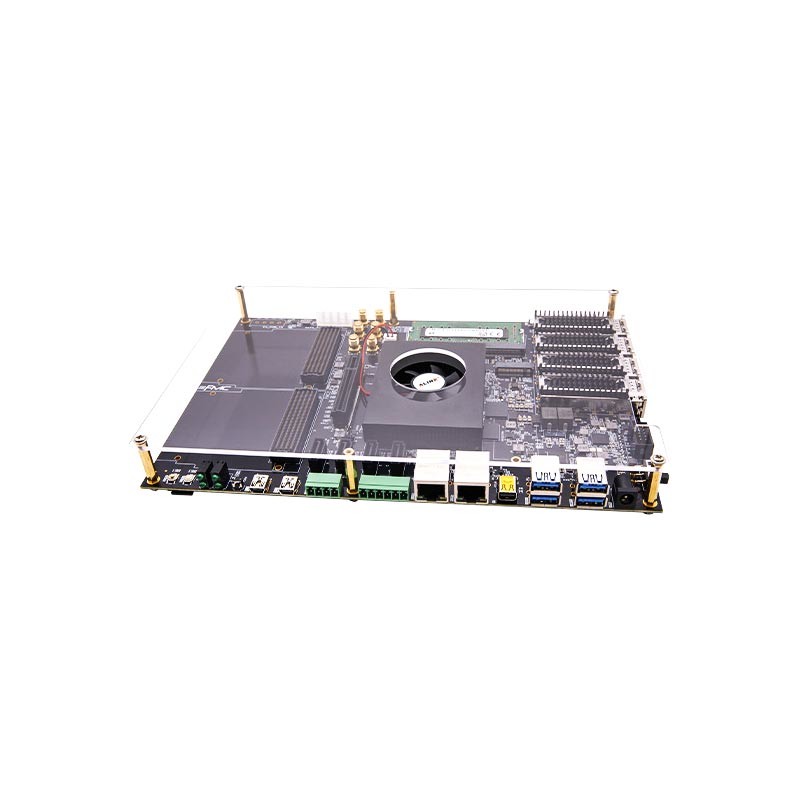

| 12V Power Adapter | 1 | Transparent Protection Board | 1 |
| TF Card | 1 | Card Reader | 1 |
