| Place of Origin: | China |
|---|---|
| Brand Name: | PLink |
| Model Number: | Y-C11-ONA8 |
| Minimum Order Quantity: | 1PCS |
| Price: | To be discussed |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | To be discussed |
| NAME: | Embedded PC Board With NVIDIA SBC 40 TOPS Jetson Orin Nano 8GB 900-13767-0030-000 Module For UAV Devemopment | Keyword: | Embedded PC Board With NVIDIA SBC 40 TOPS Jetson Orin Nano 8GB 900-13767-0030-000 Module For UAV Devemopment |
|---|---|---|---|
| Module: | Jetson Orin Nano 8G | AI Perf: | 40 TOPS |
| Memory: | 8GB 128-bit LPDDR5 | Operating System: | Ubuntu |
| Size: | 120mm*102mm*23mm | Temperature: | -20~+70°C |
| Weight: | 108g | Power: | DC +12V ～ +24V |
| High Light: | 40 TOPS Embedded Pc Board,900-13767-0030-000 Embedded Pc Board,UAV Devemopment Embedded Computer Boards |
||
Embedded PC Board with NVIDIA SBC 40 TOPS Jetson Orin Nano 8GB 900-13767-0030-000 Module for UAV Devemopment

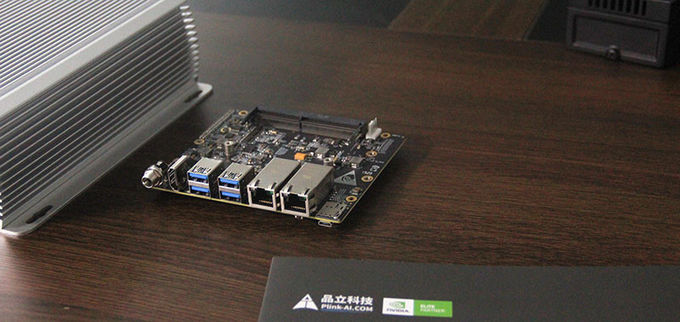

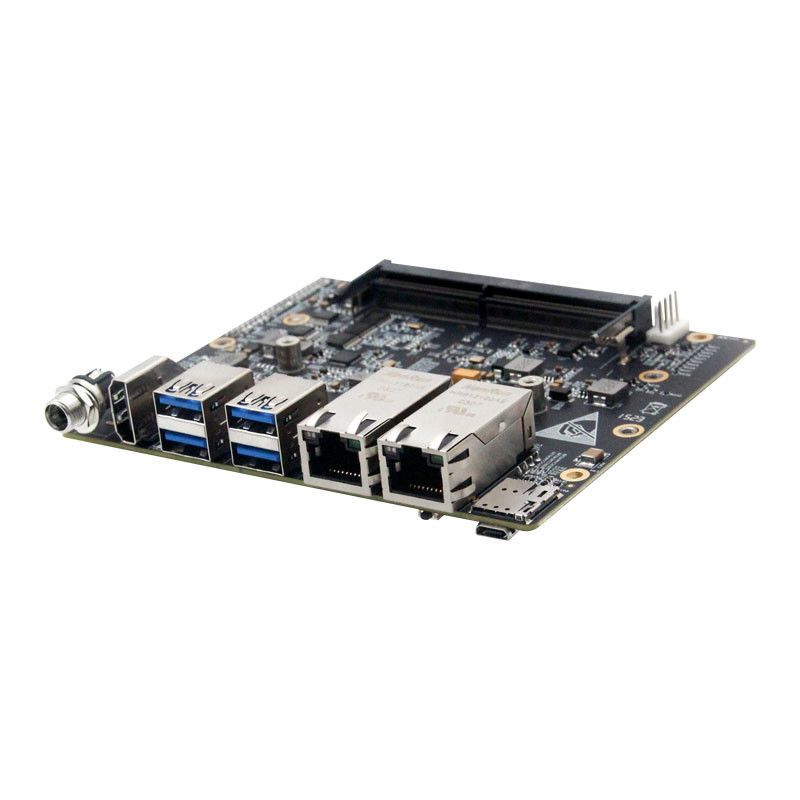

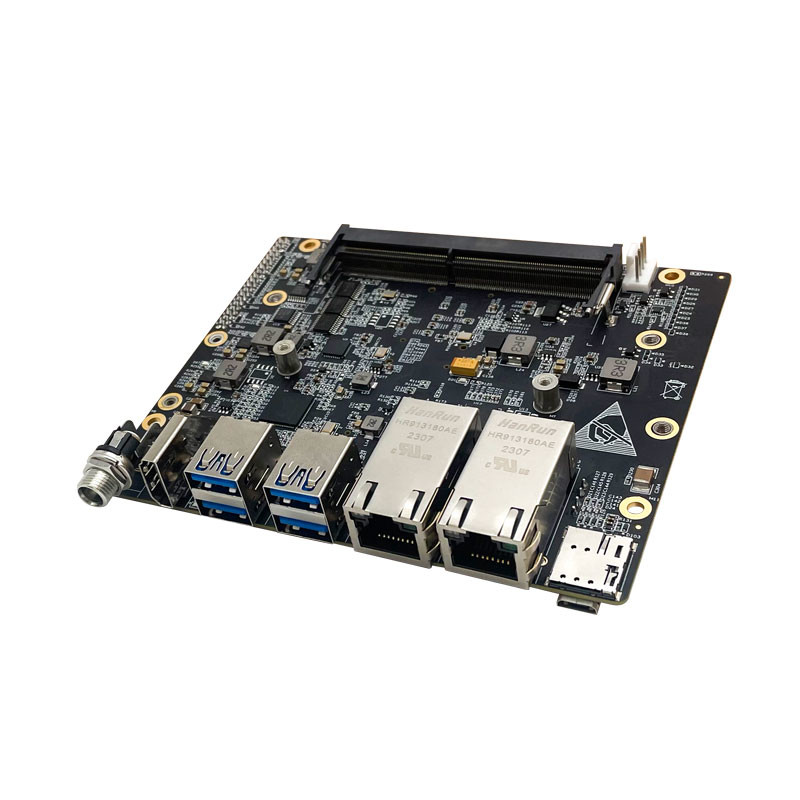

NVIDIA carrier board with Jetson Orin Nano 900-13767-0030-000 module development board Y-C11
Y-C11 is an industrial carrier board(embedded PB board) that can directly install 4G/5G communication module and extend POE power supply support. is for NVIDIA Jetson Orin Nano 8GB core module,and It adopts wide-temperature model, anti-falling power terminal, Type-B Micro-USB interface, which is used for system burning and OTG function output. Used to make the core module into the recovery mode, applied to multiple scenarios, such as smart cities, UAV, retail, logistics, manufacturing, garbage sorting, robotic arms, etc., is a multi-application industrial carrier board.
Jetson Orin Nano 8GB 900-13767-0030-000 Technical Specification
| Jetson Orin Nano 8GB | Jetson Orin Nano 4GB | |
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
|
CPU |
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3 |
|
|
Memory |
8GB 128-bit LPDDR5 |
4GB 64-bit LPDDR5 34 GB/s |
|
Storage |
- |
|
|
Camera |
Up to 4 cameras (8 via virtual channels***) |
|
|
Video Encode |
1080p30 supported by 1-2 CPU cores |
|
|
Video Decode |
1x 4K60 (H.265) |
|
|
Size |
120mm*102mm*23mm |
|
|
Weight |
108g |
|
|
Power Input |
DC +12V to +24V |
|
|
Operating temperature |
-20~+65℃ |
|
| USB 3.0 Type-A | 4 |
| micro USB | 1 |
| RJ45 | 2 |
| HDMI | 1 |
| MiniPCIe | 1 |
| M.2 2242 M key | 2 |
| M.2 3050 B key | 1 |
| 4 Lane MIPI camera | 2 |
| 40pin 2.0mm connector | 1 |
