| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C7-NANO |
| Minimum Order Quantity: | 1PCS |
| Price: | USD199-USD219\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | Development Carrier Mini Embedded PC Board For UAV NVIDIA Jetson Nano Y-C7 | Key Word: | Development Carrier Mini Embedded PC Board For UAV NVIDIA Jetson Nano Y-C7 |
|---|---|---|---|
| USB Type-C: | 1x Micro USB 1x USB Type-C 1x USB 2.0 | Board Storage: | 64GB EMMC |
| Expand Interface: | 1x MiniPCIE 1x M.2 Key M | RS-232 Level Serial Port: | X1 |
| 2 Lane MOPI Camera Interface FPC Connector: | X1 | Gigabit Ethernet（10/100/1000 BASE-T）Connector: | X1 |
| HDMI 2.0 Interface: | X1 | CAN Bus Interface: | X1 |
| Weight: | 40g | Board Size: | 80mm×60mm×8 Mm |
| Power Supply: | DC +9V~+24V | Temperature: | -40~+85℃ |
| High Light: | Jetson Embedded PC Board,NVIDIA Jetson Embedded PC Board,NVIDIA jetson development board |
||

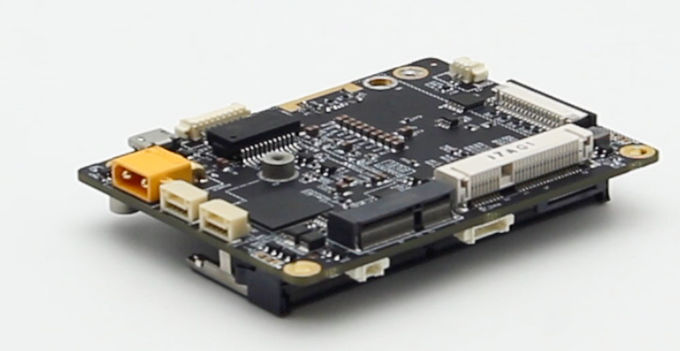

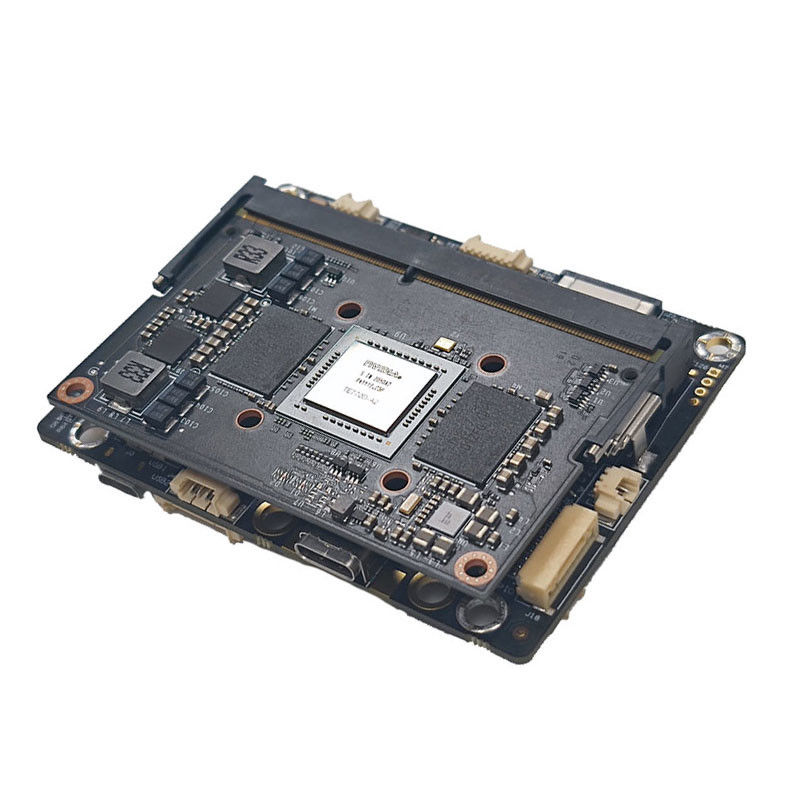

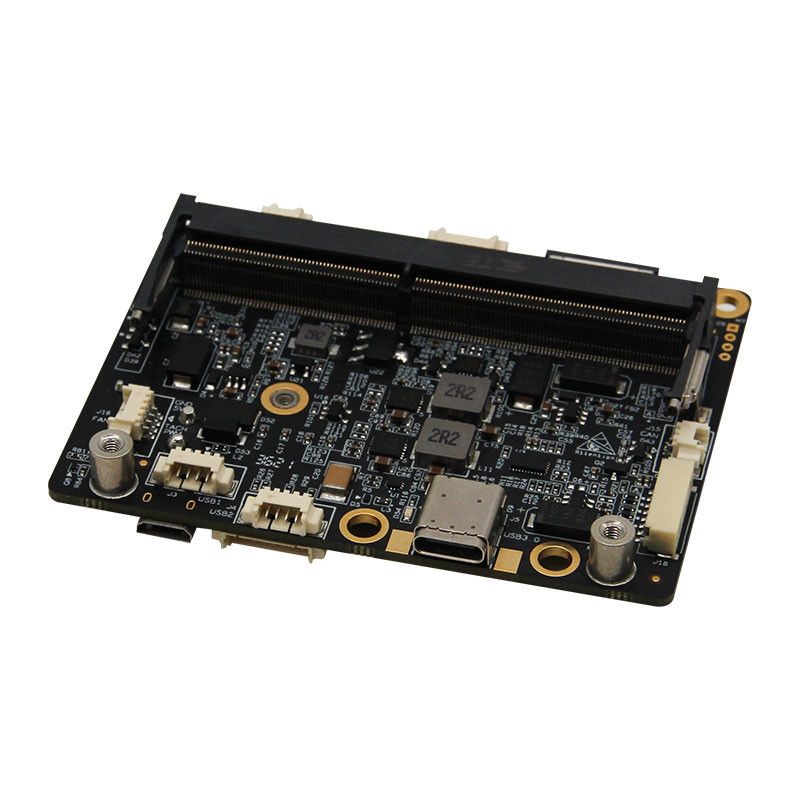

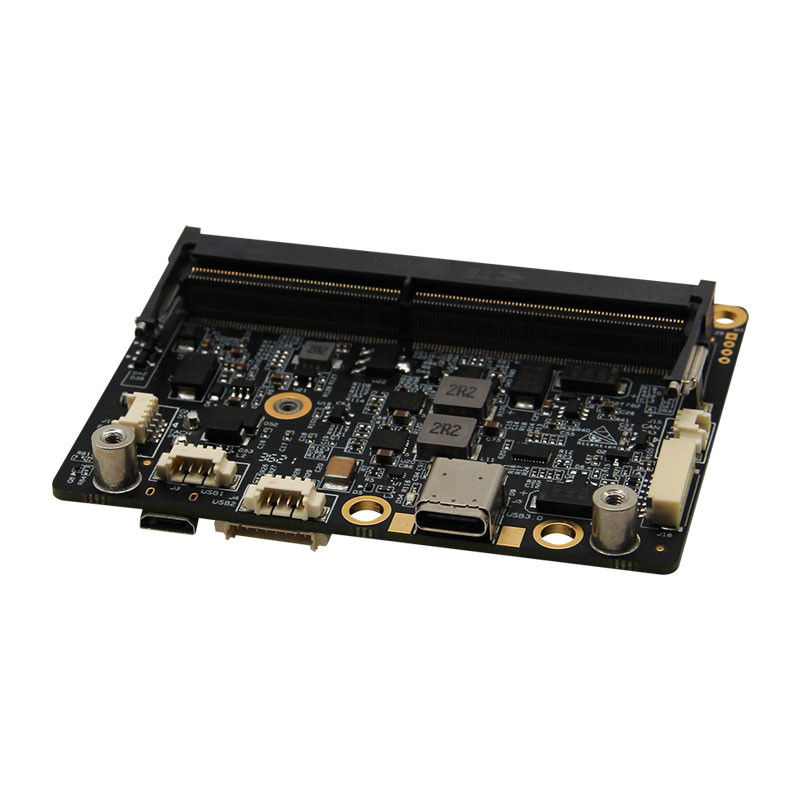

Development Carrier Mini Embedded PC Board For UAV NVIDIA Jetson Nano Y-C7
The Y-C7-Nano is an embedded system development board, it is also a mini carrier board, based on NVIDIA Jetson Nano Module, can carry hundreds of functional modules through 1 MiniPCIe connector and one M.2 E key connector to further expand the system functions. According to the seismic requirements of UAV and autopilot.
Board size: 80mm * 60mm * 16.8 mm
Power supply requirements: DC + 9V~ + 24V
Operating temperature: -40~ + 85°C
Weight: 40g
| M.2 Key M | 1 |
| USB 2.0 | 1 |
| Micro USB | 1 |
| HDMI 2.0 | 1 |
| USB3.1 Type-C | 1 |
| RJ45(10 / 100 / 1000 BASE-T) | 1 |
| CAN | 1 |
| MiniPCIe | 1 |
| RS-232 | 1 |
| Fan Control Interface | 1 |
| I2C(3.3V) | 1 |
| UART | 1 |
| GPIO(3.3V) | 3 |
| GPO(3.3V) | 1 |
*When the Y-C7 carrier board used with NVIDIA Jetson Nano module, the CAN bus interface function is unavailable and the M.2 connector is unavailable.
NVIDIA Jetson Nano Module Technical Specifications
| GPU | NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores 0.5 TFLOPs (FP16) |
| CPU | Quad-core ARM® Cortex®-A57 MPCore processor |
| Memory | 4 GB 64-bit LPDDR4 1600MHz - 25.6 GB/s |
| Storage | 16 GB eMMC 5.1 Flash |
| Camera | 12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps) |
| Connectivity | Wi-Fi requires external chip |
| 10/100/1000 BASE-T Ethernet | |
| Video Encode | 4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265) |
| Video Decode | 4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265) |
| UPYH | 1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0 |
| Display | HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous |
| I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs |
