| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C8-xavier |
| Minimum Order Quantity: | 1PCS |
| Price: | USD280-USD290\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier | Key Word: | PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier |
|---|---|---|---|

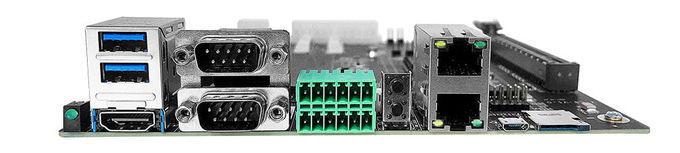

| USB Micro-B: | 2x USB 3.0 1x Micro USB | PCIe: | X16 PCIe Slot Supporting PCIe X8 |
| MiniPCIe: | 2x MPCIe | RJ45: | 2x RJ45 One Of The RJ45 Connector Needs |
| DisplayPort: | HDMI | Button: | 1x Recovery 1x Reset |
| M.2 Key M: | X2 | Serial Port: | 2x RS232 |
| Other I/O: | 2x CAN 4xGPIO 1x SPI 1x I2C | Power Supply: | DC +12V |
| Temperature: | -40~+85°C | Dimensions: | 170mm×170mm×34 Mm |
| Weight: | 260g | Module: | AGX ORIN/XAVIER |
| High Light: | PCIe Embedded Development board,Nvidia Embedded Development board,PCIe nvidia ai board |
||

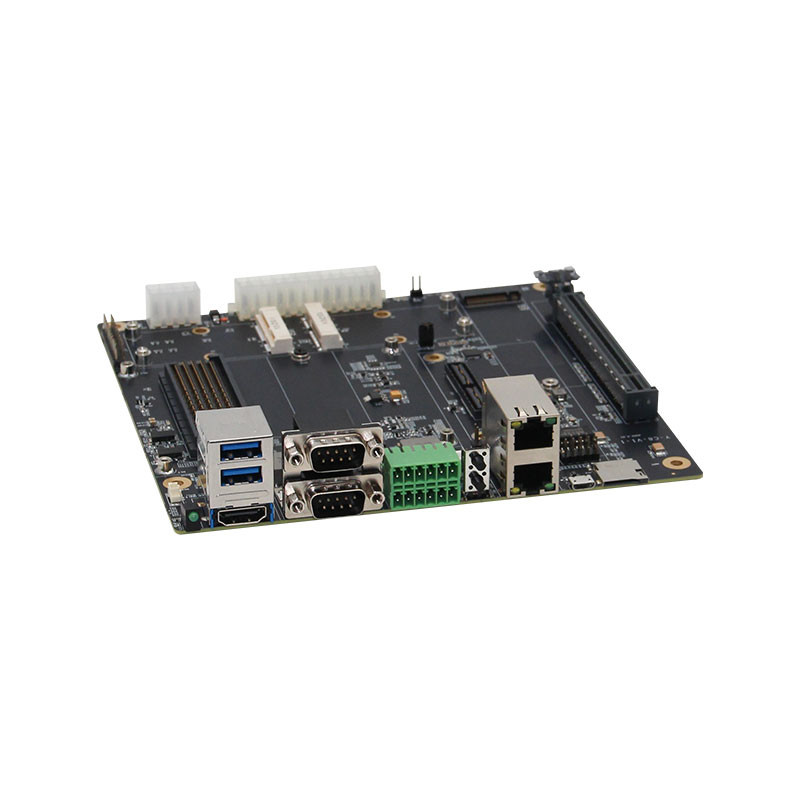

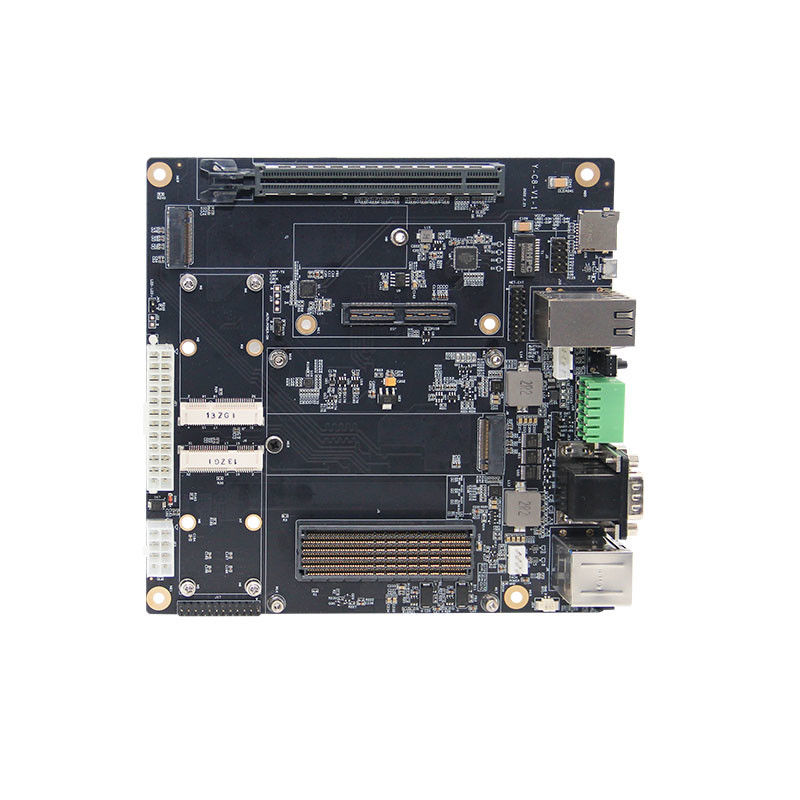

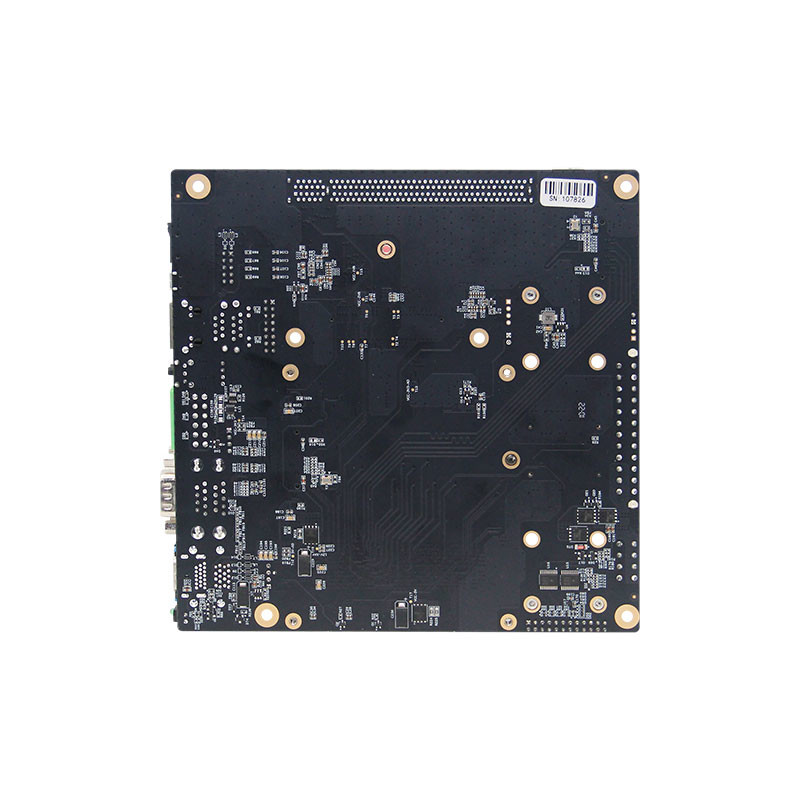

PCIe Card Slot V2X Nvidia AI Embedded Development Board AGX Xavier
The Y-C8 is a standard Mini-ITX Jetson carrier board with NVIDIA Jetson AGX Xavier module. it is for the industrial single board computer, the embedded development board can be used with PC, V2X, automation and mechanical arm etc,.
NVIDIA Jetson AGX Xavier module technical specifications
| Module | Jetson AGX Xavier 64GB | Jetson AGX Xavier 32GB | Jetson AGX Xavier Industrial |
| Ai Perf | 32 TOPS | 30 TOPS | |
| GPU | 512-core NVIDIA Volta architecture GPU with 64 Tensor Cores | ||
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | ||
| Memory | 64GB 256-bitLPDDR4x 136.5GB/s | 32GB 256-bitLPDDR4x 136.5GB/s | 32GB 256-bitLPDDR4x (ECC support) 136.5GB/s |
| Storage | 32GB eMMC 5.1 | 64GB eMMC 5.1 | |
| USB | 3x USB 3.2 Gen2 (10 Gbps) 4x USB 2.0 |
||
| Power | 10W - 30W | 20W - 40W | |
NVIDIA Jetson AGX Xavier Carrier Board Product Specifications
* 2x MiniPCIe Connector (52-pin)
* 2x M.2 Key M Slot (75-pin)
* 1x micro TF Connector
* 1x RTC Battery Socket
* 1x PCIe x16 Connector
* 1x Fan-Header (4-pin)
* System Power Indicator
NVIDIA Single Board Technical Specifications
| USB Micro-B | 1 x Type B (OTG) |
| USB Type-A | 1 x USB 3.1 |
| CPU | 8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3 |
| CPU Memory | 32GB 256-bit LPDDR4 x 136.5GB/s |
| GPU | 512-core NVIDIA Volta GPU with 64 Tensor Cores |
| Other I/O |
4 x GPIO(3.3V) | 1 x SPI(3.3V) | 2 x I2C(3.3V) | 2 x RS 232 | 1 x Debug(UART) 2 x CAN (with on-board transceiver) |
| Temperature | -40~+85°C |
| Networking | 1 x 10/100/1000 Ethernet/RJ45 |
| Power Supply | DC +12V |
| Product Size | 170mm×170mm×34 mm |
| Weight | 260g |
