Autopilot Jetson AGX Xavier Industrial Embedded PC Board Module

Autopilot Jetson AGX Xavier Industrial Embedded PC Board Module

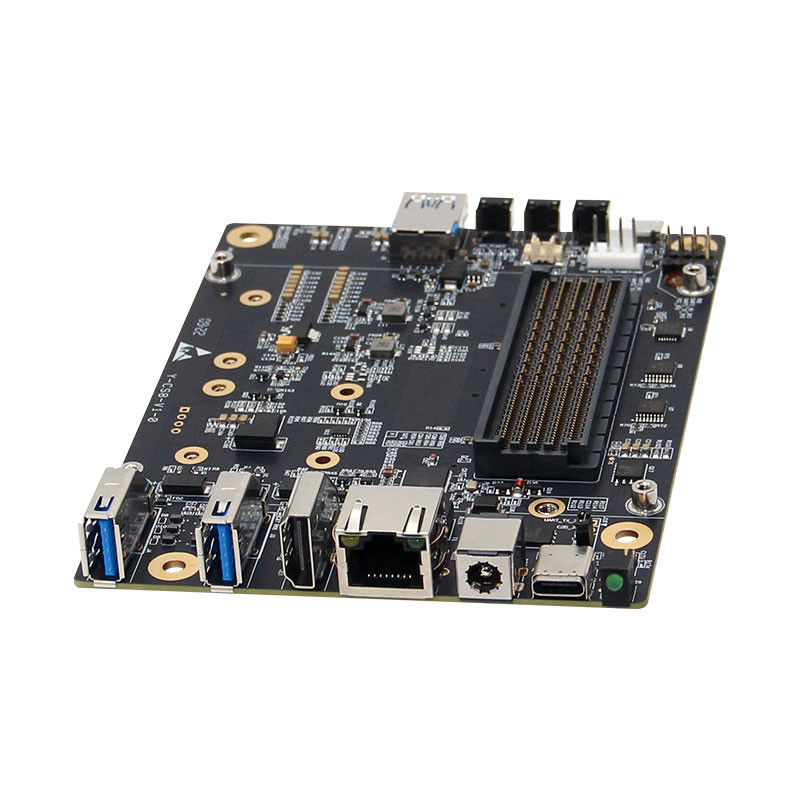

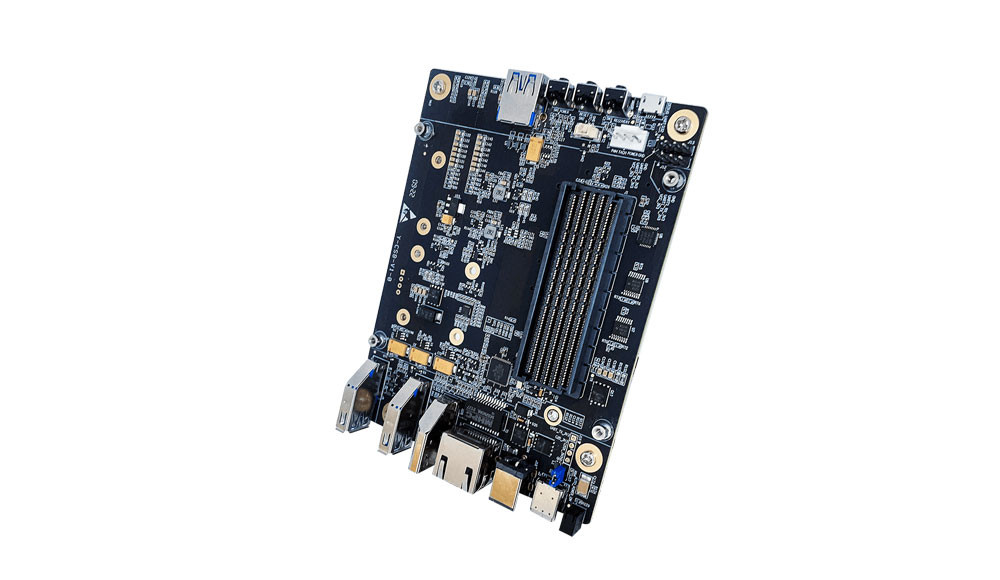

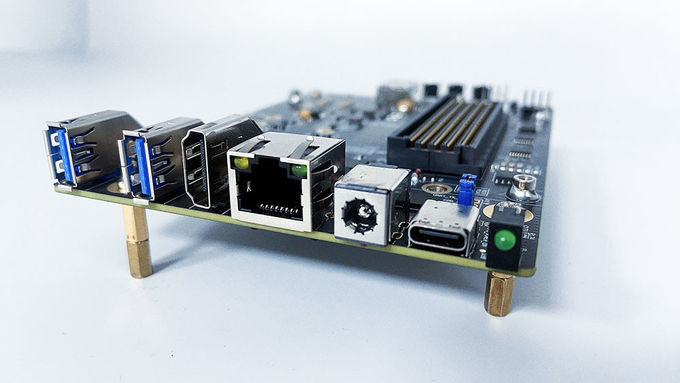

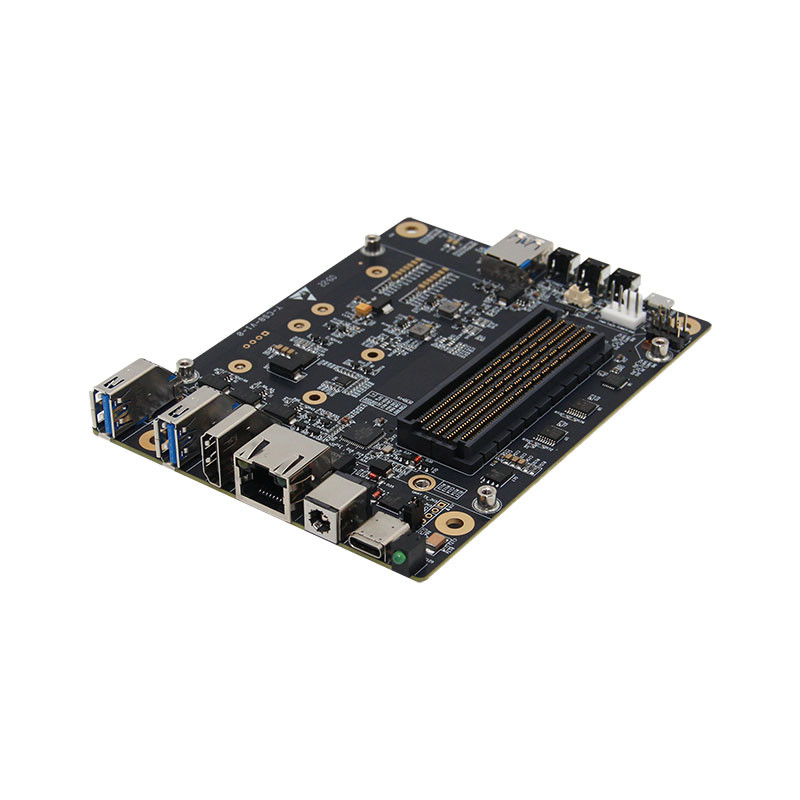

Embedded System Development Board NVIDIA Jetson AGX Xavier Industrial Carrier Board Y-C9-AGXi Development Board

NVIDIA Jetson AGX Xavier series modules integrate a 256-bit wide LPDDR4X memory interface implemented as eight 32-bit channels with x16 subpartitions. The memory controller provides a single read or write command and row address to both sub-partitions in thechannel to transfer 64 bytes, but provides three independent column address bits to each sub-partition, allowing it accessdifferent 32 byte sectors of a GOB between the sub-partitions. It provides connections between a wide variety of clients,supporting their bandwidth, latency, quality-of-service needs and any special ordering requirements that are needed. TheMSS supports a variety of security and safety features and address translation for clients that use virtual addresses.NVIDIA Jetson AGX Xavier series modules have two power inputs: 1) a 5V Regulator input and 2) a 9V - 20V input. Power isthen supplied to the devices on board through a power management IC (PMIC) and dedicated voltage regulators; all internalmodule voltages and IO voltages are generated from this input. An optional back up battery can be attached to the VCC_RTCmodule input (this will maintain the on system RTC, when VIN is not present). VIN must be supplied by the carrier board thatthe Xavier module is designed to connect to.
