| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | Y-C9-xavier |
| Minimum Order Quantity: | 1PCS |
| Price: | USD289-USD299\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board | Key Word: | Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board |
|---|---|---|---|
| Module: | AGX Xavier | USB Type-A: | 3x USB 3.0 |
| USB Type-C: | 1x USB Type-C | MiniPCIe: | 2x MPCIe |
| Serial Port: | 2x 3.3V TTL | Button: | 1x Power 1x Recovery 1x Reset |
| DisplayPort: | HDMI | M.2 Key M: | X1 |
| Tempreture: | -40~+85℃ | Board Size: | 136 Mm×100 Mm×20 Mm |
| Power Supply: | DC +12V | Weight: | 112g |
| High Light: | PCIe Embedded PC Board,AGX Embedded PC Board,Xavier jetson carrier board |
||

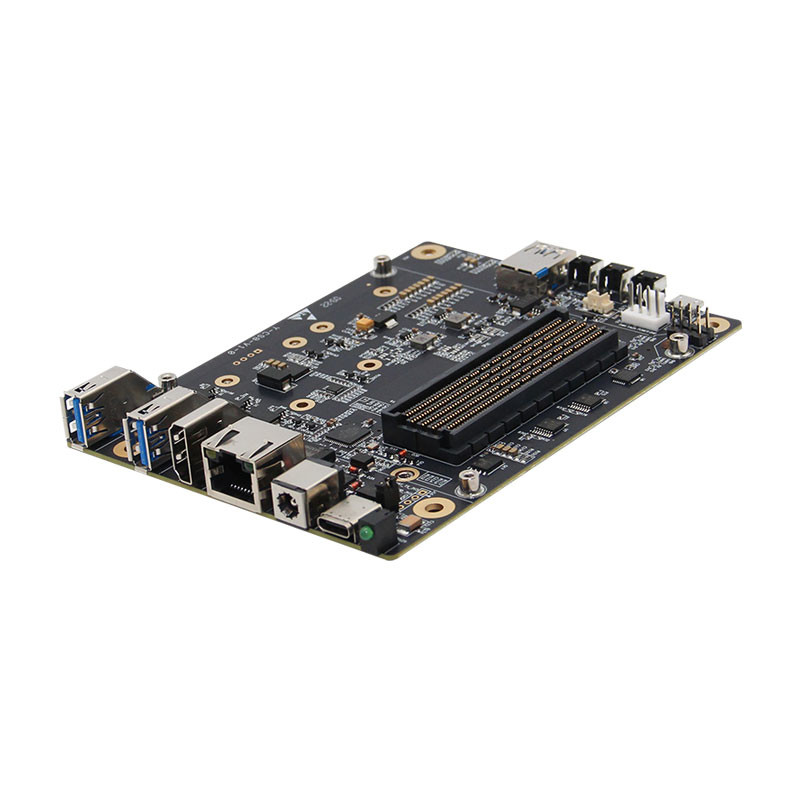

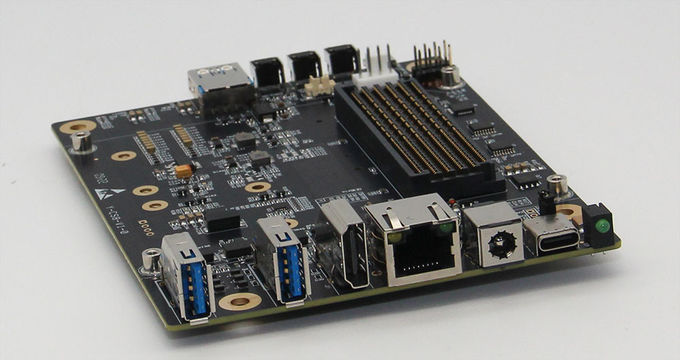

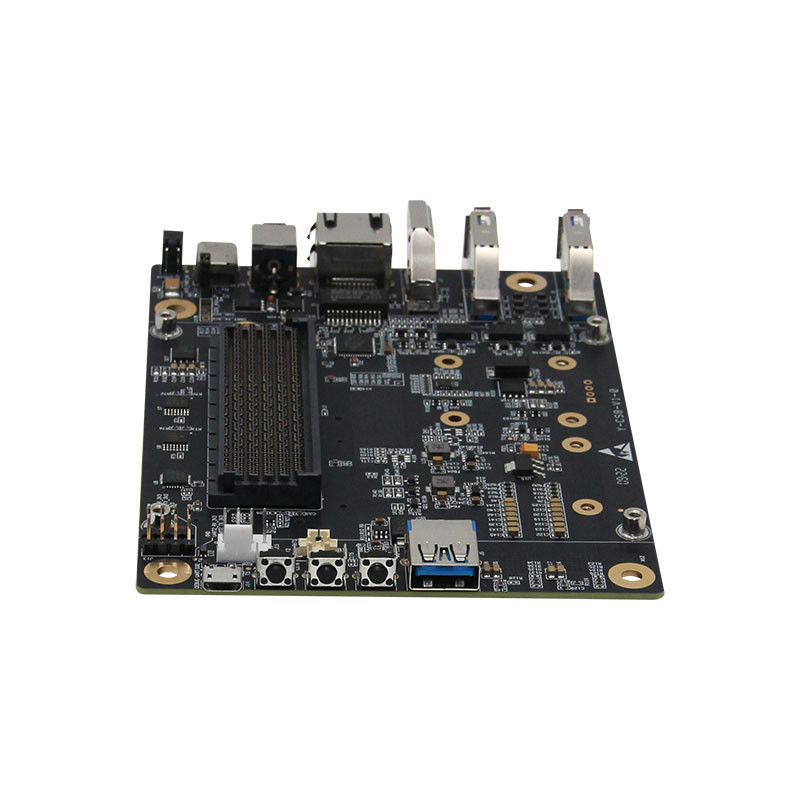

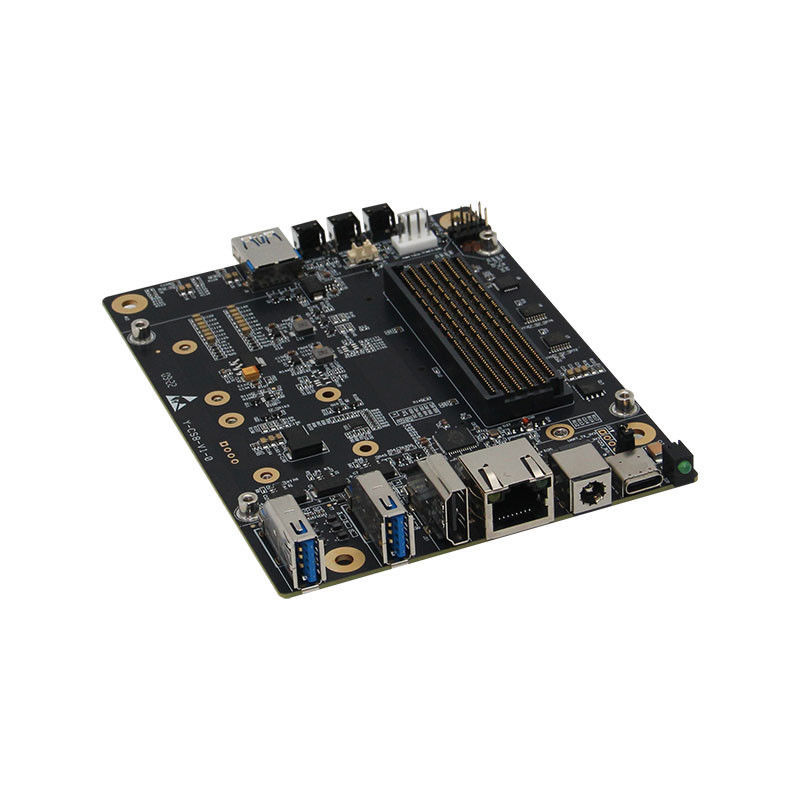

Intelligent PCIe Embedded PC Board AGX Xavier Jetson Carrier Board
The Y-C9 Development board is with NVIDIA Jetson AGX Xavier module, it can carry hundreds of functional modules through 2 Mini PCIe connectors to further expand the system functions. it's a small Jetson carrier board which is for intelligent face recognition and autopilot etc.
|
Product Name |
Y-C9-Xavier |
| Module | NVIDIA Jetson AGX Xavier |
| AI Performance | 32 TOPS |
| Memory | 32GB 256-bit LPDDR4x 136.5GB/s |
| GPU | NVIDIA Volta architecture with 512 NVIDIA CUDA cores and 64 Tensor cores |
| Vision Accelerator | 2x PVA |
| CPU | 8-core NVIDIA Carmel Armv8.2 64-bit CPU 8MB L2 + 4MB L3 |
| DL Accelerator | 2x NVDLA |
| Storage | 32GB eMMC 5.1 |
| Networking | 10/100/1000 BASE-T Ethernet |
| Input Power | DC +12V |
| Serial port | 2* 3.3V TTL |
| Port | 2* miniPCIE 1* M.2 Key M |
| USB Connector | 3* USB 3.0 1* USB Type-C |
| Display | 1* HDMI |
| Temperature Range | -40°C ~ 85°C |
| Size | 136mm × 100mm ×20mm |
| Weight | 112g |
