| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | nano-02 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD55\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano | Key Word: | Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano |
|---|---|---|---|
| Temperature: | 0~+50℃ | Camera: | 2x MIPI CSI-2 DPHY Lanes |
| Mechanical: | 100 Mm X 80 Mm X 28 Mm | USB: | USB 3.0 × 4、USB 2.0 OTG × 1 |
| IO: | 40PIN GPIO | Power Supply: | DC + 9V |
| Display: | HDMI/DP | Other: | FAN Header (GPIO，I2C，I2S，SPI，UART) |
| High Light: | HDMI Embedded PC Board,Jetson Nano Embedded PC Board,nvidia developer board Replacement |
||

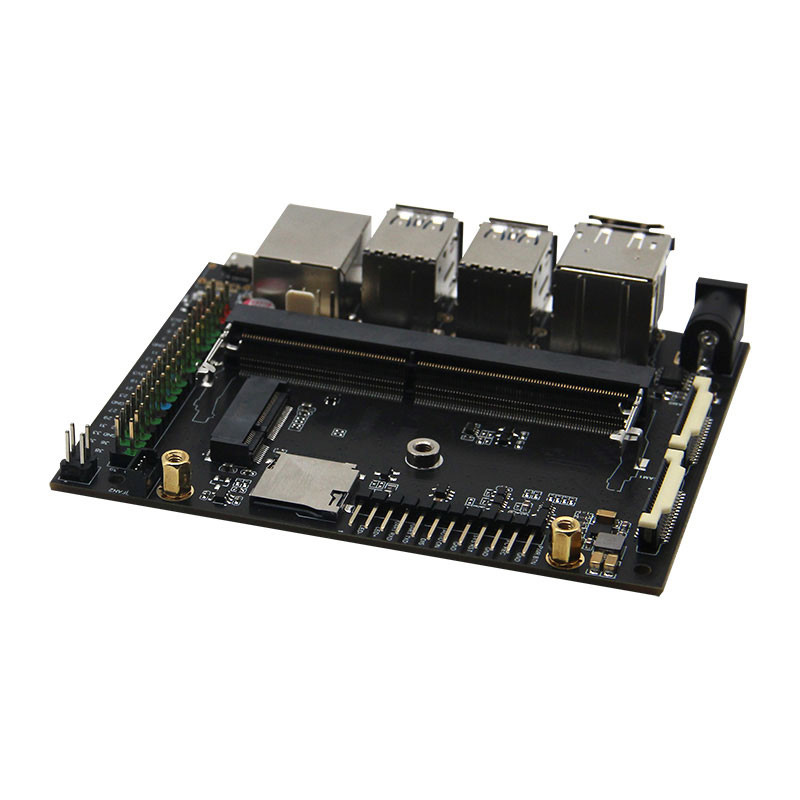

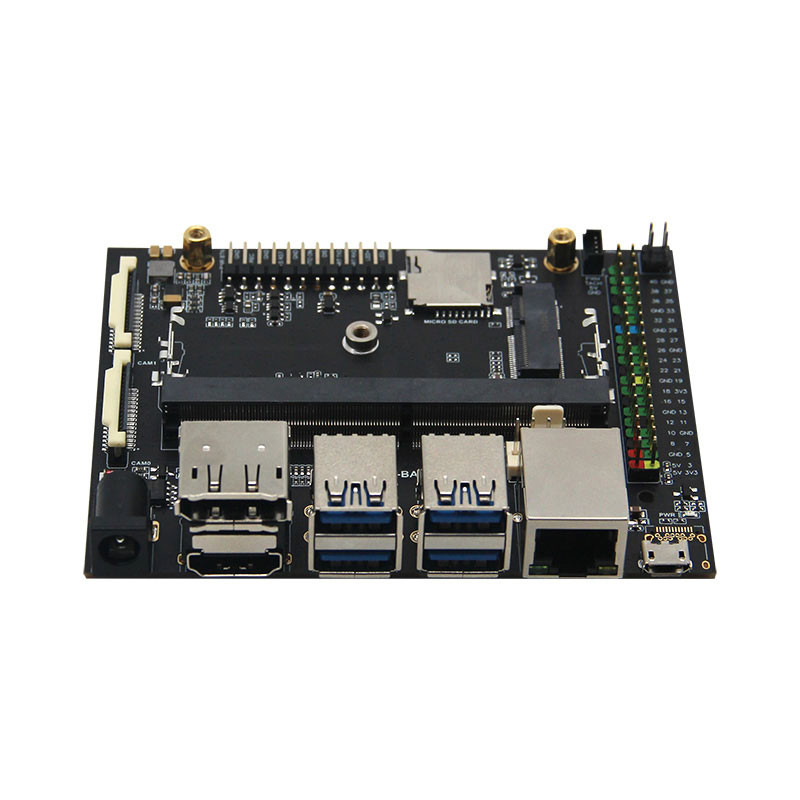

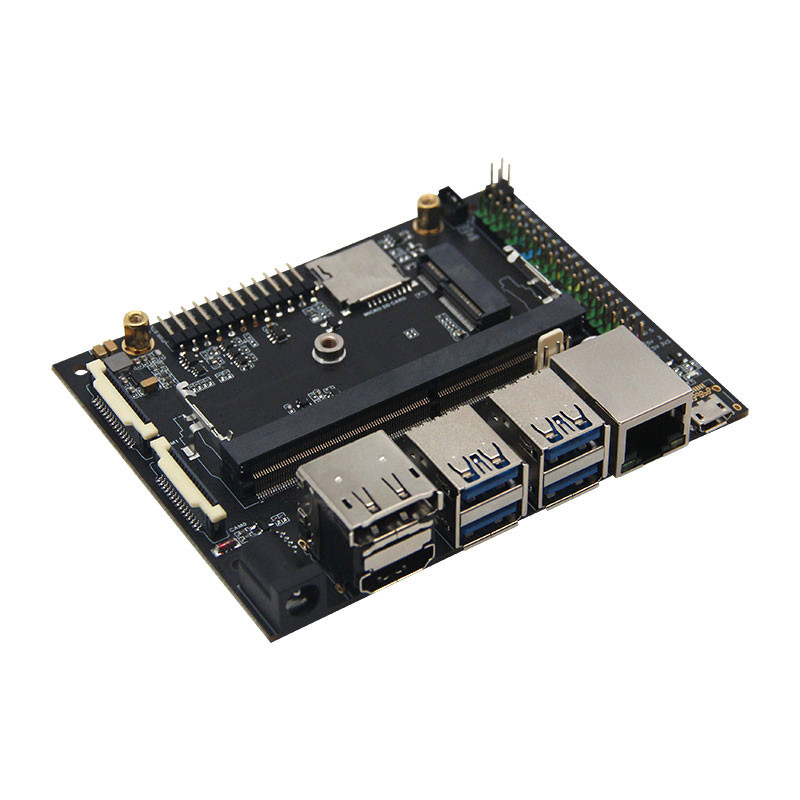

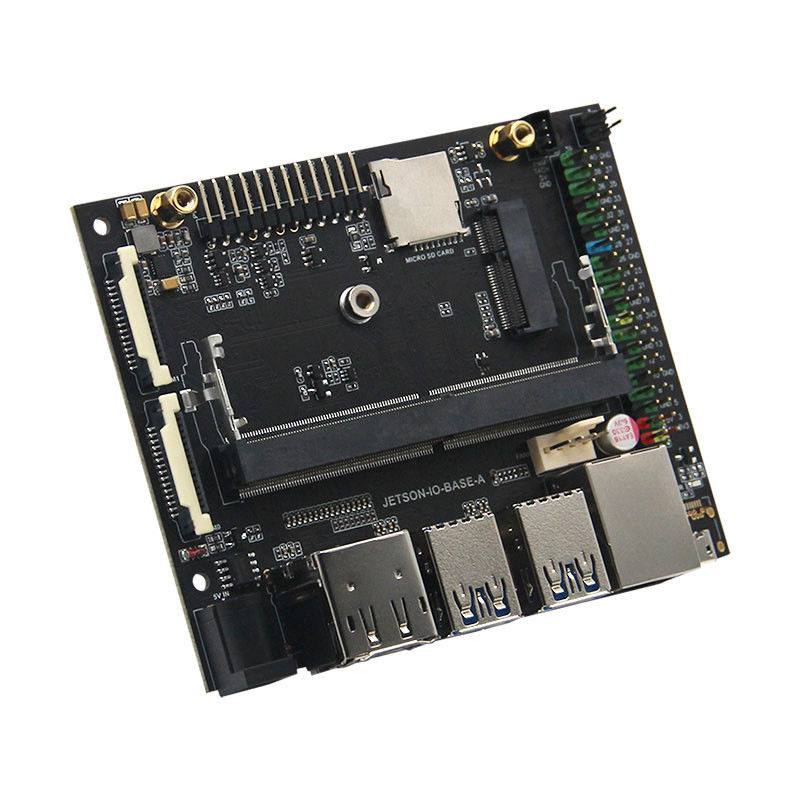

Original Replacement HDMI Nvidia Developer Embedded PC Board Jetson Nano
Jetson Nano 4GB Domestic Carrier Board For industrial single board computer

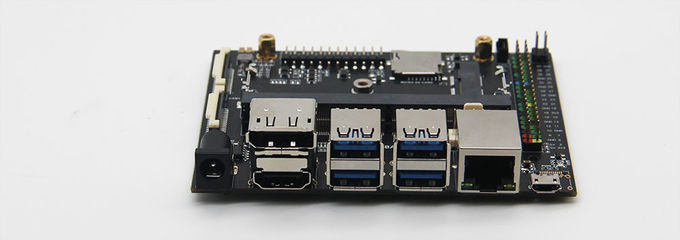

Jetson Nano 4GB Domestic Carrier Board is the replacement of NVIDIA Jetson Nano development board, it is based on NVIDIA Jetson Nano module, for industrial embedded PC such like face recognition tec,.
Micro SD card slot
40PIN GPIO
The Micro USB port can be used for 5V power input or USB data transfer
Gigabit Ethernet(10/100/1000 BASE-T) connector
USB 3.0 ports
HDMI interface
DP interface
DC power port used for 5V power input
MIPI CSI cameras Interface Function Supported
Jetson Nano embedded nvidia development board Technical Specifications
| CPU | Quad-core ARM A57 @ 1.43 GHz |
| GPU | 128-core NVIDIA Maxwell™ |
| Memory | 4GB 64-bit LPDDR4 25.6GB/s |
| Storage | 16GB eMMC 5.1 /microSD |
| Video Encode | 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) |
| Video Decode | 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) |
| Expand the storage | Support M.2 E key NVME hard disk |
| Camera | 2x MIPI CSI-2 DPHY lanes |
| Display | HDMI and DP |
| USB | 4x USB 3.0, 1x USB 2.0 OTG |
| I/O | 40PIN GPIO |
| Other | FAN Header (GPIO,I2C,I2S,SPI,UART) |
| Mechanical | 100 mm x 80 mm x 18 mm |
