| Place of Origin: | China |
|---|---|
| Brand Name: | PLINK |
| Model Number: | NX-03 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD90\PCS |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | In stock |
| NAME: | 40PIN Embedded Nvidia Single Board Jetson Tx2 4gb Module Replacement | Key Word: | 40PIN Embedded Nvidia Single Board Jetson Tx2 4gb Module Replacement |
|---|---|---|---|
| Temperature: | -0~+50℃ | Camera: | 2x MIPI CSI-2 DPHY Lanes |
| Mechanical: | 91 Mm X 104 Mm X 35 Mm | USB: | USB 3.0 × 4、USB 2.0 OTG × 1 |
| IO: | 40PIN GPIO | Power Supply: | DC + 9V |
| Display: | HDMI/DP | Other: | FAN Header (GPIO，I2C，I2S，SPI，UART) |
| Module: | Jetson Xavier NX | WIFI: | Externally Accessible |
| High Light: | 40PIN nvidia single board,Embedded nvidia single board,Nvidia jetson tx2 4gb module |
||

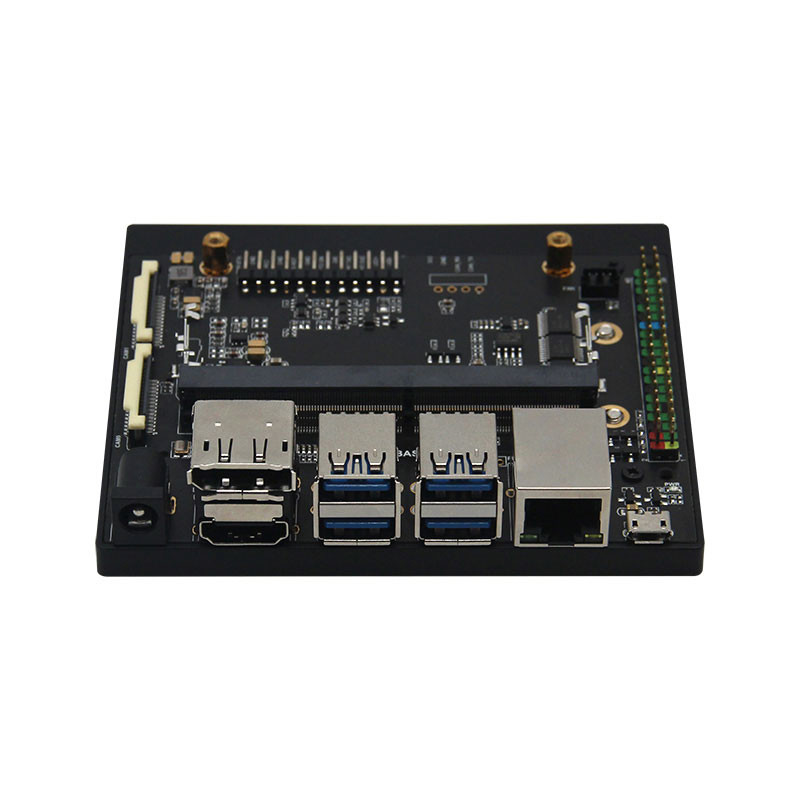

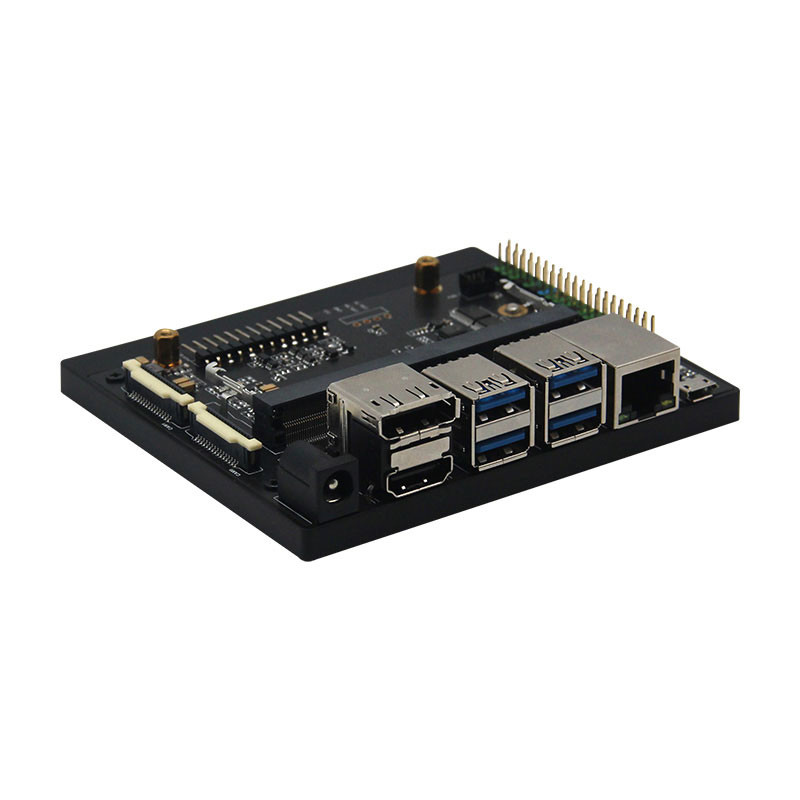

40PIN Embedded Nvidia Single Board Jetson Tx2 4gb Module Replacement
Jetson Xavier NX Domestic Carrier Board Xavier NX development board

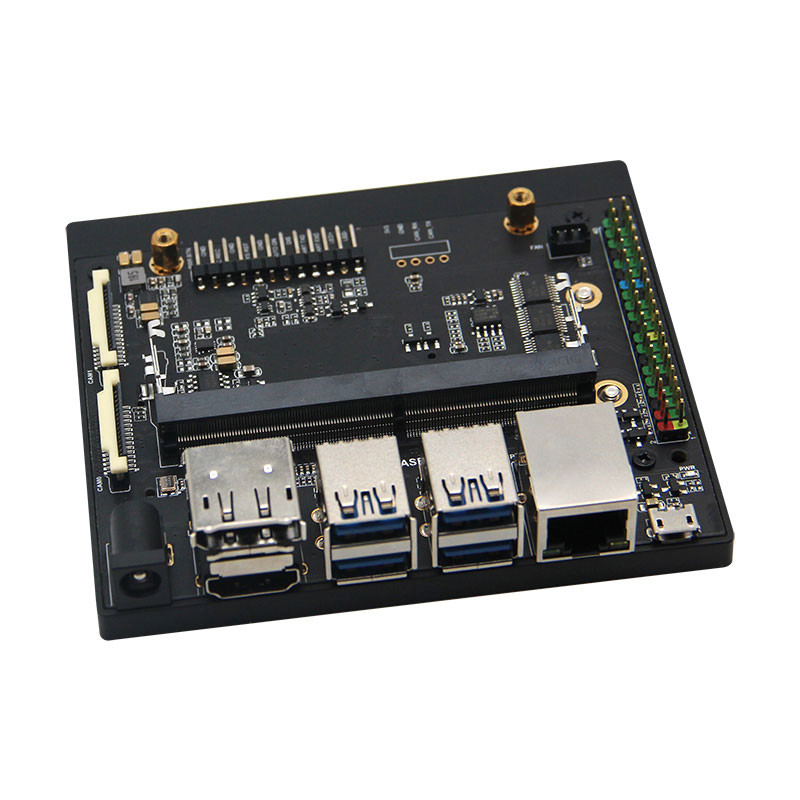

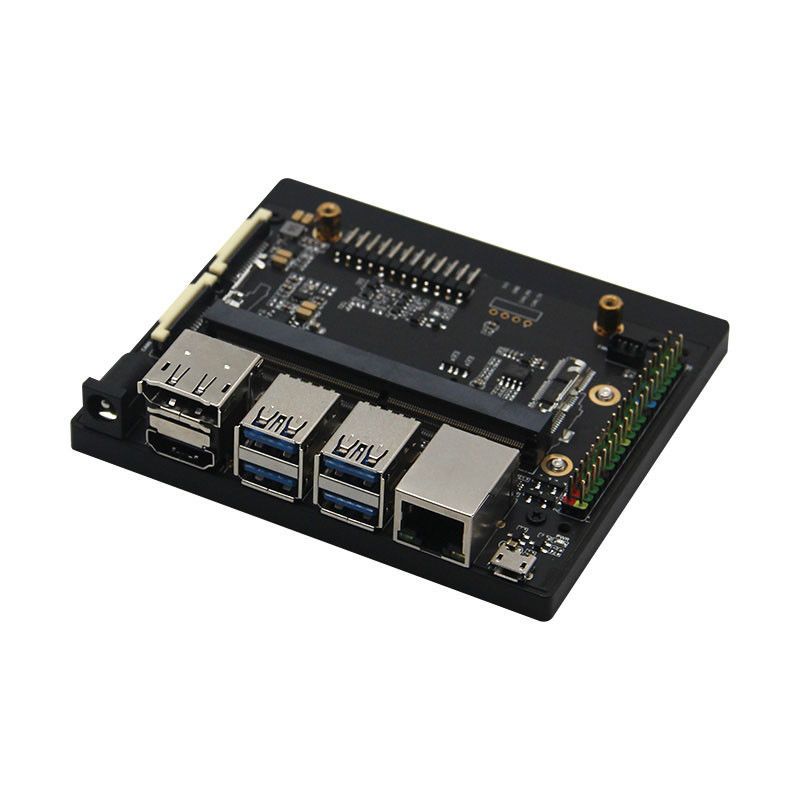

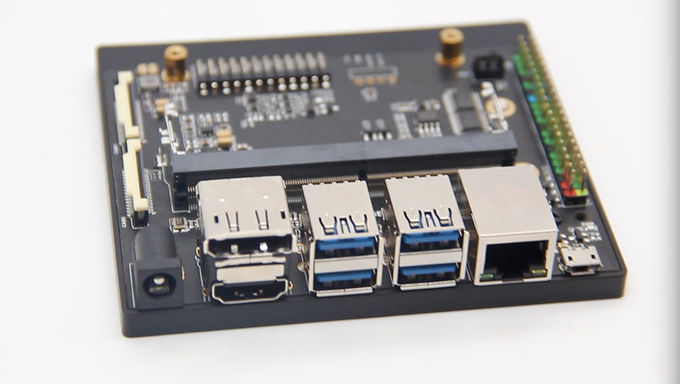

The interface display
NVIDIA Jetson Xavier NX module
40PIN GPIO
The Micro USB port can be used for 5V power input or USB data transfer
Ethernet(10/100/1000 BASE-T) connector
USB 3.0 ports
HDMI interface
DP interface
DC power port used for 12~21V power input
MIPI CSI cameras Interface Function
FAN interface
Jetson Xavier NX Carrier Board Technical Specifications
| AI Perf | 21 TOPS |
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores |
| Memory | 16/8 GB 128-bit LPDDR4x 59.7GB/s |
| Storage | 16 GB eMMC 5.1 |
| Video Encoder | 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264/H.265) |
| Video Decoder | 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| Camera | 2x MIPI CSI-2 DPHY lanes |
| Display | HDMI and DP |
| USB | 4x USB 3.0, 1x USB 2.0 OTG |
| I/O | 40PIN GPIO |
| Other | FAN Header (GPIO,I2C,I2S,SPI,UART) |
| Mechanical | 104 mm x 90 mm x 26 mm |
The Jetson Xavier NX is available in 8GB and 16GB versions. Please purchase on demand
| Jetson Xavier NX domestic Board | Jetson Xavier NX official Board | |
| CPU | 6-core NVIDIA Carmel ARM v8.2 64-bit CPU 6MB L2 + 4MB L3 | |
| GPU | 384-core NVIDIA Volta GPU with 48 Tensor Cores | |
| Memory | 16/8 GB 128-bit LPDDR4x 59.7GB/s | |
| Storage |
16GB eMMC
Expandable M.2 hard disk
|
No storage medium
Expandable M.2 hard disk
|
| Camera | 2x MIPI CSI-2 DPHY lanes | |
| Display | HDMI and DP | |
| USB | 4x USB 3.0, 1x USB 2.0 OTG | |
| Mechanical | 104 mm x 90 mm x 26 mm | |
NVIDIA Jetson Xavier NX official Board and Jetson Xavier NX domestic self-developed Board are basically the same in motherboard performance, onboard resources, size, interface layout, the difference is only in the domestic version of 16G eMMC storage, no TF card can be convenient to start the motherboard.

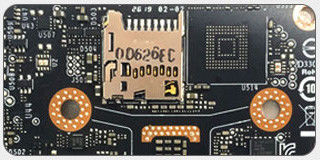

NVIDIA Jetson Xavier NX official module
No storage medium, it needs TF card to burn and start the system. TF card will be purchased separately

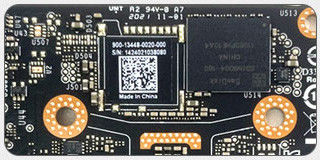

Jetson Xavier NX domestic module
Jetson Xavier NX development board comes with 16G eMMC, which can write system and start equipment directly without inserting TF card.
